Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI)

Export reference
MSRP N/A
Transmission: Fast Gear
Wheelbase:: 2100+2750+1350mm
Tire Size:: 1.1E+21
engine:: YuchaiYCK08350-60
Rear Axle Ratio:: 5.262
Origin:: Wuhu, Anhui
Drive 8X4 (12 wheels)
Horsepower 350
Emission China VI
Fuel Diesel

Overview

The Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI) is a Heavy truck featuring 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYCK08350-60 engine, 350 hp, China VI emissions and Fast Gear transmission.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 8X4
Wheelbase: 2100+2750+1350mm
engine: YuchaiYCK08350-60
transmission: Fast Gear9JSD150T-B
Rear Axle Ratio: 5.262
Origin: Wuhu, Anhui
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK08350-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1450N·m
Max torque speed: 1300-1500rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear9JSD150T-B
Transmission Brand: Fast Gear
Forward gears: 9Gear
Number of Reverse Gears:
Chassis Specs
Frame Dimensions: 300×80×7+5mm
rear axle description: HandeMAN237
Axle ratio: 5.262
Leaf spring count: 3/3/4
Tire
Tire Size: 1.1E+21
Number of tires: 12pcs

Photos

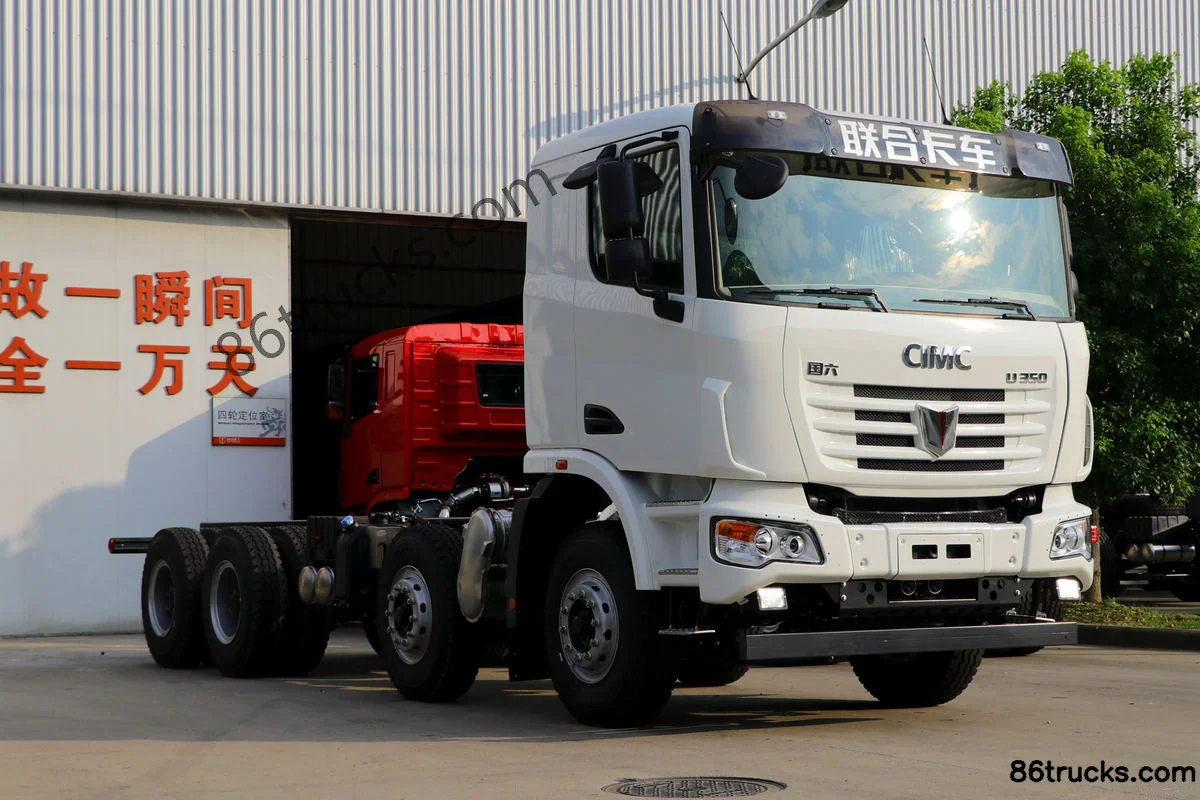

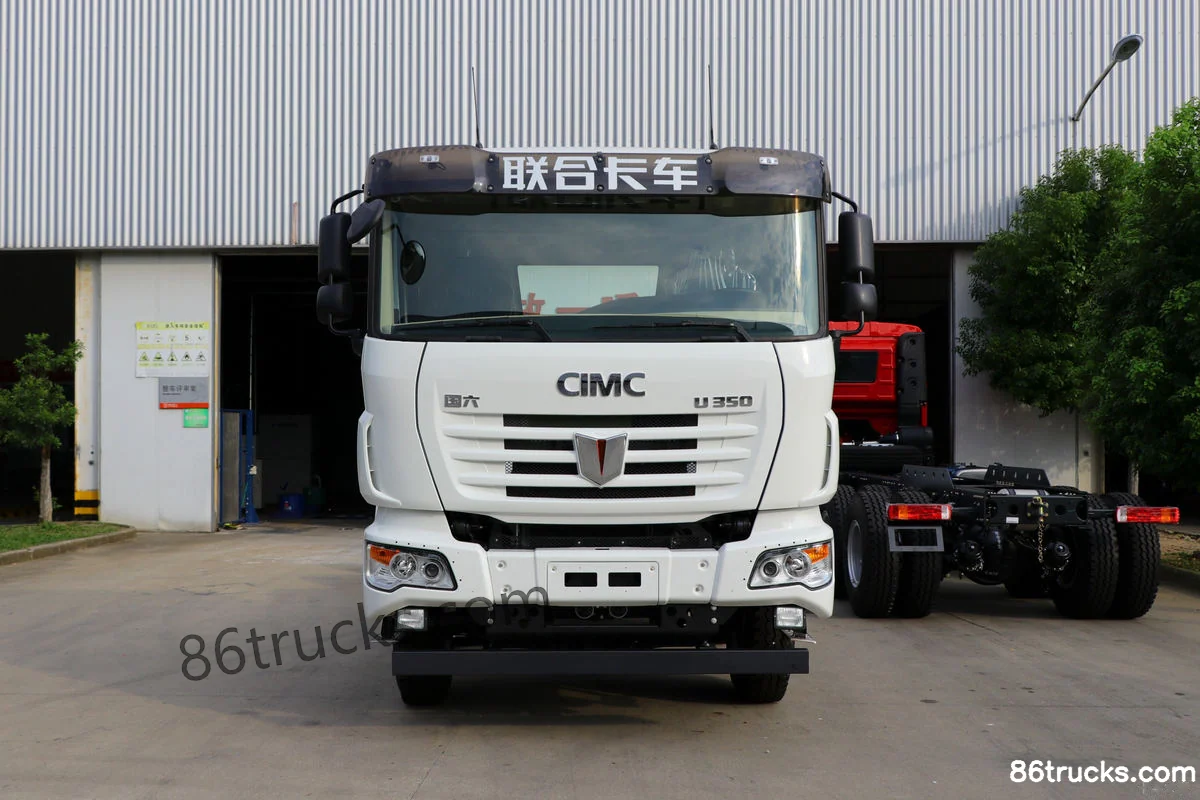

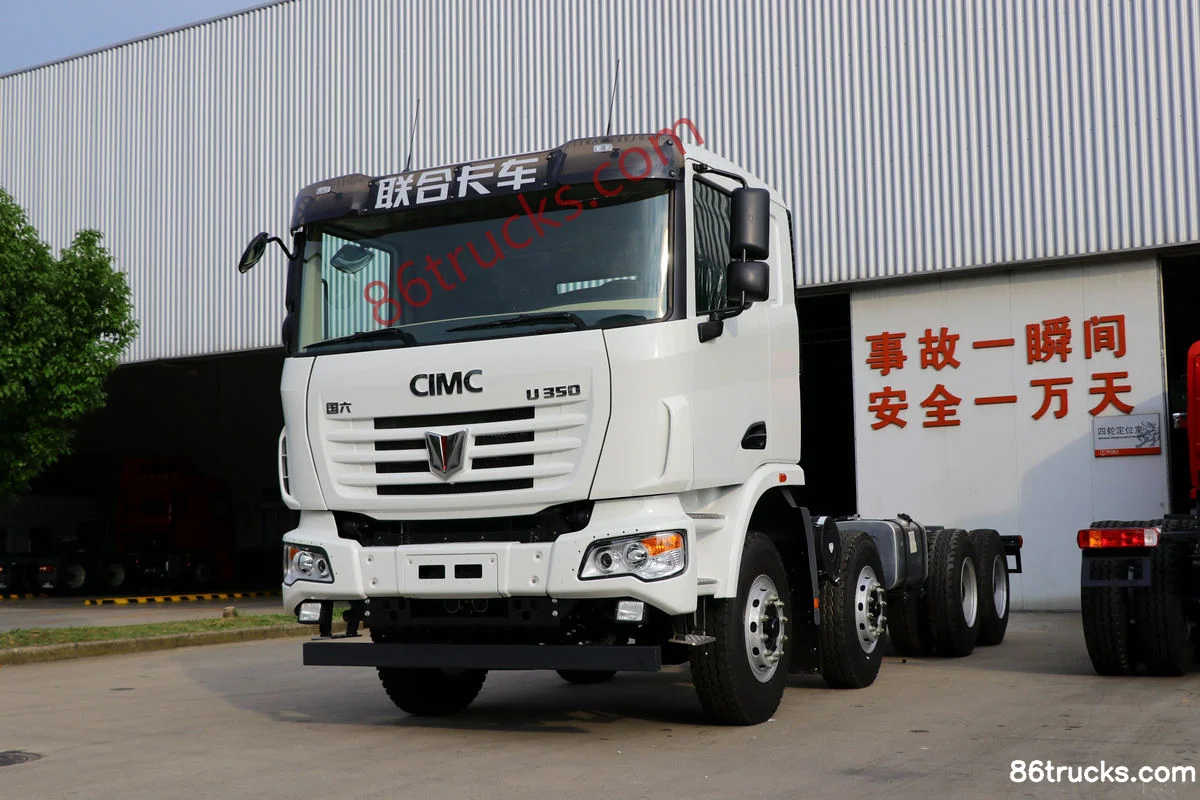

Exterior3

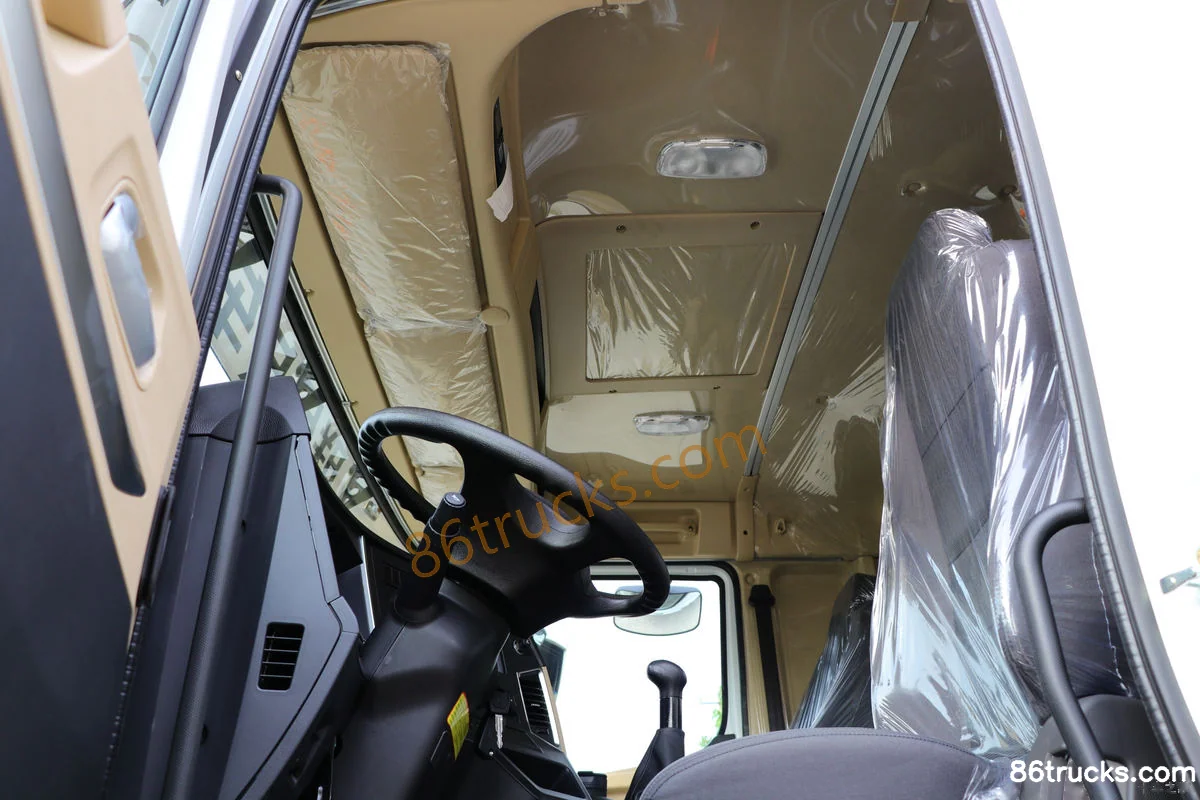

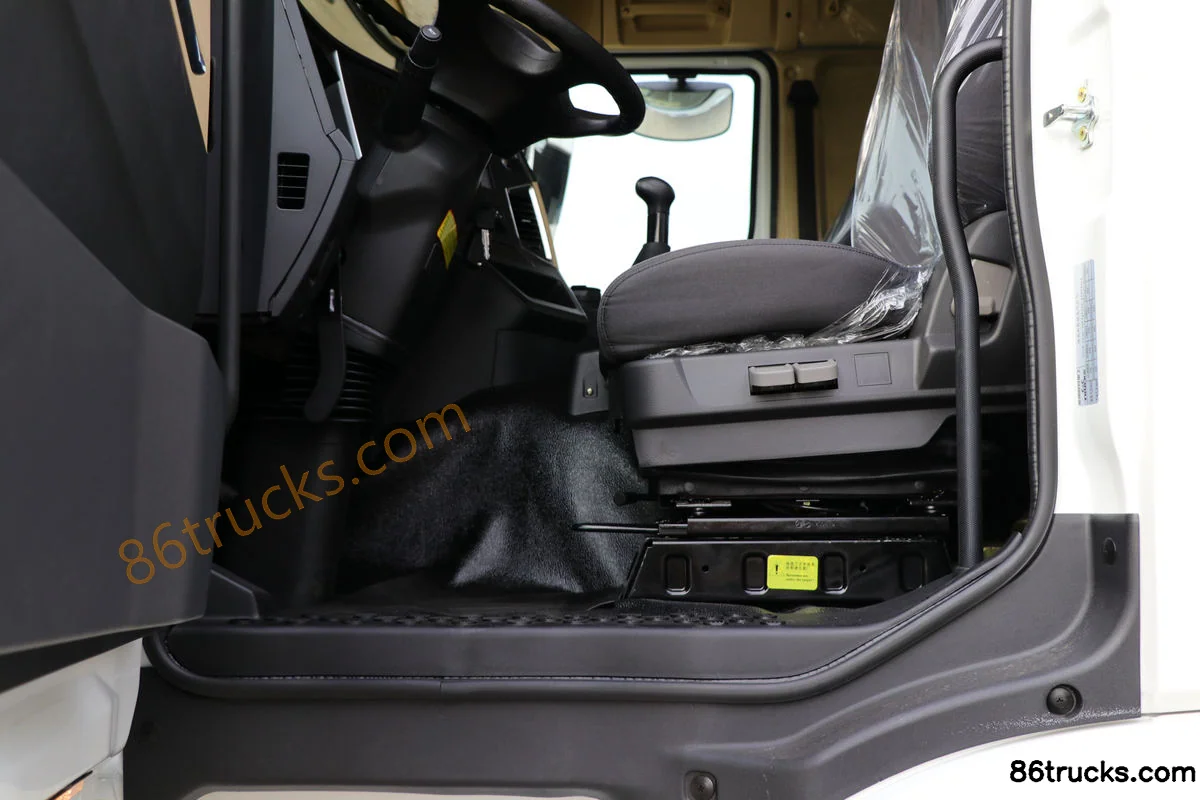

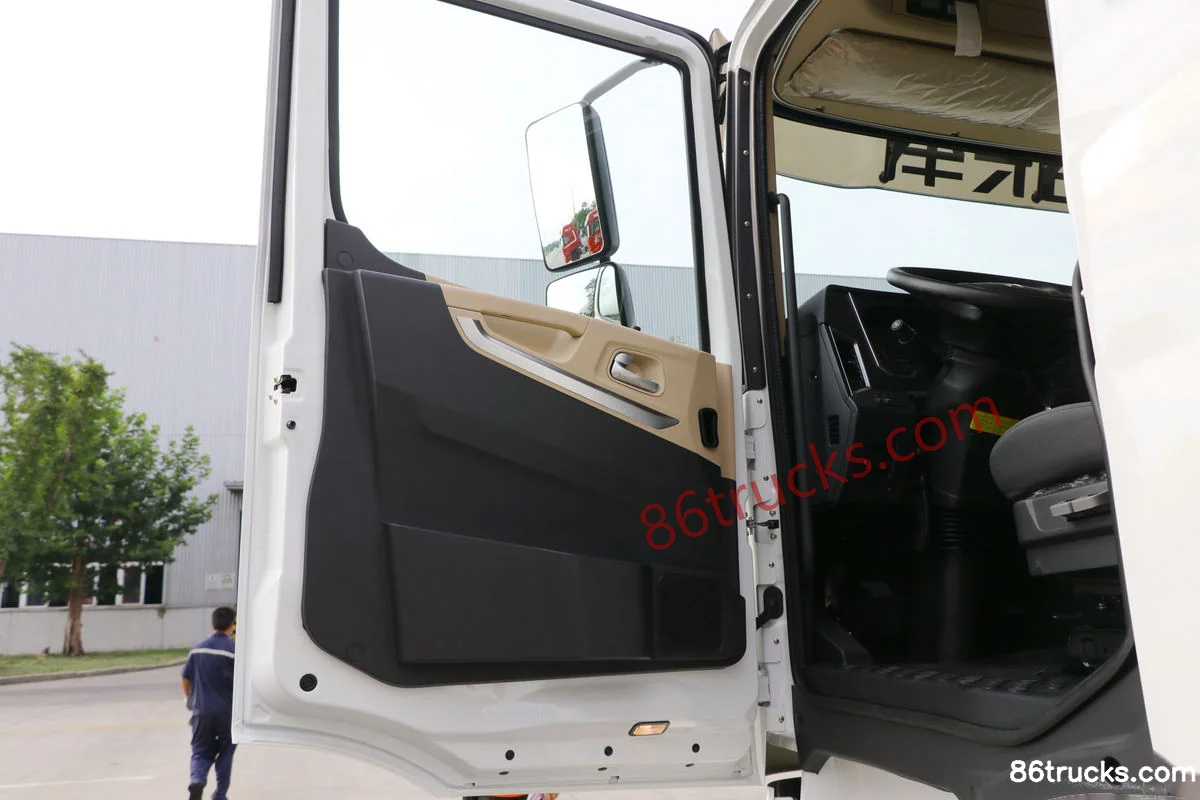

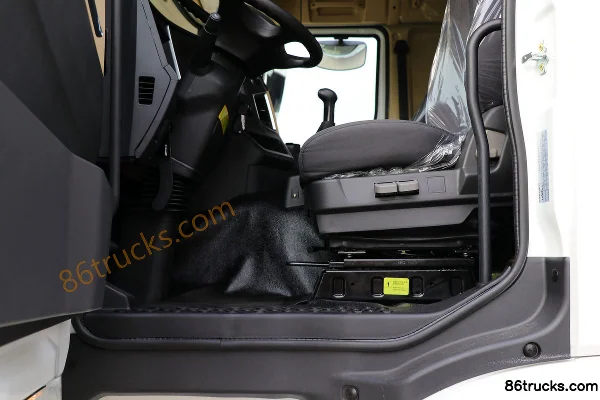

Cab3

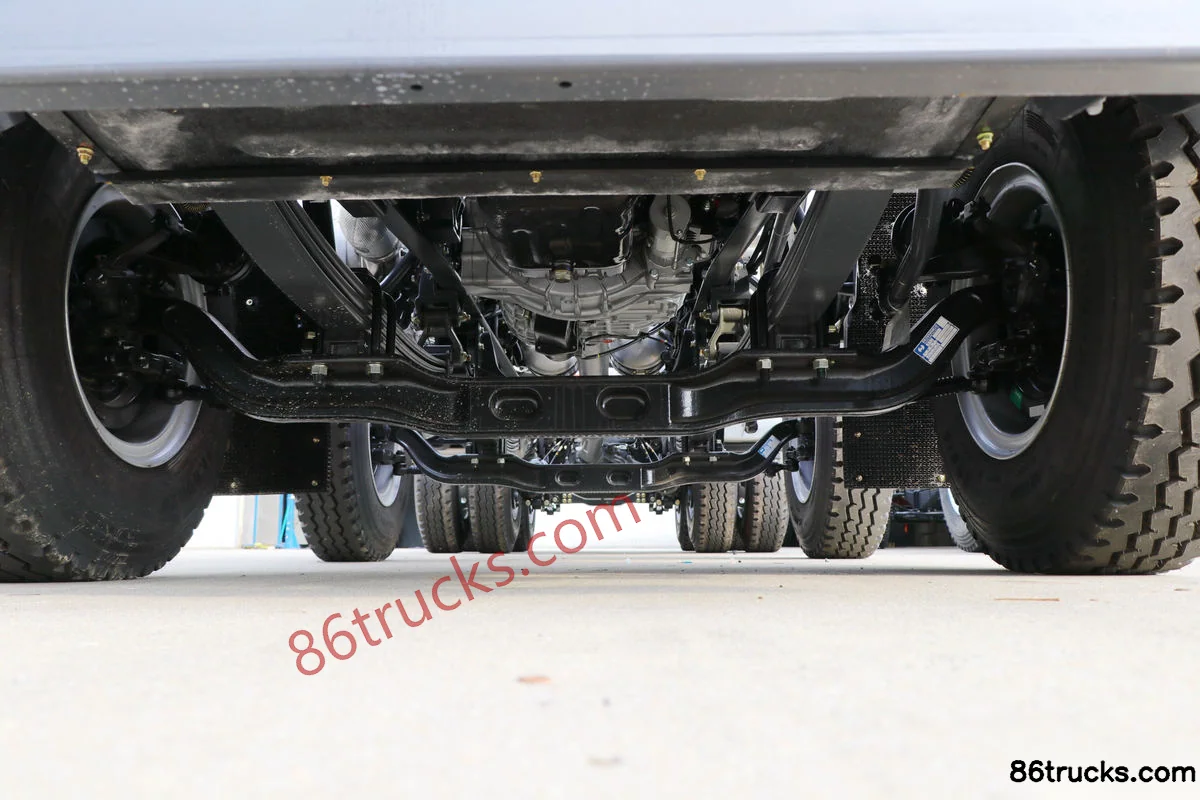

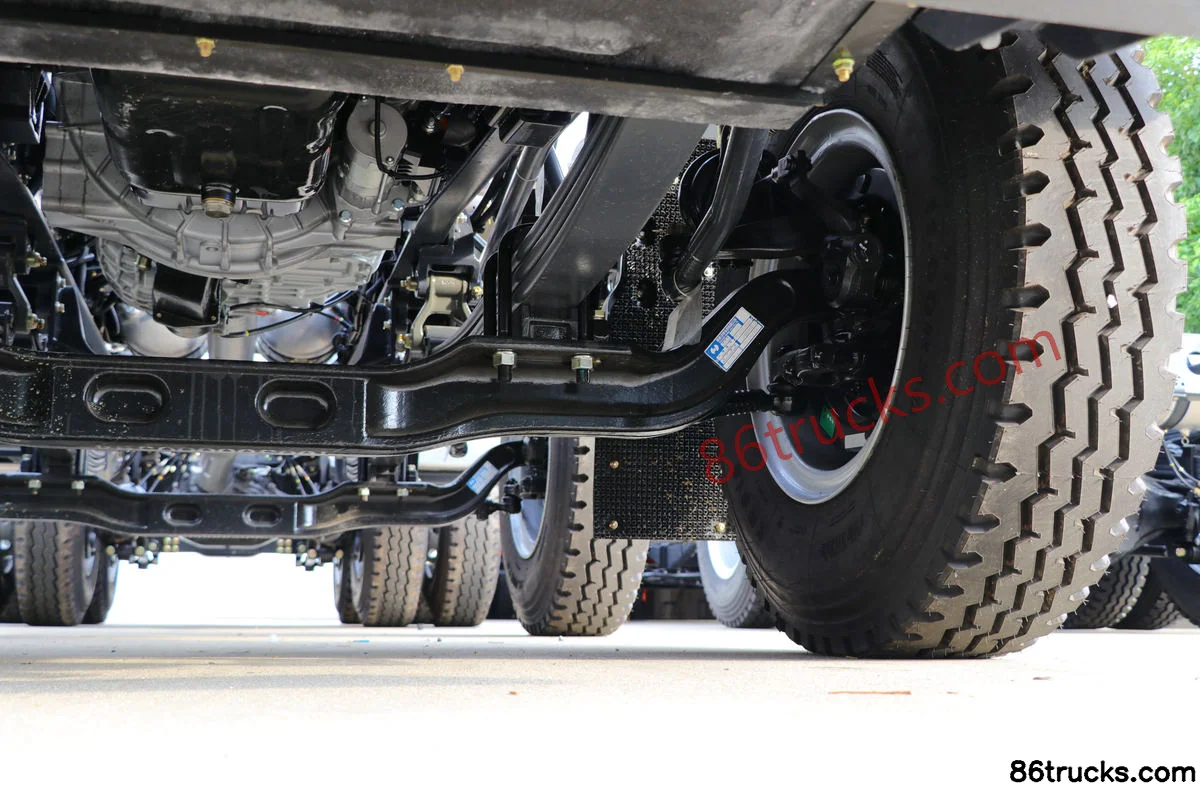

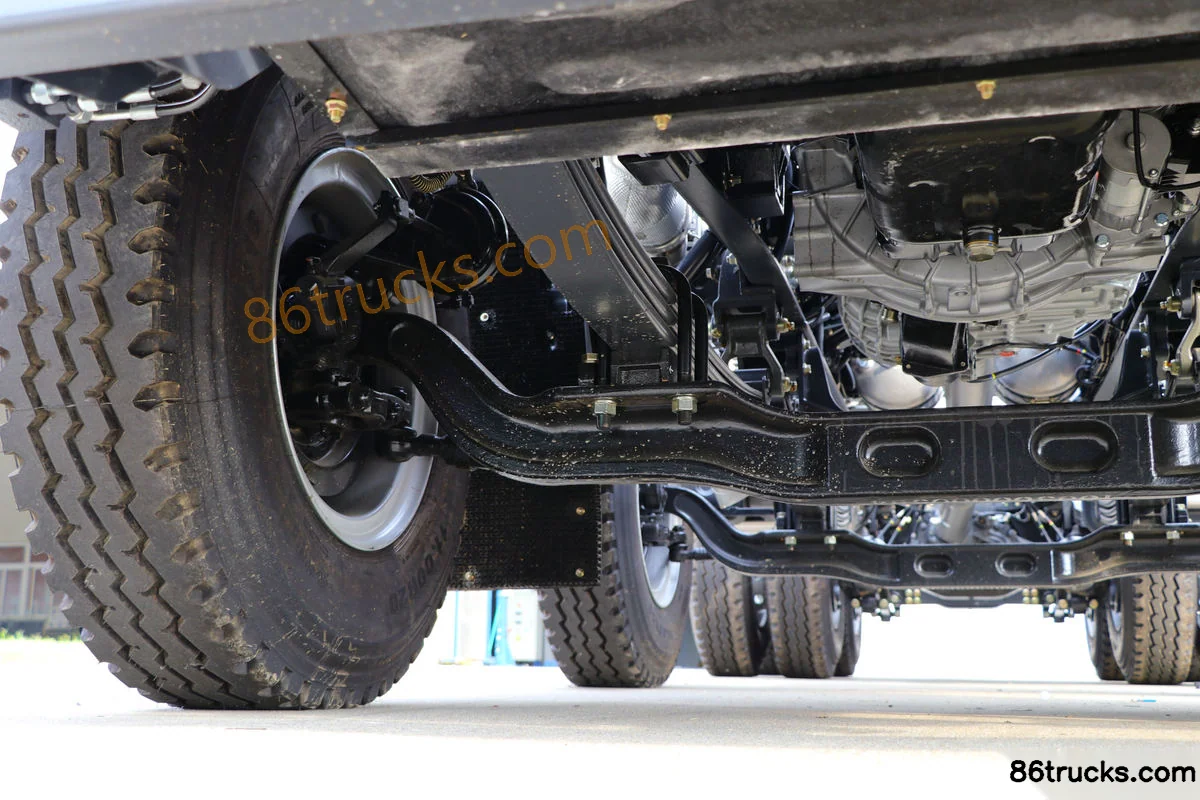

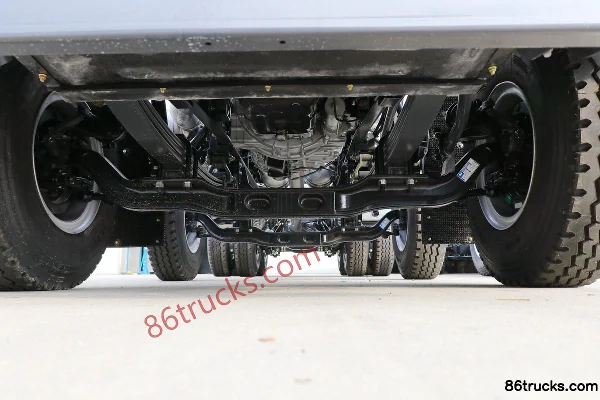

Chassis3

9 photos

FAQ

What emission standard does Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI)?

Key specs of Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI) suited for?

Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI) differ from other variants in the same series?

Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI) belongs to Union Truck U-Series Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
