Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle)

Export reference
From $23,194
MSRP ¥16.7M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.31ton
Wheelbase:: 4300mm
Tire Size:: 9.00R20 16PR
Rated payload: 8.695ton
Drive 4X2 (6 wheels)
Horsepower 200
Cargo box type: Dump type

Overview

The Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle) is a Medium-duty truck featuring 8.695t payload, 16.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04200-66 engine, 200 hp, China VI emissions and Fast Gear transmission.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3164DKPFD-02
Drive type: 4X2
Wheelbase: 4300mm
engine: YuchaiYCS04200-66
transmission: Fast Gear8JS85E
Rear Axle Ratio: 5.286
Cab length: 7.875m
Cab width: 2.55m
Cab height: 2.76m
Front track width: 1838mm
rear track: 1865mm
Curb Weight: 7.31ton
Rated payload: 8.695ton
GVWR: 16.2ton
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04200-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.295L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.2m
Cargo box width: 2.36m
Cargo box height: 0.6m
Body Parameters
Lifting type: Construction top
Cab parameters
Cab: Sleeper cab
Cab width: 2060mm
seating capacity: 3Personnel
Chassis Specs
Front axle description: 3.6T
Front axle allowable load: 5600kg
Frame Dimensions: 250×65×7+4mm
rear axle description: 1098Z
rear axle allowable load: 10600kg
Axle ratio: 5.286
Leaf spring count: 10/12+9
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

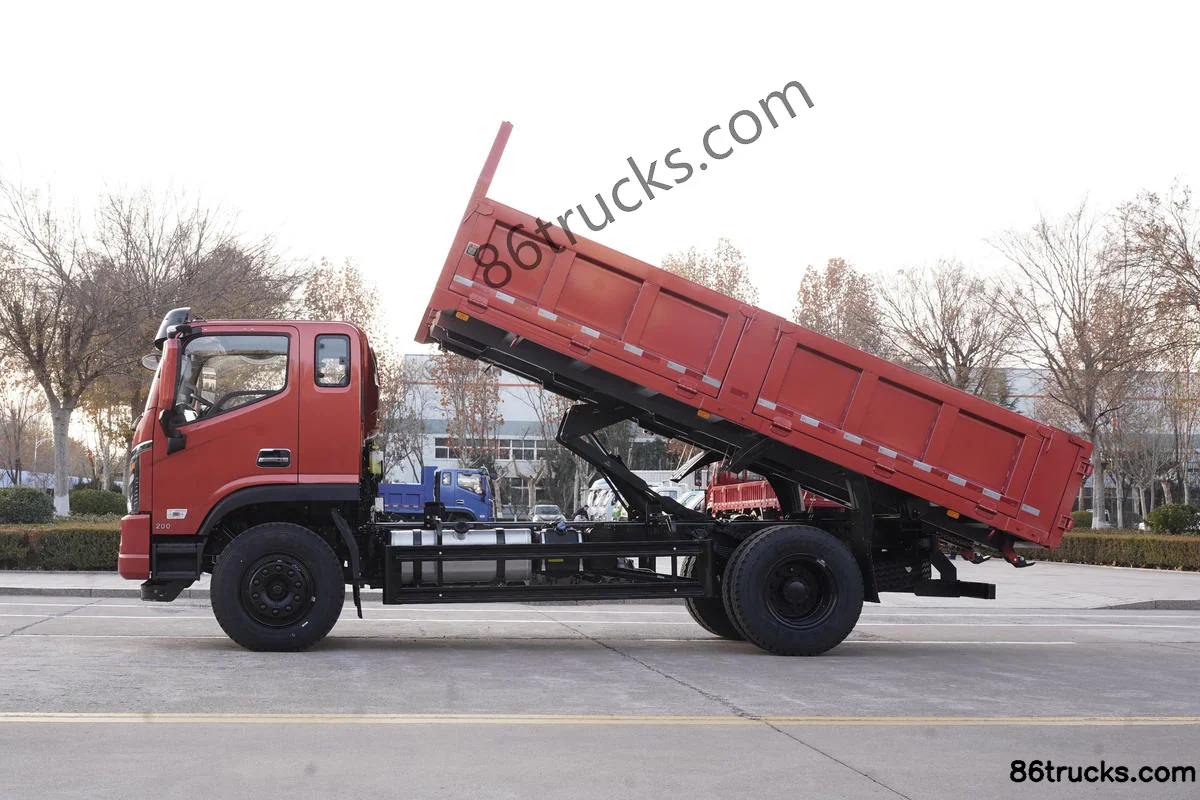

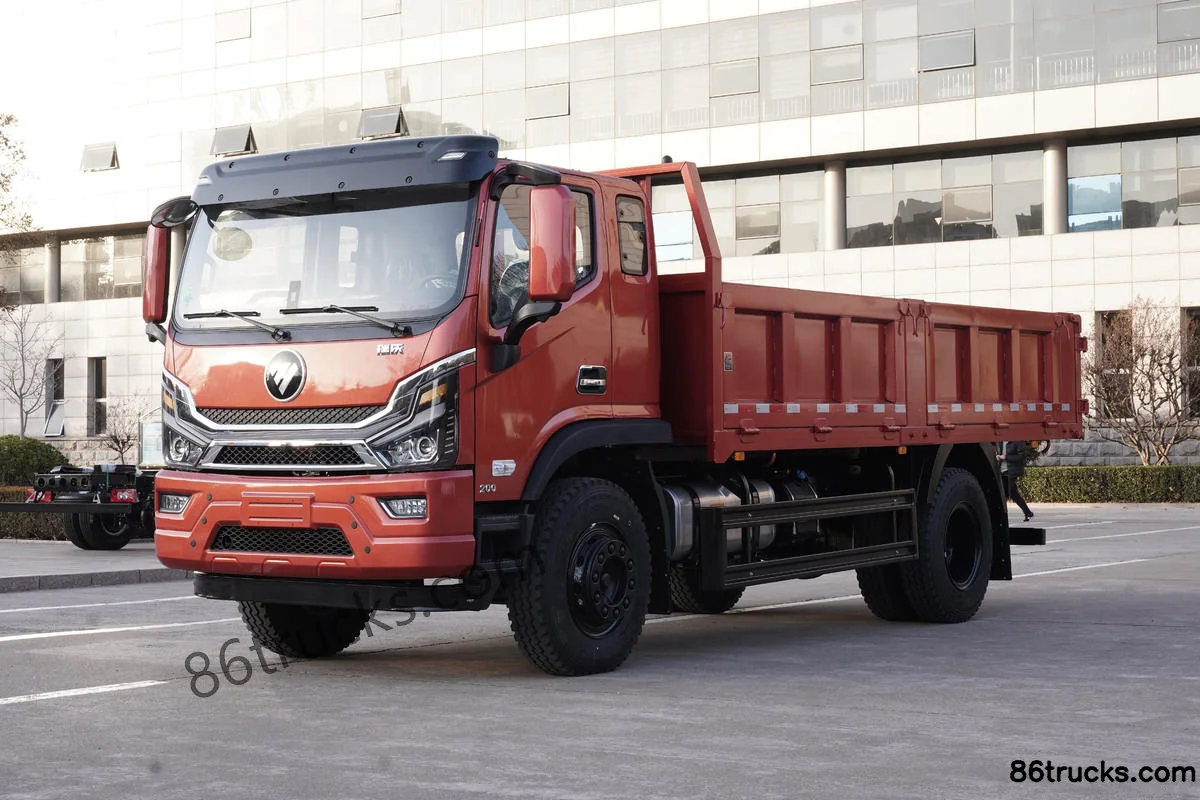

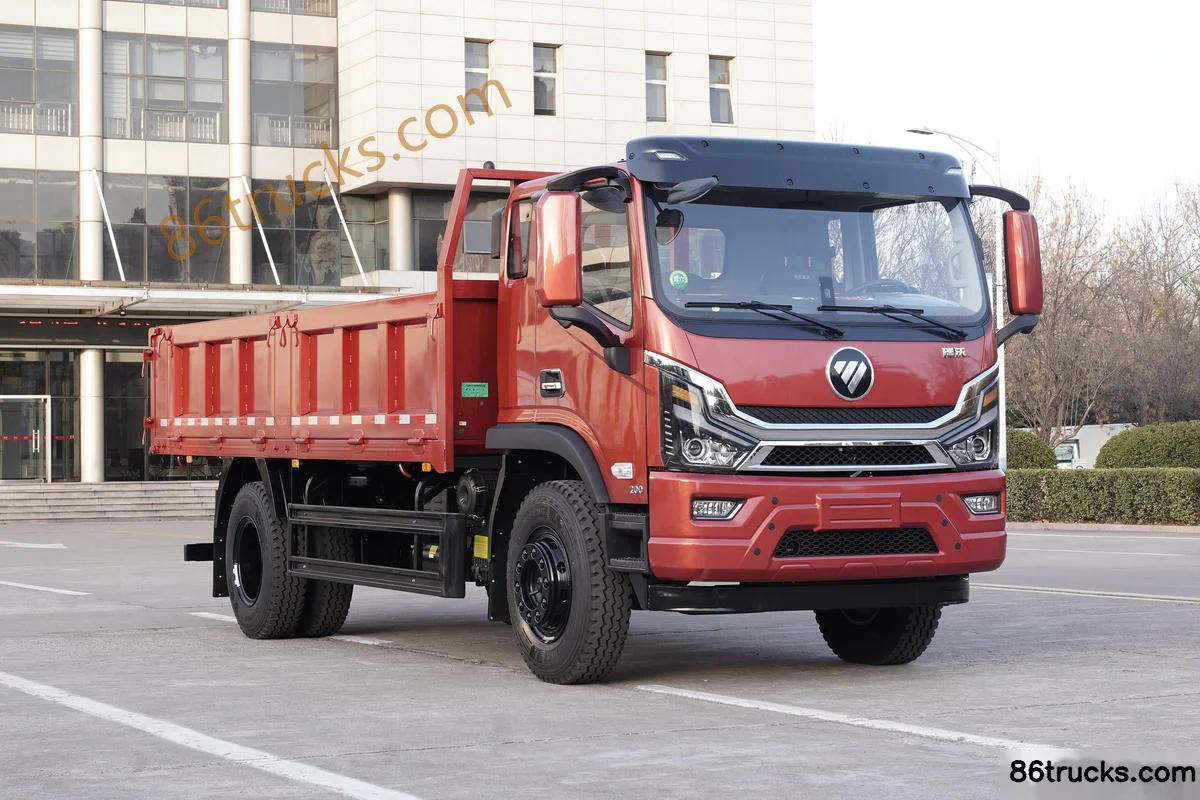

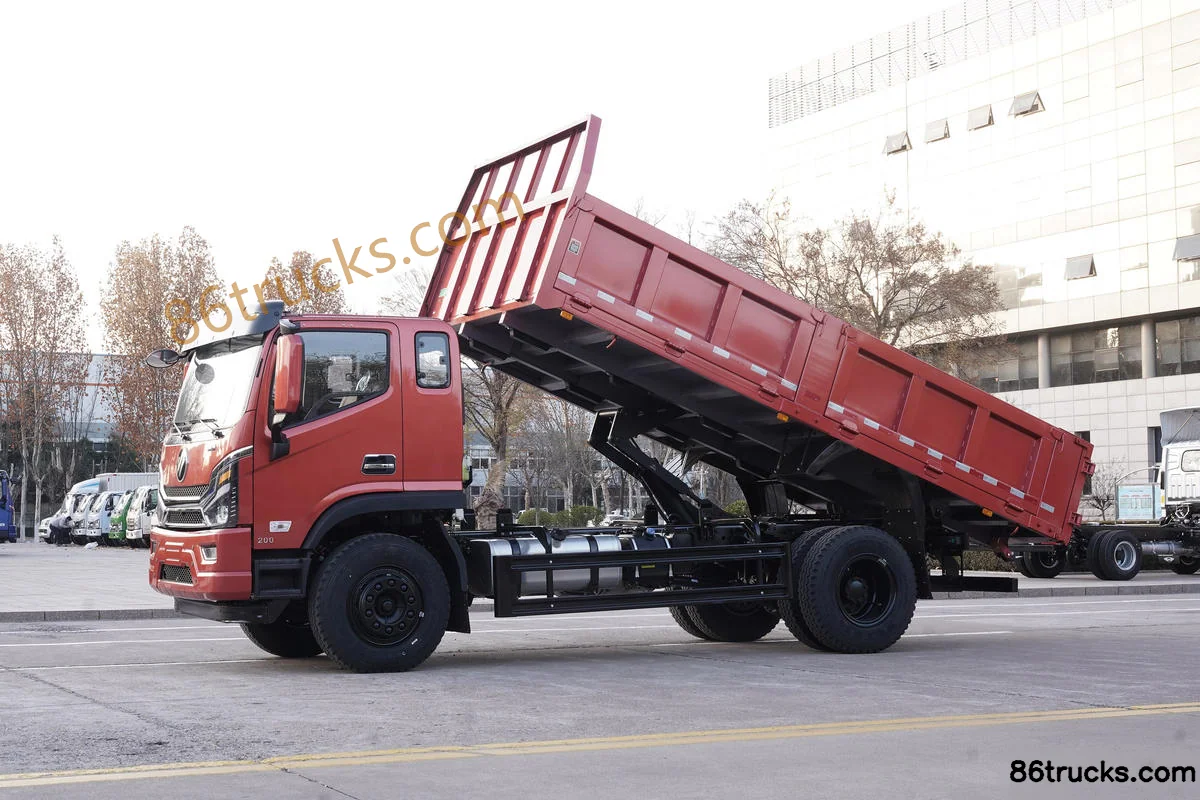

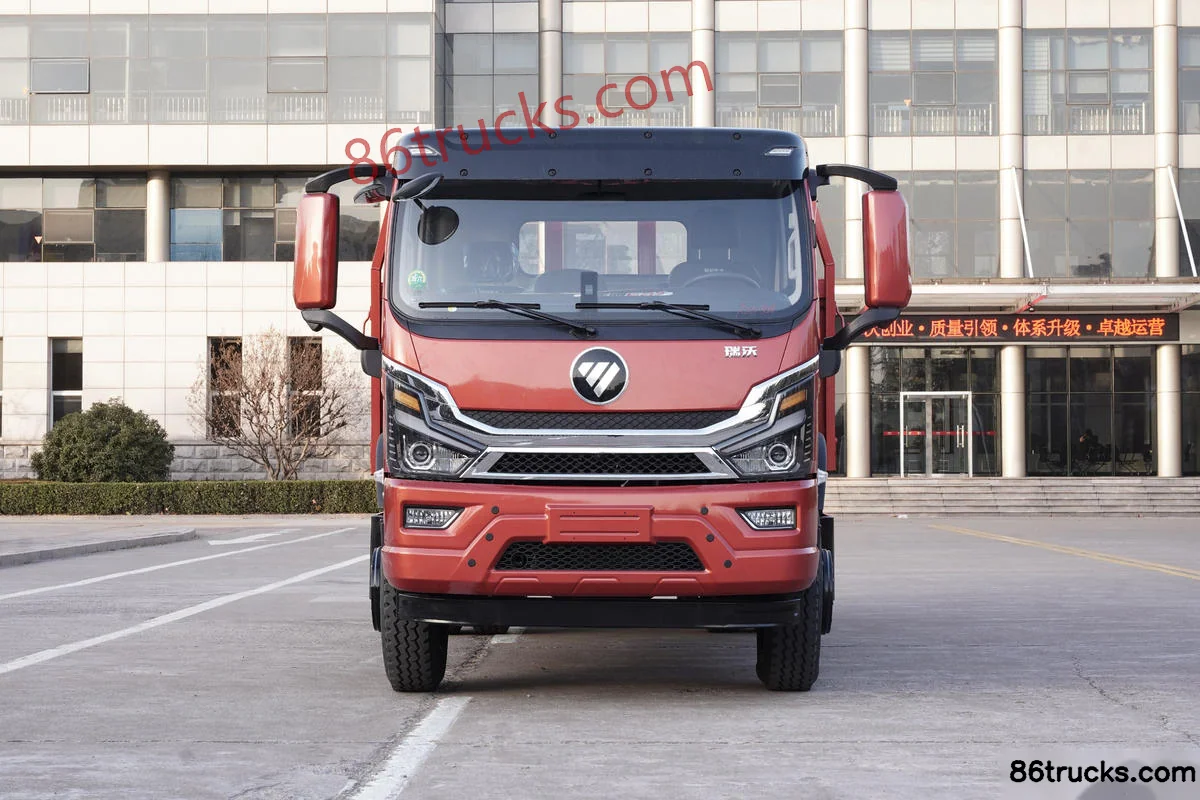

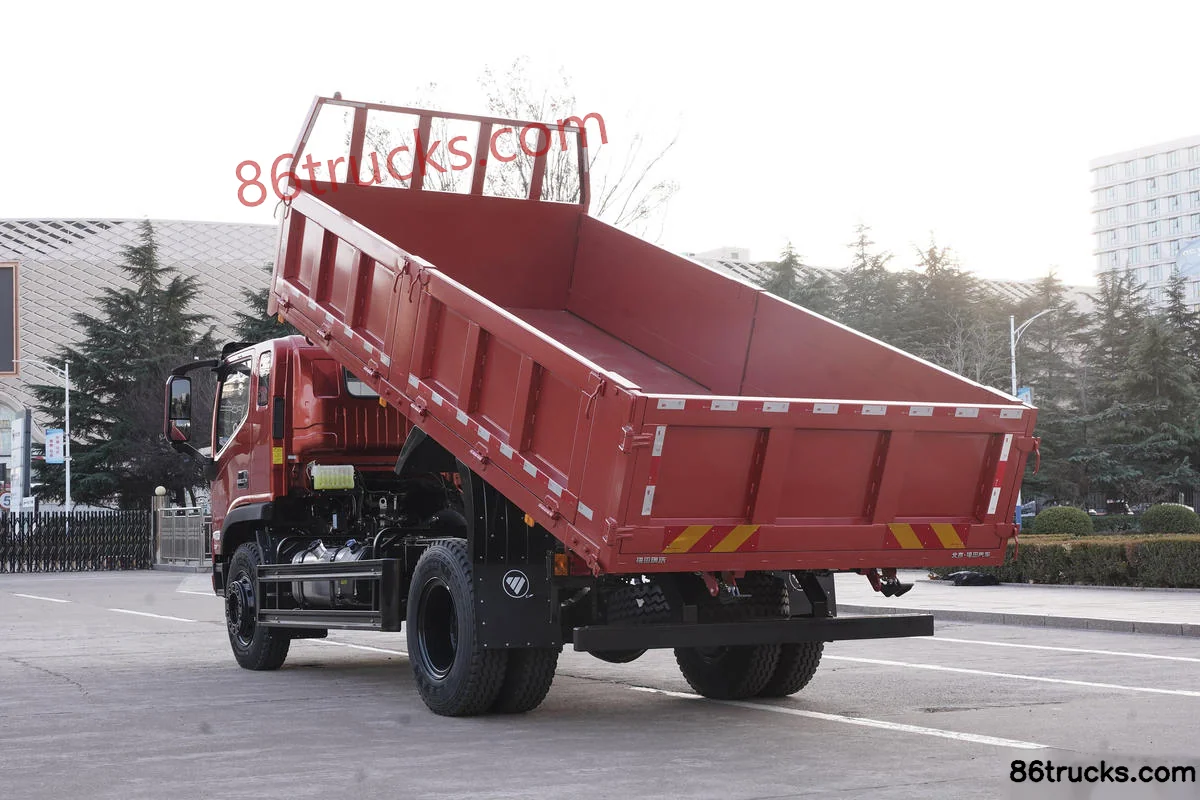

Exterior3

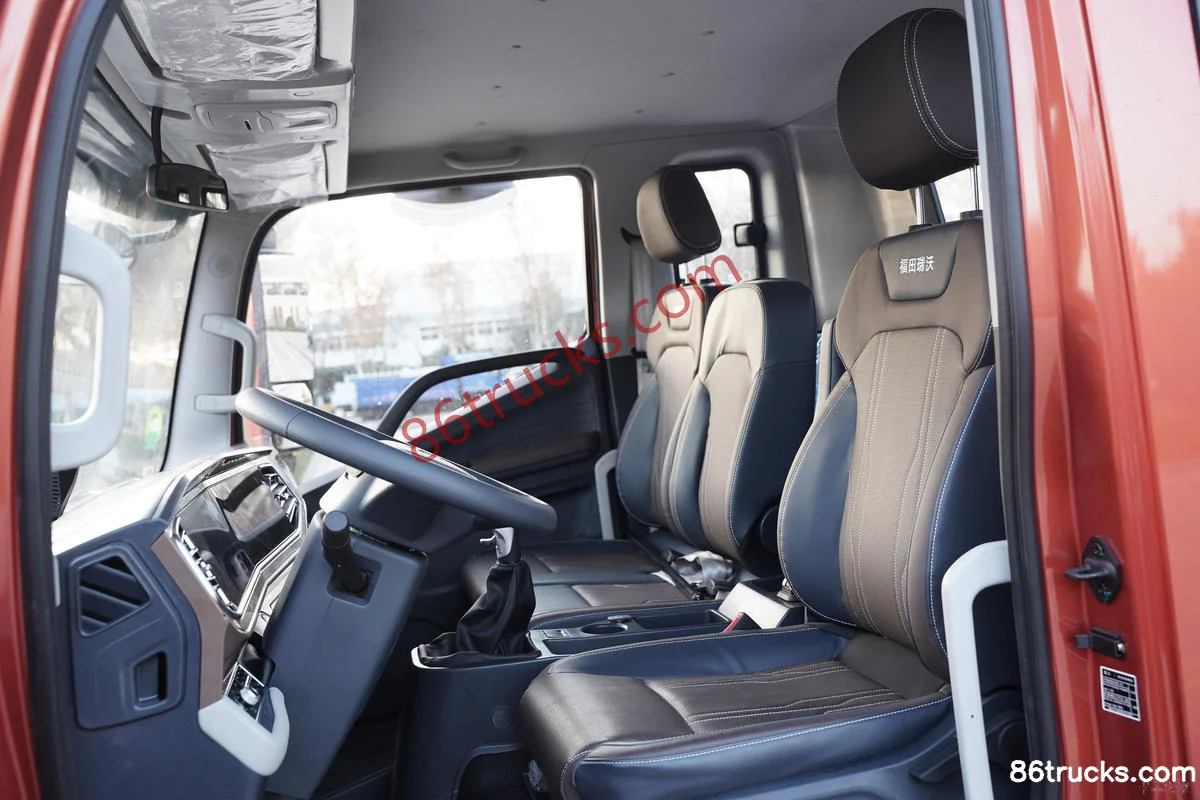

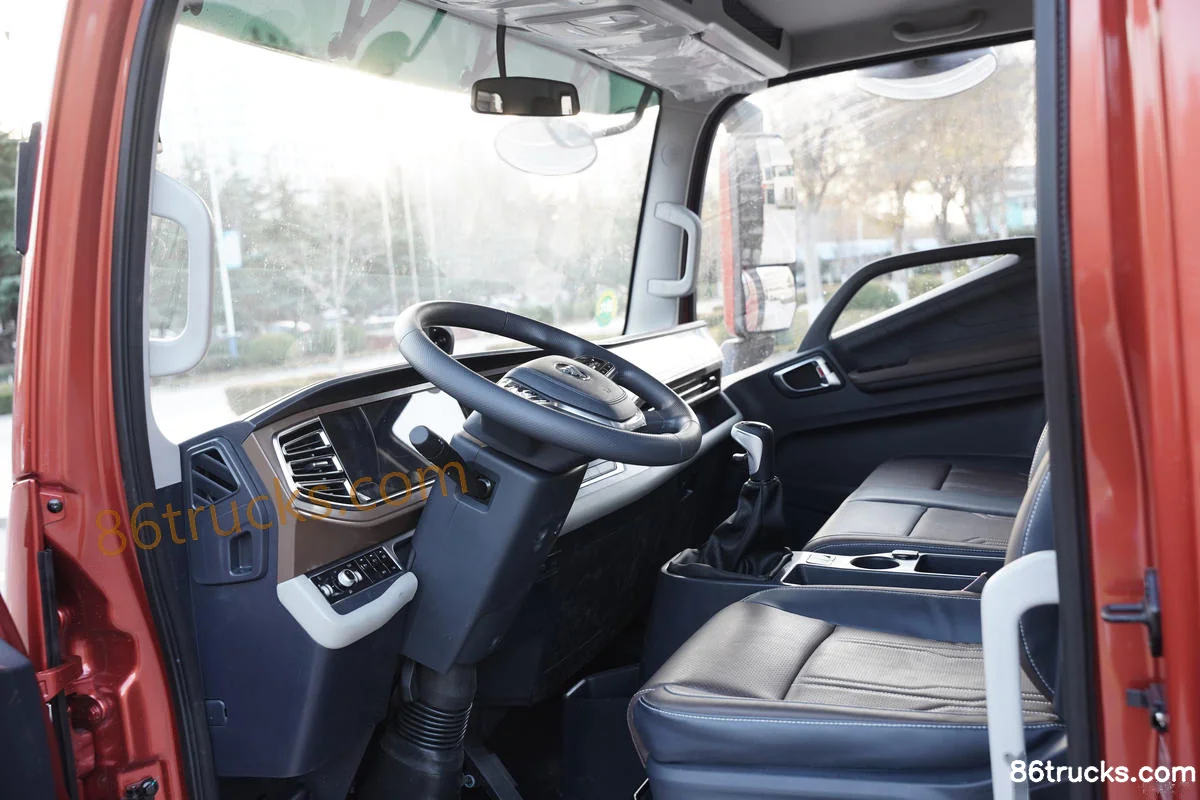

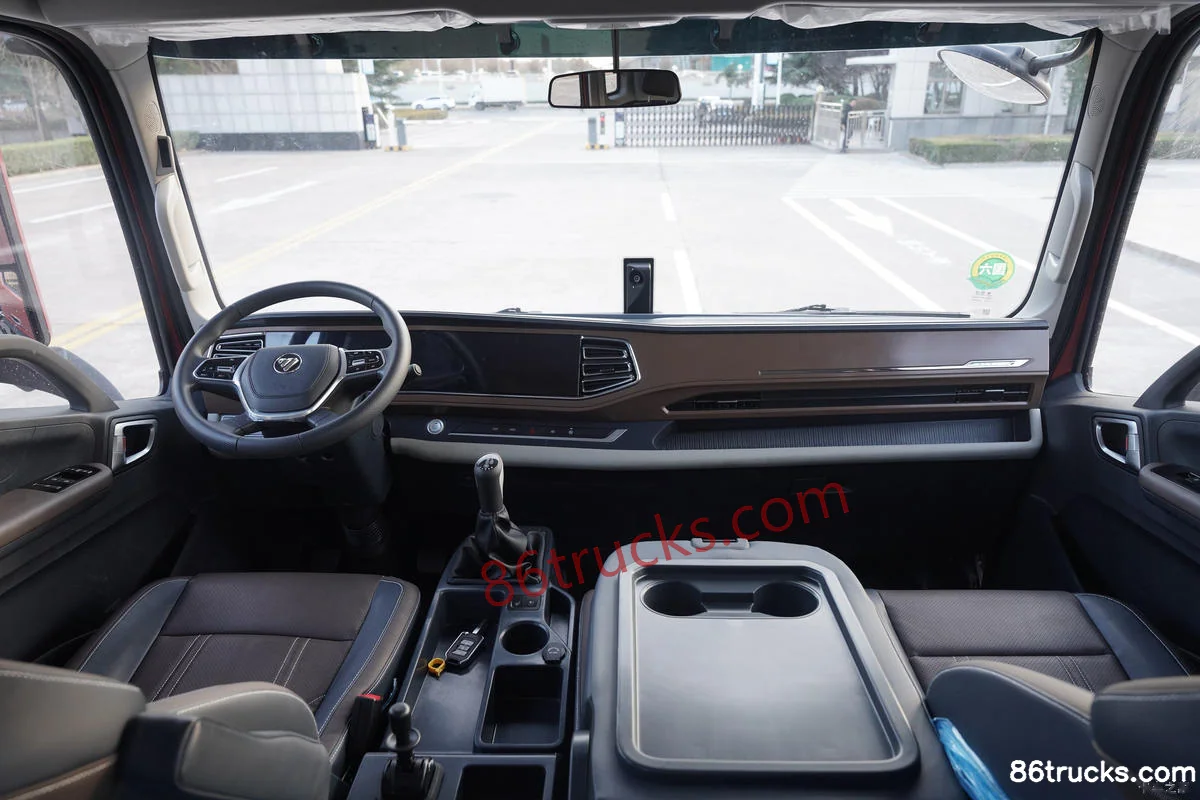

Cab3

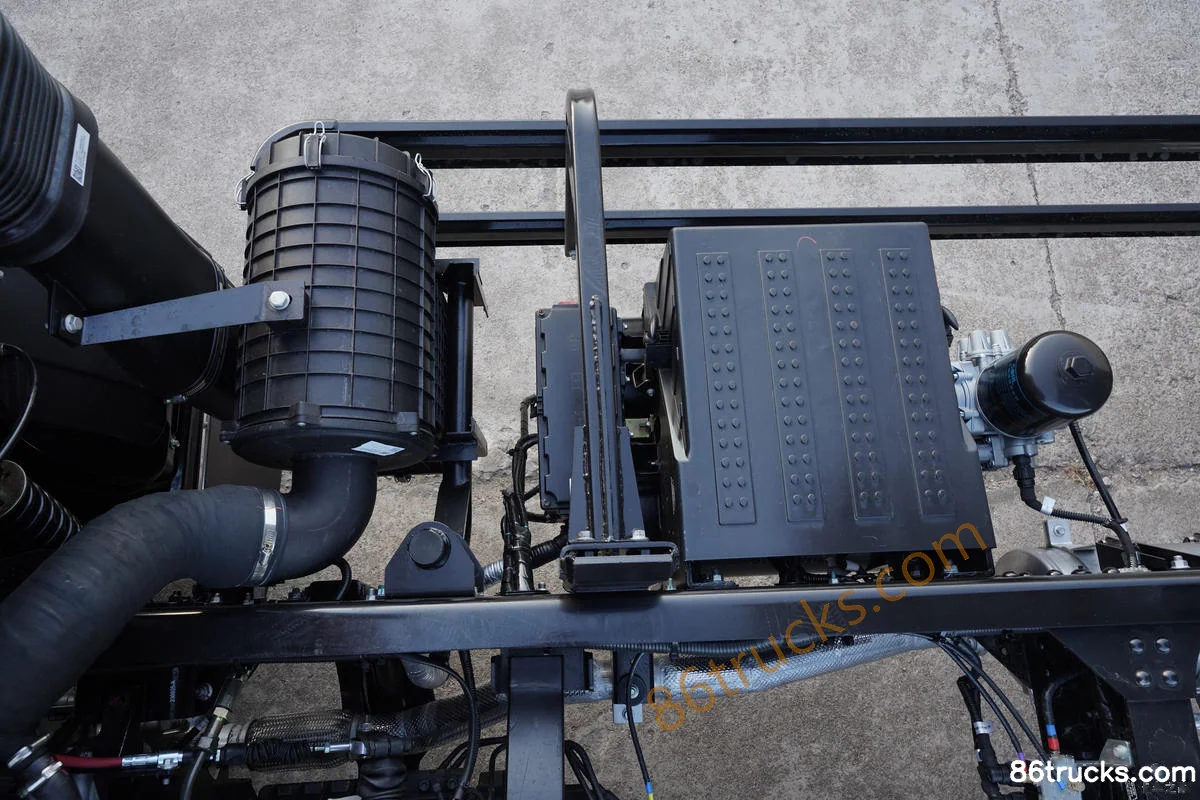

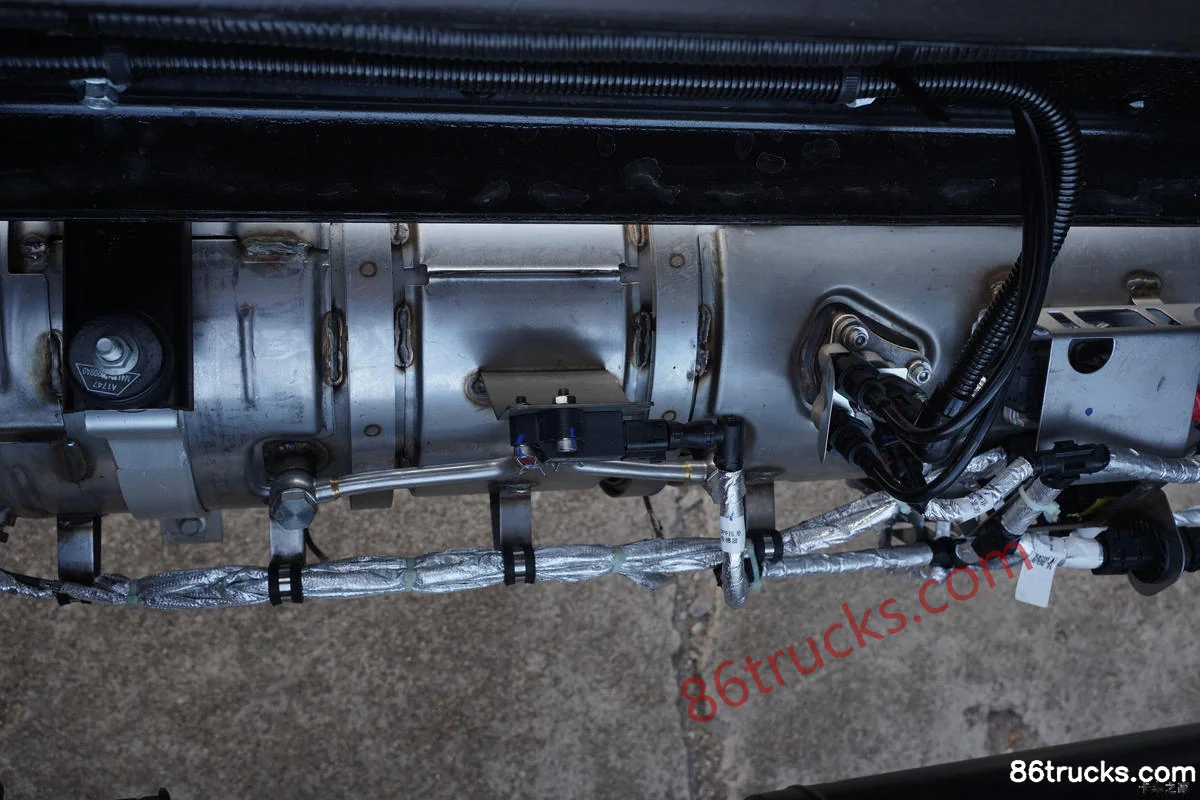

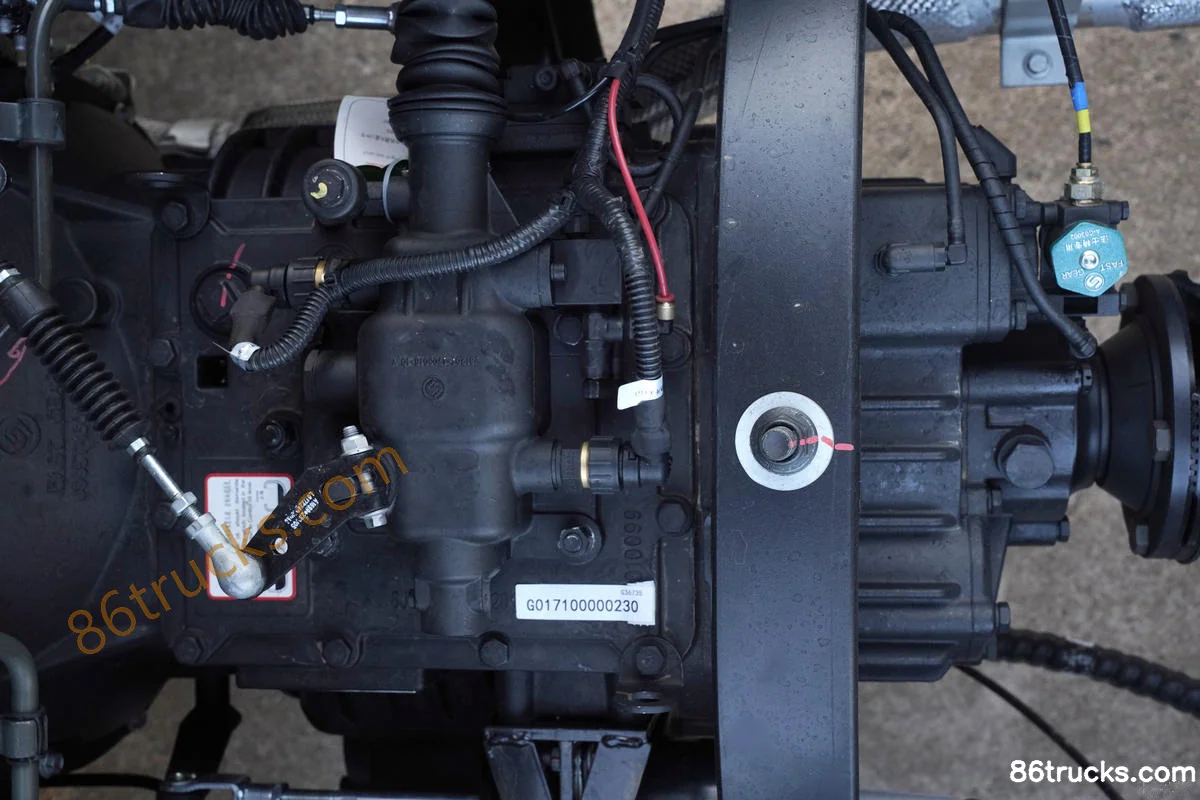

Chassis3

Body3

12 photos

FAQ

What is the export price of Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle), and what does it include?

Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle) export reference is about From $23,194; MSRP is ¥16.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle)?

Key specs of Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle): Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle) suited for?

Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle) differ from other variants in the same series?

Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle) belongs to Foton Dajingang ES5 Pro medium-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
