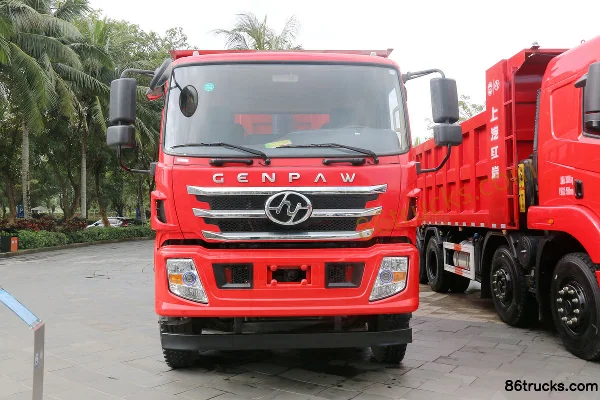

SAIC Hongyan Jiebao C6 Composite 270hp 6X2(8 wheels) 6X2R 4.8m Dump Truck
EXW
From $31,903
Export quote
SAIC Hongyan Jiebao Heavy Truck Dump Trucks
Main model photos
198 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Jiebao C6 Composite 270hp 6X2(8 wheels) 6X2R 4.8m Dump Truck | 6x2 / 270hp / China VI | From $31,903 | |
| SAIC Hongyan Jiebao C6 Composite Edition 270hp 6X2(8 wheels) 6X2R 4.5m dump truck | 6x2 / 270hp / China VI | From $31,903 | |
| SAIC Hongyan Jiebao C6 Composite Edition 270hp 6X2(8 wheels) 6X2R 4.2m dump truck | 6x2 / 270hp / China VI | From $31,903 | |
| SAIC Hongyan Jiebao C6 Composite Edition 245hp 6X2(8 wheels) 6X2R 4.8m dump truck | 6x2 / 245hp / China VI | From $31,208 | |
| SAIC Hongyan Jiebao C6 Composite Edition 245hp 6X2(8 wheels) 6X2R 4.5m dump truck | 6x2 / 245hp / China VI | From $31,208 |
SAIC Hongyan Jiebao C6 Composite Edition 270hp 6X2(8 wheels) 6X2R 4.5m dump truck
EXW
From $31,903
Export quote
SAIC Hongyan Jiebao C6 Composite Edition 270hp 6X2(8 wheels) 6X2R 4.2m dump truck
EXW
From $31,903
Export quote
SAIC Hongyan Jiebao C6 Composite Edition 245hp 6X2(8 wheels) 6X2R 4.8m dump truck
EXW
From $31,208
Export quote
SAIC Hongyan Jiebao C6 Composite Edition 245hp 6X2(8 wheels) 6X2R 4.5m dump truck
EXW
From $31,208
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 6m Dump Truck (China VI) | 8x4 / 300hp / China VI | ||
| SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) | 8x4 / 300hp / China VI | ||
| SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) | 8x4 / 300hp / China VI | ||
| SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI) | 4x2 / 240hp / China VI | From $27,417 | |
| SAIC Hongyan Jiebao Heavy Truck 280hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 280hp / China V | From $35,625 |
SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 6m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.8m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI)
EXW
From $27,417
Export quote
SAIC Hongyan Jiebao Heavy Truck 280hp 8X4(12 wheels) 6.5m Dump Truck
EXW
From $35,625
Export quote
Series Specs
Basic Info
Model code (announced): CQ3257AY0618 / CQ3257AY06353 / CQ3257AY06323 / CQ3257AY06263 / CQ3187AY06451 / CQ3187AY06421 / CQ3187AY05451
Drive type: 6X2 / 4X2
Wheelbase: 2850+1250 / 1800+3500 / 1800+3200 / 1800+2600 / 4500 / 4200mm
Engine Model: YuchaiYCS06270-60 / YuchaiYCS06245-60 / YuchaiYCK05240-60
Transmission Model: Fast Gear10JSD120T AL / Fast Gear10JS90-B / Fast Gear10JSD120TB / Fast Gear10JSD120T
Rear Axle Ratio: 5.13 / 5.73 / 5.755
Cab length: 7.53 / 7.23 / 6.93 / 8.93 / 8.78 / 8.68 / 8.48 / 8.53 / 8.38 / 8.28 / 8.08 / 8.03 / 7.78 / 7.68 / 7.58 / 7.48 / 7.43 / 8.13 / 7.93 / 7.73 / 7.33 / 7.88m
Cab width: 2.55 / 2300m
Cab height: 2.95 / 3 / 3.1m
Front track width: 1930 / 1930/1930 / 2080/2080mm
rear track: 1880/1800 / 1750 / 1858mm
Curb Weight: 8.8 / 10.5 / 11.5 / 8.19ton
Rated payload: 16.07 / 14.37 / 13.37 / 9.68ton
GVWR: 25 / 18ton
Origin: Chongqing
tonnage class: Heavy truck / Medium-duty truck
Approach angle: 22°
departure angle: 16 / 21 / 22 / 19 / 20°
Remarks: Option: semi-high roof Jiebao C6 luxury cab, oil bath air filter, 200L/330L fuel tank, electric tilt, reinforced suspension / Optional: Fast Gear 10JSD120T AL transmission, 5.5T front axle, semi-high roof Jiebao C6 Zhihui Edition cab, Henglong electro-hydraulic steering gear, HY469 drive axle, oil bath air filter, 260L/400L fuel tank / Optional: front axle 5.5T, semi-high roof Jiebao C6 Zhihui Edition cab, Henglong electro-hydraulic steering gear, HY469 drive axle, oil bath air filter, 260L/400L fuel tank / Optional: flat-top value cab, semi-high-top premium cab, automatic A/C, power tilt, HY320/HY469/HY457 drive axle, 260L/400L fuel tank. / Optional: flat-top value cab, semi-high-top premium cab, automatic A/C, power tilt, HY457 drive axle. / Optional: flat-top value cab, semi-high-top premium cab, automatic A/C, power tilt, HY457 drive axle, reverse camera.
Version: composite version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 6 / 4cylinder
Displacement: 6.23 / 5.13L
Emission standard: China VI
Max output power: 199 / 180 / 176kW
Max hp: 270 / 245 / 240Horsepower
Max torque: 1050 / 850 / 900N·m
Max torque speed: 1200-1700 / 1200-1600rpm
Rated speed: 2300 / 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 4.8 / 4.5 / 4.2 / 6.2 / 6 / 5.8 / 5.6 / 5.4 / 5.2 / 5 / 4.9 / 4.7m
Cargo box width: 2.1 / 2.35m
Cargo box height: 1.2 / 1.3 / 0.6m
Cab parameters
Cab: Flat roof Jiebao C6 Value Edition cab / Flat roof Classic Edition cab
FAQ
What kind of truck is SAIC Hongyan SAIC Hongyan Jiebao Heavy Truck Dump Trucks?
SAIC Hongyan SAIC Hongyan Jiebao Heavy Truck is an export-oriented Dump Trucks lineup with about 112 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SAIC Hongyan Jiebao Heavy Truck Dump Trucks?
SAIC Hongyan Jiebao Heavy Truck Dump Trucks export reference is about $22,944 – $53,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SAIC Hongyan Jiebao Heavy Truck Dump Trucks cover?
SAIC Hongyan Jiebao Heavy Truck Dump Trucks mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 240 hp / 245 hp / 270 hp / 280 hp / 300 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SAIC Hongyan Jiebao Heavy Truck Dump Trucks?
For SAIC Hongyan Jiebao Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SAIC Hongyan Jiebao Heavy Truck Dump Trucks include?
SAIC Hongyan Jiebao Heavy Truck Dump Trucks currently lists about 112 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SAIC Hongyan Jiebao Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
