Foton Dajin ES5 200 hp 4X2(6 wheels) 5.2m dump truck
EXW
From $24,861
Export quote
Foton Dajingang ES5 light-duty truck Dump Trucks
Main model photos
245 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Dajin ES5 200 hp 4X2(6 wheels) 5.2m dump truck | 4x2 / 200hp / China VI | From $24,861 | |
| Foton Big Diamond ES5 220 hp 4X4(6 wheels) 4.5m dump truck | 4x4 / 220hp / China VI | From $35,931 | |
| Foton Big Diamond ES5 220 hp 4X4(6 wheels) 4.2m dump truck | 4x4 / 220hp / China VI | From $34,597 | |
| Foton Dajin ES5 200 hp 4X2(6 wheels) 5.2m dump truck | 4x2 / 200hp / China VI | From $24,861 | |
| Foton Big Diamond ES5 200hp 4X2(6 wheels) 4.85m dump truck | 4x2 / 200hp / China VI | From $24,861 |

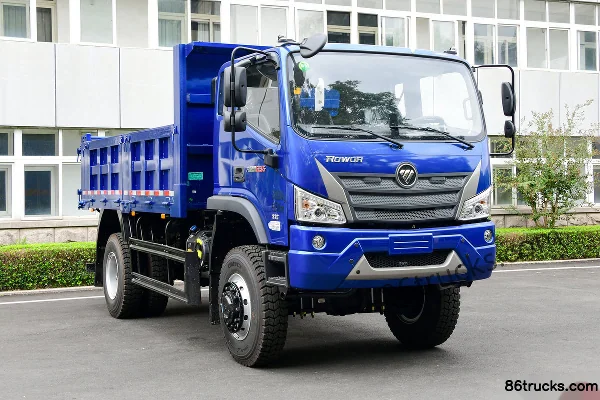

Foton Big Diamond ES5 220 hp 4X4(6 wheels) 4.5m dump truck
EXW
From $35,931
Export quote
Foton Big Diamond ES5 220 hp 4X4(6 wheels) 4.2m dump truck
EXW
From $34,597
Export quote
Foton Dajin ES5 200 hp 4X2(6 wheels) 5.2m dump truck
EXW
From $24,861
Export quote
Foton Big Diamond ES5 200hp 4X2(6 wheels) 4.85m dump truck
EXW
From $24,861
Export quote
Series Specs
Basic Info
Model code (announced): BJ3184DLPFD-01 / BJ2184VKPFA-01 / BJ3184DLPFD-03 / BJ3164DJPFA-01 / BJ3184DLPDA-03 / BJ3244DNPFB-04 / BJ3184DKPFA-01 / BJ3164DKPFD-01 / BJ3164DKPDA-02 / BJ3244DNPFB-02 / BJ3244DMPFB-01 / BJ3244DMPFB-03
Drive type: 4X2 / 4X4 / 6X2
Wheelbase: 4100 / 3750 / 3600 / 4300 / 3950 / 2800+1200 / 3400 / 3700 / 3300 / 1800+2600 / 1800+3900 / 1800+3800 / 1800+3400 / 1800+3000mm
Engine Model: YuchaiYCS04200-68 / YuchaiYCS04220-61A / WeichaiWP4.1NQ190E61 / YuchaiYCS04160-68 / YuchaiYCK05240-60 / WeichaiWP3NQ160E61 / WeichaiWP4.6NQ220E61
Transmission Model: Fast Gear 8-speed / Fast Gear10JS90A-B / Fast Gear8JS85E / Fast Gear 10-Speed / Fast Gear8JS85F / Fast Gear8JS8E / 10-speed transmission
Rear Axle Ratio: 5.286 / 6.73 / 6.33 / 5.571 / 5.833 / 6.167
Cab length: 7.5 / 6.815 / 6.515 / 7.85 / 7.15 / 6.485 / 6.455 / 6.99 / 6.085 / 6.05 / 7.24 / 7.35 / 9.35 / 9.2 / 8.21 / 7.84 / 7.75m
Cab width: 2.55 / 2.51 / 2.52 / 2.41 / 2.32 / 2.4 / 2.5 / 2.35 / 2060m
Cab height: 2.71 / 2.93 / 2.76 / 2.8 / 2.65 / 2.69 / 2.75 / 2.68 / 2.7 / 2.64 / 3.4 / 3.1m
Front track width: 1810 / 1815 / 1858 / 1780 / 1800 / 1872 / 1740 / 1835 / 1761 / 1760/1760mm
rear track: 1810 / 1785 / 1865 / 1740 / 1725 / 1810/1740 / 1755 / 1775 / 1728 / 1720mm
Curb Weight: 6.97 / 8.2 / 8.99 / 7.6 / 7.81 / 7.615 / 8.9 / 7.105 / 6.5 / 8.01 / 6.9 / 8.4 / 9.5 / 9.1ton
Rated payload: 10.835 / 9.605 / 8.815 / 10.205 / 9.995 / 7.99 / 15.405 / 10.7 / 9.505 / 7.995 / 9.105 / 15.905 / 15.305 / 15.205ton
GVWR: 18 / 15.8 / 24.5 / 16.2ton
Origin: Shandong Zhucheng / Changsha, Hunan
tonnage class: Medium-duty truck / Heavy truck
Approach angle: 23 / 37 / 20 / 19°
departure angle: 18 / 15 / 16 / 14 / 17 / 13 / 12°
Remarks: Optional ratio 6.167 / Standard: power steering, clutch booster, electronic fuel shutoff, MP3, adjustable steering wheel; optional: ratio 6.167, rear axle 1098Z, multimedia. / Optional ratio 6.167. / Optional 5.833 ratio. / Power steering, clutch booster
Version: Standard Load Type / Lightweight version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 4cylinder
Displacement: 4.16 / 4.295 / 4.088 / 5.13 / 2.97 / 4.6L
Emission standard: China VI
Max output power: 147 / 162 / 140 / 118 / 176kW
Max hp: 200 / 220 / 190 / 160 / 240Horsepower
Max torque: 720 / 850 / 680 / 550 / 900 / 480 / 800N·m
Max torque speed: 1200-1600 / 1300-1900 / 1200-1900 / 1400-2300 / 1200-1800rpm
Rated speed: 2300 / 2600 / 2200 / 3000rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / High-pressure common rail, EGR+DOC+DPF+SCR / Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail / 4-valve, high-pressure common rail, turbocharged intercooled, EGR+DPF+DOC+SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8 / 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body / Side-dump tipper.
Cargo box length: 5.2 / 4.5 / 4.2 / 4.85 / 4.35 / 4 / 3.8 / 4.6 / 4.8 / 6.8 / 5.6m
Cargo box width: 2.35 / 2.3 / 2.3/2.42 / 2.1 / 2.2m
Cargo box height: 0.6 / 0.8 / 1 / 1.2m
Body Parameters
Lifting type: Mid-mounted single roof
FAQ
What kind of truck is Foton Foton Dajingang ES5 light-duty truck Dump Trucks?
Foton Foton Dajingang ES5 light-duty truck is an export-oriented Dump Trucks lineup with about 28 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Dajingang ES5 light-duty truck Dump Trucks?
Foton Dajingang ES5 light-duty truck Dump Trucks export reference is about $20,833 – $38,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Dajingang ES5 light-duty truck Dump Trucks cover?
Foton Dajingang ES5 light-duty truck Dump Trucks mainly covers: Drive: 4x2 / 4x4; Horsepower: 200 hp / 220 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Dajingang ES5 light-duty truck Dump Trucks?
For Foton Dajingang ES5 light-duty truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Dajingang ES5 light-duty truck Dump Trucks include?
Foton Dajingang ES5 light-duty truck Dump Trucks currently lists about 28 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Dajingang ES5 light-duty truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
