GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck
EXW
Export quote
GAC Leader GAC HINO700 Heavy Truck Dump Trucks
Main model photos
355 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck | 8x4 / 350hp / China IV | ||
| GAC HINO 700 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m Dump Truck | 6x4 / 350hp / China III / Euro III | ||
| GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck | 8x4 / 380hp / China III / Euro III | ||
| Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck | 6x4 / 350hp / China IV | ||
| Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.2m Dump Truck | 6x4 / 350hp / China IV |

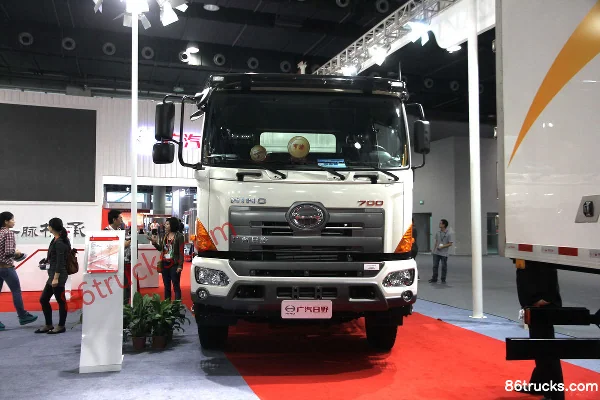

GAC HINO 700 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m Dump Truck
EXW
Export quote

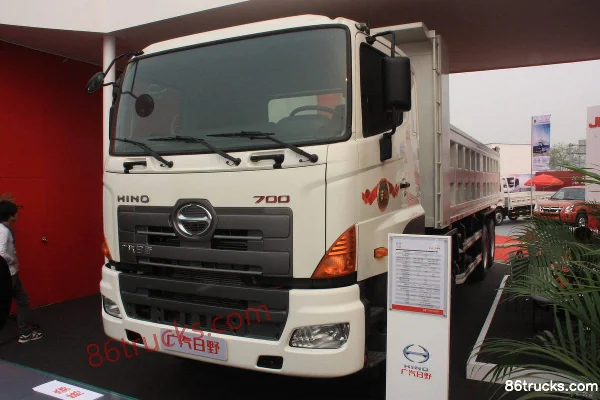

GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck
EXW
Export quote
Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck
EXW
Export quote
Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.2m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): YC3310FY2PY4 / YC3251FS2PM / YC3310FY2PW / YC3250FS2PM4 / YC3250FS2PK4 / YC3250FS2PM / YC3250FS2PK
Drive type: 8X4 / 6X4
Wheelbase: 1850+4300+1410 / 3750+1410 / 1850+3850+1410 / 3640+1410 / 3310+1410 / 3300+1410mm
Engine Model: Shanghai HinoP11C-VK / Shanghai HinoP11C-UJ / Shanghai HinoP11C-UR / Shanghai HinoP11C-VA
Transmission Model: Fast Gear12JSD160TA / ZFZF9S1820TD / Fast GearRT-11509C
Rear Axle Ratio: 5.875 / 4.625
Cab length: 10.89 / 8.25 / 10.43 / 8.42 / 7.85 / 7.8m
Cab width: 2.495 / 2.5m
Cab height: 3.6 / 1.175 / 3.5 / 3.27m
Front track width: 2060/2060 / 2060 / 2600mm
rear track: 1855/1855mm
Curb Weight: 15.3 / 12.2 / 15.1ton
Rated payload: 15.57 / 15.77 / 12.87ton
GVWR: 31 / 25ton
Origin: Guangzhou, Guangdong
tonnage class: Heavy truck
Approach angle: 28 / 23 / 20°
departure angle: 20 / 25 / 19 / 30°
Remarks: Four-point full-floating, electro-hydraulic cab tilt system / Four-point full-floating, electro-hydraulic tiltable cab / Four-point suspension, electro-hydraulic cab tilt system
Energy Type: Diesel
Engine parameters
Engine Brand: Shanghai Hino
Number of cylinders: 6cylinder
Displacement: 10.52L
Emission standard: China IV / China III / Euro III
Max output power: 259 / 280kW
Max hp: 350 / 380Horsepower
Max torque: 1483 / 1460 / 1600N·m
Max torque speed: 1100 / 1300 / 1200-1300rpm
Rated speed: 1900 / 2100rpm
Engine Type: Electronic common rail / Denso electronic common rail, turbocharged intercooled
Transmission Parameters
Transmission Brand: Fast Gear / ZF
shift method: Manual
Forward gears: 12 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body / Side-dump tipper. / Dump type
Cargo box length: 8 / 5.8 / 7.6 / 5.6 / 5.2m
Cargo box width: 2.3 / 2.25m
Cargo box height: 1 / 1.175 / 1.1 / 1.2 / 1.3m
fuel tank
Fuel tank capacity: 400 / 150L
Chassis Specs
rear axle description: THD18 / GAC HINO 18-inch Axle / 13T
FAQ
What kind of truck is GAC Leader GAC HINO700 Heavy Truck Dump Trucks?
GAC Leader GAC HINO700 Heavy Truck is an export-oriented Dump Trucks lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does GAC Leader GAC HINO700 Heavy Truck Dump Trucks cover?
GAC Leader GAC HINO700 Heavy Truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 350 hp / 380 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in GAC Leader GAC HINO700 Heavy Truck Dump Trucks?
For GAC Leader GAC HINO700 Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does GAC Leader GAC HINO700 Heavy Truck Dump Trucks include?
GAC Leader GAC HINO700 Heavy Truck Dump Trucks currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for GAC Leader GAC HINO700 Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
