GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.3ton
Wheelbase:: 1850+4300+1410mm
Tire Size:: 11.00R20
Rated payload: 15.57ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Rear-dump body

Overview

The GAC Leader GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck is a Heavy truck featuring 15.57t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a Shanghai HinoP11C-VK engine, 350 hp, China IV emissions and Fast Gear transmission.

China IV 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): YC3310FY2PY4
Drive type: 8X4
Wheelbase: 1850+4300+1410mm
engine: Shanghai HinoP11C-VK
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 5.875
Cab length: 10.89m
Cab width: 2.495m
Cab height: 3.6m
Front track width: 2060/2060mm
rear track: 1855/1855mm
Curb Weight: 15.3ton
Rated payload: 15.57ton
GVWR: 31ton
Origin: Guangzhou, Guangdong
tonnage class: Heavy truck
Approach angle: 28°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Shanghai Hino
Engine Model: Shanghai HinoP11C-VK
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.52L
Emission standard: China IV
Max output power: 259kW
Max hp: 350Horsepower
Max torque: 1483N·m
Max torque speed: 1100rpm
Rated speed: 1900rpm
Engine Type: Electronic common rail
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 8m
Cargo box width: 2.3m
Cargo box height:
Chassis Specs
rear axle description: THD18
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.875
Leaf spring count: 11/11/13
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

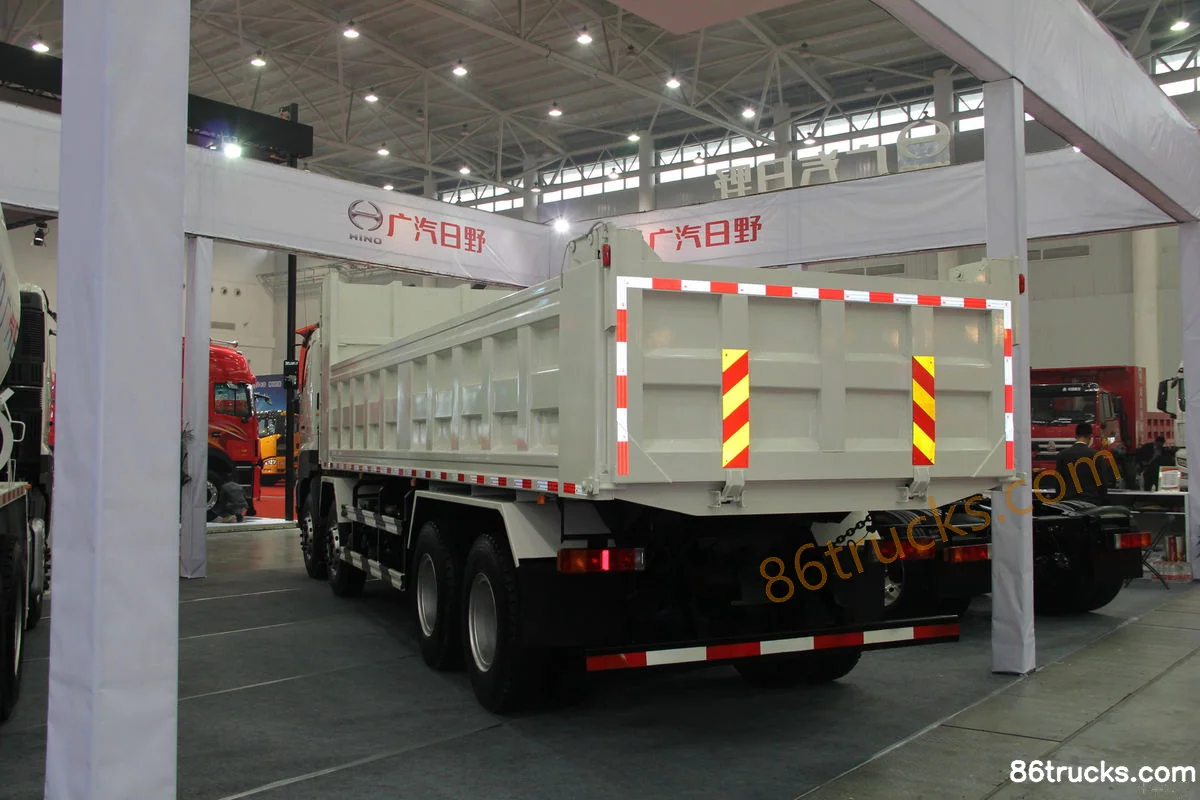

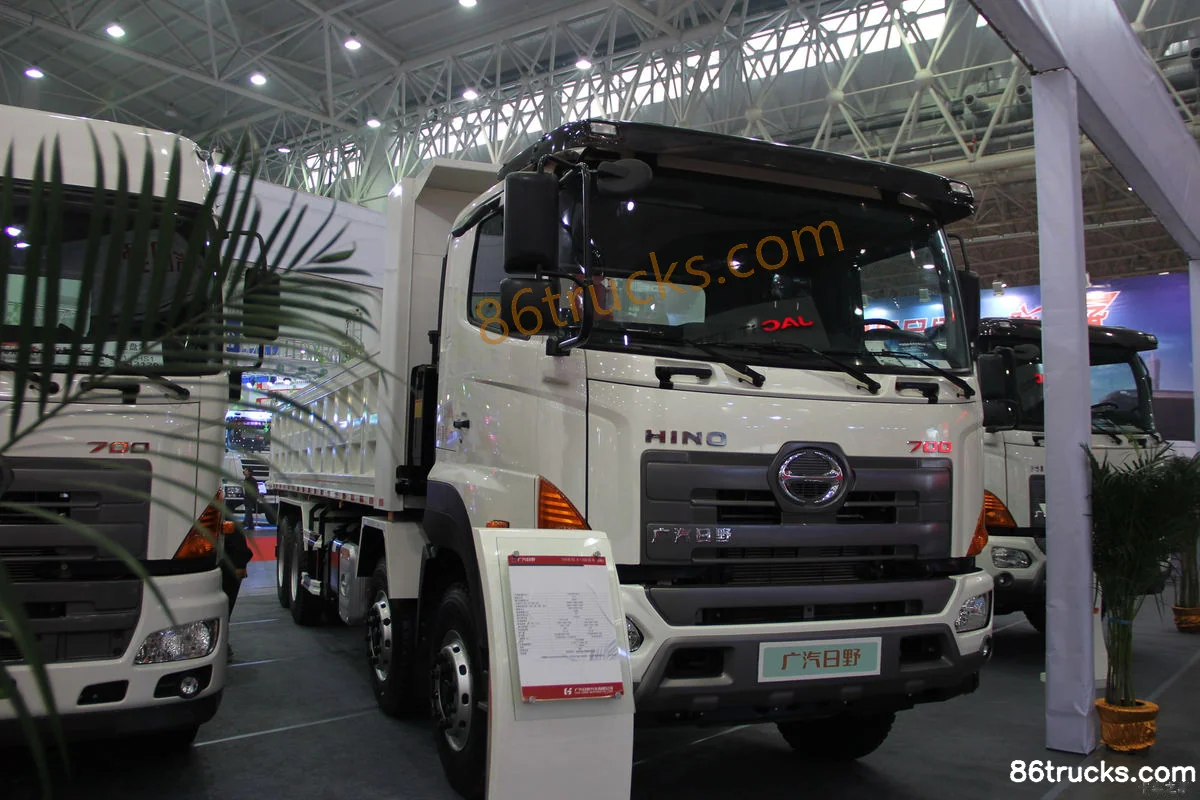

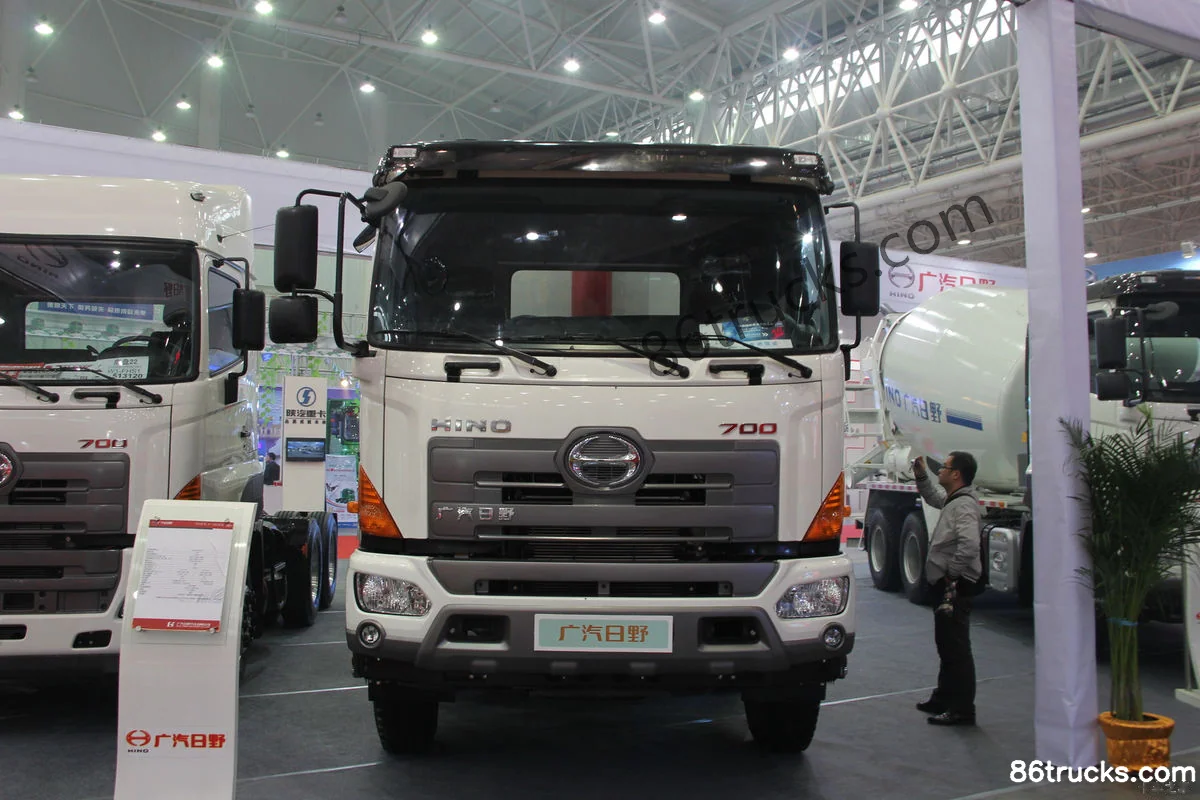

Exterior3

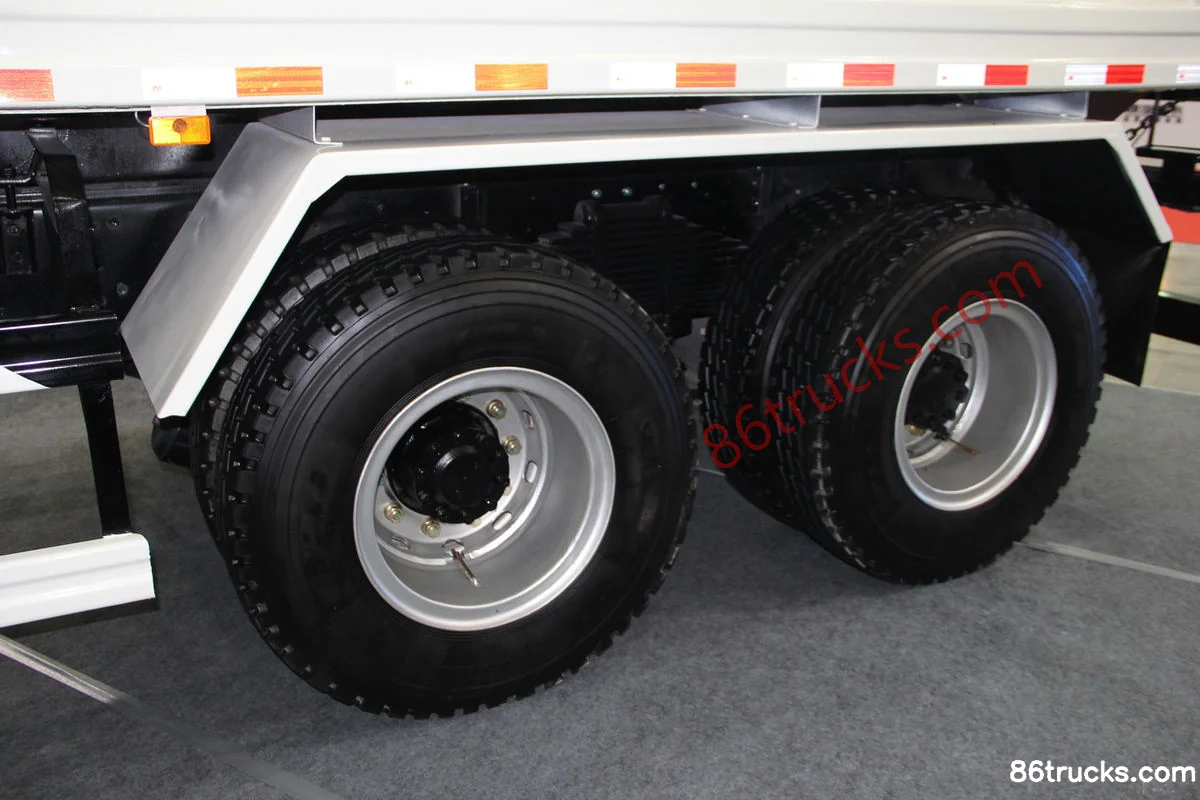

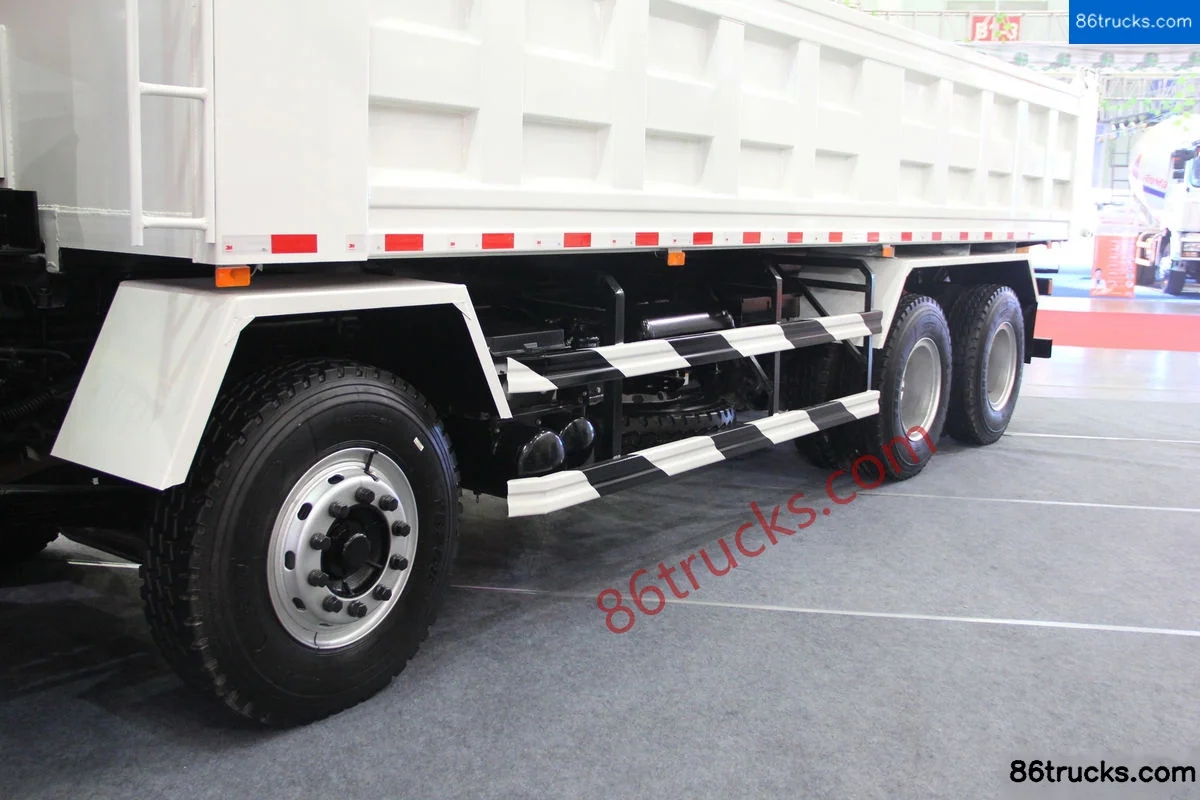

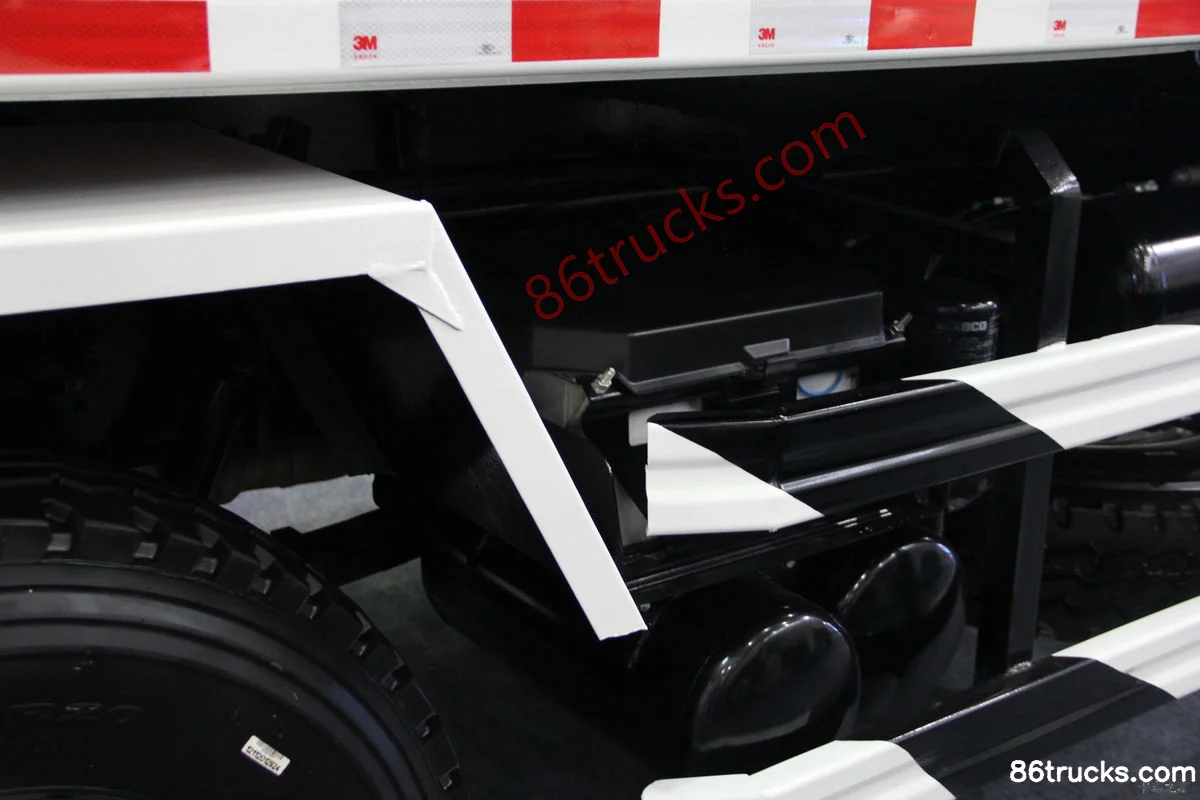

Chassis3

6 photos

FAQ

What emission standard does GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck?

Key specs of GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck suited for?

GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck differ from other variants in the same series?

GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck belongs to GAC HINO700 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export GAC HINO 700 Series Heavy Truck 350 hp 8X4(12 wheels) 8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
