SAIC Hongyan Jiehu H6 Standard Load 360 hp 8X4(12 wheels) 5.8m Dump Truck
EXW
From $48,625
Export quote
SAIC Hongyan Genho Heavy Truck Dump Trucks

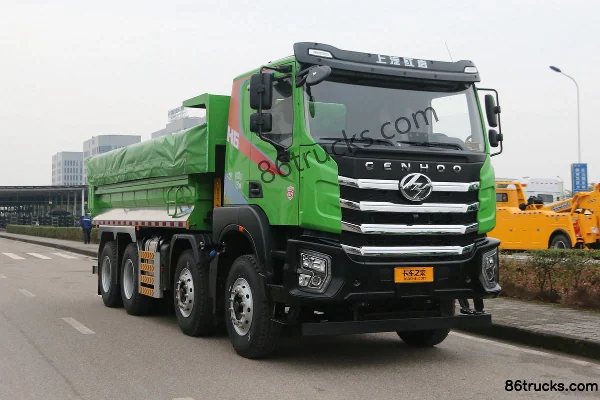

Main model photos
322 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Jiehu H6 Standard Load 360 hp 8X4(12 wheels) 5.8m Dump Truck | 8x4 / 360hp / China VI | From $48,625 | |
| SAIC Hongyan Jiehu H6 Standard Load 360 hp 8X4(12 wheels) 6.2m Dump Truck | 8x4 / 360hp / China VI | From $48,625 | |
| SAIC Hongyan Jiehu H6 Standard Load 360 hp 8X4(12 wheels) 6m Dump Truck | 8x4 / 360hp / China VI | From $48,625 | |
| SAIC Hongyan Jiehu H6 Standard Load 360 hp 8X4(12 wheels) 6.2m Dump Truck | 8x4 / 360hp / China VI | From $48,625 | |
| SAIC Hongyan JieHu H6 Standard Load Edition 350 hp 8X4(12 wheels) 5.8m Dump Truck | 8x4 / 350hp / China VI | From $46,125 |

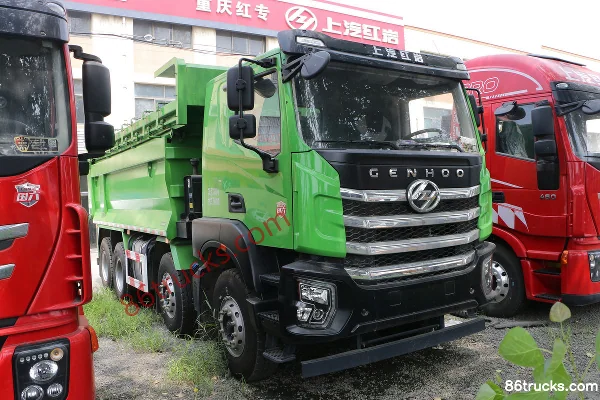

SAIC Hongyan Jiehu H6 Standard Load 360 hp 8X4(12 wheels) 6.2m Dump Truck
EXW
From $48,625
Export quote
SAIC Hongyan Jiehu H6 Standard Load 360 hp 8X4(12 wheels) 6m Dump Truck
EXW
From $48,625
Export quote
SAIC Hongyan Jiehu H6 Standard Load 360 hp 8X4(12 wheels) 6.2m Dump Truck
EXW
From $48,625
Export quote
SAIC Hongyan JieHu H6 Standard Load Edition 350 hp 8X4(12 wheels) 5.8m Dump Truck
EXW
From $46,125
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Jiehu H6 Composite Edition 400hp 8X4(12 wheels) 7.2m Dump Truck (China VI) | 8x4 / 400hp / China VI | ||
| SAIC Hongyan Jiehu H6 Composite Edition 400hp 8X4(12 wheels) 7m Dump Truck (China VI) | 8x4 / 400hp / China VI | ||
| SAIC Hongyan Jiehu H6 Composite Edition 400hp 8X4(12 wheels) 6.8m Dump Truck (China VI) | 8x4 / 400hp / China VI | ||
| SAIC Hongyan Jiehu H6 Composite Edition 400hp 8X4(12 wheels) 6.7m Dump Truck (China VI) | 8x4 / 400hp / China VI | ||
| SAIC Hongyan Jiehu H6 Composite Edition 400 hp 8X4(12 wheels) 6.5m Dump Truck (China VI) | 8x4 / 400hp / China VI |
SAIC Hongyan Jiehu H6 Composite Edition 400hp 8X4(12 wheels) 7.2m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Jiehu H6 Composite Edition 400hp 8X4(12 wheels) 7m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Jiehu H6 Composite Edition 400hp 8X4(12 wheels) 6.8m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Jiehu H6 Composite Edition 400hp 8X4(12 wheels) 6.7m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Jiehu H6 Composite Edition 400 hp 8X4(12 wheels) 6.5m Dump Truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): CQ5317ZLJEV09256V / CQ3317EV09256V / CQ3317EY08256V / CQ3317EV11366 / CQ5317ZLJEV09366 / CQ3317EV09366 / CQ5317ZLJEV09256 / CQ3317EV09256 / CQ3317EV11306 / CQ3317ED10256 / CQ5317ZLJED10256
Drive type: 8X4
Wheelbase: 2000+2500+1400 / 1800+2500+1400 / 2000+3600+1400 / 2000+3000+1400mm
Engine Model: SAIC Fiat Powertrain HongyanF2CCE611H*M / YuchaiYCK08350-60 / SAIC Fiat Powertrain HongyanF3GCE611D*M / SAIC Fiat Powertrain HongyanF3GCE611E*M / SAIC Fiat Powertrain HongyanF2CCE611G*M / SDECSC10E400Q6 / SDECSC10E370Q6
Transmission Model: Fast Gear12JSD160TA / Fast Gear12TDS2210 / Fast Gear12JSD160T / Fast Gear12JSDX220T-B / Fast Gear12JSD200T-B / Fast Gear12JSD180T
Rear Axle Ratio: 5.13 / 4.8 / 5.262 / 5.214
Cab length: 8.81 / 9.11 / 8.91 / 8.76 / 8.61 / 9.06 / 10.71 / 10.51 / 10.31 / 10.46 / 10.36 / 10.16 / 9.51 / 9.01 / 8.96m
Cab width: 2.55 / 2300m
Cab height: 3.46 / 3.48 / 3.85m
Front track width: 2020/2020 / 2040/2040mm
rear track: 1870/1870 / 1858/1858mm
Curb Weight: 12.4 / 13.6 / 14.1ton
Rated payload: 18.47 / 17.27 / 16.77ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 22 / 24 / 20 / 18 / 19 / 21 / 17°
Remarks: Optional: flat roof short cab, cab air suspension seat (damping adjustable, ventilated/heated), 10-inch center console (internet, Bluetooth, entertainment, phone mirroring), HY457/HY440 drive axle, BOSCH steering gear, rear stabilizer bar, oil bath air filter, 180Ah battery, 400L/(300+100)L fuel tank, 220V power outlet, panoramic camera system. / Optional ratio 5.13 / Optional: HY320/HY300(H)/HDZ300Q drive axle, 350L/(300+100)L/600L (40 wheelbase only) fuel tank. / Optional: HY457/HY440 drive axle, 350L/400L/(300+100)L fuel tank. / Standard: Henglong steering gear, intercooler protection frame, 180Ah battery, metal front bumper, electronic fuel pump, urea heating system, power-assisted gearbox; Optional: HY300(H)/HY320/HDZ300 drive axle, BOSCH steering gear, luxury electric heated rearview mirror, plastic bumper, oil-bath air filter
Version: Standard Load Edition / composite reinforced version / composite version
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan / Yuchai / SDEC
Number of cylinders: 6cylinder
Displacement: 8.709 / 7.7 / 11.12 / 10.4 / 10.42L
Emission standard: China VI
Max output power: 265 / 257 / 338 / 317 / 287 / 263 / 294 / 272kW
Max hp: 360 / 350 / 460 / 430 / 390 / 400 / 370Horsepower
Max torque: 1450 / 2100 / 1900 / 1800N·m
Max torque speed: 1300-1500 / 1100-1500 / 1100-1400rpm
Rated speed: 2200 / 1900rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline 6-cylinder, turbocharged, high-pressure common rail / EGR+DOC+DPF+SCR+ASC / Compression ignition, direct injection, inline six-cylinder, water-cooled
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8 / 6.2 / 6 / 5.6 / 7.8 / 7.6 / 7.4 / 7.2 / 7 / 6.8 / 6.4 / 6.5m
Cargo box width: 2.35 / 2.3m
Cargo box height: 1.2 / 1.5m
FAQ
What kind of truck is SAIC Hongyan SAIC Hongyan Genho Heavy Truck Dump Trucks?
SAIC Hongyan SAIC Hongyan Genho Heavy Truck is an export-oriented Dump Trucks lineup with about 661 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SAIC Hongyan Genho Heavy Truck Dump Trucks?
SAIC Hongyan Genho Heavy Truck Dump Trucks export reference is about $46,125 – $65,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SAIC Hongyan Genho Heavy Truck Dump Trucks cover?
SAIC Hongyan Genho Heavy Truck Dump Trucks mainly covers: Drive: 8x4; Horsepower: 350 hp / 360 hp / 400 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SAIC Hongyan Genho Heavy Truck Dump Trucks?
For SAIC Hongyan Genho Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SAIC Hongyan Genho Heavy Truck Dump Trucks include?
SAIC Hongyan Genho Heavy Truck Dump Trucks currently lists about 661 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SAIC Hongyan Genho Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
