Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.2ton
Wheelbase:: 3640+1410mm
Tire Size:: 11.00-20,11.00R20,295/80R22.5
Model code (announced):: YC3250FS2PM4
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Rear-dump body
Emission China IV

Overview

The GAC Leader Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck is a Heavy truck featuring 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a Shanghai HinoP11C-VA engine, 350 hp, China IV emissions and Fast Gear transmission.

China IV 350 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): YC3250FS2PM4
Drive type: 6X4
Wheelbase: 3640+1410mm
engine: Shanghai HinoP11C-VA
transmission: Fast GearRT-11509C
Rear Axle Ratio: 4.625
Cab length: 8.42m
Cab width: 2.495m
Cab height: 3.27m
Front track width: 2060mm
rear track: 1855/1855mm
Curb Weight: 12.2ton
GVWR: 25ton
Origin: Guangzhou, Guangdong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 20°
Remarks: Four-point suspension, electro-hydraulic cab tilt system
Energy Type: Diesel
Engine parameters
Engine Brand: Shanghai Hino
Engine Model: Shanghai HinoP11C-VA
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.52L
Emission standard: China IV
Max output power: 259kW
Max hp: 350Horsepower
Max torque: 1483N·m
Max torque speed: 1200-1300rpm
Rated speed: 2100rpm
Engine Type: Denso electronic common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast GearRT-11509C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.175m
Chassis Specs
rear axle description: 13T
rear axle allowable load: 18000kg
Axle ratio: 4.625
Leaf spring count: 10/13,11/13,10/14,11/14
Tire
Tire Size: 11.00-20,11.00R20,295/80R22.5
Number of tires: 10pcs

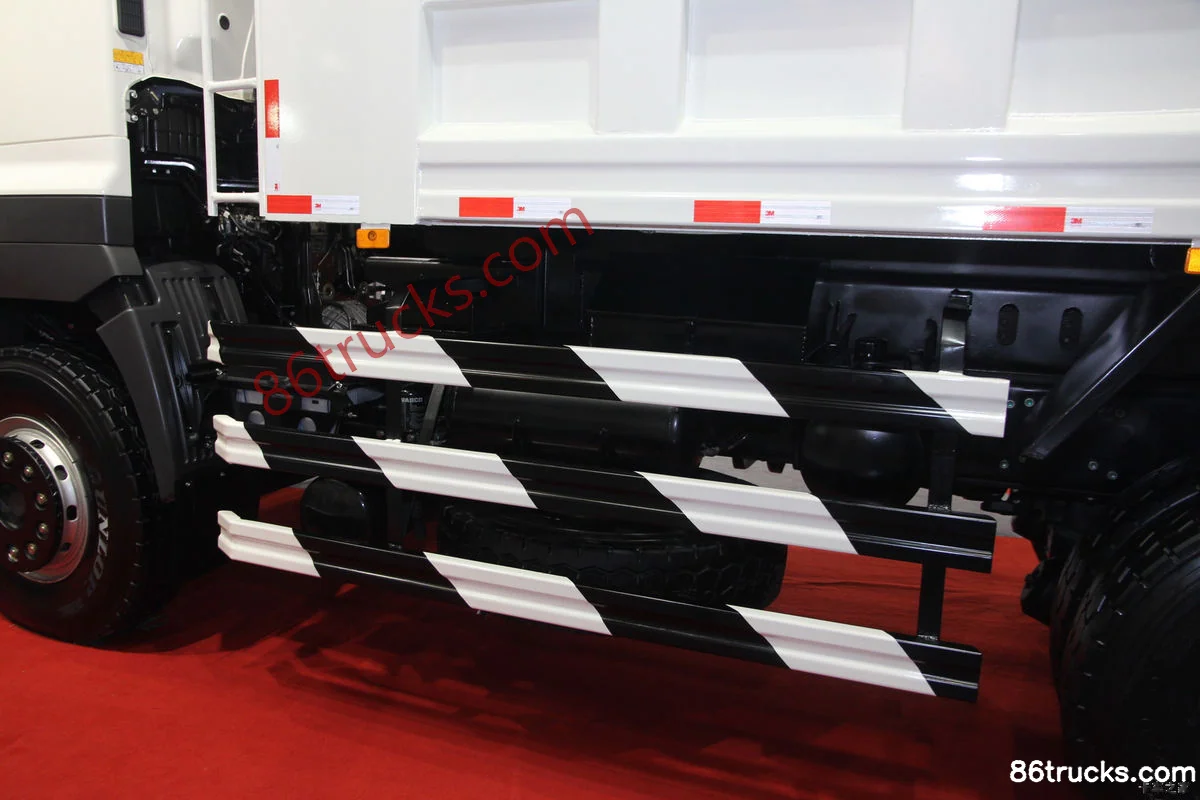

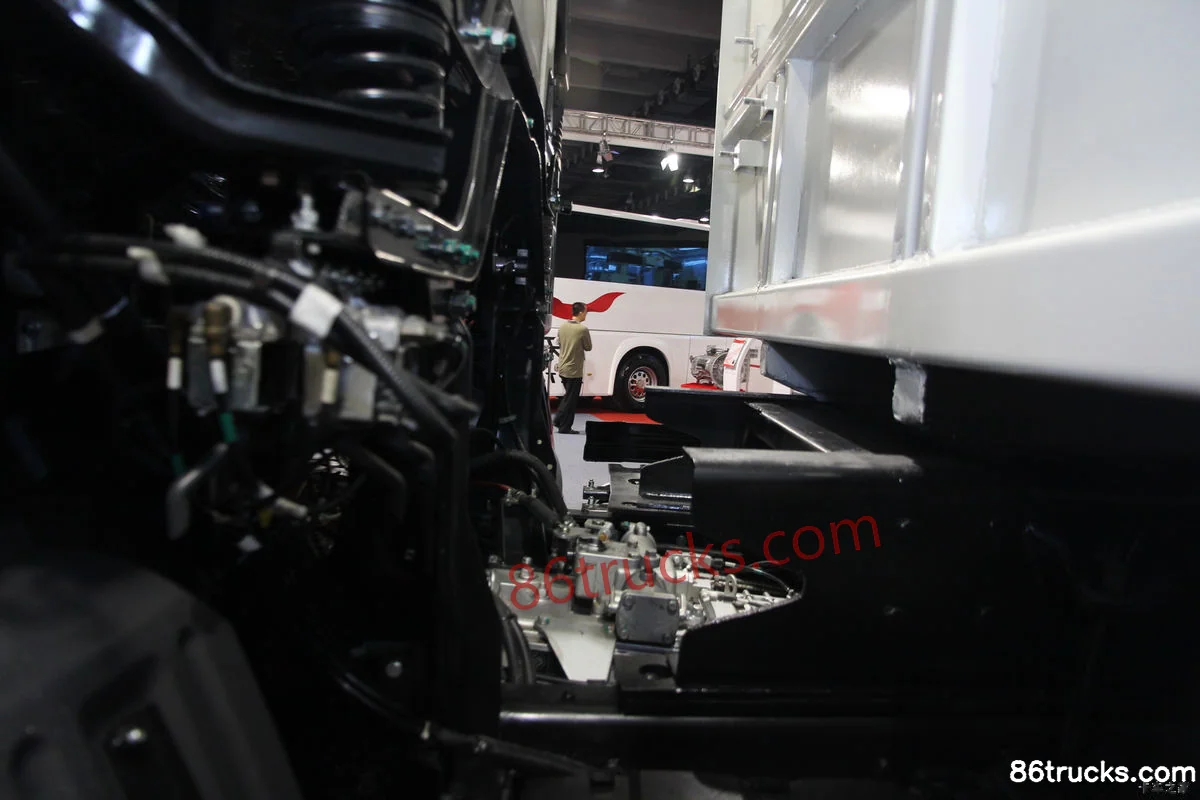

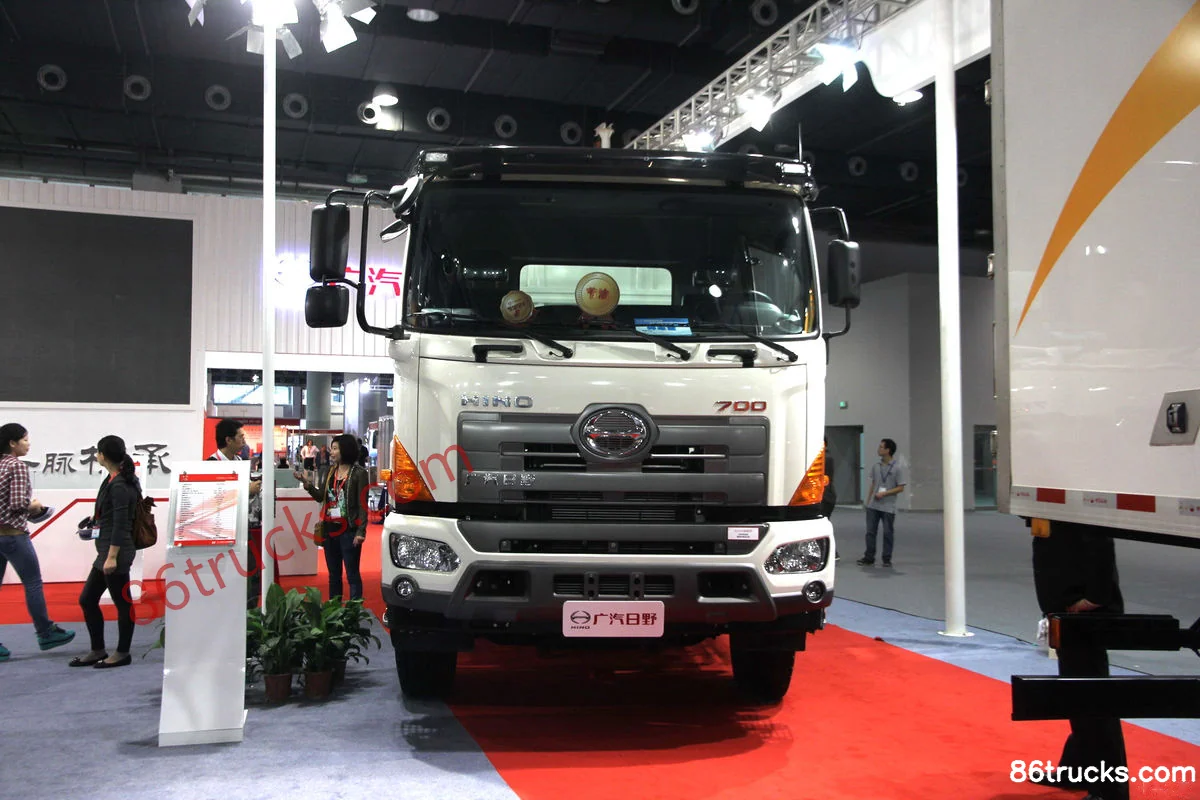

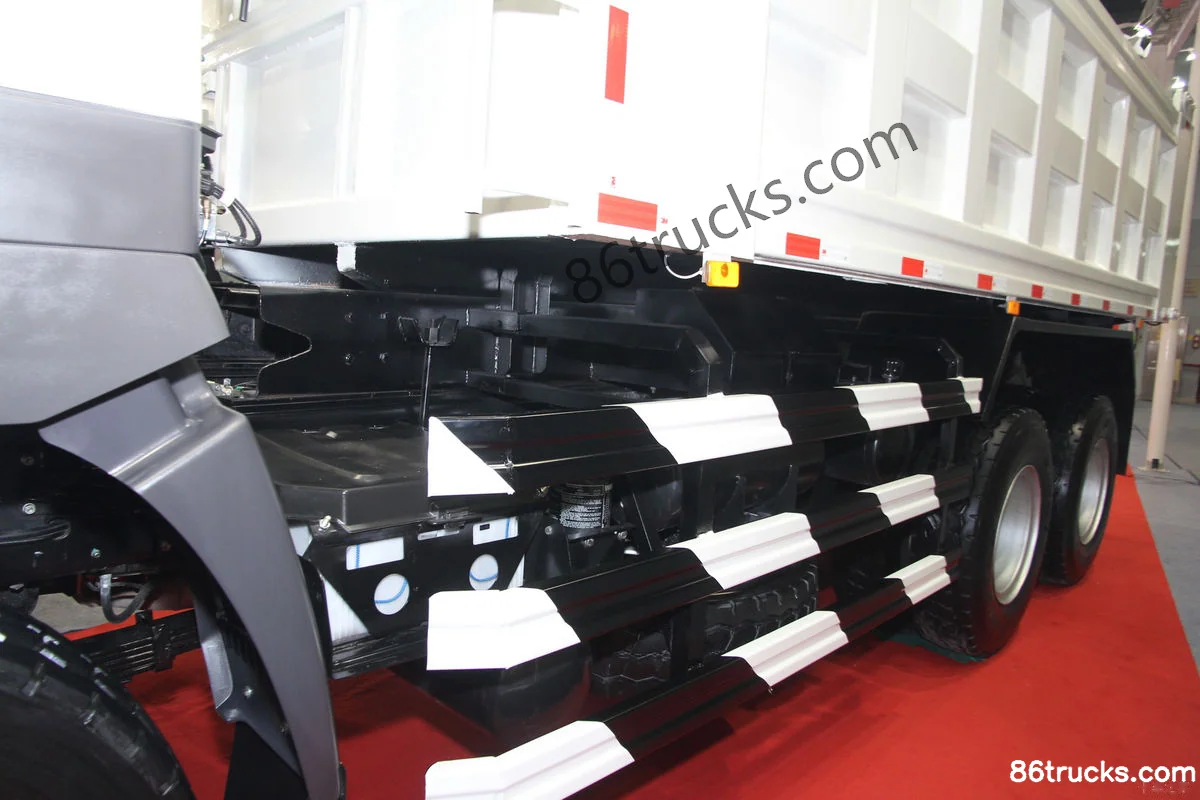

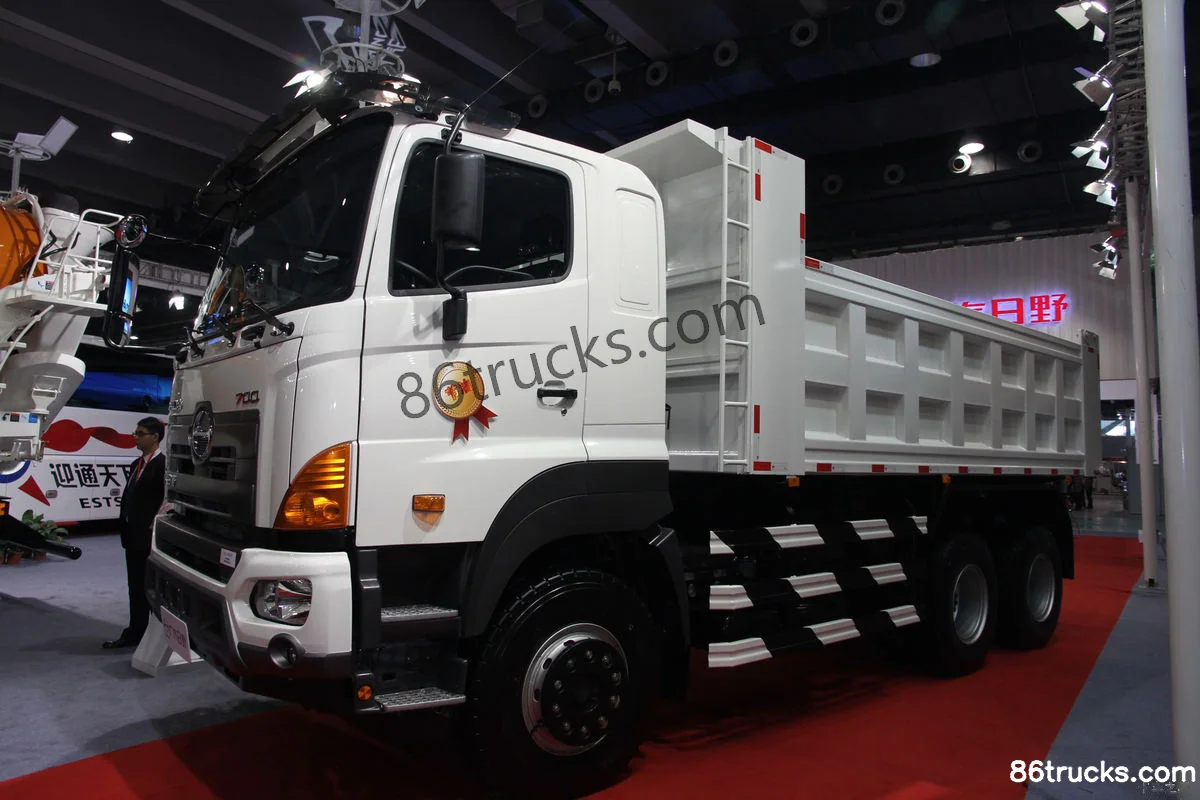

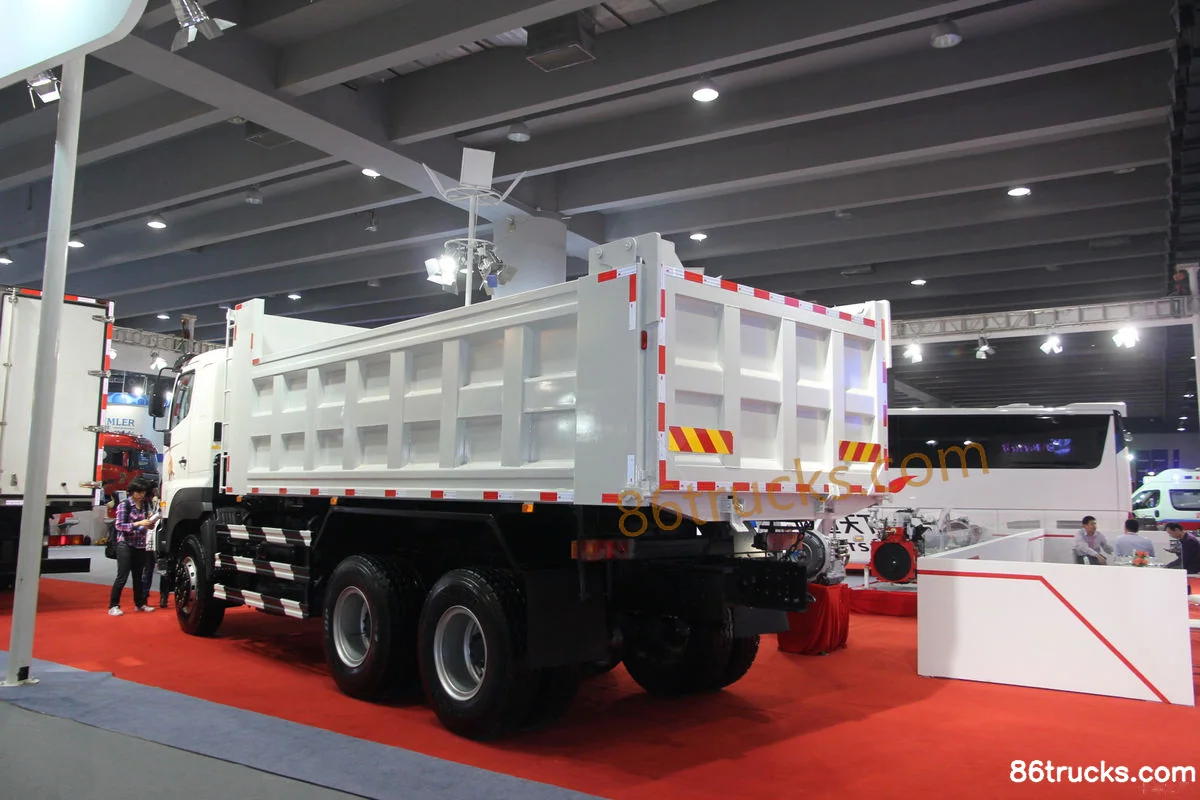

Photos

Exterior3

Cab3

6 photos

FAQ

What emission standard does Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck?

Key specs of Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck: Drive: 6x4; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck suited for?

Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck differ from other variants in the same series?

Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck belongs to GAC HINO700 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Guangqi HINO 700 Series Heavy Truck 350hp 6X4(10 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
