GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Transmission: ZF
Curb Weight:: 15.1ton
Wheelbase:: 1850+3850+1410mm
Tire Size:: 11.00R20
Rated payload: 15.77ton
Drive 8X4 (12 wheels)
Horsepower 380
Cargo box type: Rear-dump body

Overview

The GAC Leader GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck is a Heavy truck featuring 15.77t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a Shanghai HinoP11C-UR engine, 380 hp, China III / Euro III emissions and ZF transmission.

China III / Euro III 380 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): YC3310FY2PW
Drive type: 8X4
Wheelbase: 1850+3850+1410mm
engine: Shanghai HinoP11C-UR
transmission: ZFZF9S1820TD
Cab length: 10.43m
Cab width: 2.495m
Cab height: 3.5m
Front track width: 2060/2060mm
rear track: 1855/1855mm
Curb Weight: 15.1ton
Rated payload: 15.77ton
GVWR: 31ton
Origin: Guangzhou, Guangdong
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 19°
Remarks: Four-point full-floating, electro-hydraulic tiltable cab
Energy Type: Diesel
Engine parameters
Engine Brand: Shanghai Hino
Engine Model: Shanghai HinoP11C-UR
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.52L
Emission standard: China III / Euro III
Max output power: 280kW
Max hp: 380Horsepower
Max torque: 1600N·m
Max torque speed: 1300rpm
Rated speed: 2100rpm
Engine Type: Denso electronic common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: ZFZF9S1820TD
Transmission Brand: ZF
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 7.6m
Cargo box width: 2.3m
Cargo box height: 1.1m
Chassis Specs
rear axle description: GAC HINO 18-inch Axle
rear axle allowable load: 18000kg
Leaf spring count: 11/11/13
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

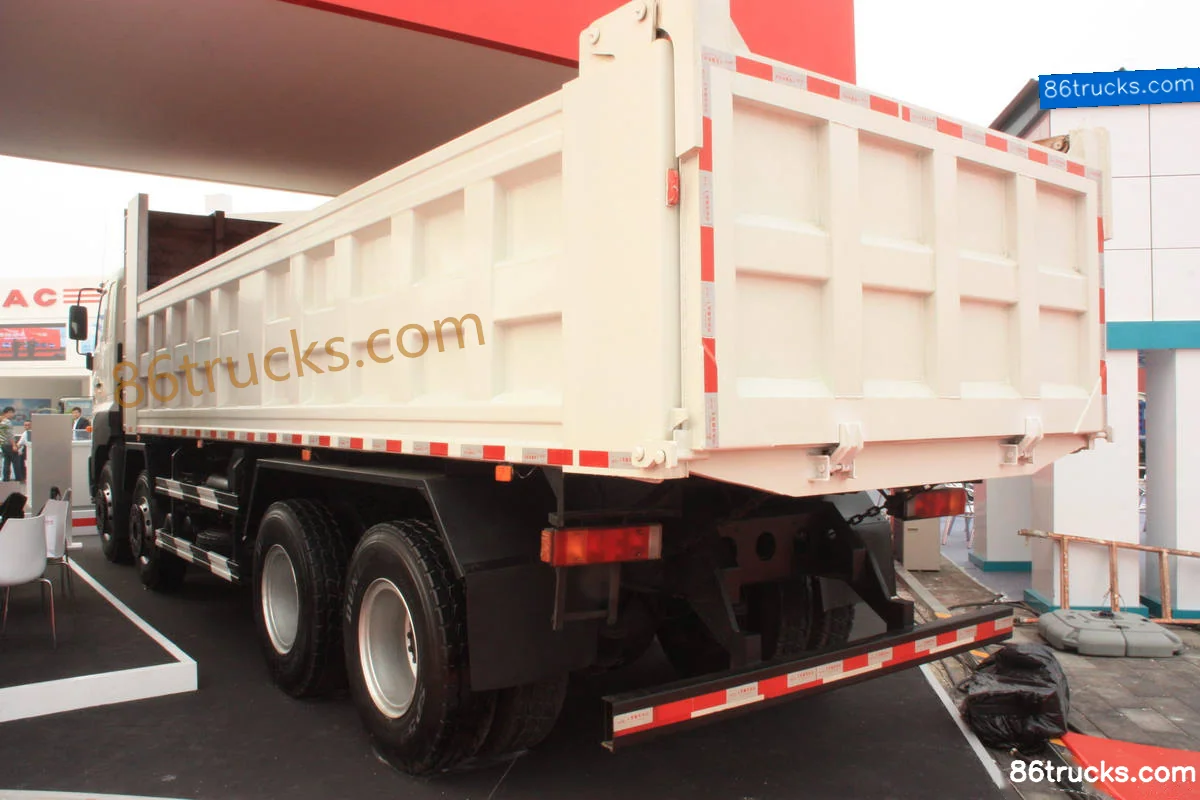

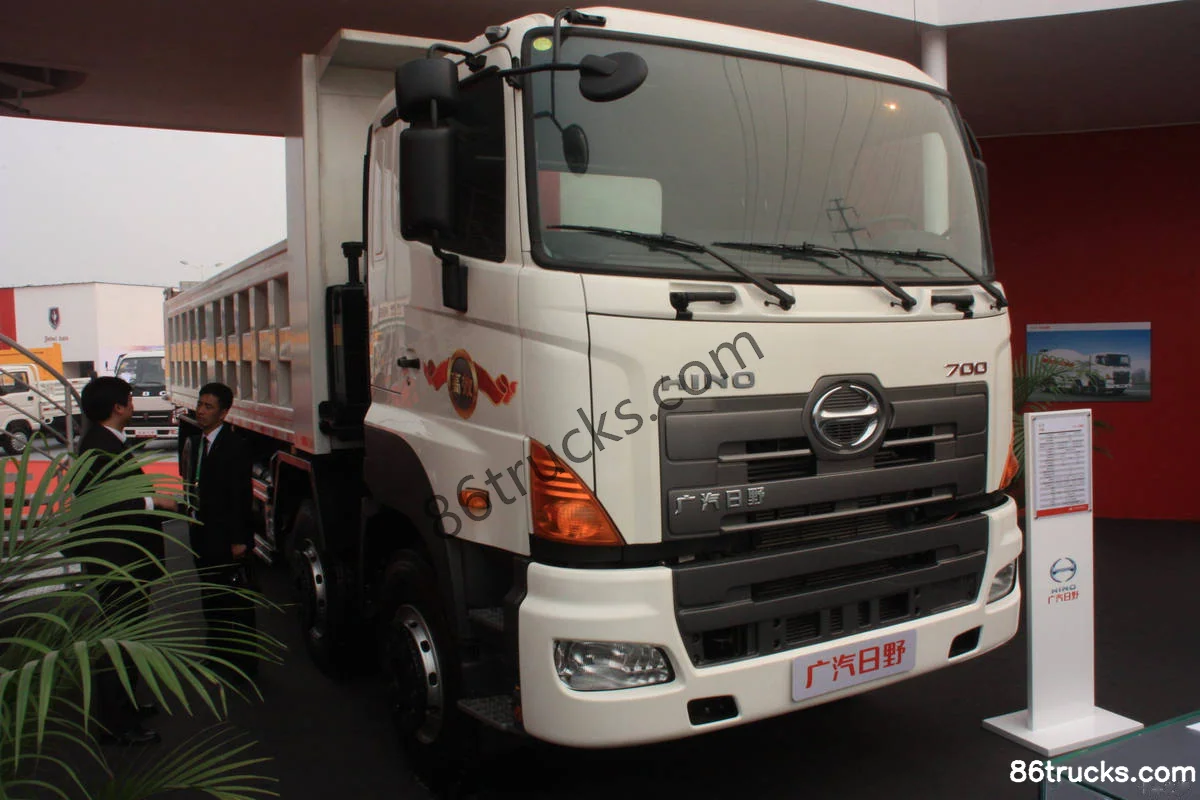

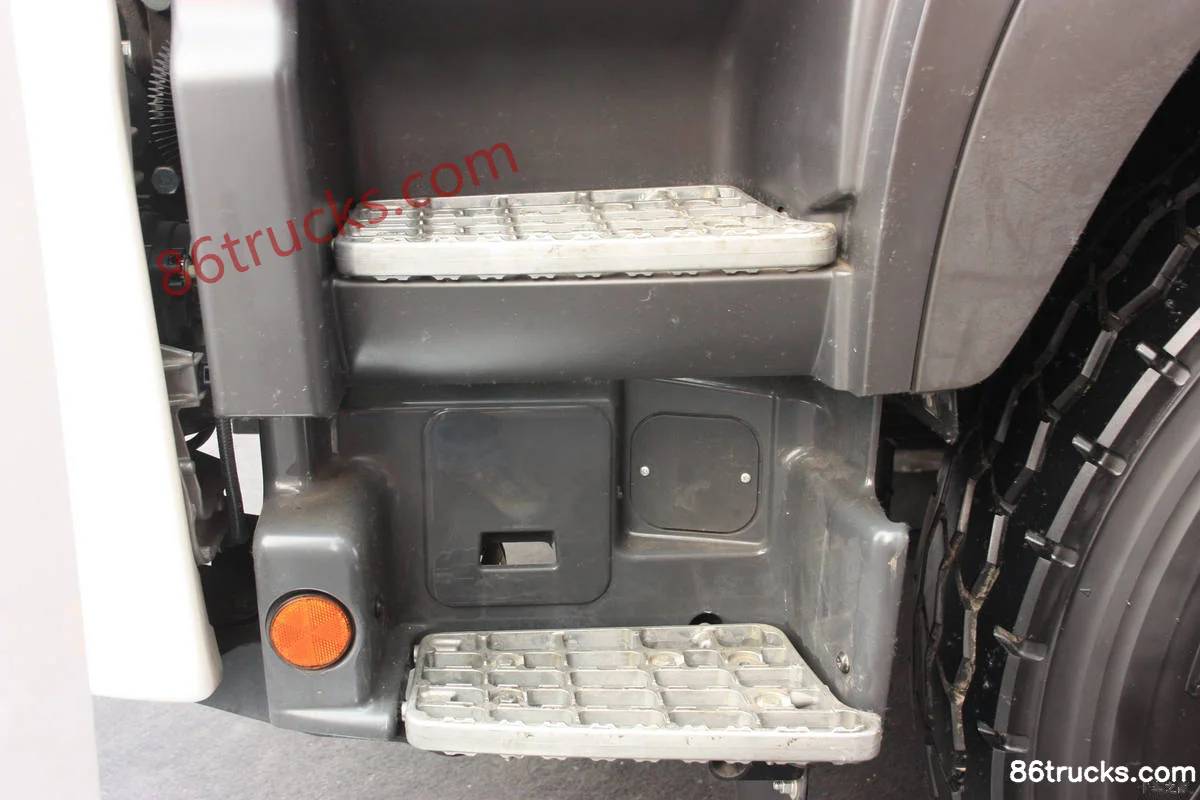

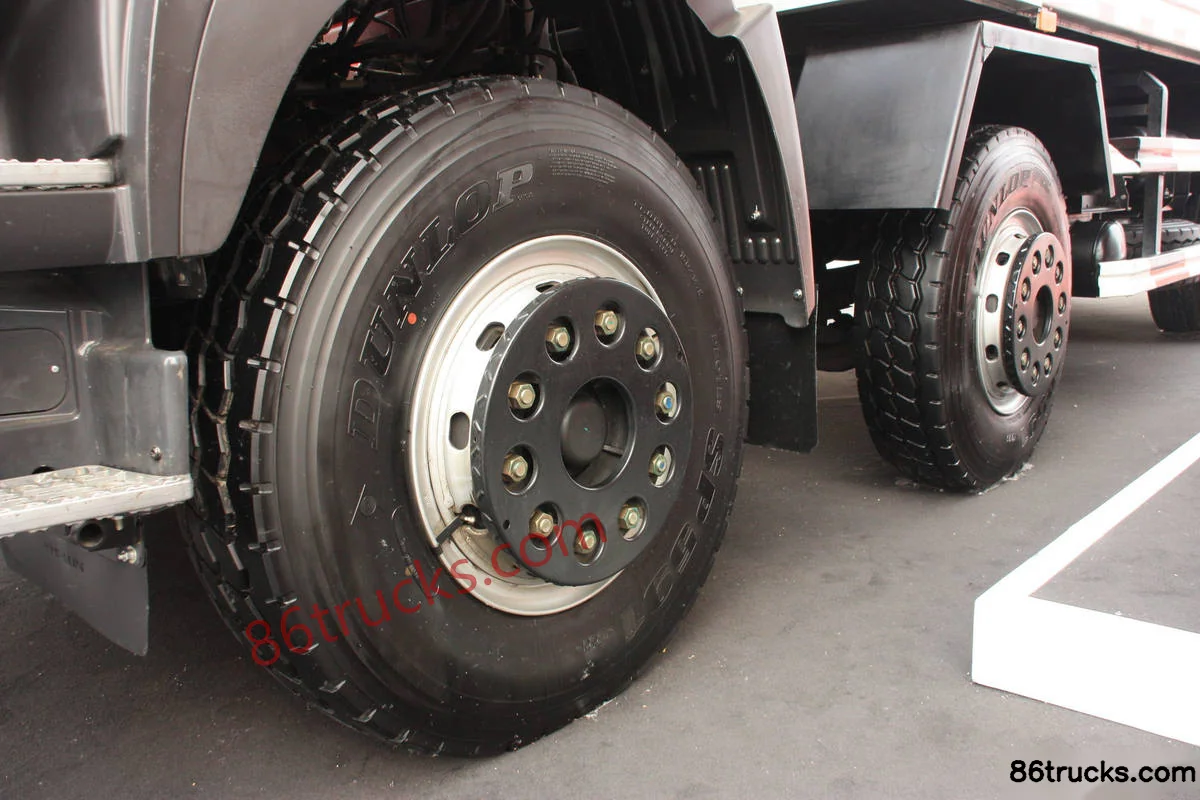

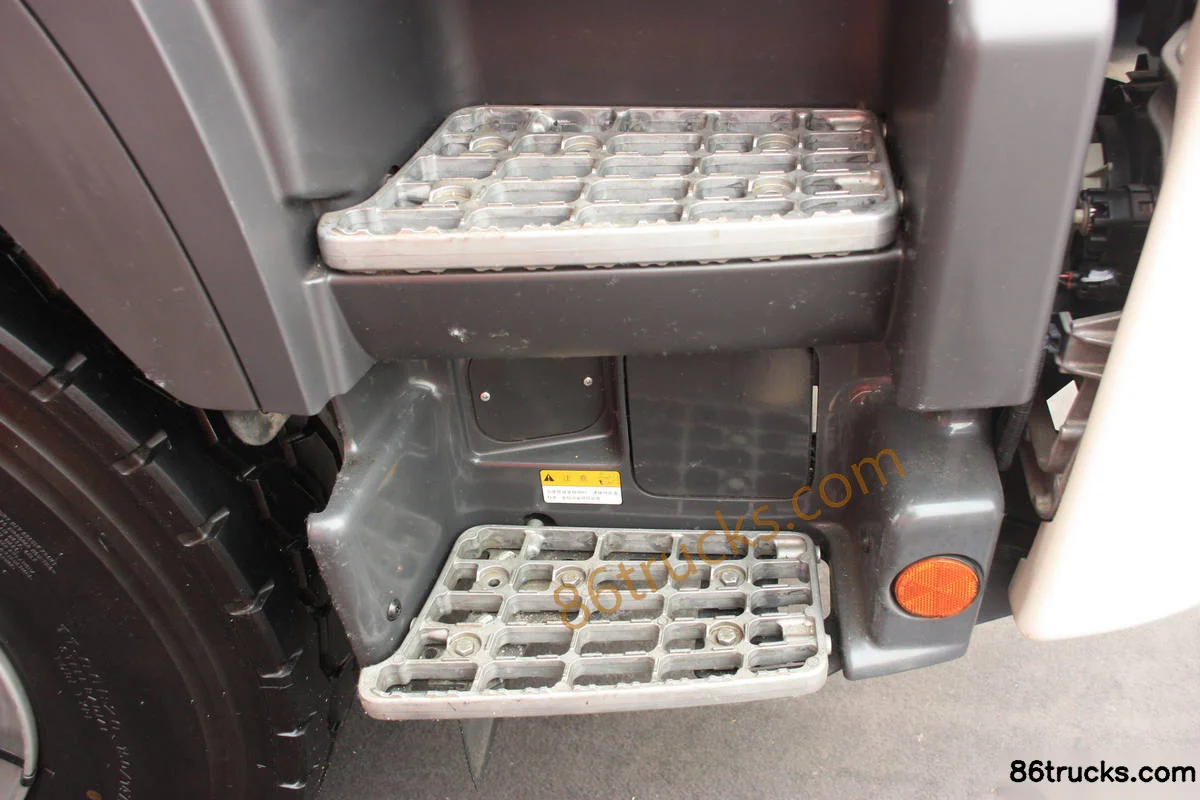

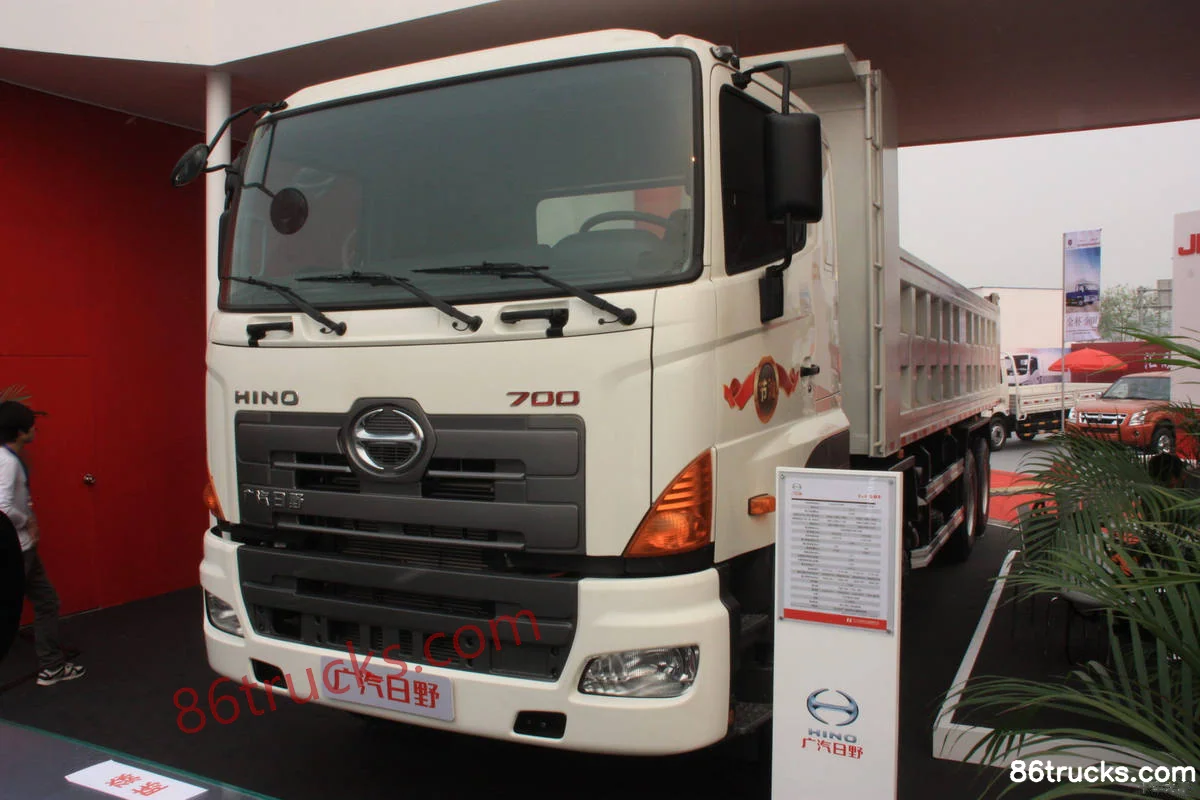

Photos

Exterior3

Chassis3

6 photos

FAQ

What emission standard does GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck?

Key specs of GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck: Drive: 8x4; Horsepower: 380 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck suited for?

GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck differ from other variants in the same series?

GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck belongs to GAC HINO700 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export GAC HINO 700 Series Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
