SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI)

Export reference
From $27,417
MSRP ¥19.74M CNY
Transmission: Fast Gear
Wheelbase:: 4500mm
Tire Size:: 11.00R20
Model code (announced):: CQ3317AY05451
engine:: YuchaiYCK05240-60
Rear Axle Ratio:: 5.73
Drive 4X2 (6 wheels)
Horsepower 240
Emission China VI
Fuel Diesel

Overview

The SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI) is a Medium-duty truck featuring 4X2 (6 wheels) drive and 2.5m semi-high roof cab cab. On the powertrain side, it comes with a YuchaiYCK05240-60 engine, 240 hp, China VI emissions and Fast Gear transmission.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3317AY05451
Drive type: 4X2
Wheelbase: 4500mm
engine: YuchaiYCK05240-60
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.73
Cab length: 7.66m
Cab width: 2.55m
Cab height: 3.3m
tonnage class: Medium-duty truck
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05240-60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 5.13L
Emission standard: China VI
Max output power: 176kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: 2.5m semi-high roof cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 6.5T
Frame Dimensions: 280(8+4)mm
rear axle description: HY300S
Axle ratio: 5.73
Tire
Tire Size: 11.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

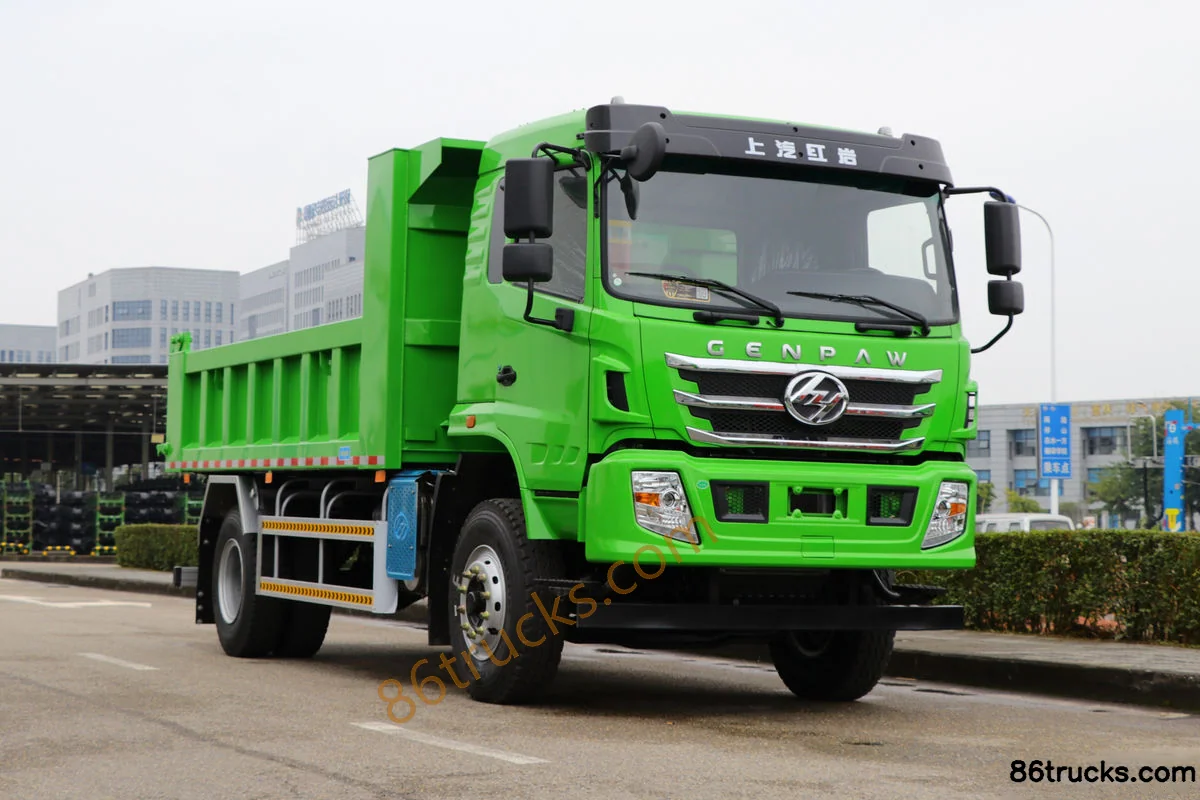

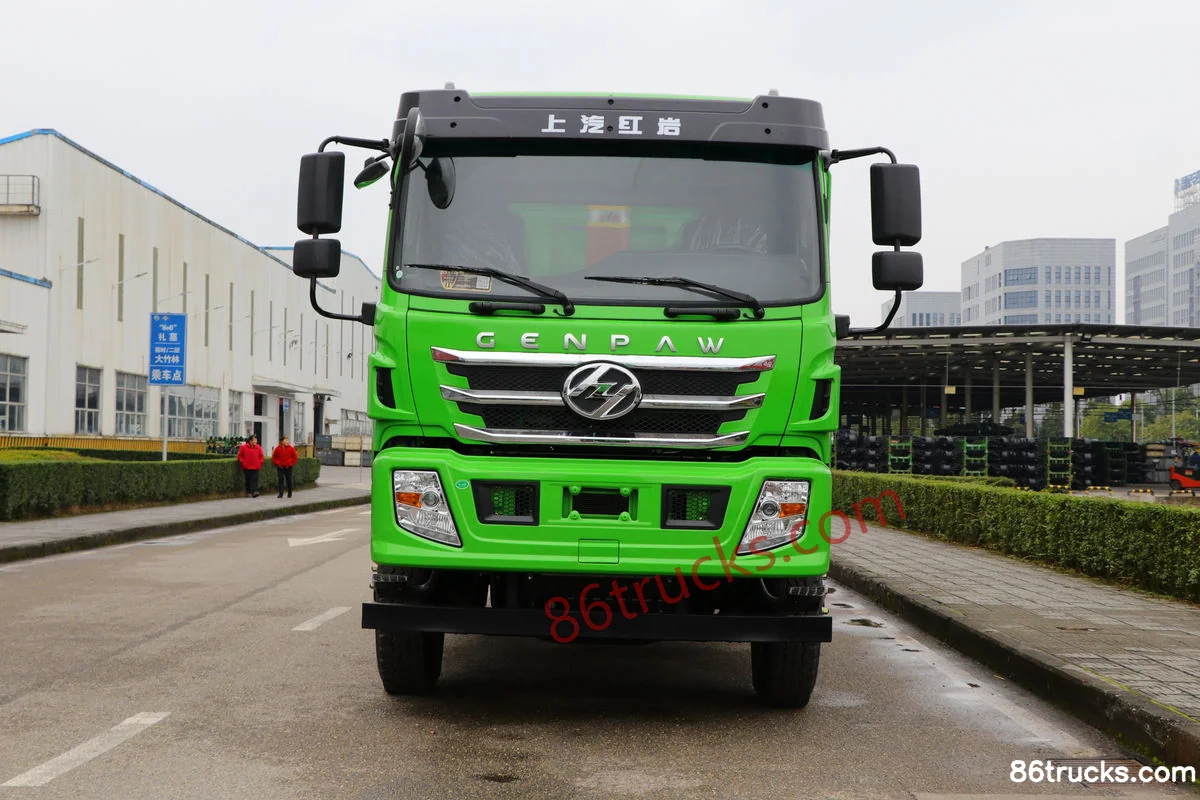

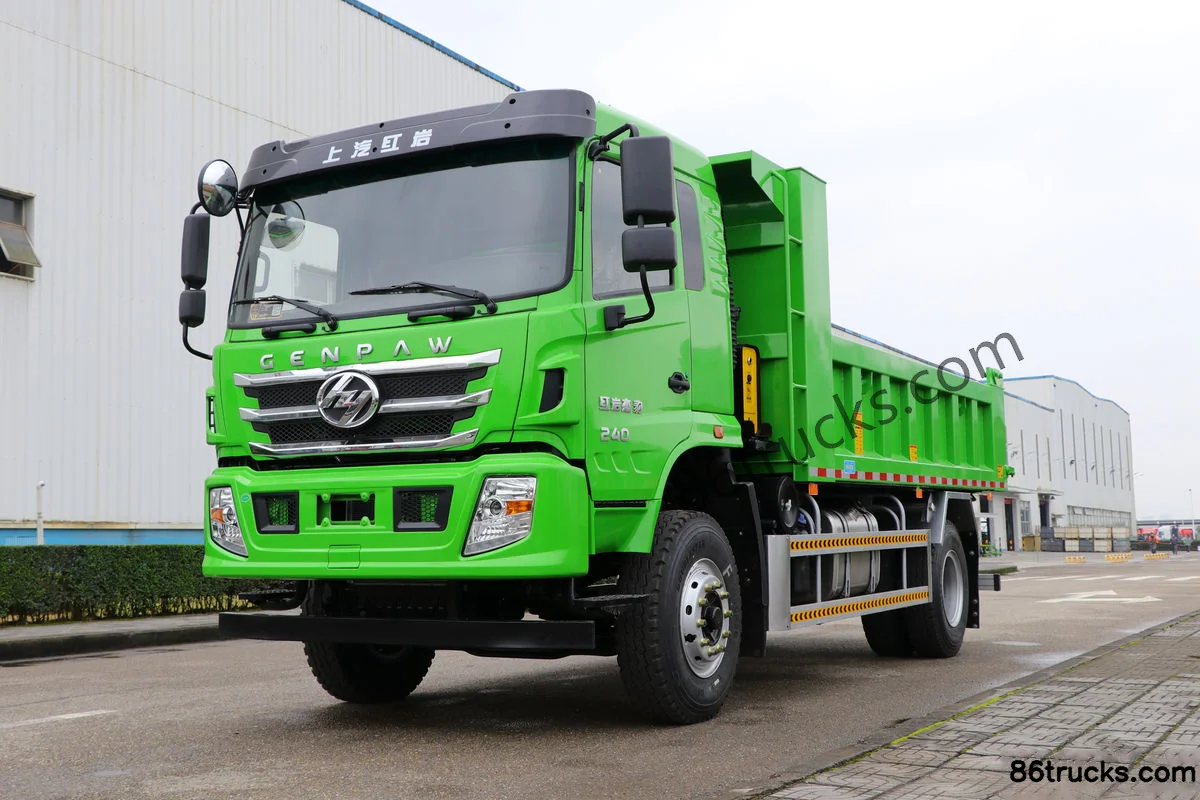

Exterior3

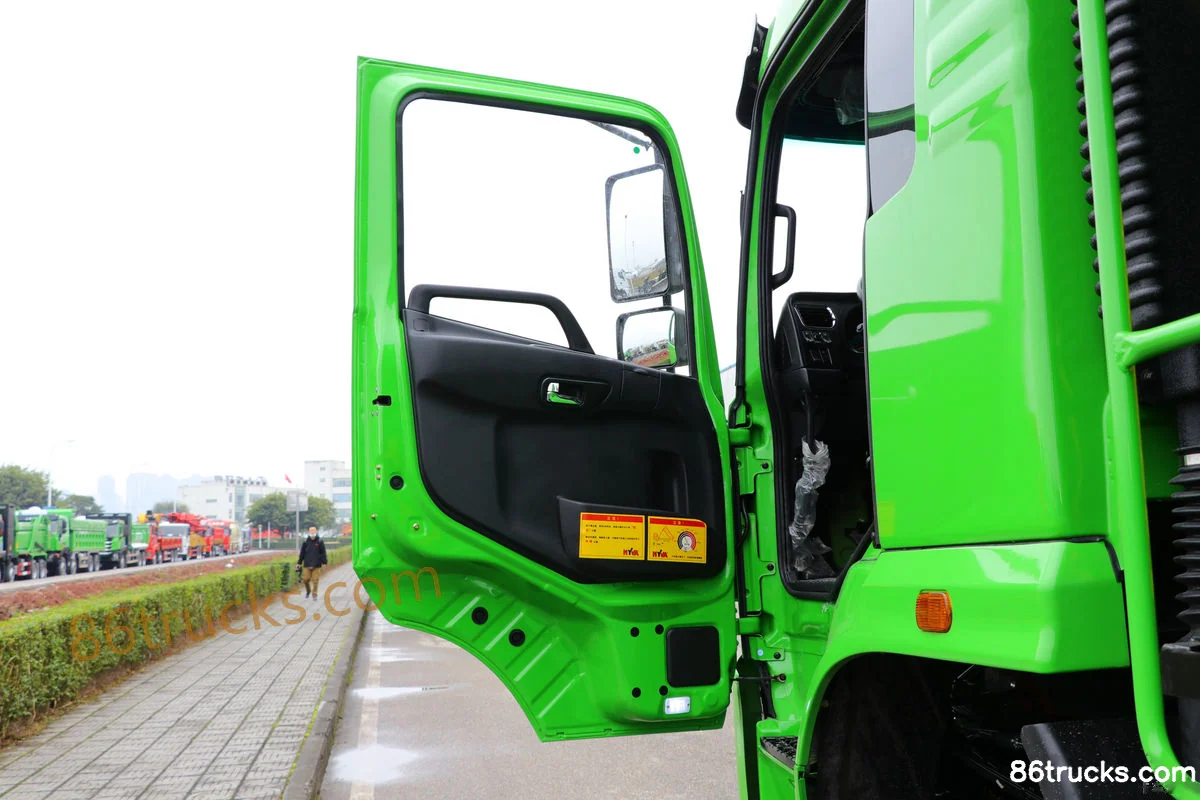

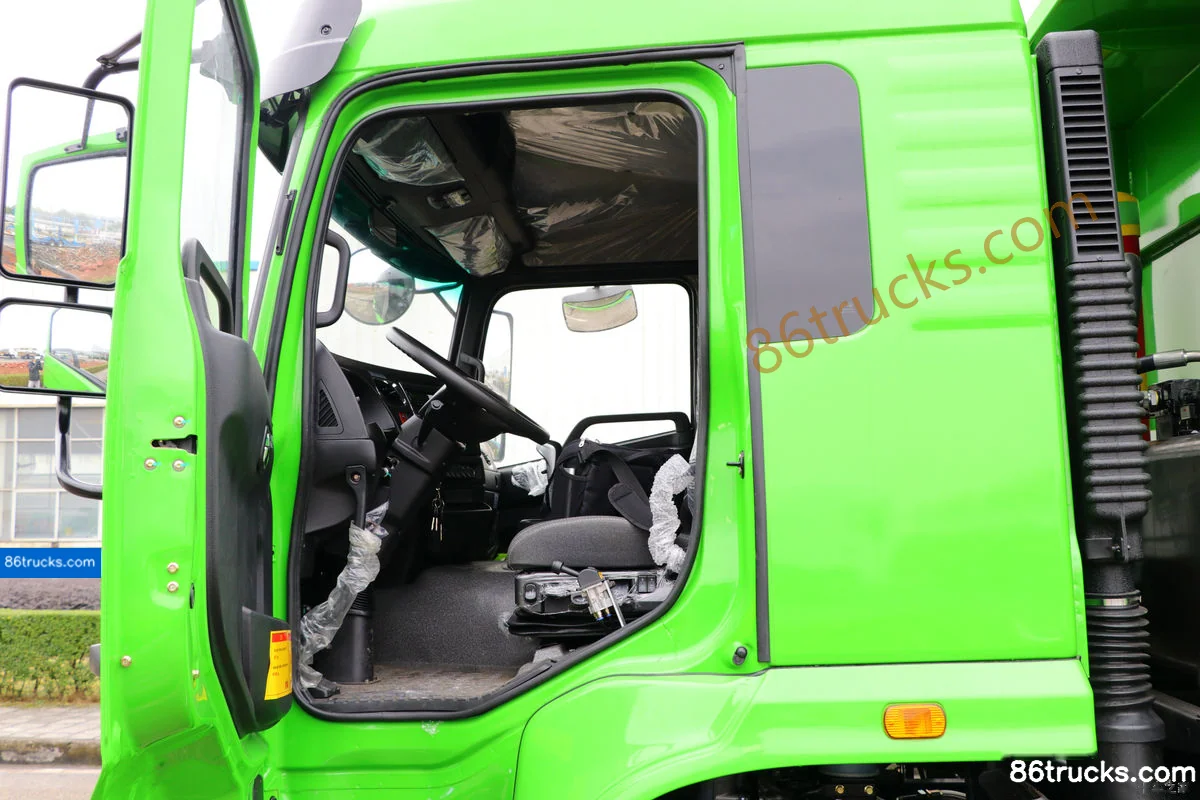

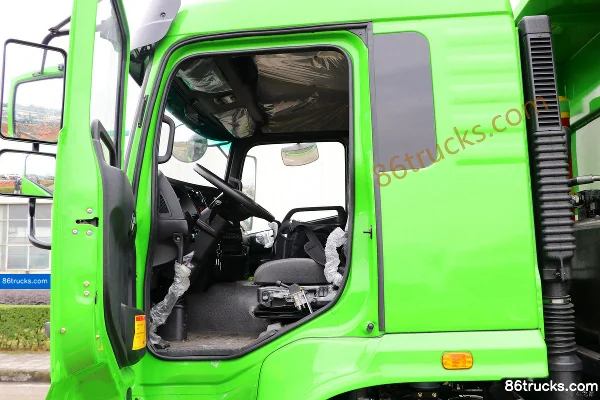

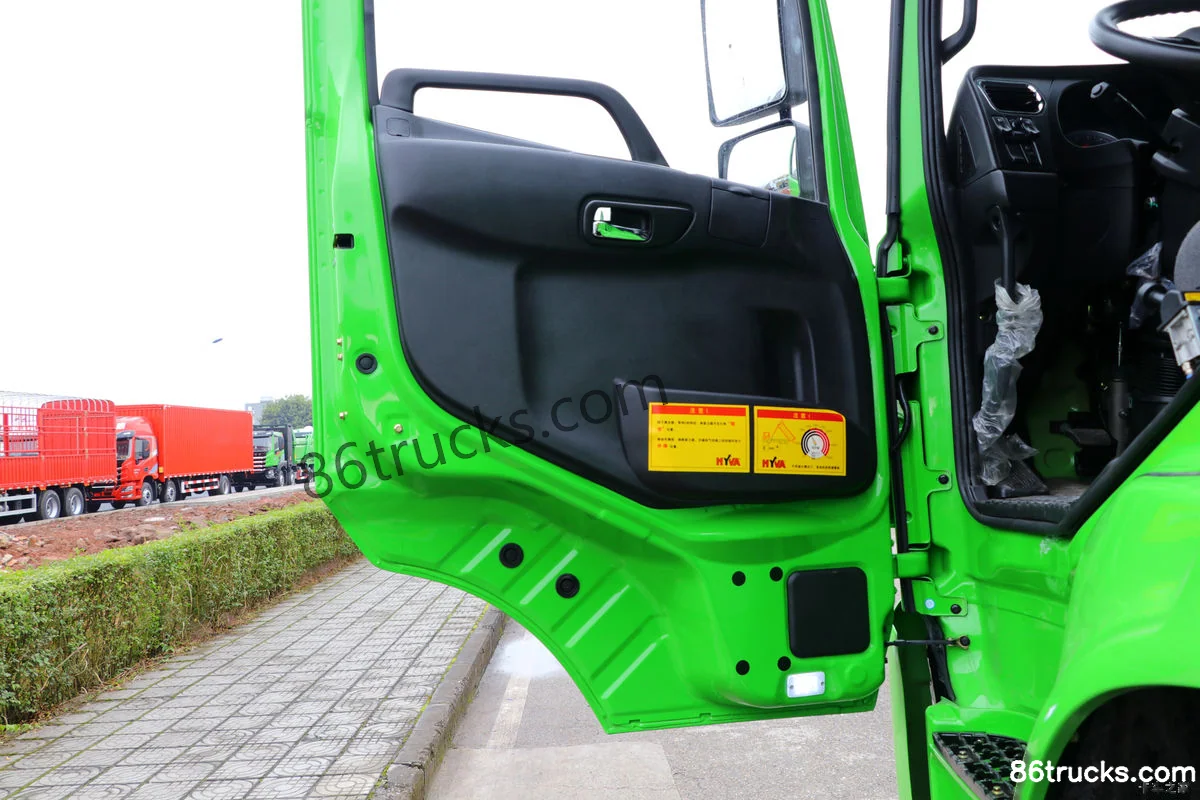

Cab3

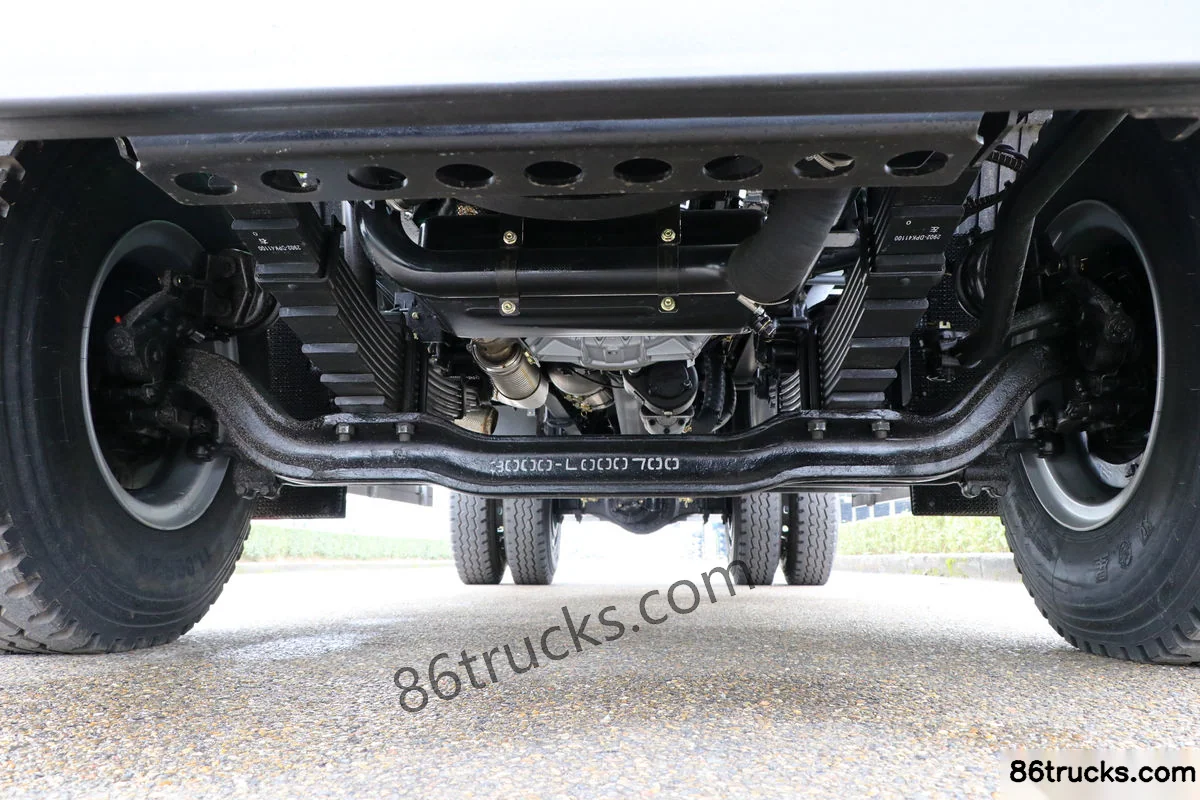

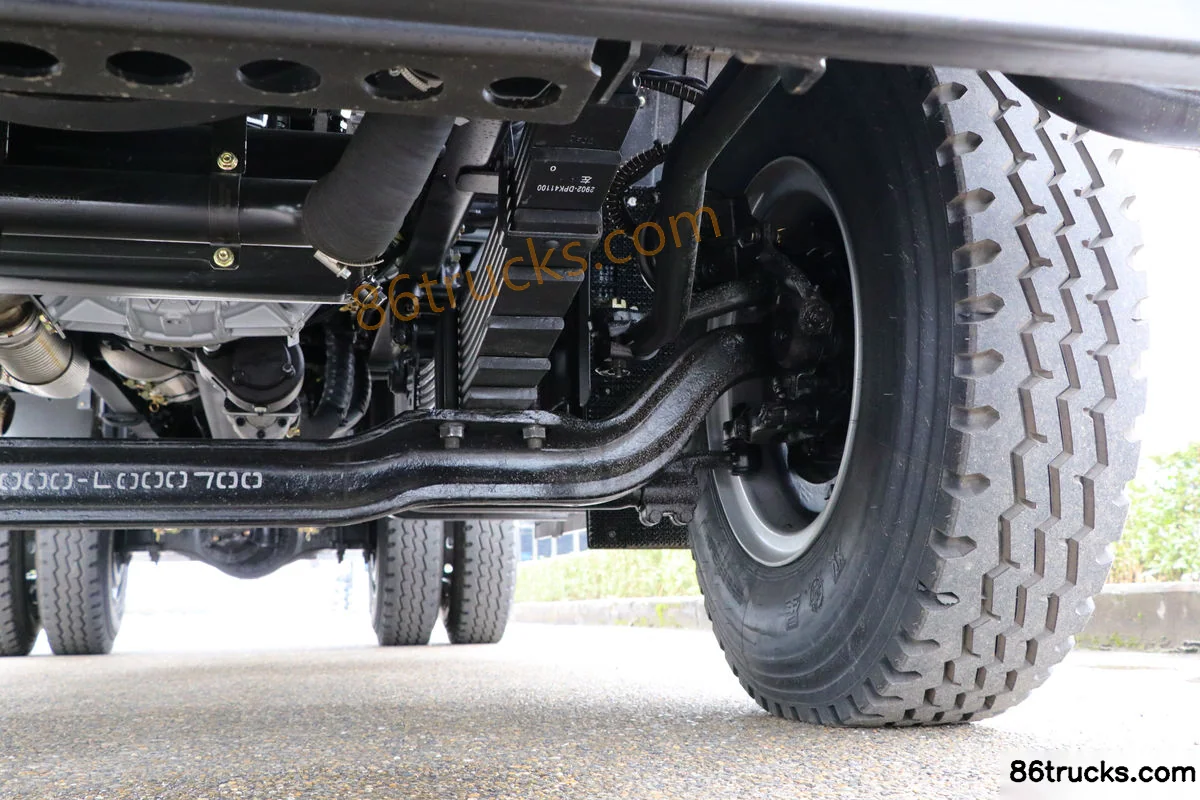

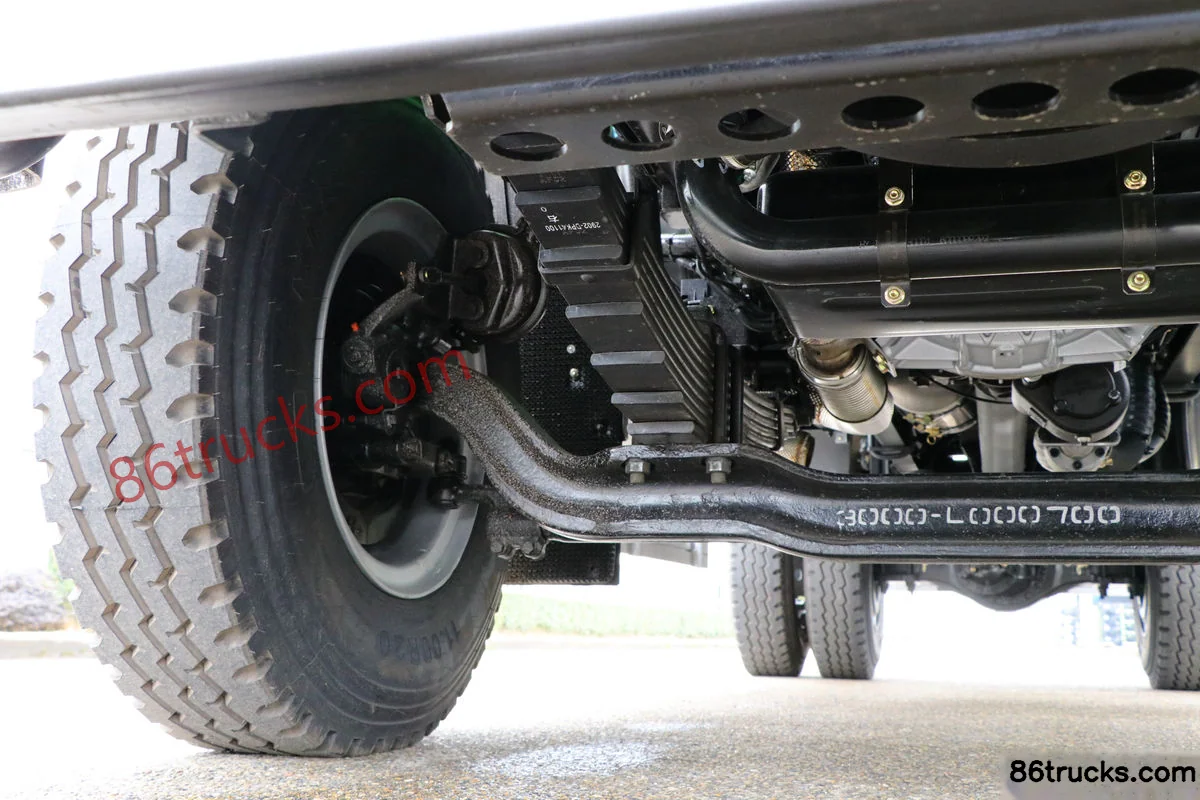

Chassis3

9 photos

FAQ

What is the export price of SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI), and what does it include?

SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI) export reference is about From $27,417; MSRP is ¥19.74M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI)?

Key specs of SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI): Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI) suited for?

SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI) differ from other variants in the same series?

SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI) belongs to SAIC Hongyan Jiebao Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Jiebao C6 240hp 4X2(6 wheels) 5.8m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
