Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3 m dump truck (WLY 5-speed)
EXW
From $16,486
Export quote
Foton King S1 PLUS Light Truck Dump Trucks
Main model photos
133 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3 m dump truck (WLY 5-speed) | 4x2 / 150hp / China VI | From $16,486 | |
| Foton King Kong S1 PLUS 150hp 4X2(6 wheels) 3.3m dump truck | 4x2 / 150hp / China VI | From $17,889 | |
| Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.9m dump truck | 4x2 / 150hp / China VI | From $18,306 | |
| Foton Jinshan S1 PLUS 150hp 4X2(6 wheels) 3.7m dump truck | 4x2 / 150hp / China VI | From $18,028 | |

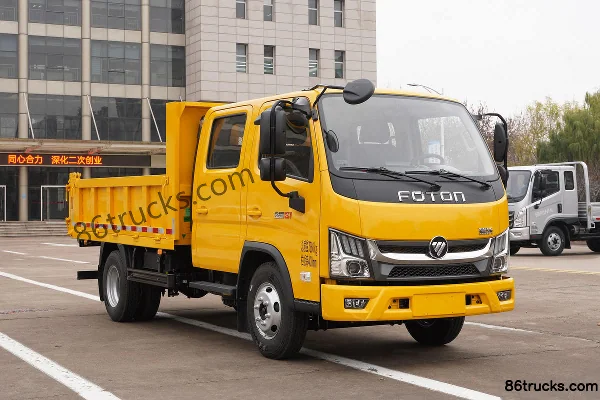

| Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI) | 4x2 / 120hp / China VI | From $15,069 |
Foton King Kong S1 PLUS 150hp 4X2(6 wheels) 3.3m dump truck
EXW
From $17,889
Export quote
Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.9m dump truck
EXW
From $18,306
Export quote
Foton Jinshan S1 PLUS 150hp 4X2(6 wheels) 3.7m dump truck
EXW
From $18,028
Export quote
Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI)
EXW
From $15,069
Export quote
Series Specs
Basic Info
Model code (announced): BJ3125DGJBA-03 / BJ3125DGJBA-02 / BJ3075DDABA-31 / BJ3115DGJBA-59 / BJ3095DFPBA-32 / BJ3095DFJBA-32 / BJ3045D9JBA-30 / BJ3075DEJBA-31 / BJ3045D9PBA-30
Drive type: 4X2
Wheelbase: 2800 / 3200 / 3360 / 2650mm
Engine Model: Yunnei PowerD25TCIF1 / QuanchaiH20-120E60
Transmission Model: WLYWLY545ZHF / WLYWLY8G45 / WLY8G45 / WLY 7-speed / WLYWLY7TS40 / WLYWLY545CHF
Rear Axle Ratio: 5.833 / 6.33 / 4.875
Cab length: 5.28 / 5.855 / 5.655 / 6.04 / 6.135 / 5.22 / 5.03 / 5.27 / 5.13m
Cab width: 2.15 / 2.06 / 2.175 / 2.035 / 2.01 / 1.96 / 1730m
Cab height: 2.195 / 2.22 / 2.18 / 2.15 / 2.165 / 2.09m
Front track width: 1535 / 1605 / 1490mm
rear track: 1552 / 1595 / 1485 / 1526 / 1510 / 1550mm
Curb Weight: 4.055 / 3.95 / 4.62 / 4.39 / 3.01 / 3.88 / 3.73 / 3.67 / 3.68 / 2.72 / 3ton
Rated payload: 7.81 / 7.915 / 7.245 / 7.475 / 4.025 / 7.54 / 7.6 / 5.29 / 1.64 / 4.23ton
GVWR: 11.995 / 7.36 / 11.4 / 9.1 / 4.49ton
Origin: Shandong Zhucheng / Changsha, Hunan; Zhucheng, Shandong
tonnage class: Medium-duty truck / Light Truck / mini truck
Approach angle: 19 / 21°
departure angle: 20 / 15 / 30 / 23°
Remarks: Optional WLY WLY7TS42 gearbox / Optional WLY WLY7TS42 gearbox, WLY WLY7TS40
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Quanchai
Number of cylinders: 4cylinder
Displacement: 2.5 / 2L
Emission standard: China VI
Max output power: 110 / 101 / 90kW
Max hp: 150 / 120Horsepower
Max torque: 400 / 325N·m
Max torque speed: 1400-2400 / 2000rpm
Rated speed: 3000 / 3200rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC / Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Brand: WLY
shift method: Manual
Forward gears: 5 / 8 / 7Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 3.3 / 3.9 / 3.7 / 3.2 / 3.05 / 3m
Cargo box width: 2.1 / 2 / 1.85 / 1.9 / 1.8m
Cargo box height: 0.8 / 0.4 / 0.4/0.6 / 0.6 / 0.6/0.8 / 0.45m
Body Parameters
Lifting type: dual lift cylinders / Double Lift Cylinder
Cab parameters
Cab: Single Row / Double cab / Sleeper cab
FAQ
What kind of truck is Foton Foton King S1 PLUS Light Truck Dump Trucks?
Foton Foton King S1 PLUS Light Truck is an export-oriented Dump Trucks lineup with about 29 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton King S1 PLUS Light Truck Dump Trucks?
Foton King S1 PLUS Light Truck Dump Trucks export reference is about $13,750 – $18,306. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton King S1 PLUS Light Truck Dump Trucks cover?
Foton King S1 PLUS Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 120 hp / 150 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton King S1 PLUS Light Truck Dump Trucks?
For Foton King S1 PLUS Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton King S1 PLUS Light Truck Dump Trucks include?
Foton King S1 PLUS Light Truck Dump Trucks currently lists about 29 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton King S1 PLUS Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
