SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 13.6ton
Wheelbase:: 1800+2500+1400mm
Tire Size:: 11.00R20 18PR
Rated payload: 17.205ton
Drive 8X4 (12 wheels)
Horsepower 300
Cargo box type: Dump type

Overview

The SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) is a Heavy truck featuring 17.205t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYCK08300-60 engine, 300 hp, China VI emissions and Fast Gear transmission.

China VI 300 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3317AY08256V
Drive type: 8X4
Wheelbase: 1800+2500+1400mm
engine: YuchaiYCK08300-60
transmission: Fast Gear10JSD140TB
Cab length: 8.68m
Cab width: 2.55m
Cab height: 3.46m
Front track width: 2080/2080mm
rear track: 1858/1858mm
Curb Weight: 13.6ton
Rated payload: 17.205ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 22°
departure angle: 24°
Remarks: Cab configuration: with curtains, standard lower bunk, 220V power supply; other configurations: manual mirrors, Henglong steering gear, intercooler guard, 165Ah battery, metal front bumper, electronic fuel pump, urea heating system, gearbox with power assist.
Version: composite version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK08300-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China VI
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1180N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JSD140TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Semi-high roof
Cab tilting: Electric
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 330L
Chassis Specs
Front axle description: 5.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 865×280×8+4mm
rear axle description: HY300(H)
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 9/9/12
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Remote key:
Electronic Central Lock:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

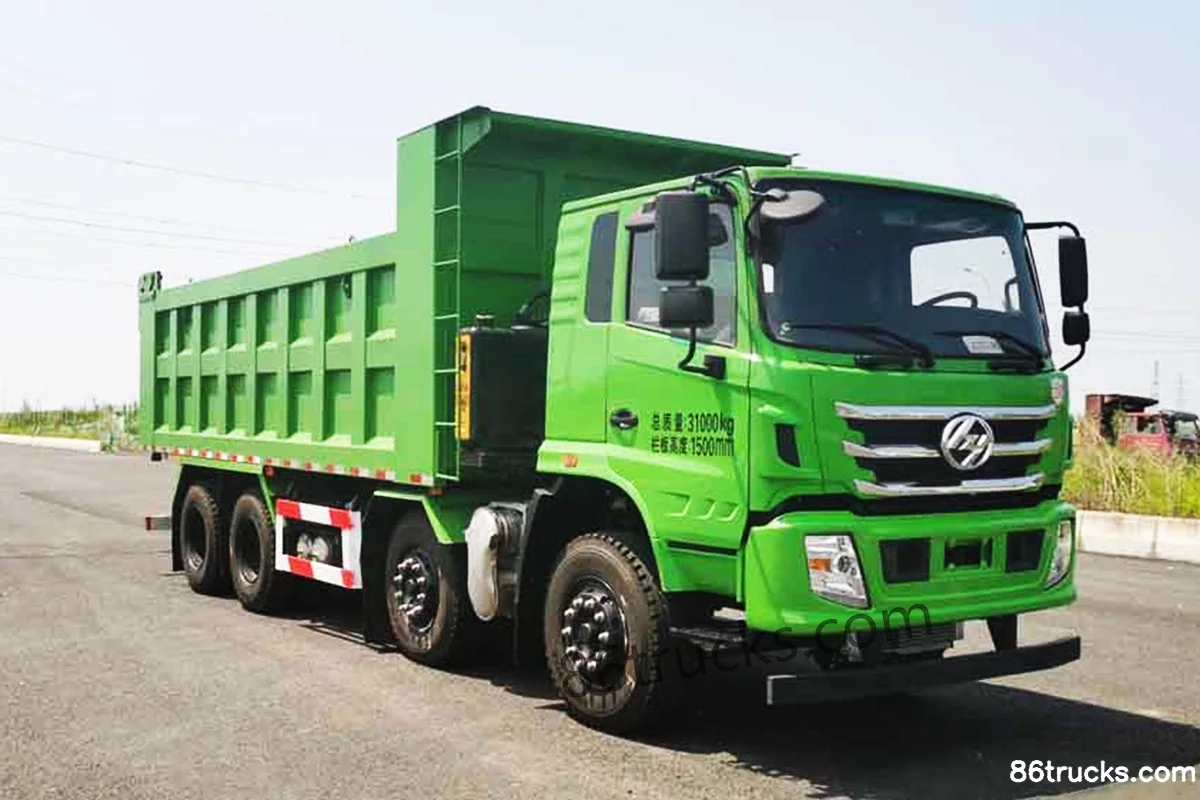

Exterior1

1 photos

FAQ

What emission standard does SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)?

Key specs of SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI): Drive: 8x4; Horsepower: 300 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) suited for?

SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) differ from other variants in the same series?

SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) belongs to SAIC Hongyan Jiebao Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Jiebao C6 Composite Edition 300 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
