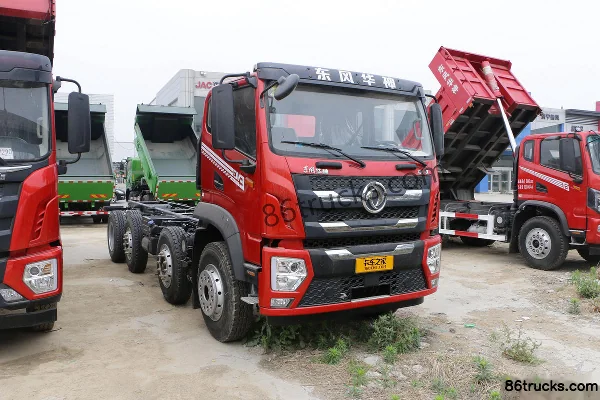

Dongfeng DV3 260hp 8X2(10 wheels) 6.8m dump truck (lift axle)
EXW
From $29,569
Export quote
DongfengDV3 Dump Trucks
Main model photos
22 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng DV3 260hp 8X2(10 wheels) 6.8m dump truck (lift axle) | 8x2 / 260hp / China VI | From $29,569 | |
| Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck | 8x2 / 270hp / China VI | From $33,750 | |
| Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 170hp / China VI | From $19,514 | |
| Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 170hp / China VI | From $19,514 | |
| Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 170hp / China VI | From $19,514 |
Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck
EXW
From $33,750
Export quote
Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck
EXW
From $19,514
Export quote
Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck
EXW
From $19,514
Export quote
Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck
EXW
From $19,514
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng DV3 270 hp 8X4(12 wheels) 6.2m Dump Truck (China VI) | 8x4 / 270hp / China VI | ||
| Dongfeng DV3 270 hp 8X4(12 wheels) 6m Dump Truck (China VI) | 8x4 / 270hp / China VI | ||
| Dongfeng DV3 240 hp 6X4(10 wheels) 4.8m Dump Truck (China VI) | 6x4 / 270hp / China VI | ||
| Dongfeng DV3 240 hp 6X4(10 wheels) 4.6m Dump Truck (China VI) | 6x4 / 270hp / China VI | ||
| Dongfeng DV3 240hp 6X4(10 wheels) 4.5m Dump Truck (China VI) | 6x4 / 270hp / China VI |
Dongfeng DV3 270 hp 8X4(12 wheels) 6.2m Dump Truck (China VI)
EXW
Export quote
Dongfeng DV3 270 hp 8X4(12 wheels) 6m Dump Truck (China VI)
EXW
Export quote
Dongfeng DV3 240 hp 6X4(10 wheels) 4.8m Dump Truck (China VI)
EXW
Export quote
Dongfeng DV3 240 hp 6X4(10 wheels) 4.6m Dump Truck (China VI)
EXW
Export quote
Dongfeng DV3 240hp 6X4(10 wheels) 4.5m Dump Truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): EQ3319GL6D21 / EQ3319GL6D22 / EQ3186GL6D72 / EQ3186GL6D71 / EQ3166GL6D11 / EQ3126GL6D11 / EQ3246GL6D31 / EQ3246GL6D41 / DFD3316GL6D21 / EQ3318GL6D61 / EQ3256GL6D31 / EQ3246GL6D21 / EQ3246GL6D11 / EQ3186GL6D51 / EQ3186GL6D11
Drive type: 8X2 / 4X2 / 6X2 / 8X4 / 6X4
Wheelbase: 1850+2600+1300 / 3550 / 3400 / 1850+2700 / 1850+2500 / 2750+1250 / 1850+3000+1300 / 1850+2600+1350 / 3300+1350 / 1750+3950 / 1750+2600 / 5100 / 3800mm
Engine Model: YuchaiYCK05260-61 / YuchaiYCS06270-60 / Yunnei PowerD30TCIF1 / YuchaiYCY30165-60 / YuchaiYCS06245-60A / YuchaiYCK05230-61 / Yunnei PowerD45TCIF1 / YuchaiYCS04200-68 / YuchaiYCS04180-68
Transmission Model: Fast Gear10JS90A-B / Fast Gear10JSD120TB / Fast Gear8JS85F / Fast Gear8JS85E-C / Fast Gear8JS125T / Fast Gear10JSD120B / Fast Gear9JS119A
Rear Axle Ratio: 5.286 / 4.875 / 6.83 / 5.83 / 5.57 / 6.17
Cab length: 9.2 / 8.95 / 6.515 / 6.785 / 6.315 / 6.115 / 7.75 / 7.55 / 7.35 / 7.25 / 7.4 / 6.9 / 7.3 / 7.2 / 9.05 / 8.85 / 7.65 / 7.45 / 9.5 / 7.16 / 9 / 7.115 / 6.89m
Cab width: 2.55 / 2.36 / 2.38 / 2.5 / 2080 / 2360m
Cab height: 2.95 / 3.25 / 2.85 / 2.9 / 3.2 / 3 / 2.75 / 2.65m
Front track width: 1940/1940 / 1800/1800 / 1750 / 1800 / 1900 / 1870 / 1810 / 1860/1860 / 1960 / 1940 / 1810/1810mm
rear track: 1900/1750 / 1900/1700 / 1700 / 1750 / 1650 / 1860 / 1900/1860 / 1860/1860 / 1750/1750mm
Curb Weight: 9.01 / 10.305 / 7.88 / 7.2 / 7.5 / 6.5 / 6.2 / 6.81 / 7.9 / 9.4 / 8.55 / 9.34 / 8.5 / 9.3 / 11.305 / 10.5 / 9.9 / 8.1 / 7.7ton
Rated payload: 21.795 / 20.565 / 9.925 / 10.67 / 8.305 / 11.37 / 11.305 / 8.37 / 5.6 / 4.99 / 8.605 / 7.905 / 14.97 / 15.755 / 15.03 / 15.805 / 15.07 / 19.565 / 20.37 / 14.905 / 16.27 / 16.67 / 9.77 / 9.97ton
GVWR: 31 / 18 / 16 / 11.995 / 24.5 / 25ton
Origin: Shiyan, Hubei / Wuhan, Hubei
tonnage class: Heavy truck / Medium-duty truck / Light Truck
Approach angle: 20 / 22 / 21 / 19°
departure angle: 14 / 34 / 18 / 20 / 24 / 15 / 13 / 17°
Remarks: With PTO / Axle ratio optional 5.83 / Optional ratio 5.286 / Standard: full LCD instrument cluster, PTO, sun visor, driver right armrest, desert air filter; Optional: front single-cylinder lift. / Standard: full LCD instrument cluster, PTO, sun visor, steel air tank, rear dual differential, wading brake, desert air filter; Optional: front single-cylinder lift.
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Yunnei Power
Number of cylinders: 4 / 6cylinder
Displacement: 5.13 / 6.23 / 2.977 / 2.97 / 4.461 / 4.16 / 3L
Emission standard: China VI
Max output power: 191 / 199 / 125 / 121 / 180 / 169 / 162 / 147 / 132kW
Max hp: 260 / 270 / 170 / 165 / 245 / 230 / 220 / 200 / 180Horsepower
Max torque: 1050 / 500 / 950 / 840 / 810 / 720 / 650N·m
Max torque speed: 1200-1700 / 1200-2200 / 1400-2200 / 1200-1800 / 1200-1600 / 1200-1900rpm
Rated speed: 2200 / 2300 / 2800rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Side-dump tipper. / Rear-dump body / Dump type
Cargo box length: 6.8 / 6 / 4.2 / 4 / 3.8 / 5 / 4.8 / 4.6 / 4.5 / 4.7 / 6.2 / 4.3 / 6.5 / 5.2m
Cargo box width: 2.38 / 2.4 / 2.1 / 2.2 / 2.3 / 2.35m
Cargo box height: 1.2 / 1.5 / 0.8 / 1.4 / 1 / 0.6m
Body Parameters
Lifting type: Front single-cylinder lift
FAQ
What kind of truck is Dongfeng DongfengDV3 Dump Trucks?
Dongfeng DongfengDV3 is an export-oriented Dump Trucks lineup with about 50 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for DongfengDV3 Dump Trucks?
DongfengDV3 Dump Trucks export reference is about $19,486 – $33,750. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does DongfengDV3 Dump Trucks cover?
DongfengDV3 Dump Trucks mainly covers: Drive: 4x2 / 6x4 / 8x2 / 8x4; Horsepower: 170 hp / 260 hp / 270 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DongfengDV3 Dump Trucks?
For DongfengDV3 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does DongfengDV3 Dump Trucks include?
DongfengDV3 Dump Trucks currently lists about 50 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DongfengDV3 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
