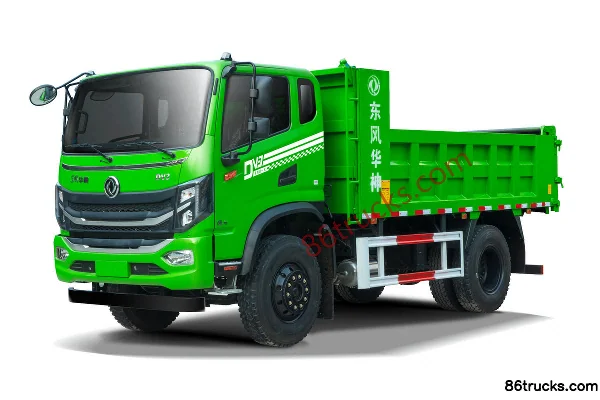

Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck

Export reference
From $19,514
MSRP ¥14.05M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.88ton
Wheelbase:: 3550mm
Tire Size:: 10.00R20 18PR
Rated payload: 9.925ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box type: Rear-dump body

Overview

The Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck is a Medium-duty truck featuring 9.925t payload, 18t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF1 engine, 170 hp, China VI emissions and Fast Gear transmission.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3186GL6D72
Drive type: 4X2
Wheelbase: 3550mm
engine: Yunnei PowerD30TCIF1
transmission: Fast Gear8JS85F
Rear Axle Ratio: 6.83
Cab length: 6.515m
Cab width: 2.36m
Cab height: 2.85m
Front track width: 1750mm
rear track: 1700mm
Curb Weight: 7.88ton
Rated payload: 9.925ton
GVWR: 18ton
Origin: Wuhan, Hubei
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 34°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.977L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 0.8m
Body Parameters
Lifting type: Front single-cylinder lift
Cab parameters
Cab width: 2080mm
seating capacity: 2Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 170L
Chassis Specs
Front axle description: 3.6T shortened
Front axle allowable load: 6500kg
Frame Dimensions: 230(7+4)mm
rear axle description: 10T shortened
rear axle allowable load: 11500kg
Axle ratio: 6.83
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

0 photos

FAQ

What is the export price of Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck, and what does it include?

Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck export reference is about From $19,514; MSRP is ¥14.05M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck?

Key specs of Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck suited for?

Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck differ from other variants in the same series?

Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck belongs to DongfengDV3 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng DV3 170 hp 4X2(6 wheels) 4.2m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
