Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck
EXW
Export quote
Sanhuan Shitong Fuxingka Light Truck Dump Trucks
Main model photos
28 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck | 4x2 / 115hp / China IV | ||
| Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck | 4x2 / 130hp / China IV | From $17,472 | |
| Sanhuan Shitong 1059 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck | 4x2 / 130hp / China IV | From $21,944 |

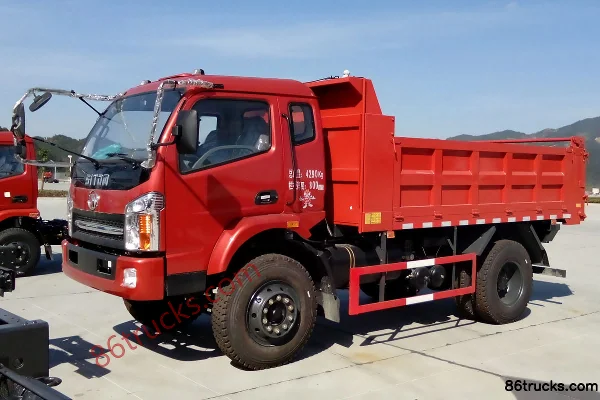

Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck
EXW
From $17,472
Export quote

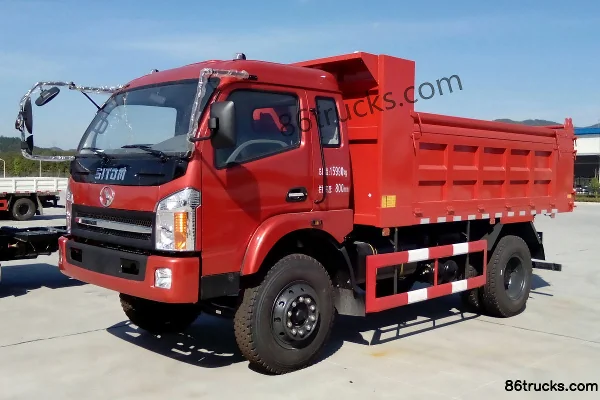

Sanhuan Shitong 1059 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck
EXW
From $21,944
Export quote
Series Specs
Basic Info
Model code (announced): STQ3045L2Y14 / STQ3047L3Y14 / STQ3169L4Y34
Drive type: 4X2
Wheelbase: 3300 / 3400mm
Engine Model: YuchaiYC4FA115-40 / YuchaiYC4D130-41
Transmission Model: Shao Chi 5D45F / Shaochi SC5D45F / Shaochi SC6J53F
Rear Axle Ratio: 5.833
Cab length: 5.995 / 6.07m
Cab width: 2.15 / 2.3 / 2.37 / 1860m
Cab height: 2.58 / 2.5 / 2.7m
Front track width: 1750 / 1822mm
rear track: 1586 / 1640 / 1725mm
Curb Weight: 2.315 / 2.6 / 7.805ton
Rated payload: 1.98 / 1.495 / 7.99ton
GVWR: 4.49 / 4.29 / 15.99ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 29 / 30 / 24°
departure angle: 13 / 16 / 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4cylinder
Displacement: 2.982 / 4.214L
Emission standard: China IV
Max output power: 85 / 96kW
Max hp: 115 / 130Horsepower
Max torque: 300 / 420N·m
Max torque speed: 1600-2400 / 1400-1800rpm
Rated speed: 3200 / 2800rpm
Engine Type: BOSCH common rail EGR+POC+DOC / Electronic unit pump SCR
Transmission Parameters
Transmission Brand: Shaochi
Forward gears: 5 / 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2.05 / 2.2m
Cargo box height: 0.45 / 0.8m
Cab parameters
Cab: Sleeper cab
fuel tank
Fuel tank capacity: 160 / 200L
Chassis Specs
Front axle allowable load: 2030kg
FAQ
What kind of truck is Sanhuan Shitong Sanhuan Shitong Fuxingka Light Truck Dump Trucks?
Sanhuan Shitong Sanhuan Shitong Fuxingka Light Truck is an export-oriented Dump Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sanhuan Shitong Fuxingka Light Truck Dump Trucks?
Sanhuan Shitong Fuxingka Light Truck Dump Trucks export reference is about $17,472 – $21,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sanhuan Shitong Fuxingka Light Truck Dump Trucks cover?
Sanhuan Shitong Fuxingka Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 115 hp / 130 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sanhuan Shitong Fuxingka Light Truck Dump Trucks?
For Sanhuan Shitong Fuxingka Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sanhuan Shitong Fuxingka Light Truck Dump Trucks include?
Sanhuan Shitong Fuxingka Light Truck Dump Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sanhuan Shitong Fuxingka Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
