Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Shaochi
Curb Weight:: 2.315ton
Wheelbase:: 3300mm
Tire Size:: 7.5R16-14
Rated payload: 1.98ton
Drive 4X2 (6 wheels)
Horsepower 115
Cargo box type: Dump type

Overview

The Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck is a Light Truck featuring 1.98t payload, 4.49t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4FA115-40 engine, 115 hp, China IV emissions and Shaochi transmission.

China IV 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3045L2Y14
Drive type: 4X2
Wheelbase: 3300mm
engine: YuchaiYC4FA115-40
transmission: Shao Chi 5D45F
Rear Axle Ratio: 5.833
Cab length: 5.995m
Cab width: 2.15m
Cab height: 2.58m
Front track width: 1750mm
rear track: 1586mm
Curb Weight: 2.315ton
Rated payload: 1.98ton
GVWR: 4.49ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 29°
departure angle: 13°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4FA115-40
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.982L
Emission standard: China IV
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 300N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: BOSCH common rail EGR+POC+DOC
Transmission Parameters
Transmission Model: Shao Chi 5D45F
Transmission Brand: Shaochi
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2.05m
Cargo box height: 0.45m
Cab parameters
Cab: Sleeper cab
Cab width: 1860mm
Chassis Specs
Front axle allowable load: 2030kg
Frame Dimensions: 200×65×(6.5+5)mm
rear axle description: 1062
rear axle allowable load: 2460kg
Axle ratio: 5.833
Leaf spring count: 8/11+8,8/10+7
Tire
Tire Size: 7.5R16-14
Number of tires: 6pcs

Photos

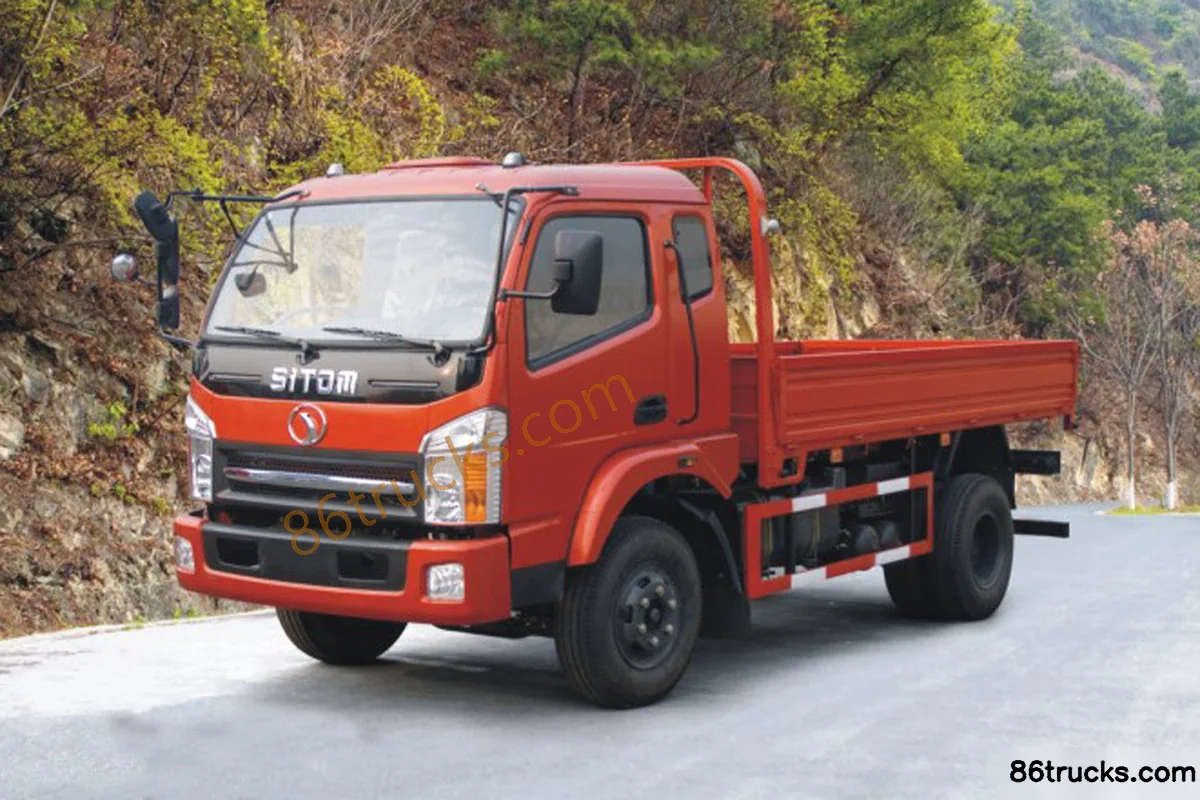

Exterior1

1 photos

FAQ

What emission standard does Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck?

Key specs of Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck: Drive: 4x2; Horsepower: 115 hp; Emission: China IV; Fuel: Diesel; Transmission: Shaochi. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck suited for?

Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck differ from other variants in the same series?

Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck belongs to Sanhuan Shitong Fuxingka Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong 1049 Fuxingka 115hp 4X2(6 wheels) 3.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
