Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck

Export reference
From $17,472
MSRP ¥12.58M CNY
Emission: China IV
Fuel: Diesel
Transmission: Shaochi
Curb Weight:: 2.6ton
Wheelbase:: 3400mm
Tire Size:: 8.25-16
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D130-41 engine, 130 hp, China IV emissions and Shaochi transmission.

China IV 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3047L3Y14
Drive type: 4X2
Wheelbase: 3400mm
engine: YuchaiYC4D130-41
transmission: Shaochi SC5D45F
Cab length: 5.995m
Cab width: 2.3m
Cab height: 2.5m
Front track width: 1750mm
rear track: 1640mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 30°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D130-41
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China IV
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 420N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Electronic unit pump SCR
Transmission Parameters
Transmission Model: Shaochi SC5D45F
Transmission Brand: Shaochi
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2.2m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 160L
Chassis Specs
rear axle description: 1089A
rear axle allowable load: 2230kg
Leaf spring count: 8/11+8
Tire
Tire Size: 8.25-16
Number of tires: 6pcs

Photos

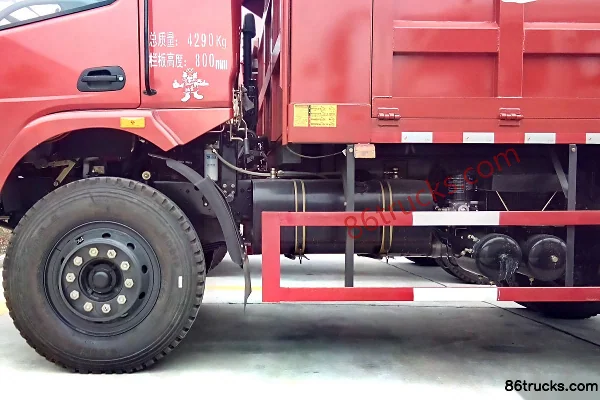

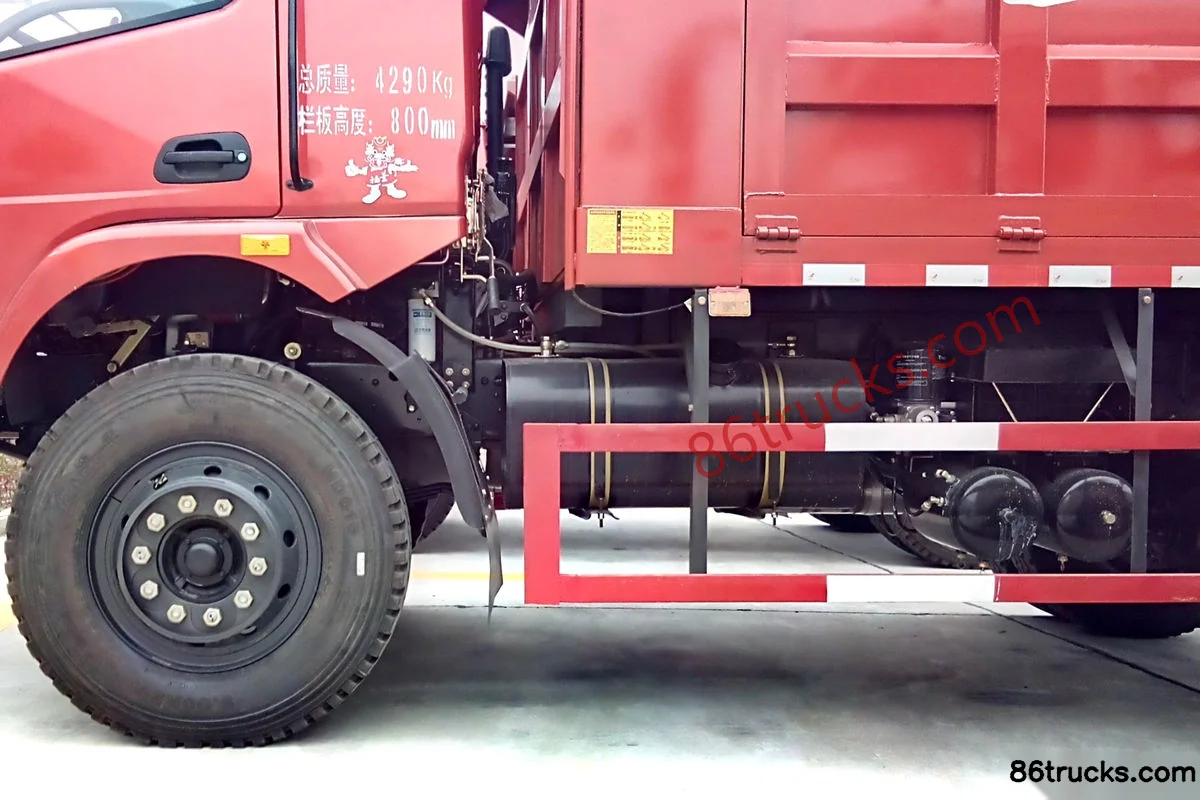

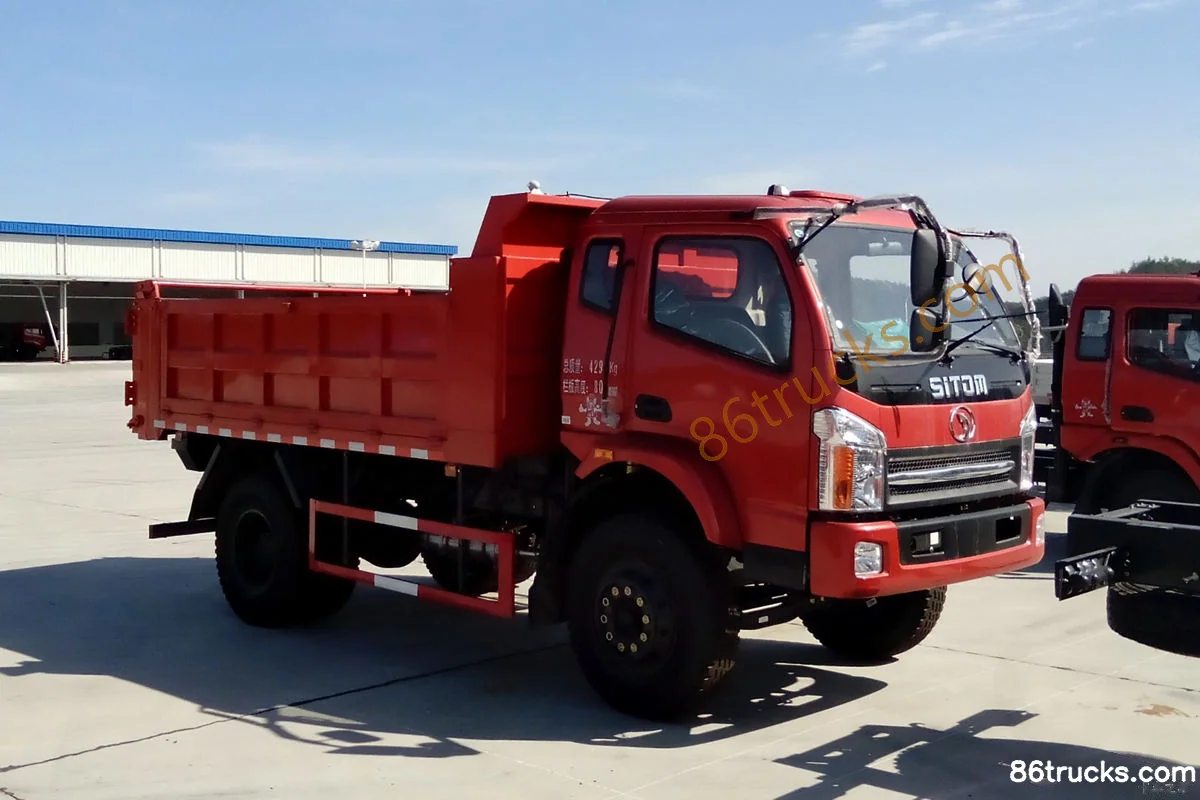

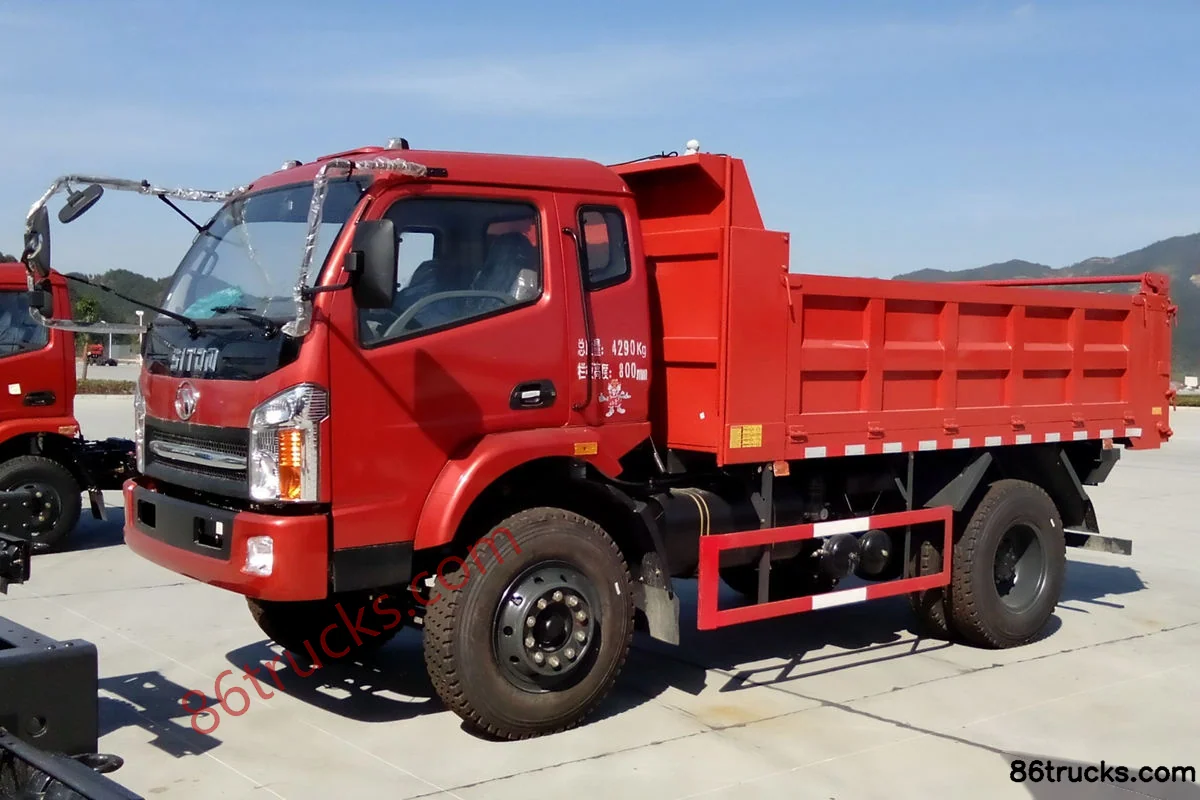

Exterior3

3 photos

FAQ

What is the export price of Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck, and what does it include?

Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck export reference is about From $17,472; MSRP is ¥12.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck?

Key specs of Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China IV; Fuel: Diesel; Transmission: Shaochi. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck suited for?

Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck differ from other variants in the same series?

Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck belongs to Sanhuan Shitong Fuxingka Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong 1049 Fuxingka 130hp 4X2(6 wheels) 3.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
