Dongfeng Lituo T20 150 hp 4X2(6 wheels) 4.2 m dump truck
EXW
From $22,361
Export quote
DongfengT20 Dump Trucks
Main model photos
52 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Lituo T20 150 hp 4X2(6 wheels) 4.2 m dump truck | 4x2 / 150hp / China V | From $22,361 | |
| Dongfeng Lituo T20 185 hp 4X2(6 wheels) 6.8m Dump Truck | 4x2 / 185hp / China V | From $23,611 | |
| Dongfeng Lituo T20 129 hp 4X2(6 wheels) 3.8m Dump Truck | 4x2 / 129hp / China V | From $17,722 | |
| Dongfeng Lituo T20 150 hp 4X2(6 wheels) 3.8m Dump Truck | 4x2 / 150hp / China V | From $22,361 | |
| Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift) | 4x2 / 150hp / China V | From $22,361 |

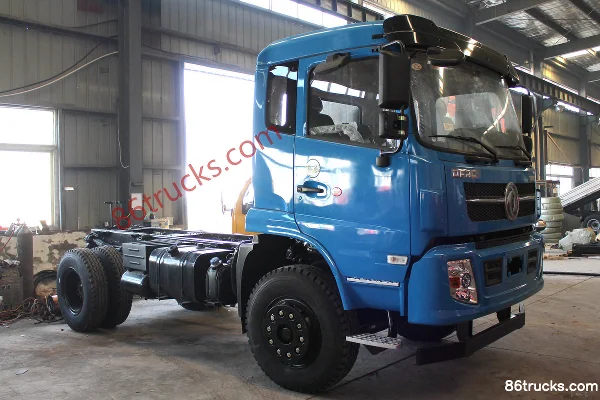

Dongfeng Lituo T20 185 hp 4X2(6 wheels) 6.8m Dump Truck
EXW
From $23,611
Export quote
Dongfeng Lituo T20 129 hp 4X2(6 wheels) 3.8m Dump Truck
EXW
From $17,722
Export quote
Dongfeng Lituo T20 150 hp 4X2(6 wheels) 3.8m Dump Truck
EXW
From $22,361
Export quote

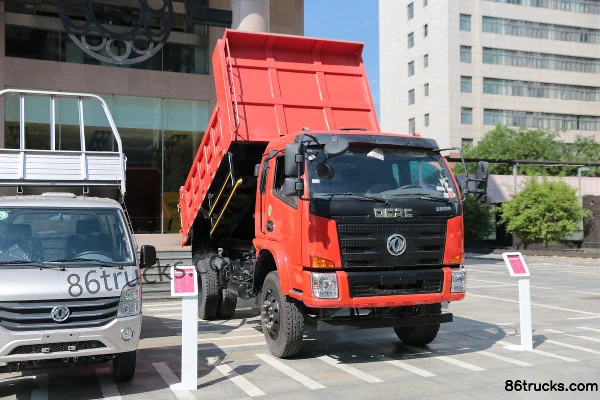

Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift)
EXW
From $22,361
Export quote
Series Specs
Basic Info
Model code (announced): EQ3180L8GDF / EQ3165L9BDE / EQ3041L8GDAAC
Drive type: 4X2
Wheelbase: 3700 / 5200 / 3400mm
Engine Model: YuchaiYC4D150-50 / YuchaiYC4EG185-50 / Yunnei PowerYN38CRE1 / YuchaiYC4E160-56
Transmission Model: Fast Gear 10-Speed / 5-speed transmission / Fast Gear10JS90A / Fast GearFST10JS90A / Fast Gear8JS85F
Rear Axle Ratio: 6.166 / 6.167
Cab length: 6.53 / 8.6 / 5.998 / 6.7m
Cab width: 2.5 / 2.38/2.45 / 2.42 / 2.45 / 2030 / 2100m
Cab height: 2.9 / 3.175 / 2.75m
Front track width: 1940 / 1891 / 1510 / 1782 / 1949mm
rear track: 1754 / 1750 / 1650 / 1675 / 1865mm
Curb Weight: 7.81 / 7.815 / 2.7ton
Rated payload: 9.995 / 7.99 / 1.6ton
GVWR: 18 / 16 / 4.495ton
Origin: Wuhan, Hubei / Xiangyang, Hubei
tonnage class: Light Truck / Medium-duty truck
Approach angle: 19 / 32°
departure angle: 22 / 13 / 17°
Remarks: Power steering, clutch booster / Standard: power steering, clutch booster, air dryer, air brakes, cargo box (grid pattern, five doors, door-within-door rear door, side opening 271°); Optional: front underrun protection, integrated main and auxiliary axle / Standard: power steering, clutch booster, air dryer, air brakes, cargo box (grid pattern, five doors, door-within-door rear door, side opening 270°); Optional: front underrun protection, integrated main and auxiliary axle
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Yunnei Power
Number of cylinders: 4cylinder
Displacement: 4.214 / 4.73 / 3.76 / 4.26L
Emission standard: China V
Max output power: 110 / 136 / 95 / 118kW
Max hp: 150 / 185 / 129 / 160Horsepower
Max torque: 500 / 700 / 365 / 600N·m
Max torque speed: 1400-1800 / 1300-1800 / 1600-2400 / 1300-1600rpm
Rated speed: 2800 / 2500 / 3000 / 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 5 / 8Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
hydraulic cylinder brand & model: Φ160 heavy-duty lift cylinder / Φ110 dual lift / 130 small front lift
Unloading Type: Dump type / Rear-dump body
Seal cover type: none
Cargo box thickness: side 3mm bottom 5mm
Body Parameters
Lifting type: 110 dual lift cylinders
FAQ
What kind of truck is Dongfeng DongfengT20 Dump Trucks?
Dongfeng DongfengT20 is an export-oriented Dump Trucks lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for DongfengT20 Dump Trucks?
DongfengT20 Dump Trucks export reference is about $17,722 – $23,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does DongfengT20 Dump Trucks cover?
DongfengT20 Dump Trucks mainly covers: Drive: 4x2; Horsepower: 129 hp / 150 hp / 185 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DongfengT20 Dump Trucks?
For DongfengT20 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does DongfengT20 Dump Trucks include?
DongfengT20 Dump Trucks currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DongfengT20 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
