Foton Dajingang ES5 200hp 4X2(6 wheels) 4m Dump Truck
EXW
From $25,764
Export quote
Foton ES5 Medium Truck Dump Trucks
Main model photos
152 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Dajingang ES5 200hp 4X2(6 wheels) 4m Dump Truck | 4x2 / 200hp / China VI | From $25,764 | |
| Foton Dajingang ES5 200hp 4X2(6 wheels) 4m Dump Truck | 4x2 / 200hp / China VI | From $27,500 | |
| Foton Dajingang ES5 220 hp 6X2(8 wheels) 5.2m Dump Truck (China VI) | 6x2 / 220hp / China VI | ||
| Foton Big King Kong ES5 220hp 6X2(8 wheels) 4.8m Dump Truck (China VI) | 6x2 / 220hp / China VI | From $34,722 | |
| Foton ES5 270hp 8X4(12 wheels) 7.2m dump truck | 8x4 / 270hp / China VI |
Foton Dajingang ES5 200hp 4X2(6 wheels) 4m Dump Truck
EXW
From $27,500
Export quote
Foton Dajingang ES5 220 hp 6X2(8 wheels) 5.2m Dump Truck (China VI)
EXW
Export quote

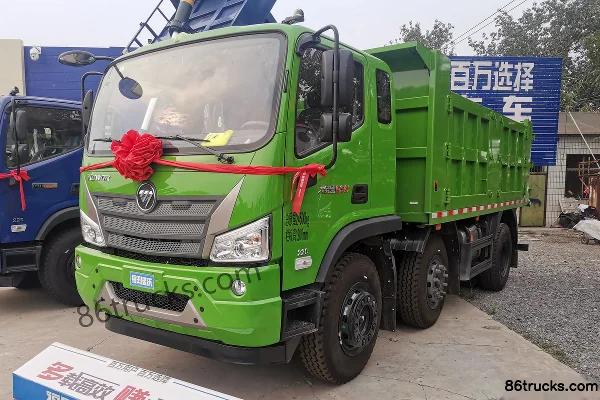

Foton Big King Kong ES5 220hp 6X2(8 wheels) 4.8m Dump Truck (China VI)
EXW
From $34,722
Export quote

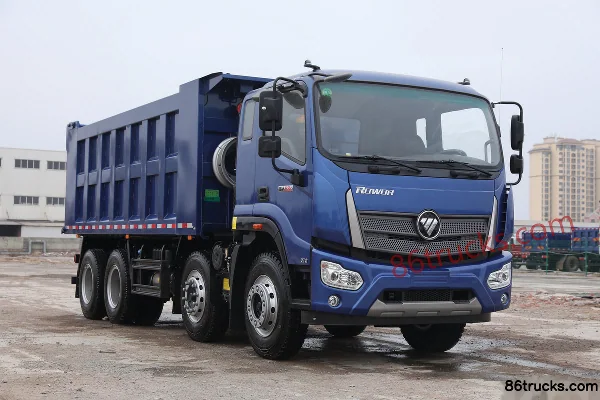

Foton ES5 270hp 8X4(12 wheels) 7.2m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): BJ3164DJPFA-01 / BJ3184DKPFA-01 / BJ3244DMPFB-02 / BJ3314DPPHB-04 / BJ3314DPPHB-03 / BJ3245DMPFB-FB / BJ3245DMPFB-FA / BJ3255DLPHH-FA / BJ3185DKPHA-FA
Drive type: 4X2 / 6X2 / 8X4
Wheelbase: 3400 / 1800+2600 / 1800+3450+1300 / 1800+3100+1300 / 1800+2800+1300 / 1800+2700+1300 / 3700 / 1800+3400 / 1800+3000 / 1800+4700 / 4200mm
Engine Model: YuchaiYCS04200-68 / WeichaiWP4.6NQ220E61 / YuchaiYCS06270-60 / WeichaiWP4.1NQ190E61 / YuchaiYC6JA220-50 / FotonISF4.5S5210 / YuchaiYC6J220-52 / YuchaiYC6J180-52
Transmission Model: Fast Gear8JS85F / Fast Gear 10-Speed / Fast Gear10JSD120B / Fast Gear10JS90A-B / Fast Gear8JS85E / Fast Gear10JS90A
Rear Axle Ratio: 5.571 / 6.72 / 6.833 / 6.33 / 5.833 / 5.286
Cab length: 6.285 / 7.75 / 7.35 / 9.635 / 9.235 / 8.785 / 8.405 / 6.635 / 7.31 / 8.31 / 7.91 / 7.37 / 10.12 / 9.92 / 7.395m
Cab width: 2.41 / 2.4 / 2.48 / 2.4/2.5 / 2.5 / 2.31 / 2.395 / 2.495 / 2060 / 2200m
Cab height: 2.7 / 2.725 / 2.8 / 2.89 / 3.25 / 3.1 / 2.85 / 2.96 / 2.925m
Front track width: 1755 / 1740 / 1760/1760 / 1825/1825 / 1896/1896 / 1908/1908 / 1940mm
rear track: 1740 / 1755 / 1740/1740 / 1860mm
Curb Weight: 7.615 / 7.81 / 8.6 / 10.95 / 9.8 / 8.7 / 11.405 / 8.9ton
Rated payload: 7.99 / 9.995 / 15.705 / 19.855 / 14.57 / 16.17 / 15.67 / 16.105 / 12.965 / 8.97ton
GVWR: 15.8 / 18 / 24.5 / 31ton
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck / Heavy truck
Approach angle: 20 / 19°
departure angle: 18 / 17 / 15 / 13 / 16°
Remarks: Power steering, clutch booster / Recirculating ball power steering / Recirculating ball power steering, ratio optional 5.833, 5.17 / Optional iFoton telematics system; electronic lift system, hydraulic front tilt.
Version: Heavy-duty type
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai / Foton
Number of cylinders: 4 / 6cylinder
Displacement: 4.16 / 4.58 / 6.23 / 4.088 / 6.87 / 4.46 / 6.494L
Emission standard: China VI / China V
Max output power: 147 / 162 / 199 / 140 / 154 / 132kW
Max hp: 200 / 220 / 270 / 190 / 210 / 180Horsepower
Max torque: 720 / 800 / 1050 / 680 / 860 / 760 / 700N·m
Max torque speed: 1200-1600 / 1200-1800 / 1200-1700 / 1300-1900rpm
Rated speed: 2300 / 2600rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / 4-valve, high-pressure common rail, turbocharged intercooled, EGR+DPF+DOC+SCR / High-pressure common rail, EGR+DOC+DPF+SCR / Vertical, inline, water-cooled, four-stroke / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection / Vertical, inline 6-cylinder, water-cooled, 4-stroke / 6-cylinder, inline, 4-stroke, 4-valve, common-rail direct injection, turbocharged intercooled
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8 / 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box type: square box / Rear-dump body / Dump type
Cargo box length: 4 / 5.2 / 4.8 / 7.2 / 6.8 / 6 / 5.6 / 4.35 / 4.6 / 7.4 / 5m
Cargo box width: 2.2 / 2.3 / 2.2/2.3 / 2.1m
Body Parameters
Lifting type: 152 front lift / Front lift cylinder / Construction top
FAQ
What kind of truck is Foton Foton ES5 Medium Truck Dump Trucks?
Foton Foton ES5 Medium Truck is an export-oriented Dump Trucks lineup with about 23 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton ES5 Medium Truck Dump Trucks?
Foton ES5 Medium Truck Dump Trucks export reference is about $22,653 – $34,722. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton ES5 Medium Truck Dump Trucks cover?
Foton ES5 Medium Truck Dump Trucks mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 200 hp / 220 hp / 270 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton ES5 Medium Truck Dump Trucks?
For Foton ES5 Medium Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton ES5 Medium Truck Dump Trucks include?
Foton ES5 Medium Truck Dump Trucks currently lists about 23 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton ES5 Medium Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
