Sinotruk Wangpai W5D Medium Truck 180 hp 4X2(6 wheels) 4.5m Dump Truck
EXW
From $27,611
Export quote
Sinotruk Wangpai W5D near-heavy truck Dump Trucks
Main model photos
42 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Wangpai W5D Medium Truck 180 hp 4X2(6 wheels) 4.5m Dump Truck | 4x2 / 180hp / China V | From $27,611 | |
| Sinotruk Wangpai W5D-M Medium Truck 180 hp 4X2(6 wheels) 4.5m Dump Truck (10-speed) (457 rear axle) | 4x2 / 180hp / China IV | From $28,472 | |
| Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 4.5m dump truck (10-speed) | 4x2 / 180hp / China IV | From $28,472 | |
| Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed) | 4x2 / 180hp / China IV | From $28,056 |

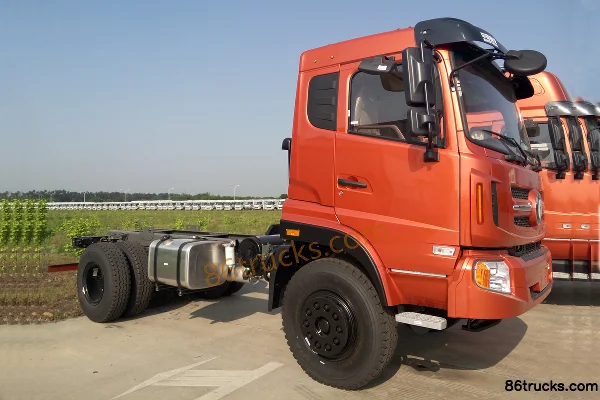

Sinotruk Wangpai W5D-M Medium Truck 180 hp 4X2(6 wheels) 4.5m Dump Truck (10-speed) (457 rear axle)
EXW
From $28,472
Export quote

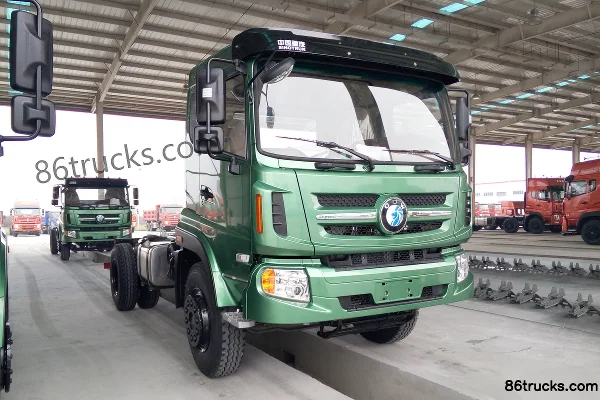

Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 4.5m dump truck (10-speed)
EXW
From $28,472
Export quote
Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed)
EXW
From $28,056
Export quote
Series Specs
Basic Info
Model code (announced): CDW3120A1N5 / CDW3161A1N4
Drive type: 4X2
Wheelbase: 3800mm
Engine Model: YuchaiYC6JA180-50 / YuchaiYC6J180-46
Transmission Model: Fast Gear10JS90A / SinotrukHW90710 / Fast Gear8JS85F
Rear Axle Ratio: 6.833 / 6.72
Cab length: 7.054m
Cab width: 2.55 / 2.5m
Cab height: 3.08m
Front track width: 1880mm
rear track: 1860mm
Curb Weight: 7.8ton
Rated payload: 7.97ton
GVWR: 15.9ton
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Approach angle: 24 / 23°
departure angle: 12 / 24°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 6cylinder
Displacement: 6.87 / 6.494L
Emission standard: China V / China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700 / 590N·m
Max torque speed: 1200-1800 / 1200-1700rpm
Rated speed: 2300 / 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Brand: Fast Gear / Sinotruk
shift method: Manual
Forward gears: 10 / 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.4 / 2.3m
Cargo box height: 0.8m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 250L
FAQ
What kind of truck is Sinotruk Sinotruk Wangpai W5D near-heavy truck Dump Trucks?
Sinotruk Sinotruk Wangpai W5D near-heavy truck is an export-oriented Dump Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Wangpai W5D near-heavy truck Dump Trucks?
Sinotruk Wangpai W5D near-heavy truck Dump Trucks export reference is about $27,611 – $28,472. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Wangpai W5D near-heavy truck Dump Trucks cover?
Sinotruk Wangpai W5D near-heavy truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 180 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Wangpai W5D near-heavy truck Dump Trucks?
For Sinotruk Wangpai W5D near-heavy truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Wangpai W5D near-heavy truck Dump Trucks include?
Sinotruk Wangpai W5D near-heavy truck Dump Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Wangpai W5D near-heavy truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
