Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 10.95ton
Wheelbase:: 1800+2700+1300mm
Tire Size:: 10.00R20
Rated payload: 19.855ton
Drive 8X4 (12 wheels)
Horsepower 270
Cargo box type: Dump type

Overview

The Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck is a Heavy truck featuring 19.855t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06270-60 engine, 270 hp, China VI emissions and Fast Gear transmission.

China VI 270 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3314DPPHB-03
Drive type: 8X4
Wheelbase: 1800+2700+1300mm
engine: YuchaiYCS06270-60
transmission: Fast Gear10JSD120B
Rear Axle Ratio: 5.571
Cab length: 8.405m
Cab width: 2.5m
Cab height: 3.25m
Front track width: 1825/1825mm
rear track: 1740/1740mm
Curb Weight: 10.95ton
Rated payload: 19.855ton
GVWR: 31ton
Origin: Shandong Zhucheng
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06270-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab: Sleeper cab
Cab width: 2200mm
Chassis Specs
Front axle description: 3.6T
Front axle allowable load: 6500/6500kg
Frame Dimensions: Riveted/284×75×10-800mm
rear axle description: 435CS
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Leaf spring count: 8/8/11
Tire
Tire Size: 10.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Reverse Camera:
Electronic Central Lock:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

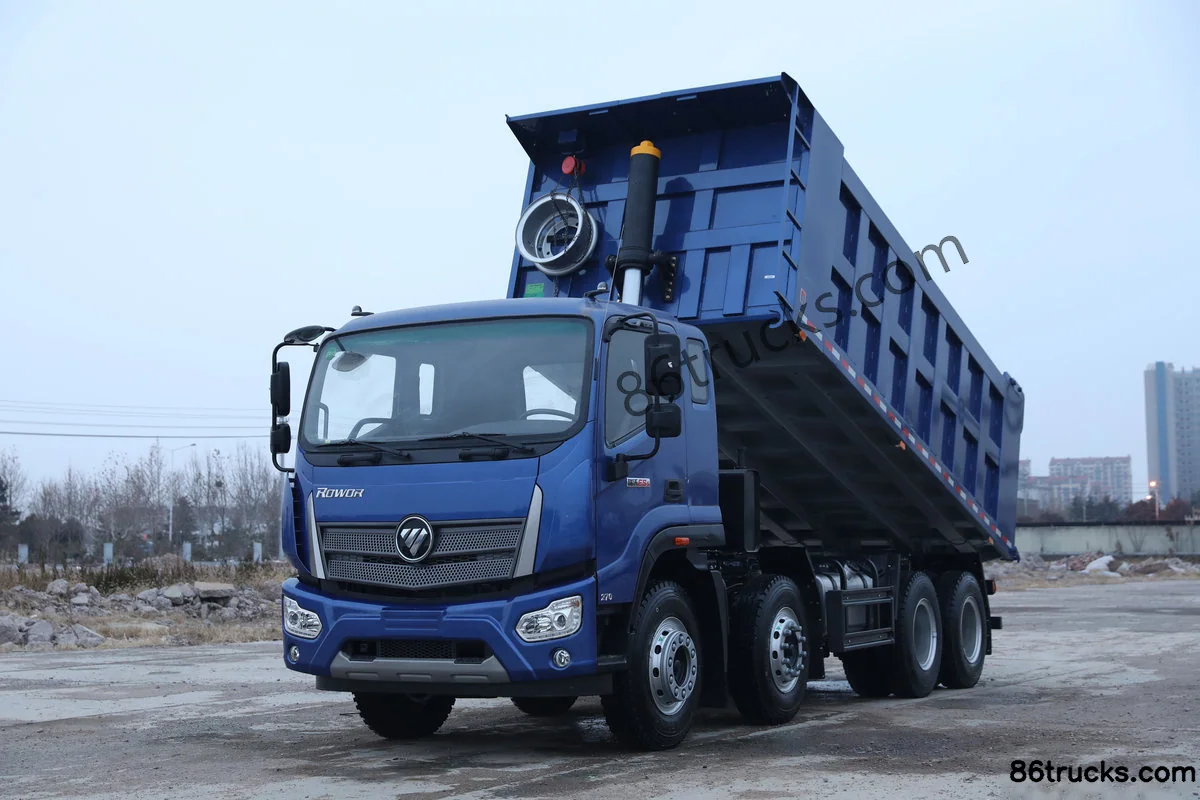

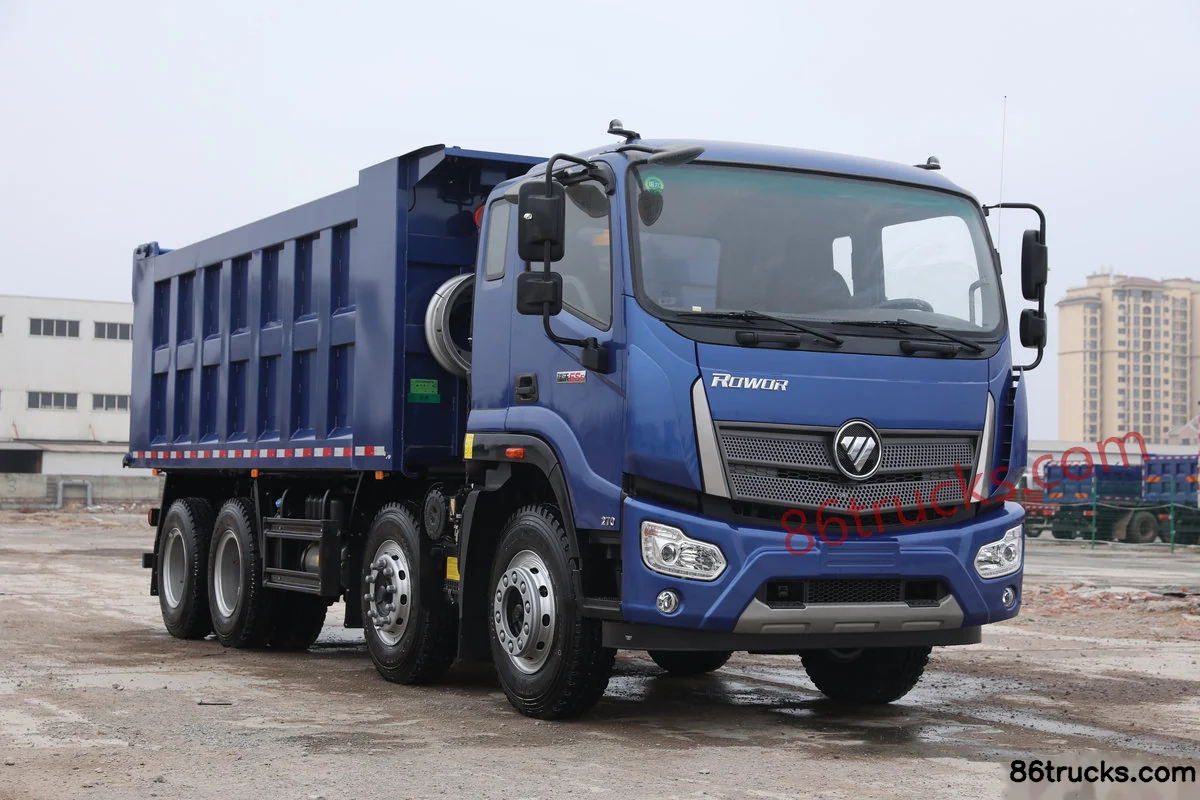

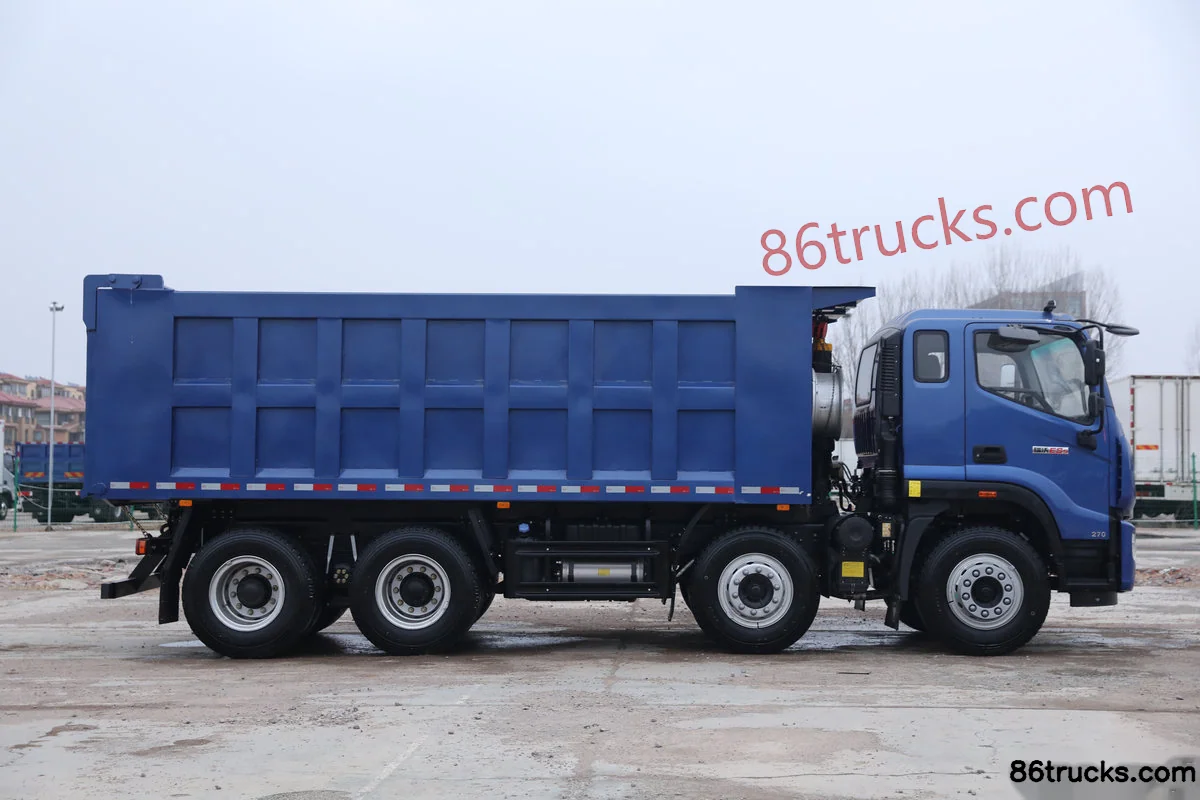

Photos

Exterior3

3 photos

FAQ

What emission standard does Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck?

Key specs of Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck: Drive: 8x4; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck suited for?

Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck differ from other variants in the same series?

Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck belongs to Foton ES5 Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton ES5 270hp 8X4(12 wheels) 5.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
