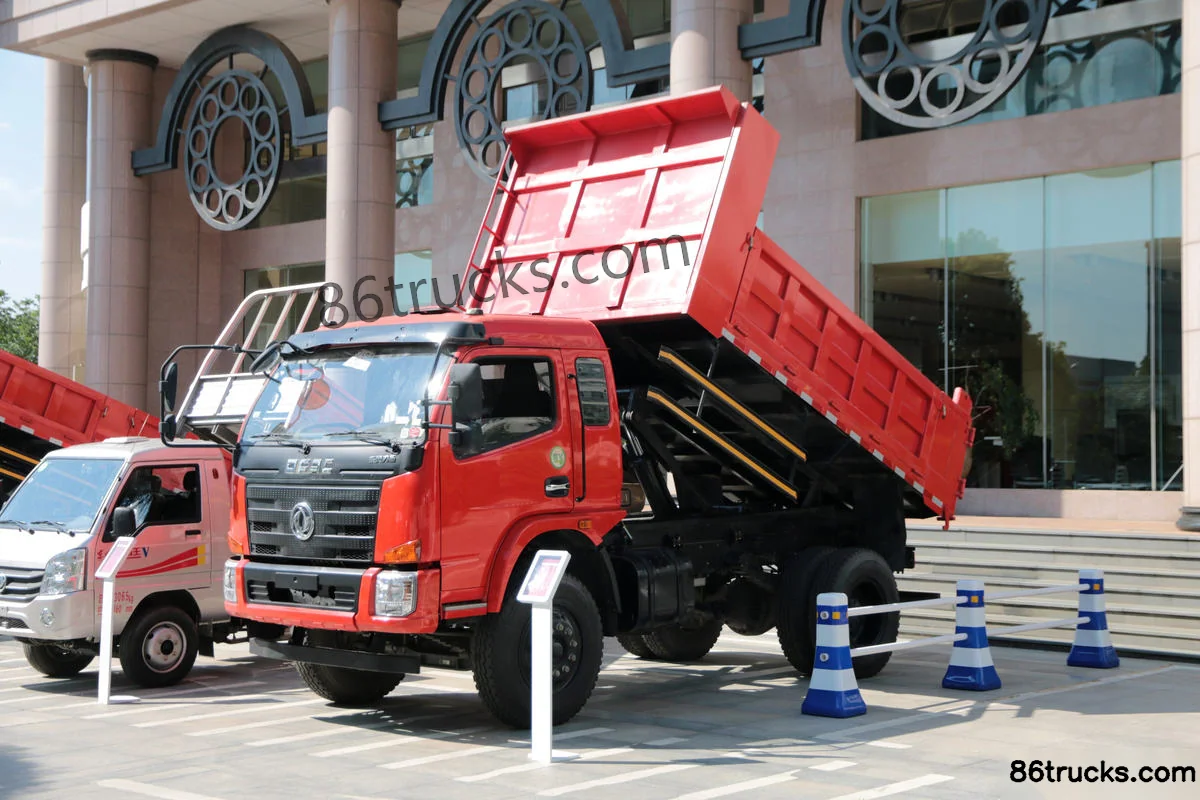

Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift)

Export reference
From $22,361
MSRP ¥16.1M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.7ton
Wheelbase:: 3400mm
Tire brand:: Triangle tires
Rated payload: 1.6ton
Drive 4X2 (6 wheels)
Horsepower 150
Cargo box thickness: side 3mm bottom 5mm

Overview

The Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift) is a Light Truck featuring 1.6t payload, 4.495t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D150-50 engine, 150 hp, China V emissions and Fast Gear transmission.

China V 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3041L8GDAAC
Drive type: 4X2
Wheelbase: 3400mm
engine: YuchaiYC4D150-50
transmission: Fast GearFST10JS90A
Rear Axle Ratio: 6.167
Cab length: 5.998m
Cab width: 2.42m
Cab height: 2.75m
Front track width: 1782mm
rear track: 1675mm
Curb Weight: 2.7ton
Rated payload: 1.6ton
GVWR: 4.495ton
Origin: Wuhan, Hubei
tonnage class: Light Truck
Approach angle: 32°
departure angle: 17°
Energy Type: Diesel

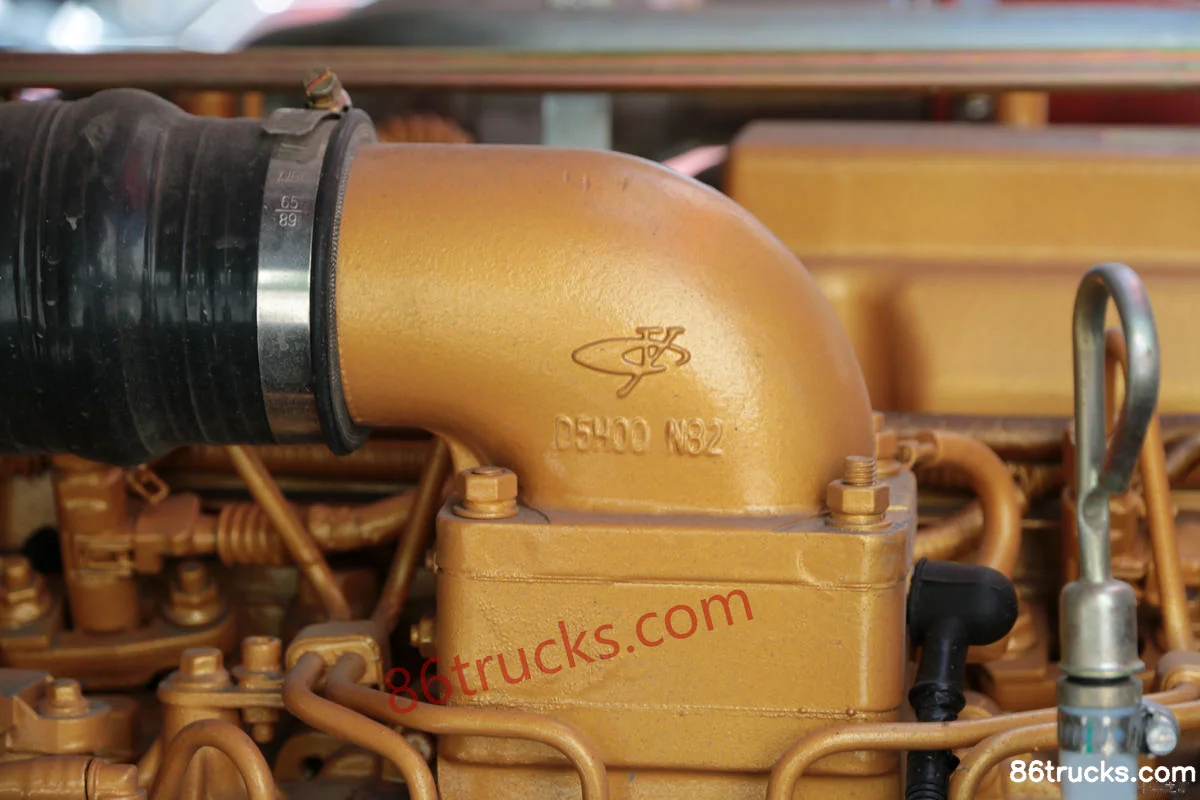

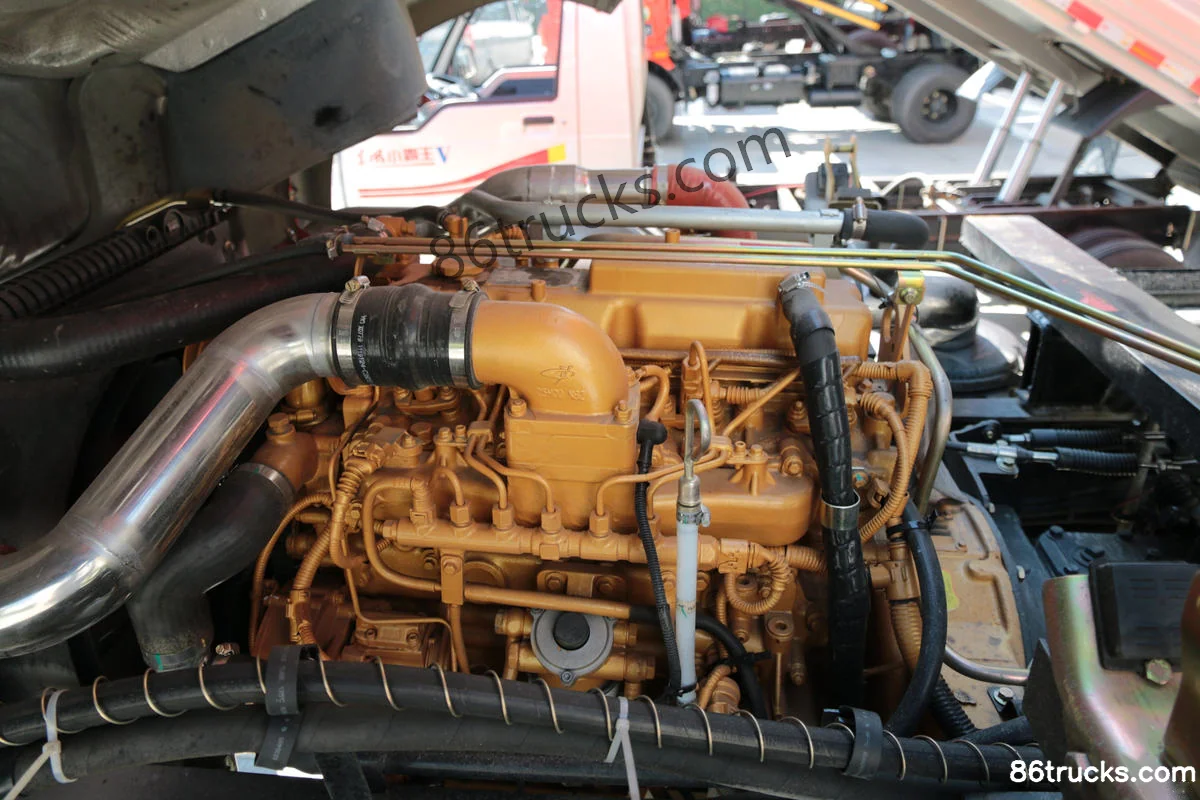

Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D150-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China V
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 500N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast GearFST10JS90A
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Housing Material: Steel shell

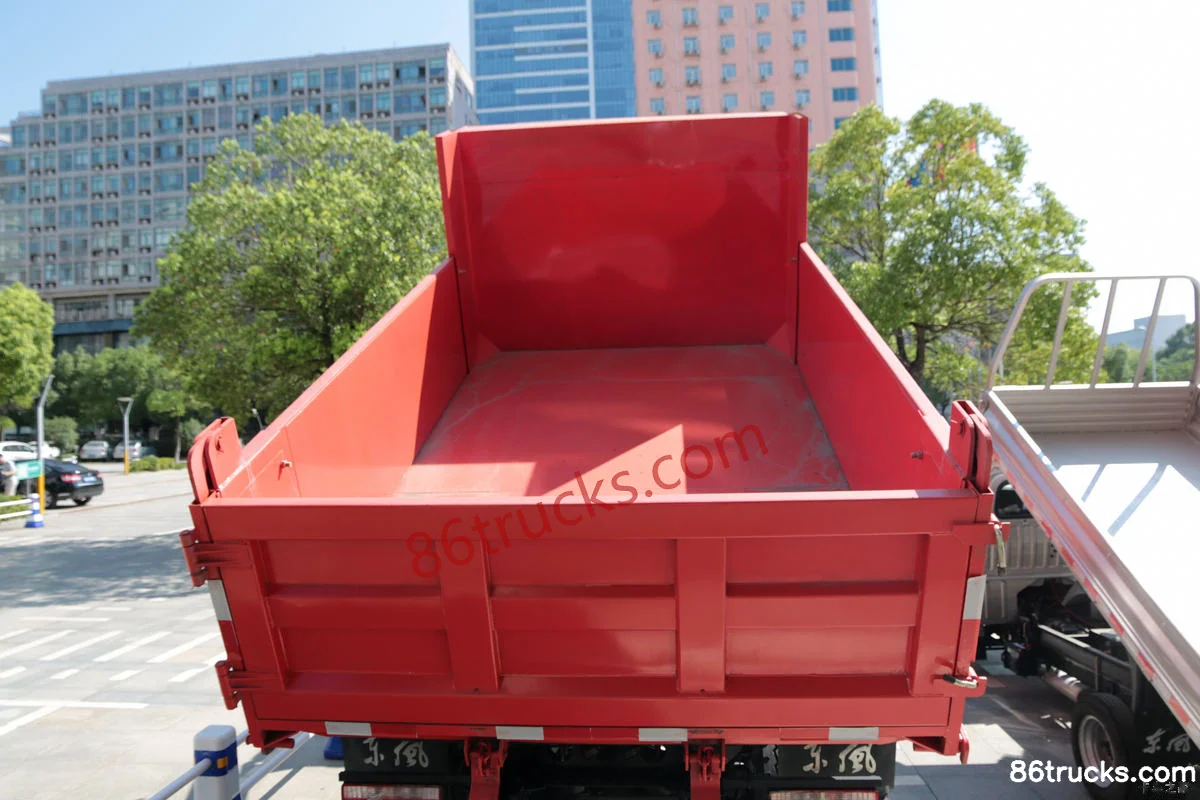

Cargo box parameters

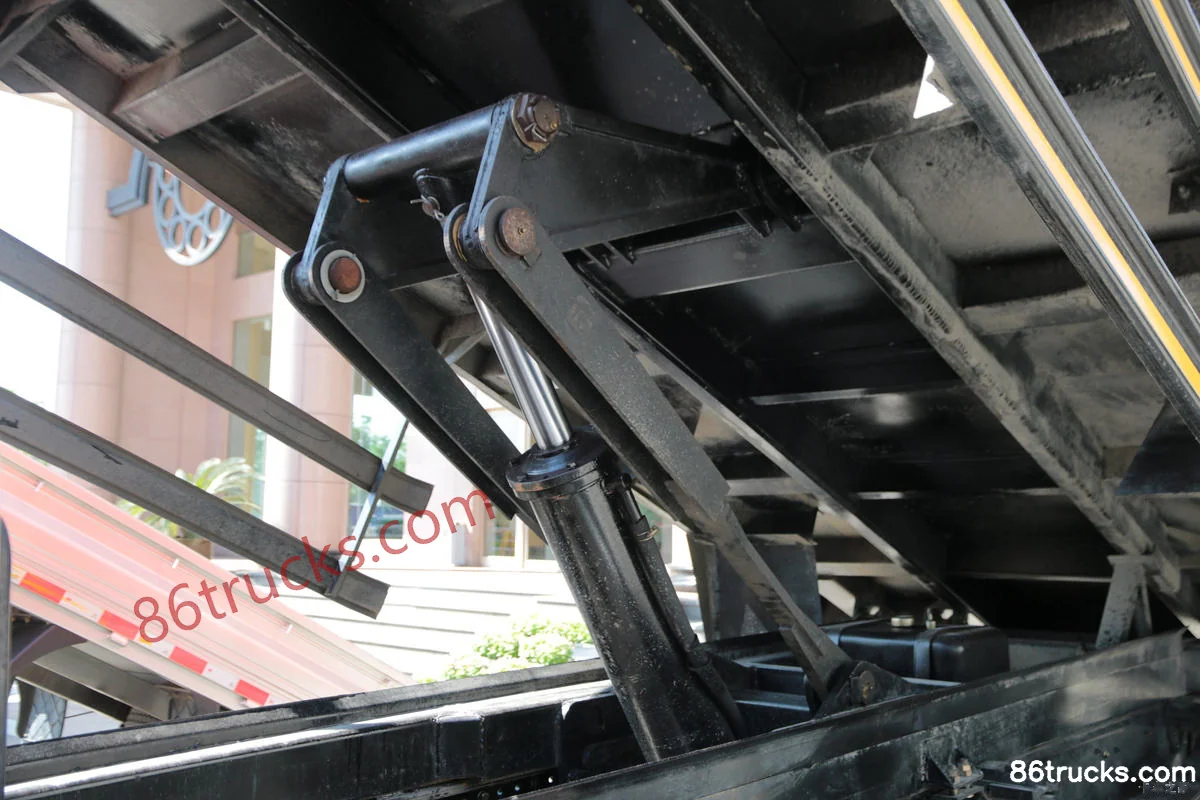

hydraulic cylinder brand & model: Φ160 heavy-duty lift cylinder
Cargo box thickness: side 3mm bottom 5mm
Seal cover type: none
Unloading Type: Rear-dump body
Cargo box type: square box
Cargo box type: Rear-dump body
Cargo box length: 3.7m
Cargo box width: 2.2m
Cargo box height: 0.8m

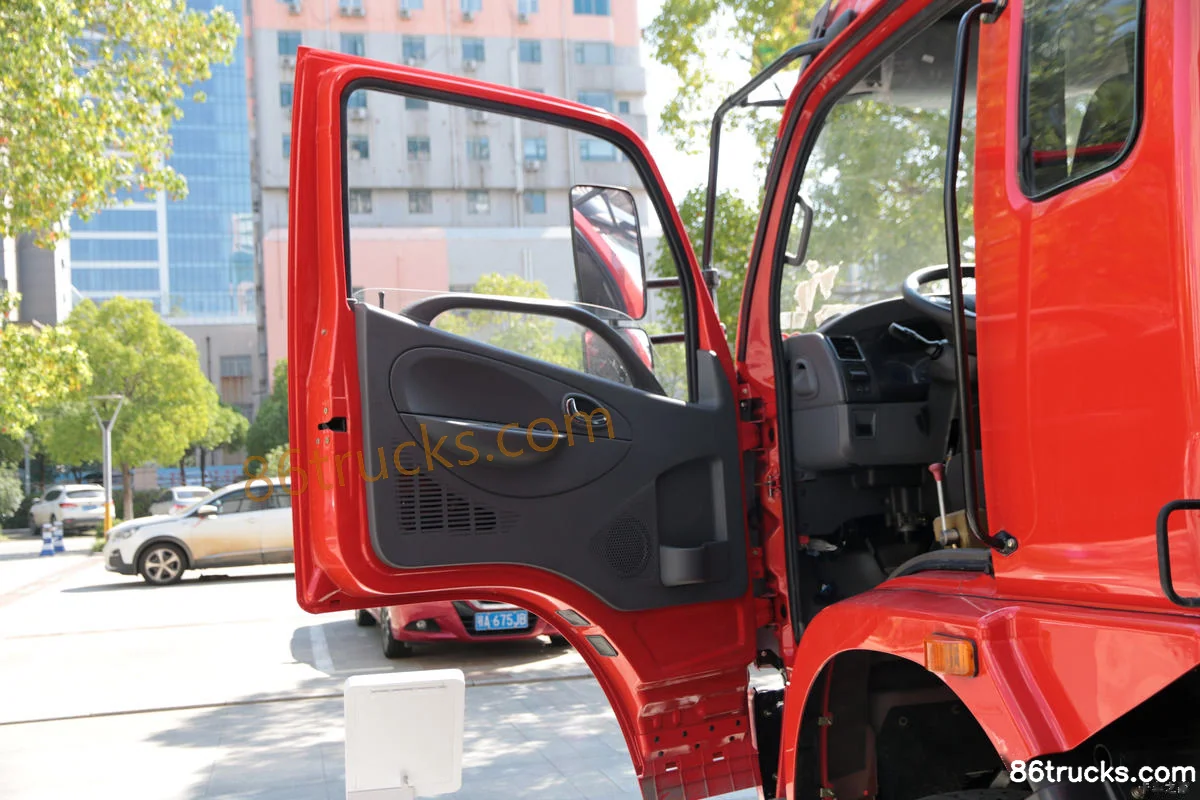

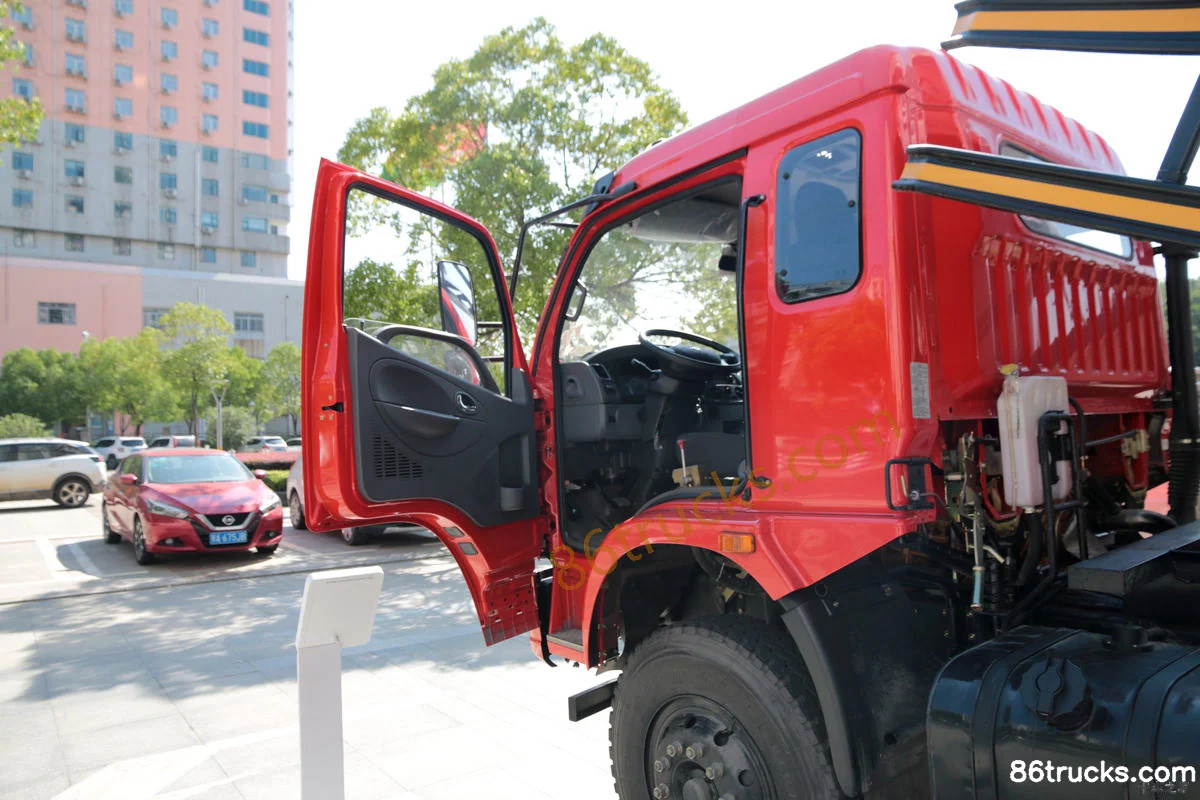

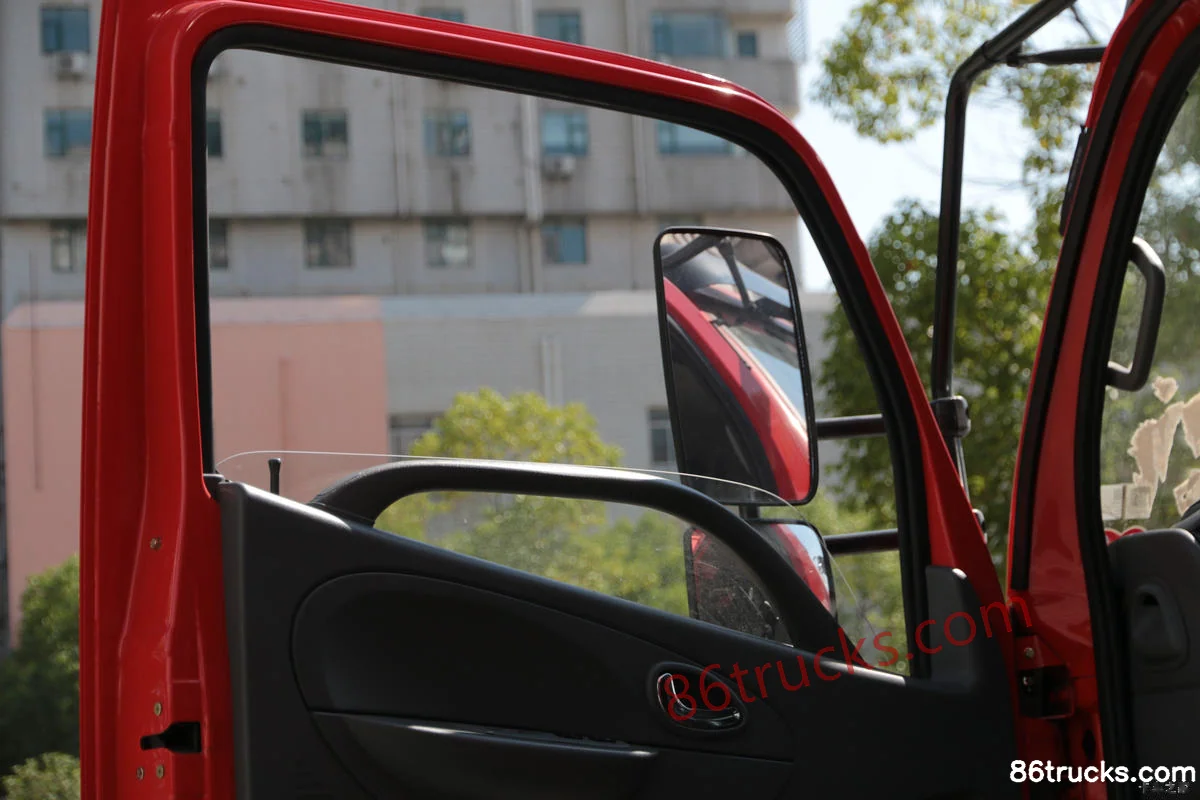

Cab parameters
Cab width: 2030mm
Cab suspension: Front: rigid connection; Rear: mechanical
Cab tilting: Manual
Driver seat type: Rigid connection seat
Sunroof: Manual sunroof
fuel tank
Fuel tank material: Iron

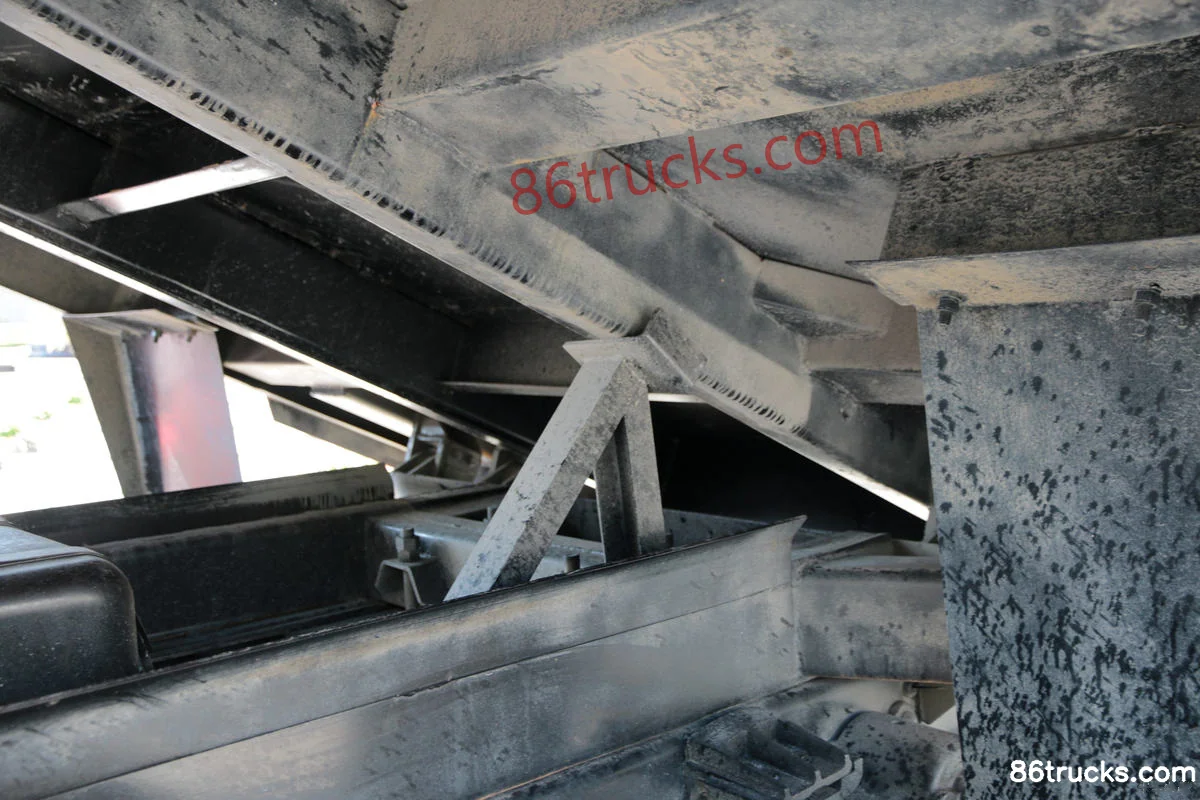

Chassis Specs
Front axle description: 3.6T
Front axle allowable load: 1800kg
Frame Dimensions: 250×(8+5)×800mm
rear axle description: 10T
rear axle allowable load: 2695kg
Axle ratio: 6.167
Leaf spring count: 12/12+9
Suspension (front/rear): Leaf spring
Tire
Tire brand: Triangle tires
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Headlight height adjustment:
Service brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

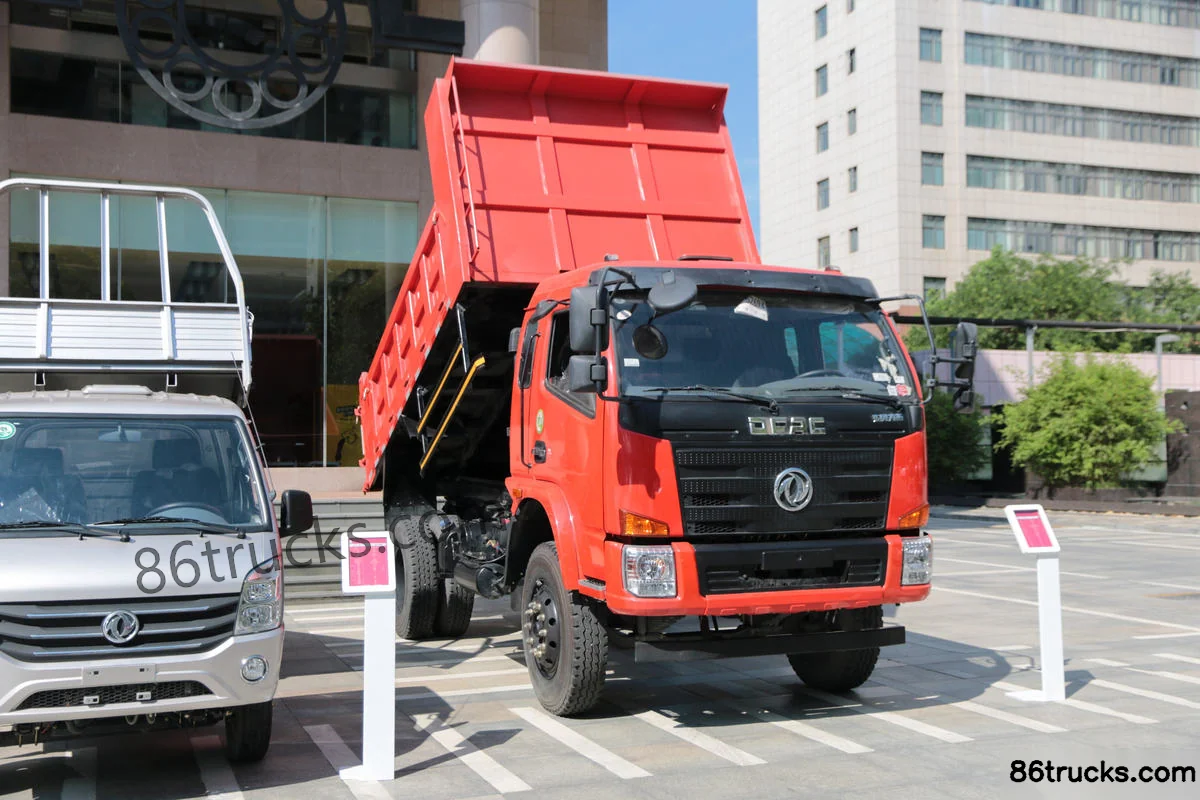

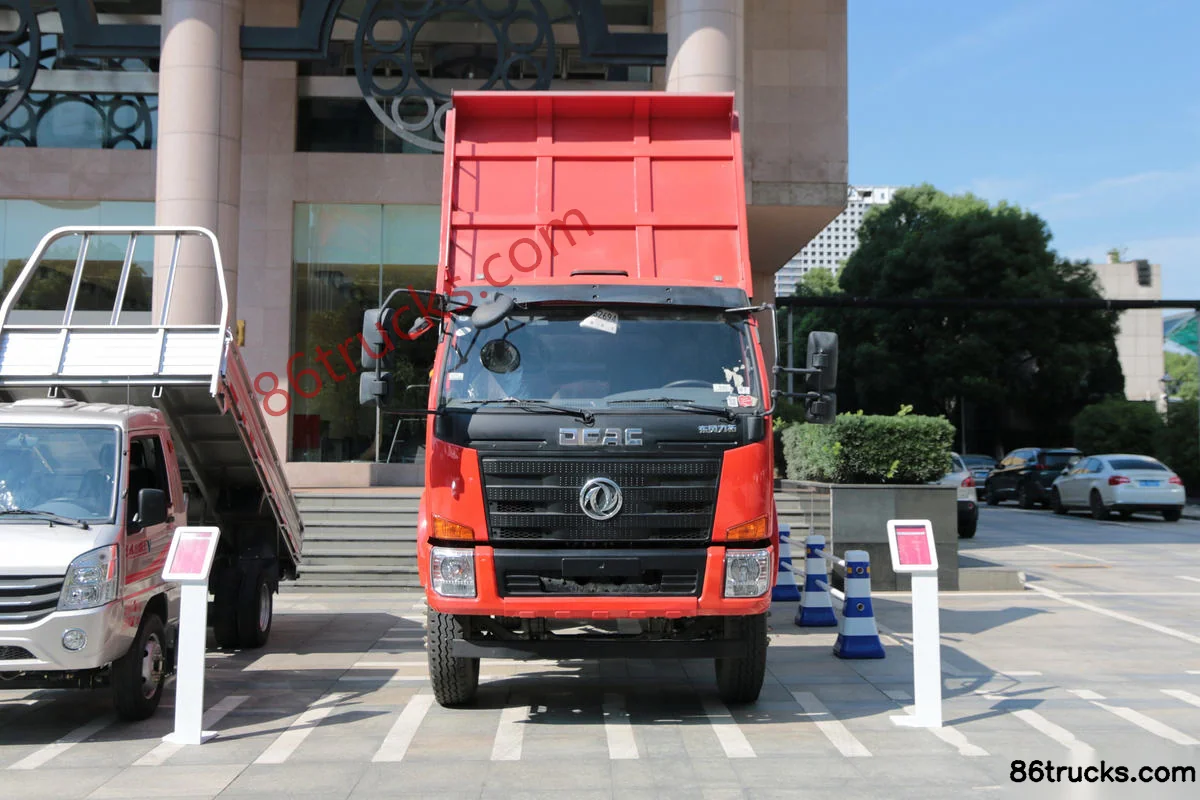

Exterior3

Cab3

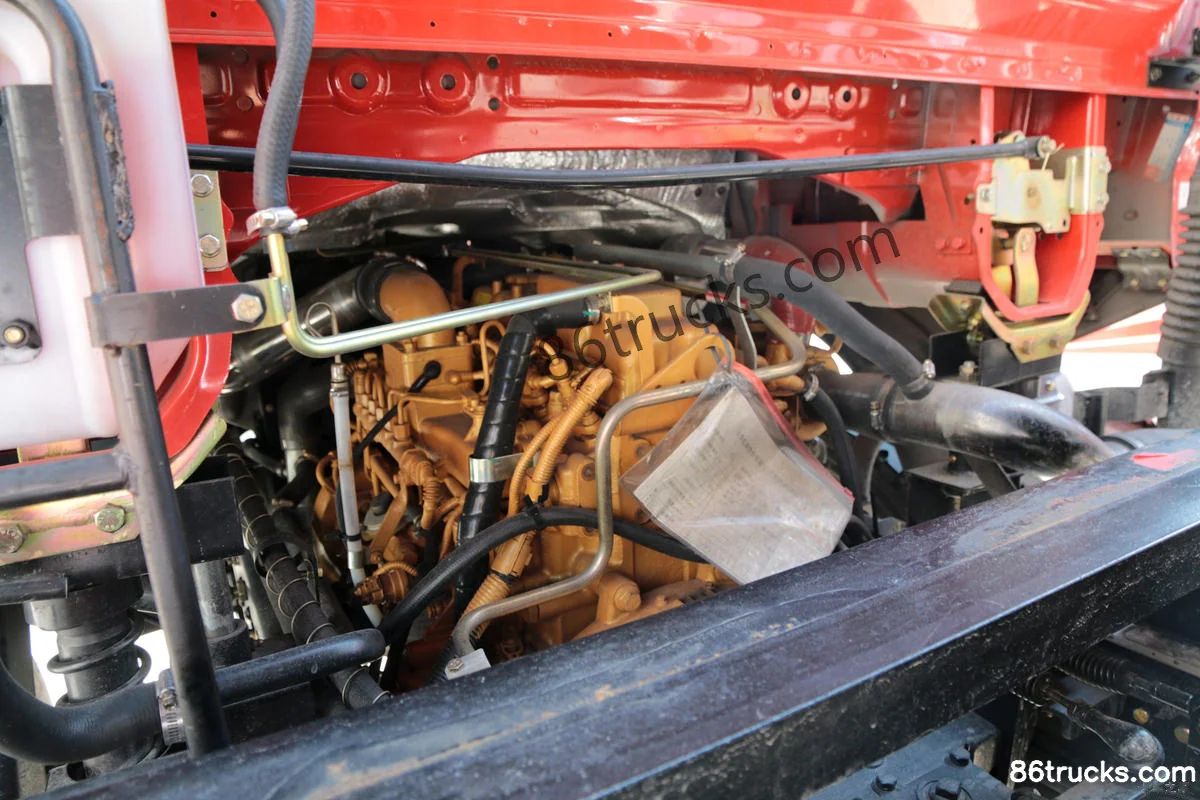

Chassis3

Body3

12 photos

FAQ

What is the export price of Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift), and what does it include?

Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift) export reference is about From $22,361; MSRP is ¥16.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift)?

Key specs of Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift): Drive: 4x2; Horsepower: 150 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift) suited for?

Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift) differ from other variants in the same series?

Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift) belongs to DongfengT20 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Lituo T20 150hp 4X2(6 wheels) 3.7m Dump Truck (Φ160 Construction Lift)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
