JAC Junling G3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-Speed 3.25m Single Row Dump Truck
EXW
From $21,667
Export quote
JAC G light truck Dump Trucks
Main model photos
215 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Junling G3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-Speed 3.25m Single Row Dump Truck | 4x2 / 137hp / China VI | From $21,667 | |
| JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck | 4x2 / 170hp / China VI | From $23,167 | |
| JAC Junling G6 160 hp 4X2(6 wheels) 4.2m cab-over dump truck | 4x2 / 160hp / China VI | From $26,403 | |
| JAC Junling G6 160 hp 4X2(6 wheels) 4.2m cab-over dump truck | 4x2 / 160hp / China VI | From $26,403 | |
| JAC Junling G6 200hp 4X2(6 wheels) 4.2m half-cab dump truck | 4x2 / 200hp / China VI | From $26,958 |

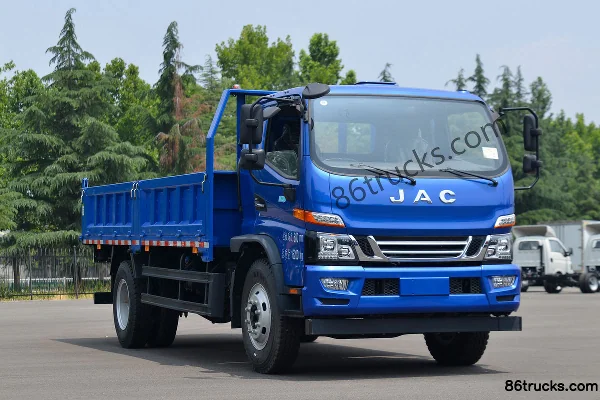

JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck
EXW
From $23,167
Export quote

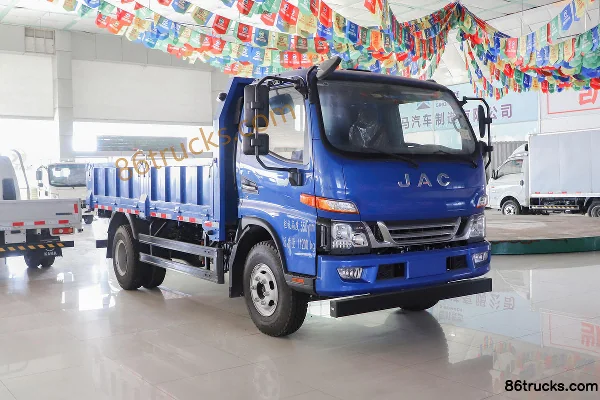

JAC Junling G6 160 hp 4X2(6 wheels) 4.2m cab-over dump truck
EXW
From $26,403
Export quote
JAC Junling G6 160 hp 4X2(6 wheels) 4.2m cab-over dump truck
EXW
From $26,403
Export quote
JAC Junling G6 200hp 4X2(6 wheels) 4.2m half-cab dump truck
EXW
From $26,958
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI) | 4x2 / 130hp / China VI | ||
| JAC Junling 130 hp 4X2(6 wheels) 3.8 m semi-row dump truck | 4x2 / 130hp / China VI | ||
| JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI) | 4x2 / 160hp / China VI | ||
| JAC Junling 130 hp 4X2(6 wheels) 3.3m half-row dump truck | 4x2 / 130hp / China VI | ||
| JAC Junling 130 hp 4X2(6 wheels) 3.6m single row dump truck | 4x2 / 130hp / China VI |
JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI)
EXW
Export quote
JAC Junling 130 hp 4X2(6 wheels) 3.8 m semi-row dump truck
EXW
Export quote
JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI)
EXW
Export quote
JAC Junling 130 hp 4X2(6 wheels) 3.3m half-row dump truck
EXW
Export quote
JAC Junling 130 hp 4X2(6 wheels) 3.6m single row dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HFC3041P13K1B4DS / HFC3110P31K1C6NS / HFC3160P31K1C4S / HFC3180P31K1C4S / HFC3180P31K1C9S / HFC3160P31K1C9S / HFC3110P31K1C7S / HFC3100P31K1C7S / HFC3090P32K1C8S / HFC3076P32K1C8S / HFC3120P32K1C2NS / HFC3110P32K1C2NS / HFC3120P13K1B4S / HFC3041R13K1B4DS / HFC3166P31K1D1S / HFC3046P32K1C8S-1 / HFC3116P31K1C7S / HFC3040P33K1B3S / HFC3160P31K1C7S / HFC3040P33K1C1S-1 / HFC3040P93K2B4NV / HFC3040P93K3B4NV / HFC3046R93K1C2V / HFC3040P93K1C1V / HFC3046P32K1C8S
Drive type: 4X2
Wheelbase: 2850 / 3850 / 3600 / 3500 / 3400 / 3300 / 4200 / 2600 / 3100 / 3308 / 3000mm
Engine Model: Yunnei PowerYN25PLUS2 / Yunnei PowerD30TCIF1 / YuchaiYCS04160-68 / YuchaiYCS04200-68 / Yunnei PowerD36TCIF1 / Yunnei PowerD40TCIF4 / QuanchaiQ28-130E60 / Yunnei PowerD25Pro / Yunnei PowerYN25PLUS160A / Yunnei PowerHFC4DF140 / Yunnei PowerD30TCIF2 / QuanchaiQ23-115E60 / Yunnei PowerYN27CRE1 / JACHFC4DA1-2D / Yunnei PowerYN33CRE1
Transmission Model: WLYWLY8GS46 / Fast Gear8JS75TC / Fast Gear8JS85E / Fast Gear8JS85TE / Fast Gear8JS85TE-C / WLYWLY10H46 / WLY8G55B / WLYWLY10H35 / 5-speed transmission / Lu'an LC5T30 / WLY5-speed / 5-speed gearbox / Fast Gear8JS95E
Rear Axle Ratio: 5.375 / 4.875 / 4.33 / 5.286 / 5.83 / 5.8
Cab length: 4.995 / 7.035 / 6.425 / 6.525 / 5.995 / 6.195 / 5.72 / 5.13 / 5.43 / 6.025 / 7.45 / 5.77 / 6.225 / 4.88 / 5.17 / 5.5 / 5.185 / 5.445m
Cab width: 1.9 / 2.31 / 2.325 / 2.425 / 2.32 / 2.22 / 2.185 / 2.1 / 1.91 / 2.41 / 2.285 / 2.47 / 2.13 / 2.42 / 1.95 / 2.02 / 2.33 / 1.985 / 2.01 / 1995 / 2071 / 1900m
Cab height: 2.1 / 2.57 / 2.72 / 2.56 / 2.55 / 2.25 / 2.15 / 2.16 / 2.65 / 2.62 / 2.2 / 2.4 / 2.37 / 2.63 / 2.165 / 2.635 / 2.18 / 2.085m
Front track width: 1460 / 1695 / 1920 / 1690 / 1560 / 1530 / 1450 / 1570 / 1830 / 1700 / 1580 / 1465 / 1480 / 1470 / 1440mm
rear track: 1480 / 1785 / 1705 / 1825 / 1650 / 1530 / 1580 / 1490 / 1800 / 1520 / 1765 / 1395mm
Curb Weight: 2.72 / 6.01 / 7.285 / 7.15 / 7.81 / 5.285 / 4.3 / 3.3 / 3.83 / 3.95 / 3.65 / 7.915 / 6.3 / 4.35 / 7.29 / 8.01 / 2.715 / 2.6 / 2.5ton
Rated payload: 1.645 / 4.995 / 8.72 / 10.655 / 9.995 / 5.72 / 4.52 / 4.605 / 4 / 7.97 / 7.055 / 8.215 / 1.45 / 3.95 / 9.705 / 1.58 / 6.665 / 8.715 / 7.995 / 1.495ton
GVWR: 4.495 / 11.2 / 16.2 / 18 / 10 / 9.1 / 7.495 / 11.995 / 4.49 / 4.42 / 4.125 / 4.29ton
Origin: Hefei, Anhui / Suining
tonnage class: Light Truck / Medium-duty truck
Approach angle: 18 / 22 / 25 / 23 / 19 / 14 / 21 / 20°
departure angle: 17 / 15 / 18 / 19 / 21 / 14 / 13 / 25 / 33 / 14.6 / 20 / 24 / 22°
Remarks: Standard: integrated air conditioning (heating & cooling), max speed 100 km/h, hydraulic dump lifting method, rear-tipping, 2m cargo box lift height, 45° cargo box lift angle, steel plate cargo box protection material, 2mm cargo box floor thickness, 1.2mm cargo box side/rear panel thickness. / Standard: driving recorder, standard rims, MP3, telematics; optional: MP5. / Standard standard rims, MP3, telematics, spare tire; optional MP5, 7.50R16 / Optional rear axle ratio (5.286/5.83), 7.50R16. / Standard: electric preheating, electric engine shutdown, manual windows, standard steering wheel, lift axle buzzer, standard seat; optional: ETC, MP5, 7.5R16 (tubeless tires with aluminum rims) / Standard MP3, driving recorder, exhaust pipe wrap; optional rear axle ratio 5.83/6.33. / Standard MP3; optional MP5, 7.00R16, standard rims. / Standard MP3; optional MP5.
Version: 2021 Model
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Yuchai / Quanchai / JAC
Number of cylinders: 4cylinder
Displacement: 2.499 / 2.977 / 4.16 / 3.61 / 4 / 2.8 / 2.5 / 2.3 / 2.672 / 2.771 / 3.298L
Emission standard: China VI / China V
Max output power: 101 / 125 / 118 / 147 / 130 / 105 / 96 / 114 / 120 / 85 / 70 / 88kW
Max hp: 137 / 170 / 160 / 200 / 177 / 143 / 130 / 155 / 140 / 163 / 115 / 95 / 120 / 116Horsepower
Max torque: 500 / 550 / 720 / 600 / 450 / 405 / 420 / 320 / 250 / 285 / 315N·m
Max torque speed: 1200-2200 / 1200-1900 / 1200-1600 / 1100-2100 / 2000 / 1400-2400 / 1400-2300 / 1600-2600 / 1800-2200 / 1600-2400rpm
Rated speed: 2800 / 2300 / 3000 / 3300 / 3200rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC / High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection / Electronically controlled strong-cooling EGR
Transmission Parameters
Transmission Brand: WLY / Fast Gear / Lu'an
shift method: Manual
Forward gears: 8 / 5Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
hydraulic cylinder brand & model: 2TG-E90×1020
Unloading Type: Dump type / Rear-dump body
Cargo box length: 3.25 / 4.8 / 4.2 / 4 / 3.8 / 4.1 / 3 / 3.3 / 2.85 / 3.2 / 2.2 / 3.6 / 5.2 / 4.15 / 3.5 / 3.34m
Cargo box width: 1.8 / 2.2 / 2.3 / 2.1 / 2.01 / 2 / 1.85 / 1.9 / 1.81m
Body Parameters
Lifting type: Mid-mounted dual roof / 160 hydraulic oil cylinder / 160 construction top / 150 front-mounted lift / 140 construction lift / E100 dual lift / 90 dual lift / 80 double lift
FAQ
What kind of truck is JAC JAC G light truck Dump Trucks?
JAC JAC G light truck is an export-oriented Dump Trucks lineup with about 137 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC G light truck Dump Trucks?
JAC G light truck Dump Trucks export reference is about $9,000 – $26,958. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC G light truck Dump Trucks cover?
JAC G light truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 130 hp / 137 hp / 160 hp / 170 hp / 200 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC G light truck Dump Trucks?
For JAC G light truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does JAC G light truck Dump Trucks include?
JAC G light truck Dump Trucks currently lists about 137 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC G light truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
