JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck

Export reference
From $23,167
MSRP ¥16.68M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.01ton
Wheelbase:: 3850mm
Tire Size:: 8.25R16LT 18PR
Rated payload: 4.995ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box type: Dump type

Overview

The JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck is a Light Truck featuring 4.995t payload, 11.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF1 engine, 170 hp, China VI emissions and Fast Gear transmission.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3110P31K1C6NS
Drive type: 4X2
Wheelbase: 3850mm
engine: Yunnei PowerD30TCIF1
transmission: Fast Gear8JS75TC
Rear Axle Ratio: 4.875
Cab length: 7.035m
Cab width: 2.31m
Cab height: 2.57m
Front track width: 1695mm
rear track: 1785mm
Curb Weight: 6.01ton
Rated payload: 4.995ton
GVWR: 11.2ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.977L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS75TC
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.8m
Cargo box width: 2.2m
Cargo box height: 0.8m
Body Parameters
Lifting type: 160 hydraulic oil cylinder
Cab parameters
Cab: New Junling Wide Body Semi-Row
Cab width: 2071mm
seating capacity: 3Personnel
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 2.7T
Front axle allowable load: 4000kg
Frame Dimensions: 230 cross-sectionmm
rear axle description: 7.2T
rear axle allowable load: 7200kg
Axle ratio: 4.875
Leaf spring count: 9/9+7
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

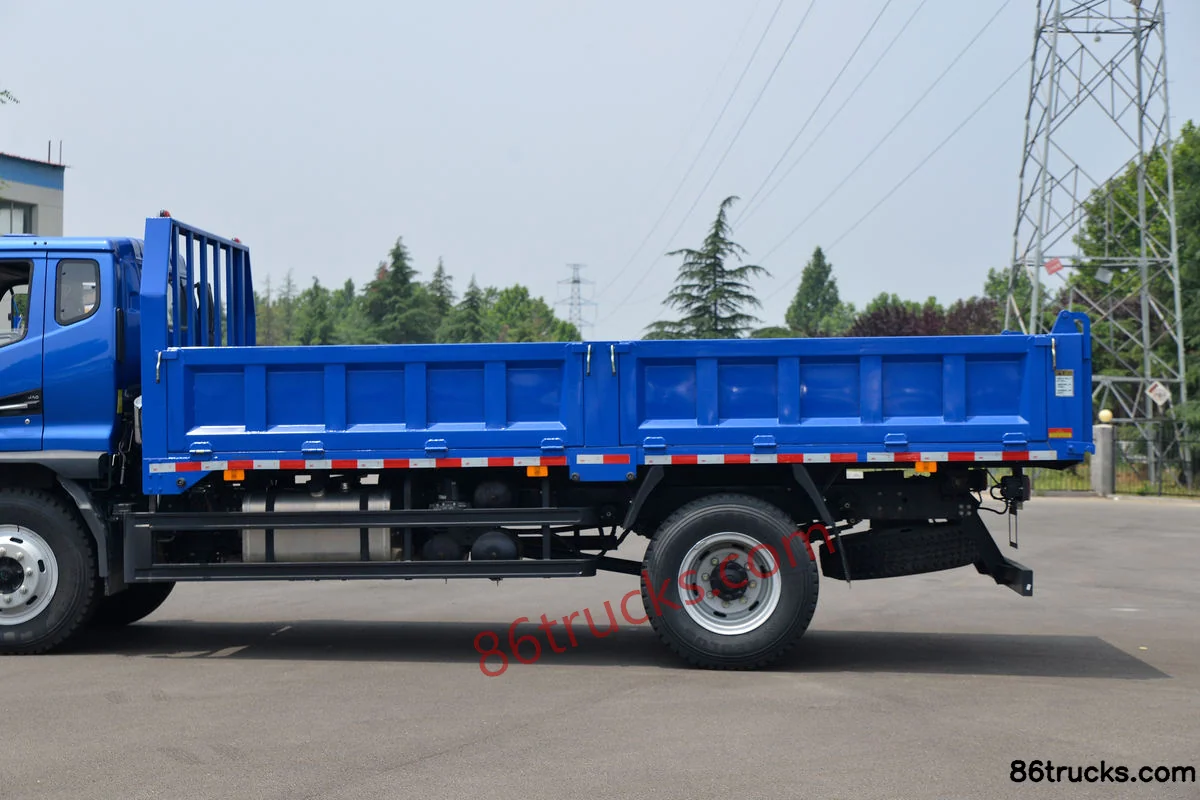

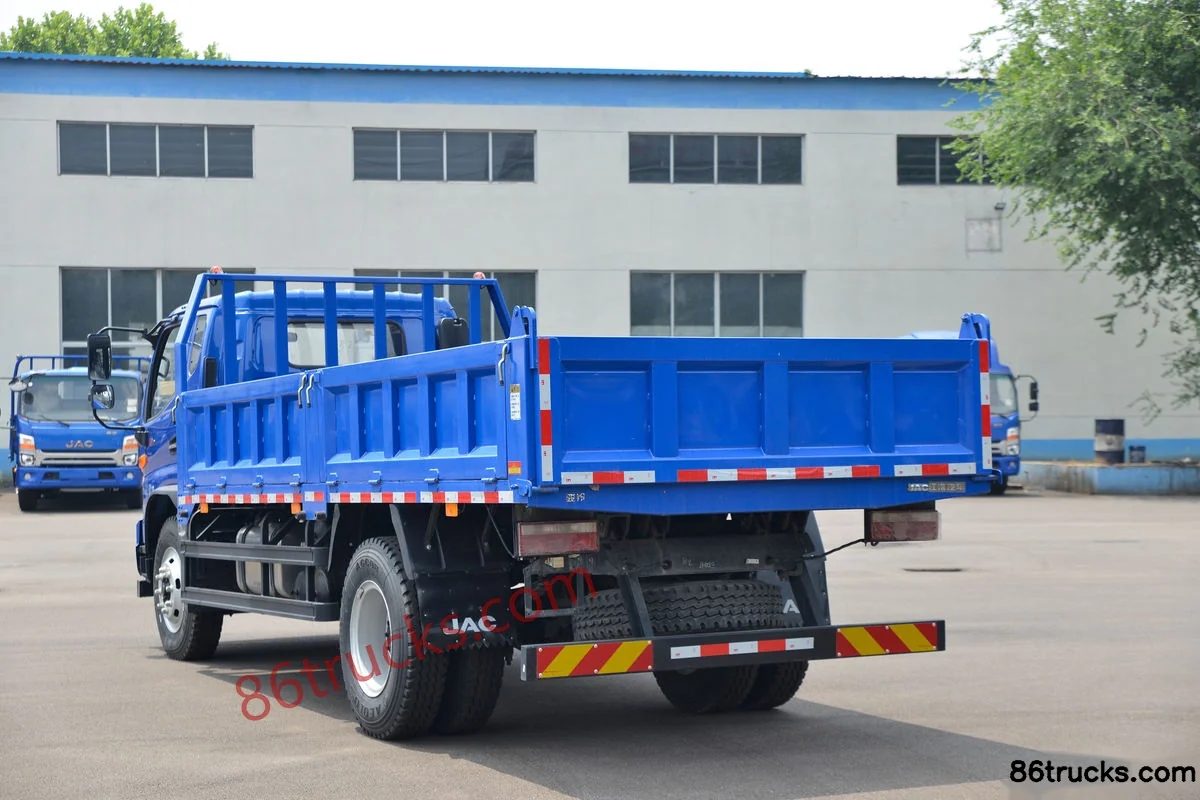

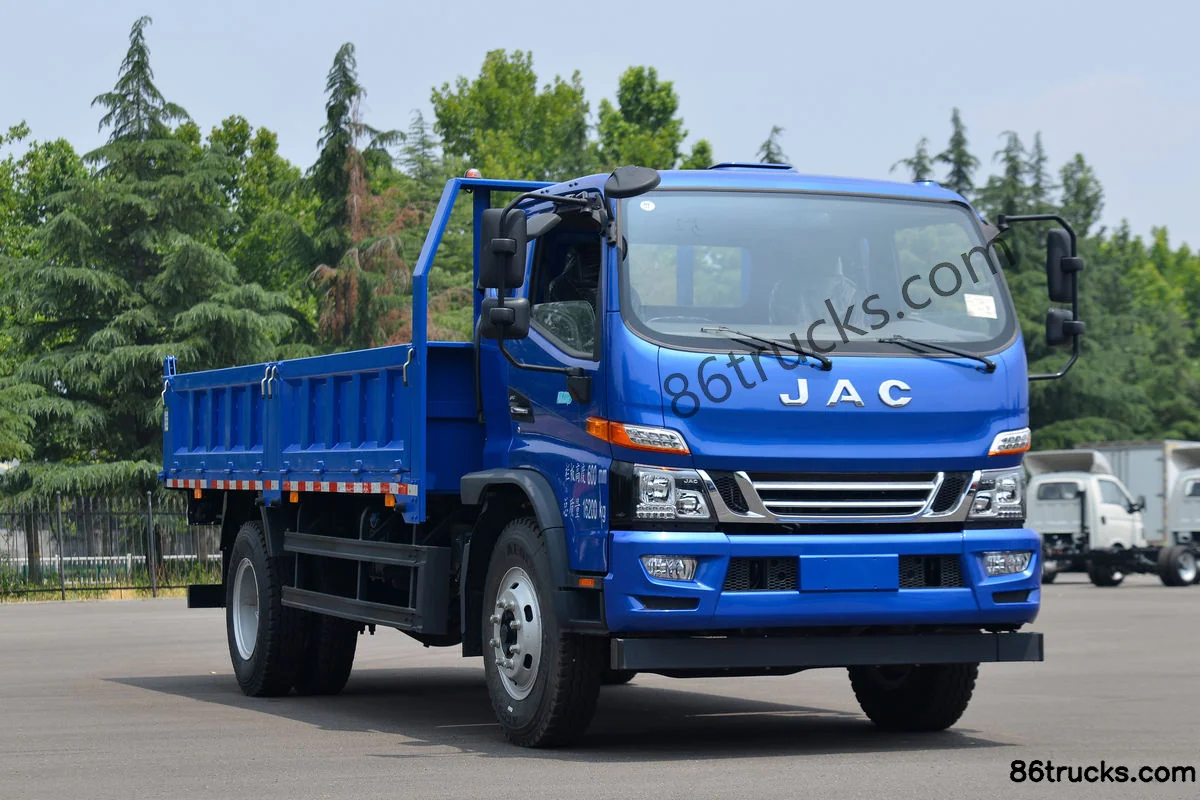

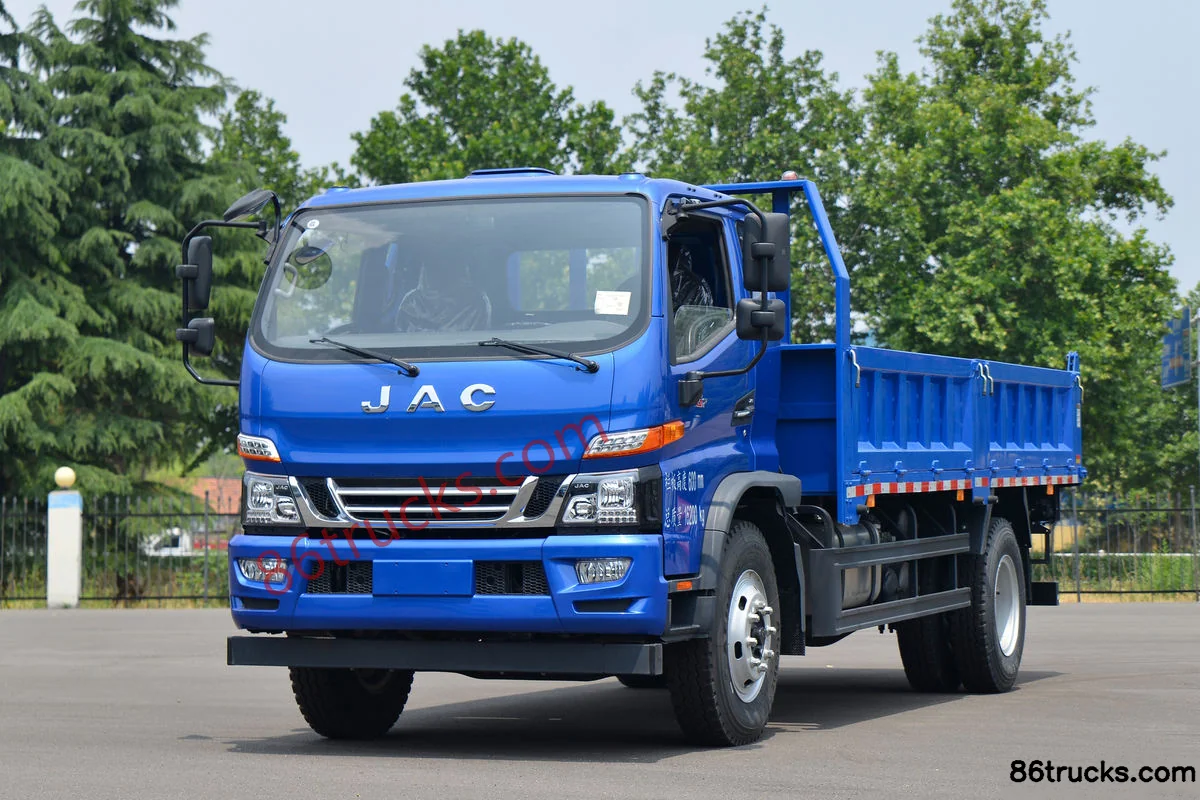

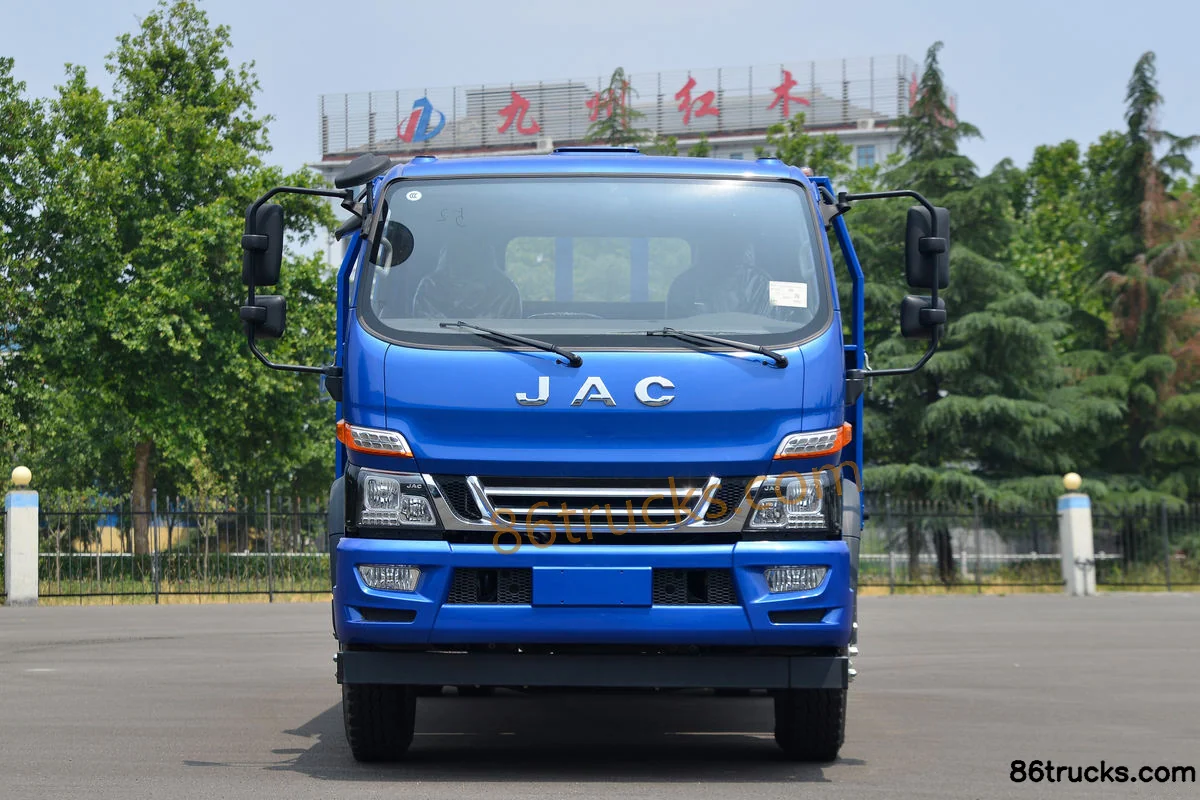

Exterior3

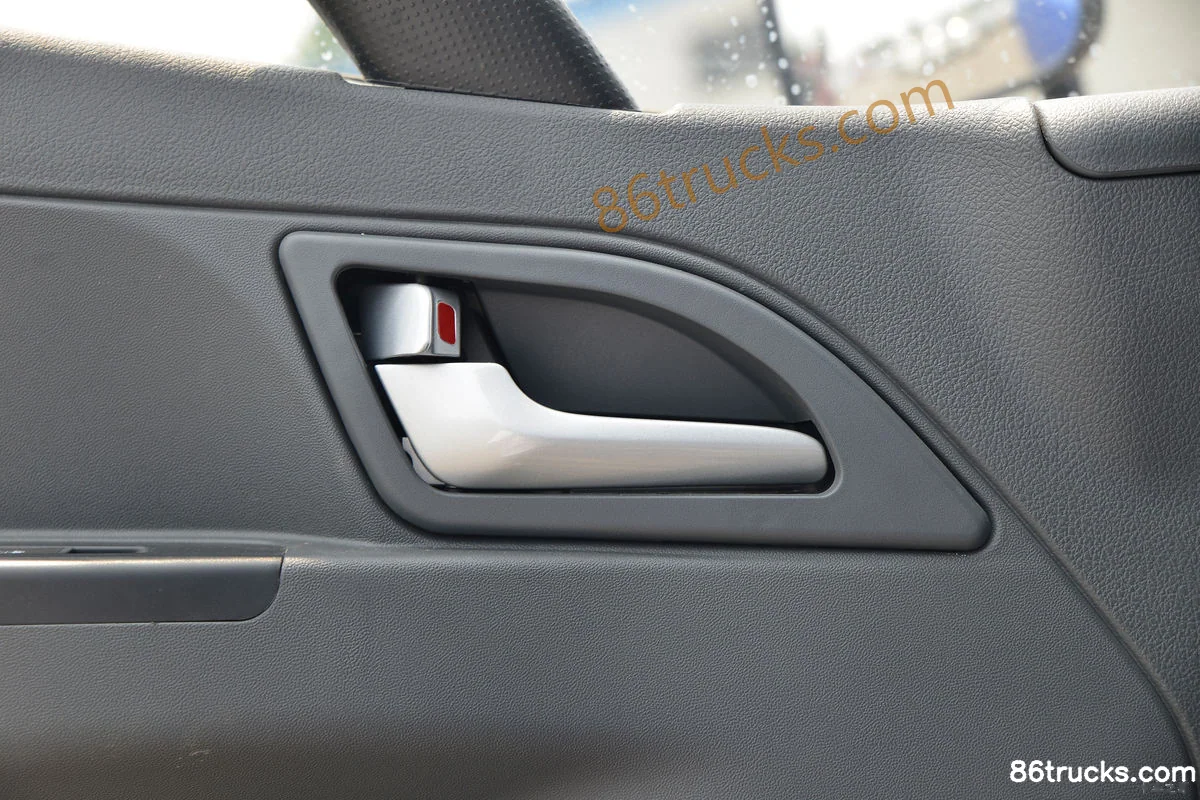

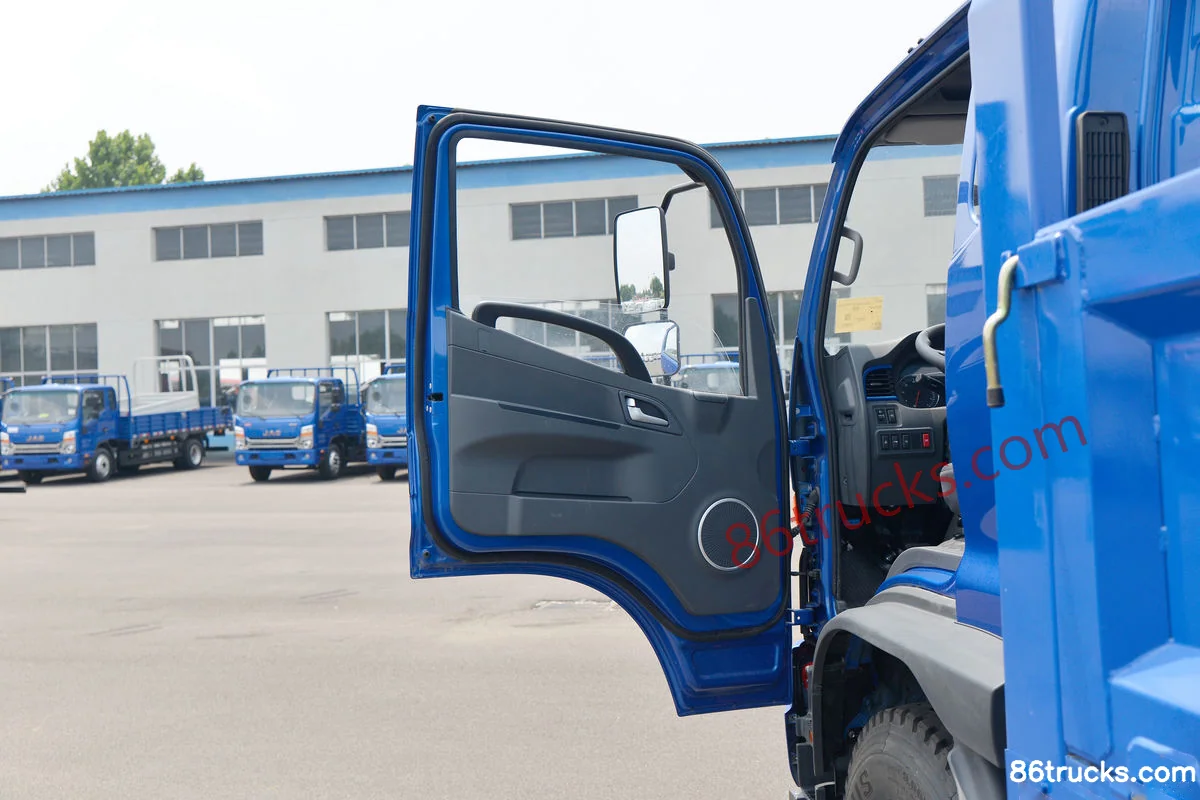

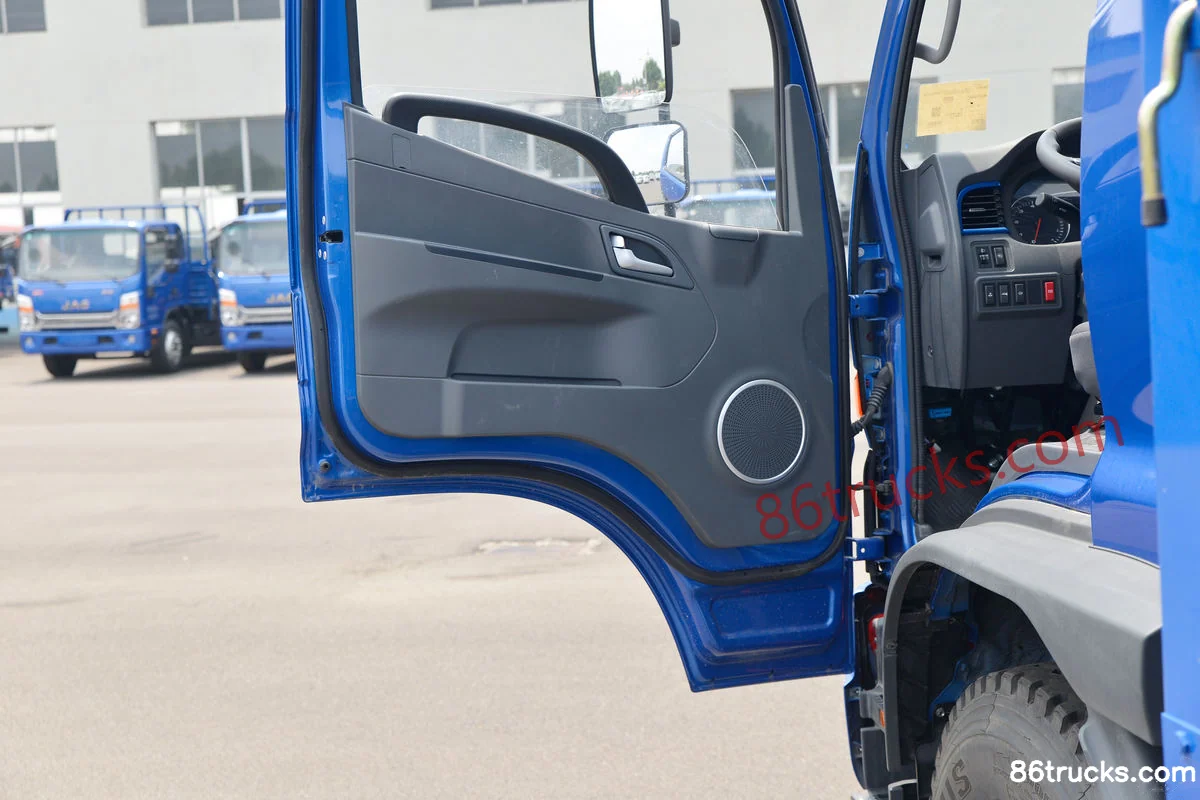

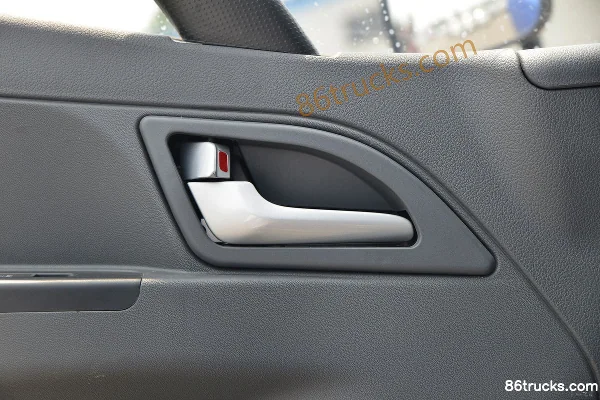

Cab3

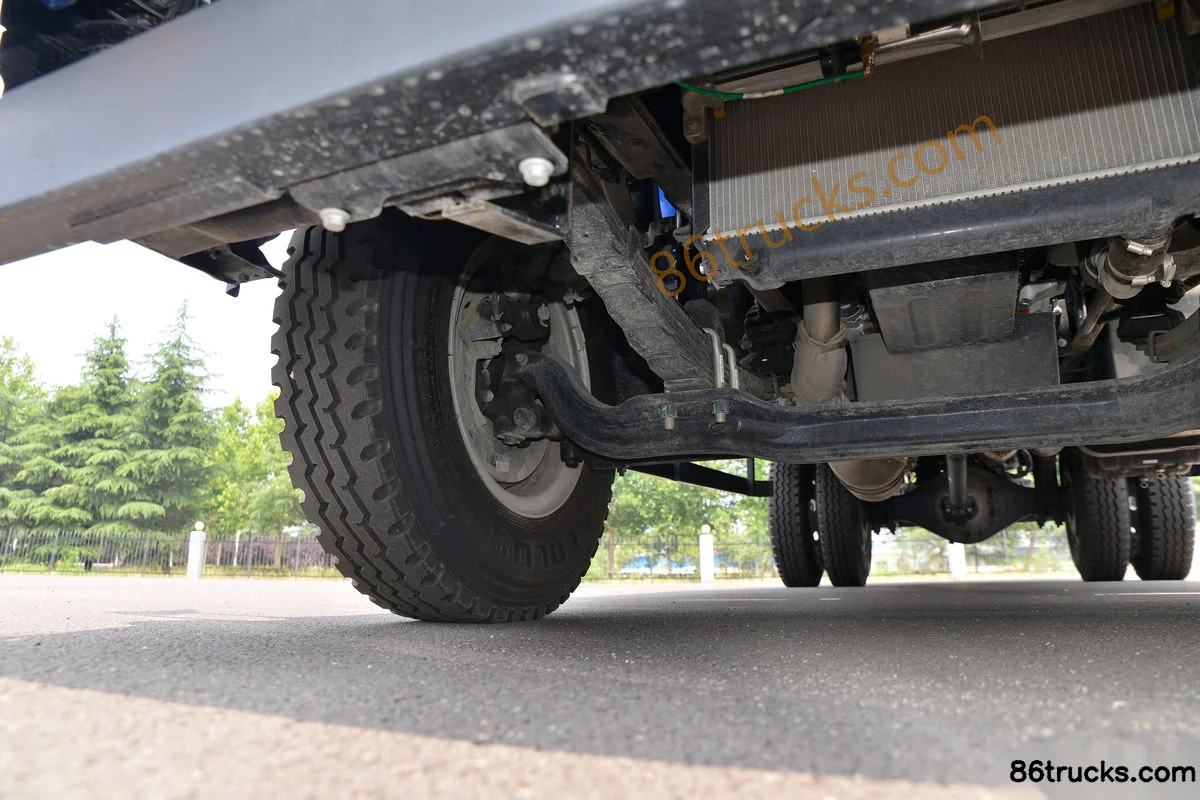

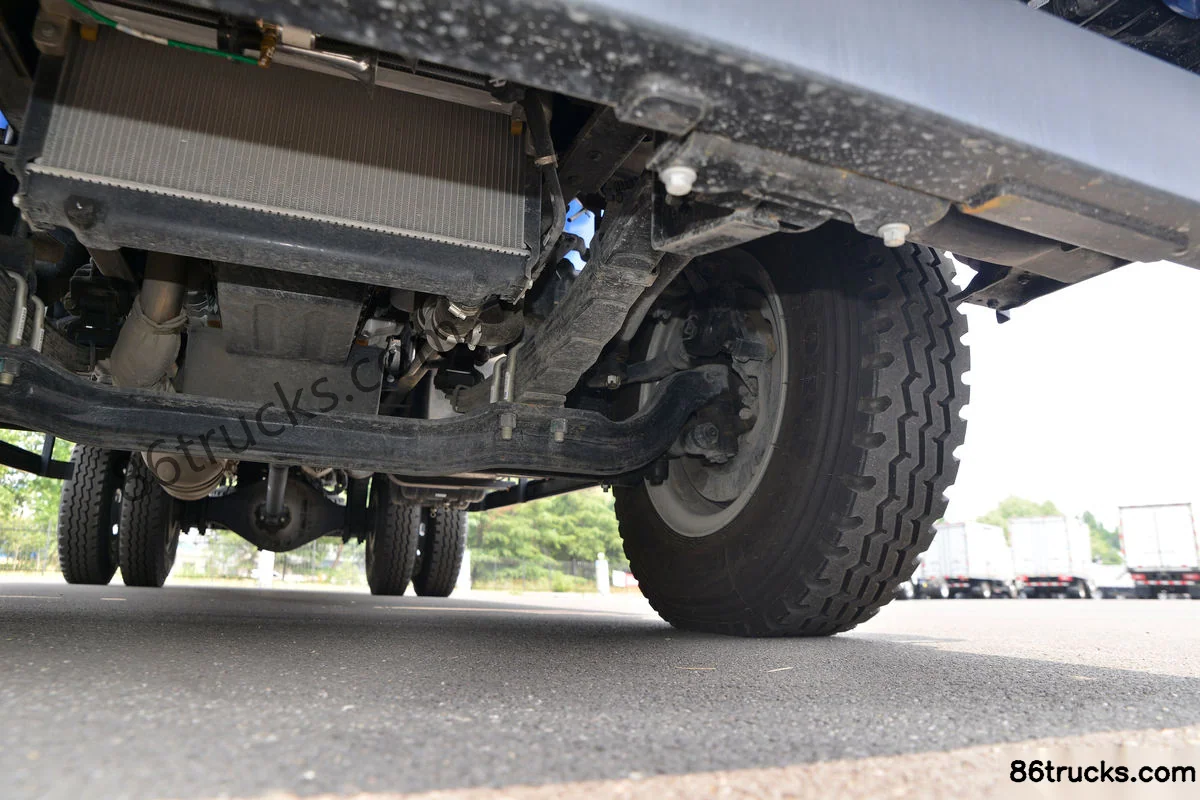

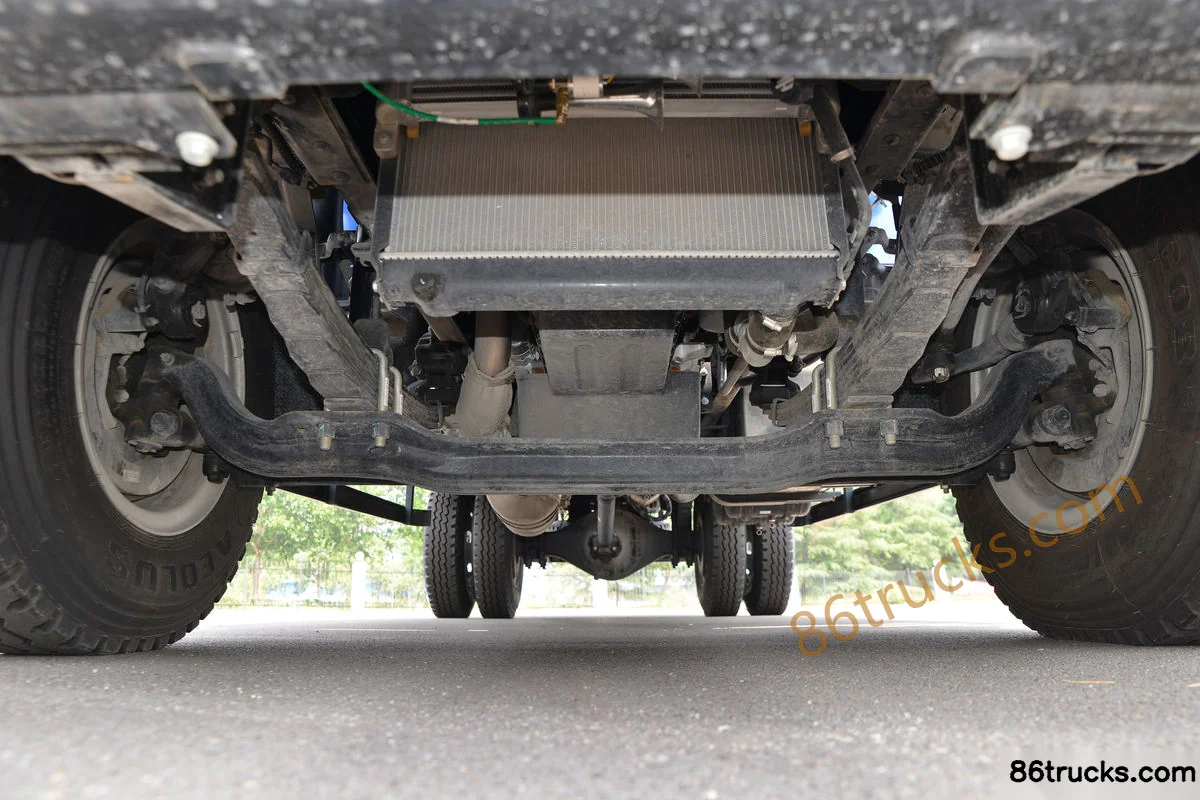

Chassis3

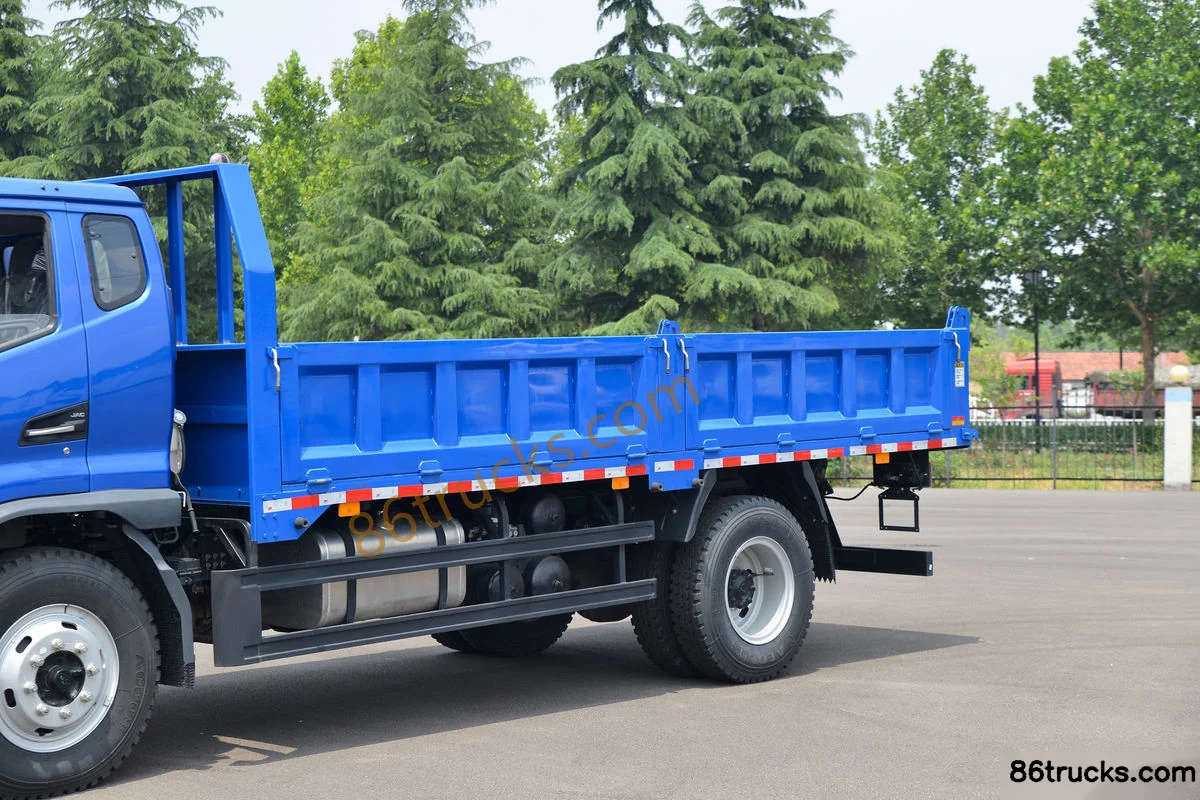

Body3

12 photos

FAQ

What is the export price of JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck, and what does it include?

JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck export reference is about From $23,167; MSRP is ¥16.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck?

Key specs of JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck suited for?

JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck differ from other variants in the same series?

JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G7 170 hp 4X2(6 wheels) 4.8m cab-over dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
