JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 3300mm
Tire Size:: 7.00R16LT 8PR
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI) is a Light Truck featuring 1.58t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ28-130E60 engine, 130 hp, China VI emissions and WLY transmission.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3046P32K1C8S-1
Drive type: 4X2
Wheelbase: 3300mm
engine: QuanchaiQ28-130E60
transmission: WLYWLY10H46
Cab length: 5.995m
Cab width: 2.185m
Cab height: 2.2m
Front track width: 1560mm
rear track: 1530mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 19°
departure angle: 14°
Remarks: Standard standard rims, MP3, telematics, spare tire; optional MP5, 7.50R16
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ28-130E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.8L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 405N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY10H46
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.1m
Cargo box width: 2.01m
Cargo box height: 0.46m
Cab parameters
Cab: New Junling Medium Body
Chassis Specs
Front axle description: 1.8T
Front axle allowable load: 1720kg
Frame Dimensions: 200×760×60×5mm
rear axle description: 5T
rear axle allowable load: 2775kg
Leaf spring count: 4/6+7
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Parking brake: Spring brake

Photos

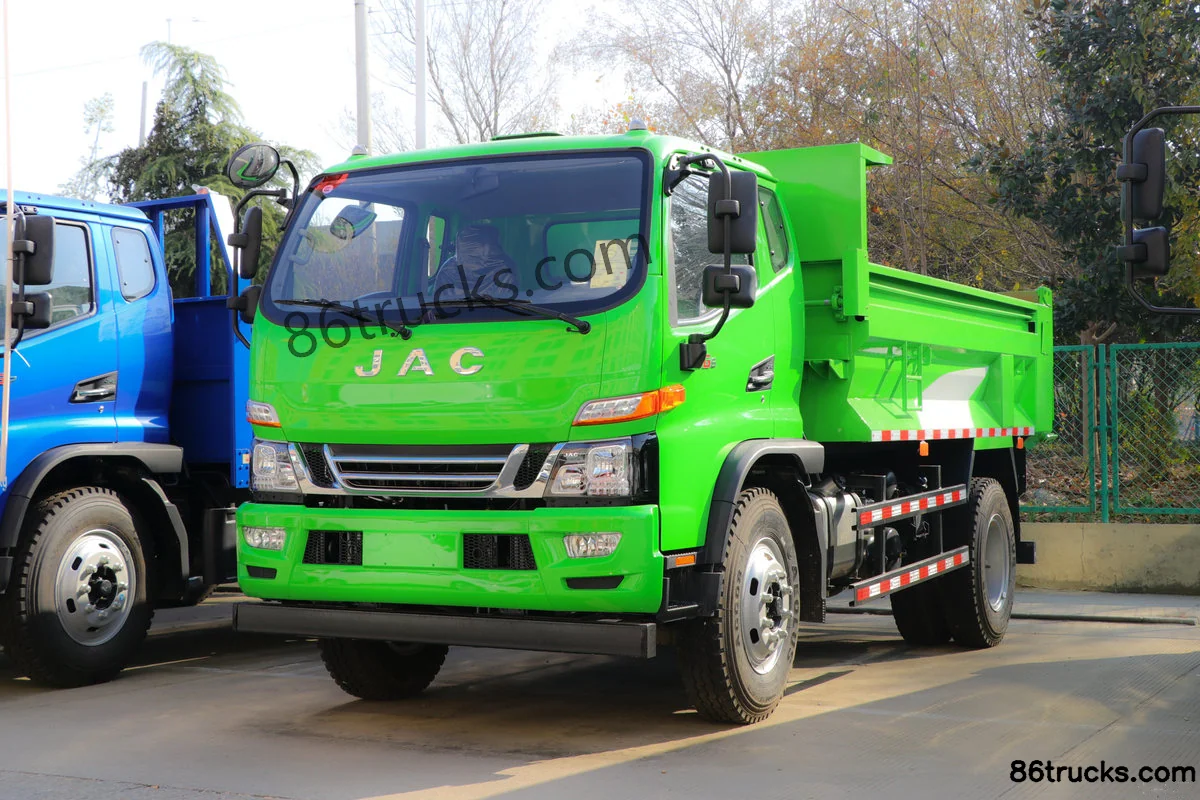

Exterior1

1 photos

FAQ

What emission standard does JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI)?

Key specs of JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI): Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI) suited for?

JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI) differ from other variants in the same series?

JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI) belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G6 130 hp 4X2(6 wheels) 4.1 m single-row dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
