NanJun Ruiji J20 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 2.8m Semi-Single Row Dump Truck
EXW
From $19,903
Export quote
NanJun Ruiji J20 Dump Trucks
Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| NanJun Ruiji J20 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 2.8m Semi-Single Row Dump Truck | 4x2 / 160hp / China VI | From $19,903 | |
| NanJun Ruiji J20 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 2.8m Semi-Single Row Dump Truck | 4x2 / 160hp / China VI | From $19,903 | |
| NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck | 4x2 / 160hp / China VI | From $19,694 | |
| NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck | 4x2 / 160hp / China VI | From $19,694 | |
| NanJun Ruiji J20 127hp 4X2(6 wheels) 2.8m Dump Truck | 4x2 / 127hp / China VI | From $14,722 |
NanJun Ruiji J20 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 2.8m Semi-Single Row Dump Truck
EXW
From $19,903
Export quote
NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck
EXW
From $19,694
Export quote
NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck
EXW
From $19,694
Export quote

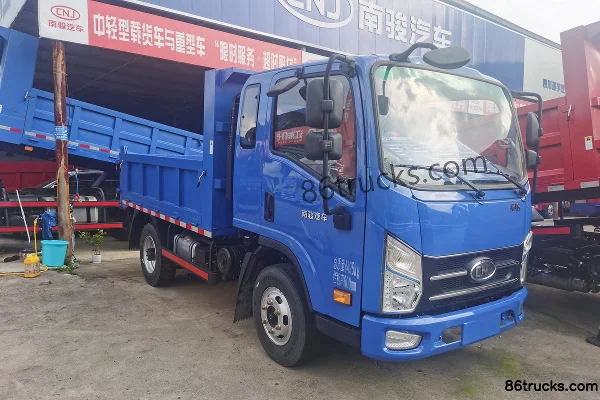

NanJun Ruiji J20 127hp 4X2(6 wheels) 2.8m Dump Truck
EXW
From $14,722
Export quote
Series Specs
Basic Info
Model code (announced): NJA3040EDM26A / NJA3044
Drive type: 4X2
Wheelbase: 2800mm
Engine Model: YuchaiYCF25160-66 / Yunnei PowerD20TCIF11 / YCF25160-66
Transmission Model: WLY 8-speed
Rear Axle Ratio: 6.333 / 4.875
Cab length: 4.995m
Cab width: 1.95 / 1735m
Cab height: 2.33 / 2.34m
Front track width: 1520mm
rear track: 1584mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 19°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Yunnei Power
Number of cylinders: 4cylinder
Displacement: 2.488 / 2L
Emission standard: China VI
Max output power: 116 / 93kW
Max hp: 160 / 127Horsepower
Transmission Parameters
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 3TG-90×300
Cargo box thickness: 1mm
Cargo box length: 2.8 / 3.1m
Cargo box width: 1.8m
Cargo box height: 0.8 / 0.6m
Body Parameters
Lifting type: Mid-mounted dual cylinder
Cab parameters
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 100L
Chassis Specs
Front axle description: 1058
Front axle allowable load: 1900kg
Frame Dimensions: 206mm
FAQ
What kind of truck is NanJun NanJun Ruiji J20 Dump Trucks?
NanJun NanJun Ruiji J20 is an export-oriented Dump Trucks lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for NanJun Ruiji J20 Dump Trucks?
NanJun Ruiji J20 Dump Trucks export reference is about $14,722 – $19,903. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does NanJun Ruiji J20 Dump Trucks cover?
NanJun Ruiji J20 Dump Trucks mainly covers: Drive: 4x2; Horsepower: 127 hp / 160 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in NanJun Ruiji J20 Dump Trucks?
For NanJun Ruiji J20 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does NanJun Ruiji J20 Dump Trucks include?
NanJun Ruiji J20 Dump Trucks currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for NanJun Ruiji J20 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
