NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck

Export reference
From $19,694
MSRP ¥14.18M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 8PR/245/70R17.5 18PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box thickness: 1mm

Overview

The NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, 1mm cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCF25160-66 engine, 160 hp, China VI emissions and WLY transmission.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3044
Drive type: 4X2
Wheelbase: 2800mm
engine: YuchaiYCF25160-66
transmission: WLY 8-speed
Rear Axle Ratio: 6.333
Cab length: 4.995m
Cab width: 1.95m
Cab height: 2.34m
Front track width: 1520mm
rear track: 1584mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 19°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCF25160-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.488L
Emission standard: China VI
Max output power: 116kW
Max hp: 160Horsepower
Transmission Parameters
Transmission Model: WLY 8-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 3TG-90×300
Cargo box thickness: 1mm
Cargo box length: 3.1m
Cargo box width: 1.8m
Cargo box height: 0.8m
Body Parameters
Lifting type: Mid-mounted dual cylinder
Cab parameters
Cab width: 1735mm
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 100L
Chassis Specs
Front axle description: 1058
Front axle allowable load: 1900kg
Frame Dimensions: 206mm
rear axle description: 1080
rear axle allowable load: 2595kg
Axle ratio: 6.333
Leaf spring count: 3/4+3
Tire
Tire Size: 7.00R16LT 8PR/245/70R17.5 18PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

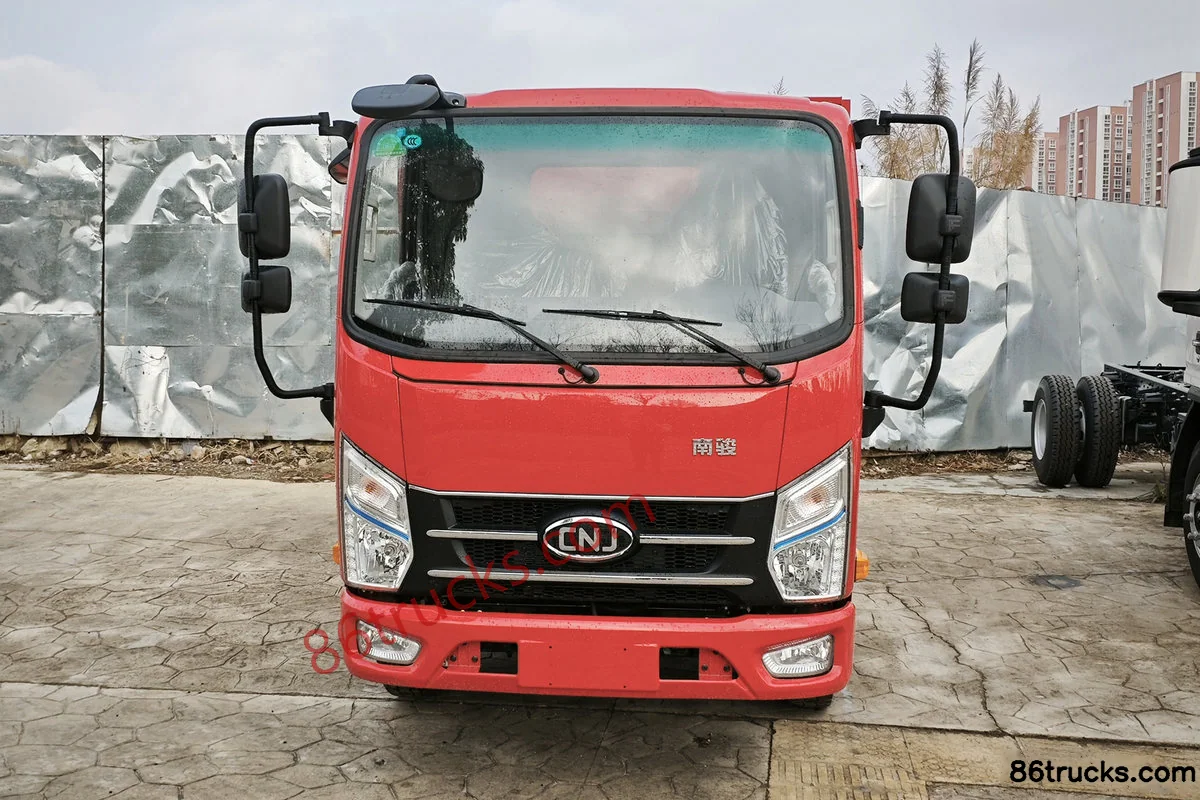

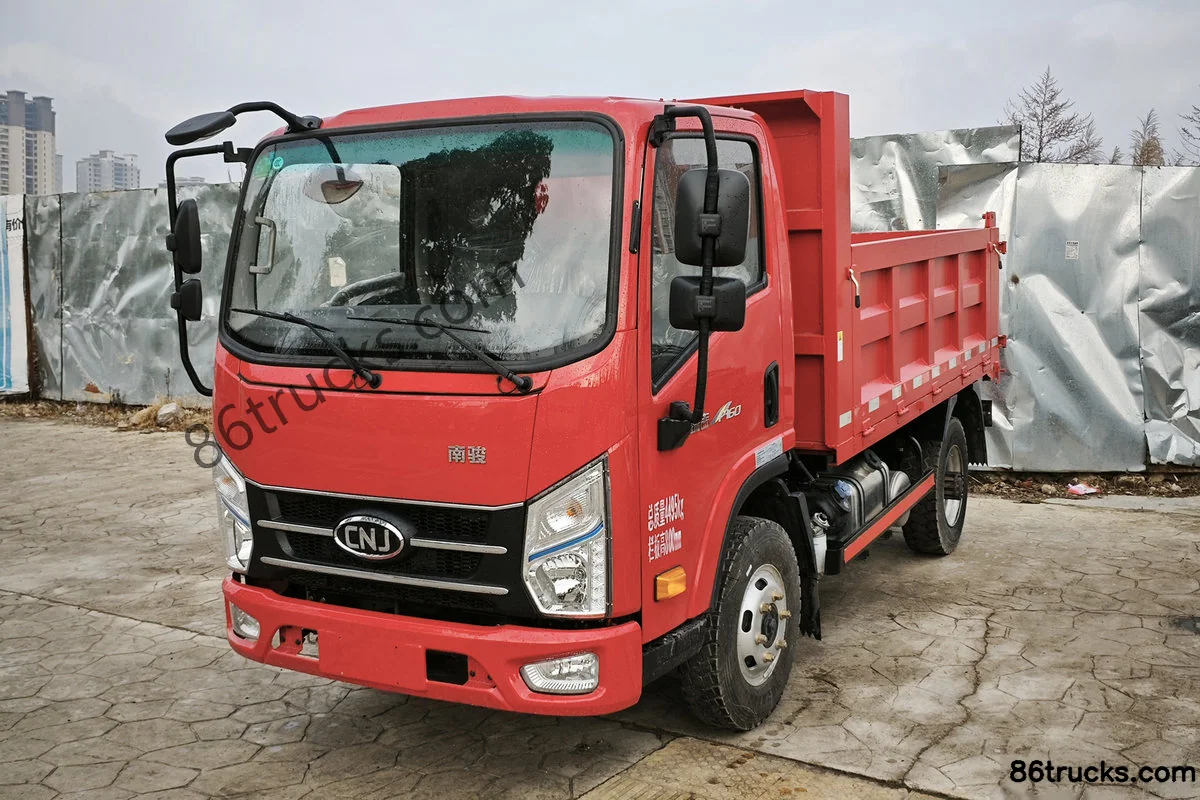

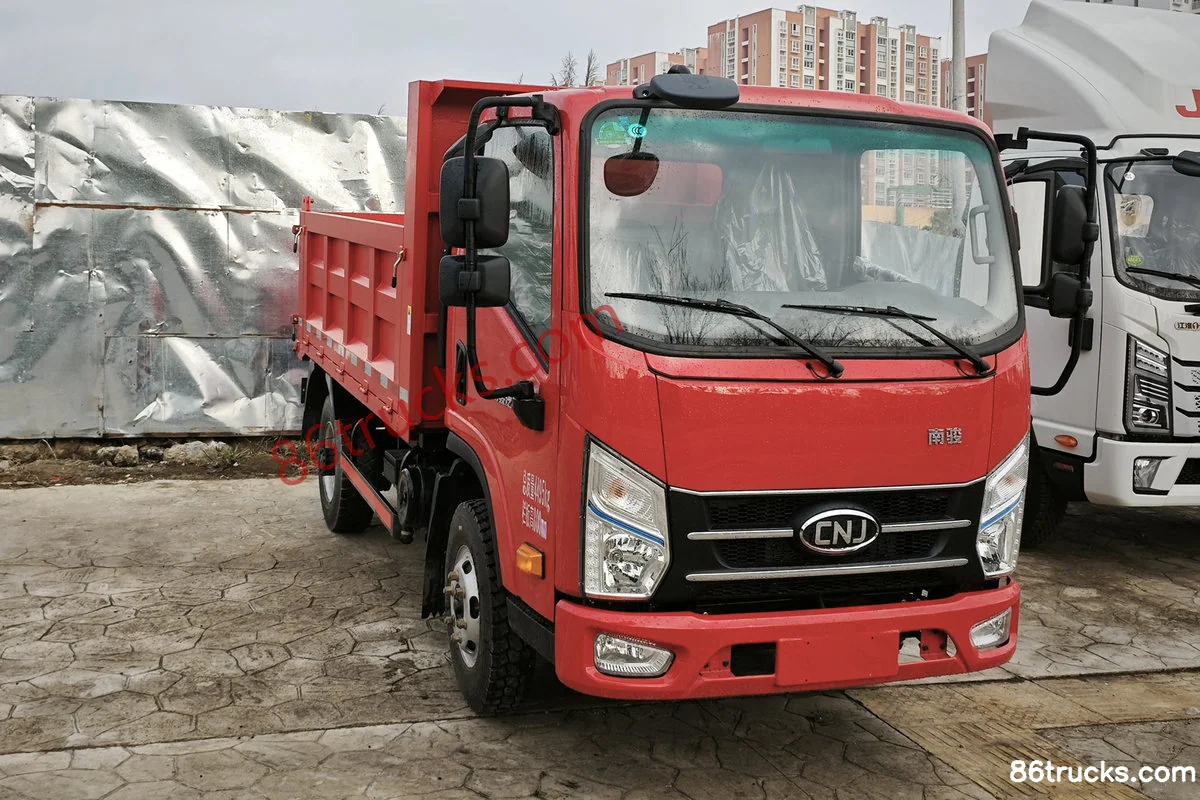

Photos

Exterior3

3 photos

FAQ

What is the export price of NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck, and what does it include?

NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck export reference is about From $19,694; MSRP is ¥14.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck?

Key specs of NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck suited for?

NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck differ from other variants in the same series?

NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck belongs to NanJun Ruiji J20 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiji 2.5L Diesel 160hp 4X2(6 wheels) WLY 8-Speed 3.1m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
