Sinotruk Haoyun Heavy Truck 266 hp 6X4(10 wheels) 6.3m Dump Truck
EXW
From $40,278
Export quote
Sinotruk Haoyun Heavy Truck Dump Trucks
Main model photos
29 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Haoyun Heavy Truck 266 hp 6X4(10 wheels) 6.3m Dump Truck | 6x4 / 266hp / China III / Euro III | From $40,278 | |
| Sinotruk Haoyun Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck | 6x4 / 300hp / China III / Euro III | From $45,833 | |
| Sinotruk Haoyun heavy truck 336 hp 6X4(10 wheels) 6m dump truck | 6x4 / 336hp / China III / Euro III | From $47,222 | |
| Sinotruk Haoyun Heavy Truck 336hp 6X4(10 wheels) 5.6m Dump Truck | 6x4 / 336hp / China III / Euro III | From $47,222 | |
| Sinotruk Haoyun 290hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 290hp / China III / Euro III | From $40,278 |
Sinotruk Haoyun Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck
EXW
From $45,833
Export quote

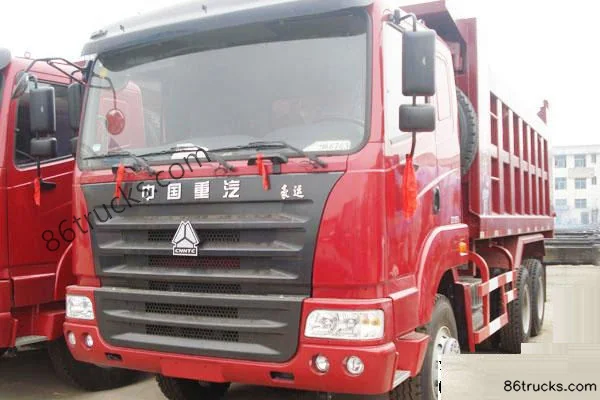

Sinotruk Haoyun heavy truck 336 hp 6X4(10 wheels) 6m dump truck
EXW
From $47,222
Export quote
Sinotruk Haoyun Heavy Truck 336hp 6X4(10 wheels) 5.6m Dump Truck
EXW
From $47,222
Export quote
Sinotruk Haoyun 290hp 6X4(10 wheels) 5.6m dump truck
EXW
From $40,278
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3255M4345C / ZZ3255M3845C / ZZ3255N3845C / ZZ3255N3645C / ZZ3205M3645C2 / ZZ3255M3645C / ZZ3255N4945C / ZZ3315N4265C / ZZ3315N4665C2L
Drive type: 6X4 / 8X4
Wheelbase: 4325+1350 / 3800+1350 / 3600+1350 / 4925+1350 / 1800+4200+1350 / 1800+4600+1350mm
Engine Model: SinotrukWD615.92 / SinotrukWD615.97E / SinotrukWD615.95 / SinotrukWD615.93E / SinotrukWD615.95E / SinotrukWD615.96E / SinotrukWT615.95
Transmission Model: SinotrukHW15710 / SinotrukHW19710 / Fast Gear9JS119 / Fast Gear12JS160 / SinotrukHW18710
Rear Axle Ratio: 5.45
Cab length: 9.15 / 8.65 / 8.24 / 9.65 / 11.195 / 11.425m
Cab width: 2.496 / 2.96m
Cab height: 3.3m
Front track width: 2022 / 2022/2022mm
rear track: 1830/1830 / 1830mm
Curb Weight: 12.29 / 12.13 / 12.01 / 10 / 12.35 / 15.47 / 15.45ton
Rated payload: 12.58 / 12.74 / 12.86 / 9.97 / 12.52 / 15.4 / 15.42ton
GVWR: 25 / 20.1 / 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 24 / 27 / 17 / 22°
Remarks: This vehicle can be equipped with an environmentally friendly covered cargo box, top cover mass 320kg (included in curb weight). Vehicle length, box length, and rear overhang parameters correspond one-to-one. This vehicle does not use WD615.95 or WD615.96 engines on the chassis. / Roof weight is 300kg (included in curb weight). Vehicle length, box length, and rear overhang parameters correspond one-to-one. This model does not select the WD615.95 or WD615.96 engine from the bare chassis. / This vehicle can be equipped with an environmentally friendly covered cargo box, top cover mass 300kg (included in curb weight). Vehicle length, box length, and rear overhang parameters correspond one-to-one. This vehicle does not use WD615.92 or WD615.93 engines on the chassis. / This vehicle can be equipped with an environmentally friendly covered cargo box, top cover mass 390kg (included in curb weight). Vehicle length, box length, and rear overhang parameters correspond one-to-one.
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Sinotruk
Number of cylinders: 6cylinder
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 196 / 221 / 247 / 213 / 276 / 250kW
Max hp: 266 / 300 / 336 / 290 / 375 / 340Horsepower
Max torque: 1100 / 1250 / 1350 / 1160 / 1500 / 1390N·m
Max torque speed: 1100-1600 / 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail, CRS / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump, EGR / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail, SCR / Inline, water-cooled, 4-stroke, turbocharged with intercooler, electronic gas system, spark plug ignition, lean burn
Transmission Parameters
Transmission Brand: Sinotruk / Fast Gear
shift method: Manual
Forward gears: 10 / 9 / 12Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 6.3 / 5.8 / 6 / 5.6 / 7 / 8.2 / 8.5m
Cargo box width: 2.3m
Cargo box height: 1 / 1.1 / 1.2 / 0.95 / 0.9 / 0.97m
fuel tank
Fuel tank capacity: 400 / 300 / 260L
Chassis Specs
rear axle description: 16T / HC16 / AC16 axle / AC16
FAQ
What kind of truck is Sinotruk Sinotruk Haoyun Heavy Truck Dump Trucks?
Sinotruk Sinotruk Haoyun Heavy Truck is an export-oriented Dump Trucks lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Haoyun Heavy Truck Dump Trucks?
Sinotruk Haoyun Heavy Truck Dump Trucks export reference is about $40,278 – $51,111. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Haoyun Heavy Truck Dump Trucks cover?
Sinotruk Haoyun Heavy Truck Dump Trucks mainly covers: Drive: 6x4; Horsepower: 266 hp / 290 hp / 300 hp / 336 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Haoyun Heavy Truck Dump Trucks?
For Sinotruk Haoyun Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Haoyun Heavy Truck Dump Trucks include?
Sinotruk Haoyun Heavy Truck Dump Trucks currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Haoyun Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
