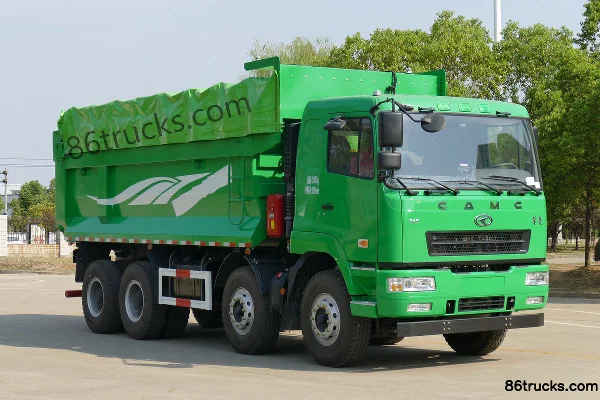

Hualing M5 Standard Load Edition 360 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)
EXW
Export quote
Hualing M5 Heavy Truck Dump Trucks
Main model photos
436 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing M5 Standard Load Edition 360 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) | 8x4 / 360hp / China VI | ||
| Hualing M5 Standard Load Edition 390 hp 8X4(12 wheels) 5.6 m dump truck (China VI) | 8x4 / 390hp / China VI | ||
| Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6m Dump Truck (Weichai WP9) | 8x4 / 350hp / China VI | ||
| Hualing M5 Standard Load Edition 450 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) | 8x4 / 450hp / China VI | ||
| Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck | 8x4 / 350hp / China VI |
Hualing M5 Standard Load Edition 390 hp 8X4(12 wheels) 5.6 m dump truck (China VI)
EXW
Export quote
Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6m Dump Truck (Weichai WP9)
EXW
Export quote
Hualing M5 Standard Load Edition 450 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)
EXW
Export quote
Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing M5 Standard Load Edition 390 hp 8X4(12 wheels) 5.6 m dump truck (China VI) | 8x4 / 390hp / China VI | ||
| Hualing Heavy Truck Standard Load Edition 360hp 8X4(12 wheels) 6.5m Dump Truck (China VI) | 8x4 / 360hp / China VI | ||
| Hualing Heavy Truck Standard Load Edition 360hp 8X4(12 wheels) 6.2m Dump Truck (China VI) | 8x4 / 360hp / China VI | ||
| Hualing Heavy Truck Standard Load Edition 360 hp 8X4(12 wheels) 6 m Dump Truck (China VI) | 8x4 / 360hp / China VI | ||
| Hualing Heavy Truck Standard Edition 350 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) | 8x4 / 350hp / China VI |
Hualing M5 Standard Load Edition 390 hp 8X4(12 wheels) 5.6 m dump truck (China VI)
EXW
Export quote
Hualing Heavy Truck Standard Load Edition 360hp 8X4(12 wheels) 6.5m Dump Truck (China VI)
EXW
Export quote
Hualing Heavy Truck Standard Load Edition 360hp 8X4(12 wheels) 6.2m Dump Truck (China VI)
EXW
Export quote
Hualing Heavy Truck Standard Load Edition 360 hp 8X4(12 wheels) 6 m Dump Truck (China VI)
EXW
Export quote
Hualing Heavy Truck Standard Edition 350 hp 8X4(12 wheels) 5.8m Dump Truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HN3310B36B8M6 / HN3310B39CLM6 / HN3310B35B6M6 / HN3310B45B6M6 / HN3310B39B7M6 / HN3311B36B6M6 / HN3310NGX38C2M5 / HN3250B35D4M5 / HN3250NGX38D4M5 / HN3250B35D1M5 / HN3252B35C9M5 / HN3315B34B6M5 / HN3310NGB35CLM5 / HN3251B34C9M5 / HN3310B38D6M5 / HN3310B34B8M5 / HN3310B38DLM5 / HN3310B34B3M5
Drive type: 8X4 / 6X4
Wheelbase: 1850+2850+1350 / 1850+3000+1350 / 1850+2600+1350 / 1850+2700+1350 / 4400+1350 / 4100+1350 / 3900+1350 / 1850+4000+1350 / 1850+4605+1350 / 1850+2350+1350mm
Engine Model: HanmaHM09.360 60 / HanmaHM09.390 60 / WeichaiWP9H350E62 / HanmaHM11.450 60 / WeichaiWP8.350E61A / HanmaCM6T18.350 50 / HanmaCM6D28.380 50 / HanmaCM6D18.345 50 / HanmaCM6D18.345 54 / HanmaCM6D18.375 50 / HanmaCM6D18.310 50
Transmission Model: Fast Gear12JSD180T / Fast Gear12JSD220T / Fast Gear12JSD160TA / Hanma12SDCy1851A / Hanma12SDY1851A / Hanma9SDB2051A / Hanma12SOB2250 / Hanma9SDB1851 / Fast Gear9JS180T / Hanma12SDC1851
Rear Axle Ratio: 5.73 / 5.263 / 4.875 / 4.8 / 4.769
Cab length: 9.58 / 9.6 / 8.7 / 8.78 / 9.28 / 9.08 / 8.9 / 9.1 / 8.89 / 9.38 / 8.68 / 9.4 / 8.4 / 8.6 / 8.38 / 11.08 / 11.38 / 8.85m
Cab width: 2.55 / 2.495 / 2.525m
Cab height: 3.36 / 3.6m
Front track width: 2065/2065 / 2065mm
rear track: 1860/1860mm
Curb Weight: 13 / 15.5 / 14.1 / 13.8 / 15.495 / 12.5 / 14.805ton
Rated payload: 17.87 / 15.37 / 16.77 / 17.07 / 15.375 / 12.37 / 12.305 / 15.305 / 16ton
GVWR: 31 / 25ton
Origin: Hengyang, Hunan / Ma'anshan, Anhui
tonnage class: Heavy truck
Approach angle: 19 / 20°
departure angle: 15 / 16 / 21 / 19 / 18 / 17°
Remarks: Laminated windshield, 140-A double-riding lightweight balance shaft. / Laminated windshield, heating & A/C; optional engine compression brake, integrated desert air filter with intake duct, combined oil-bath and dry air filter. / Laminated windshield, heating & A/C; optional engine compression brake, integrated desert air filter with intake duct, combined oil-bath and dry air filter; optional PVC arched or flat-push top cover sealing system. / Double U-bolt balance bridge, intelligent equipment system / Standard: Radio with MP3, laminated front windshield, equal-length main and auxiliary frame rails, thickened front and rear leaf springs, 130-C balance shaft with pad, 22000 driveshaft, GPS lock device. Optional: Air suspension seat, Hanma engine compression brake, aluminum alloy fuel tank, 12SDC1851 transmission; optional European-style flat-top cab, 8+8 (auxiliary web height 310) frame. / Standard: Radio with MP3, laminated front windshield, equal-length main and auxiliary frame rails, thickened front and rear leaf springs, 130-C balance shaft with shim, 22000 driveshaft, axle oil lubrication, GPS lock device. Optional: air suspension seat, Hanma engine compression brake, aluminum fuel tank, 9SDB1851 transmission; optional Hanma H9 flat-top cab, 8+10 (auxiliary height 310) frame / Standard: Radio with MP3, laminated front windshield, equal-length main and auxiliary frame rails, oil-lubricated axles, GPS lock device. Optional: Shaanchi 12JSD180T transmission, 12 steel-belted tires, air suspension seat, Hanma engine compression brake, aluminum alloy fuel tank, imported steering gear, 12SDC1851 transmission; rectangular cargo box can be fitted with iron environmental cover, U-shaped cargo box can be fitted with PVC tarp cover. / Standard: Radio with MP3, laminated front windshield, equal-length main and auxiliary frame rails, axle oil lubrication, GPS lock device. Optional: optional Shaanchi 12JSD180T transmission, 12 steel radial tires, air suspension seat, Hanma engine compression brake, aluminum fuel tank, imported steering gear, 12SDC1851 transmission; rectangular cargo box optional with steel environmental cover, U-shaped cargo box optional with PVC tarp cover
Version: Standard Load Edition / LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Hanma / Weichai / Hanma engine
Number of cylinders: 6cylinder
Displacement: 8.87 / 8.8 / 10.52 / 7.8 / 9.84 / 11.813L
Emission standard: China VI / China V
Max output power: 265 / 287 / 257 / 331 / 255 / 279 / 254 / 276 / 228kW
Max hp: 360 / 390 / 350 / 450 / 380 / 345 / 375 / 310Horsepower
Max torque: 1700 / 2100 / 1400 / 1560 / 1800 / 1660 / 1750 / 1550N·m
Max torque speed: 1100-1500 / 1100-1400 / 1000-1500 / 1200-1600 / 1100-1450 / 1200-1300 / 1000-1300rpm
Rated speed: 1900 / 2100rpm
Engine Type: CR+DOC+DPF+Hi_SCR / Inline 6-cylinder lean burn / Inline, high-pressure common rail
Transmission Parameters
Transmission Brand: Fast Gear / Hanma
shift method: Manual
Forward gears: 12 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5 / 5.6 / 6.2 / 6 / 5.8 / 5.4 / 6.7 / 8.2 / 8.6m
Cargo box width: 2.3 / 2.35m
FAQ
What kind of truck is Hualing Hualing M5 Heavy Truck Dump Trucks?
Hualing Hualing M5 Heavy Truck is an export-oriented Dump Trucks lineup with about 82 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hualing M5 Heavy Truck Dump Trucks?
Hualing M5 Heavy Truck Dump Trucks export reference is about $40,278 – $62,500. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hualing M5 Heavy Truck Dump Trucks cover?
Hualing M5 Heavy Truck Dump Trucks mainly covers: Drive: 8x4; Horsepower: 350 hp / 360 hp / 390 hp / 450 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hualing M5 Heavy Truck Dump Trucks?
For Hualing M5 Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Hualing M5 Heavy Truck Dump Trucks include?
Hualing M5 Heavy Truck Dump Trucks currently lists about 82 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hualing M5 Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
