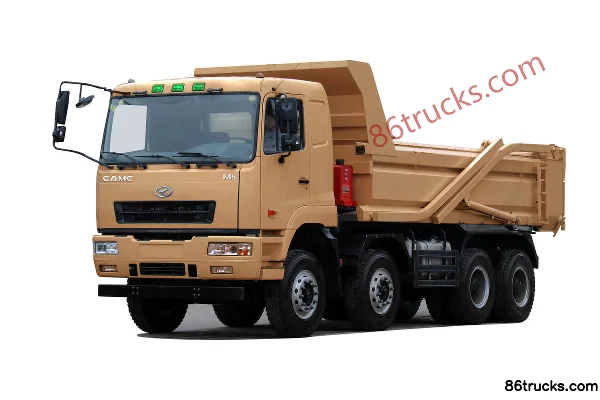

Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.1ton
Wheelbase:: 1850+2600+1350mm
Tire Size:: 11.00R20 18PR
Rated payload: 16.77ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box length: 5.6m

Overview

The Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck is a Heavy truck featuring 16.77t payload, 31t GVW, 5.6m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP8.350E61A engine, 350 hp, China VI emissions and Fast Gear transmission.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3310B35B6M6
Drive type: 8X4
Wheelbase: 1850+2600+1350mm
engine: WeichaiWP8.350E61A
transmission: Fast Gear12JSD180T
Rear Axle Ratio: 5.73
Cab length: 8.7m
Cab width: 2.55m
Cab height: 3.6m
Front track width: 2065/2065mm
rear track: 1860/1860mm
Curb Weight: 14.1ton
Rated payload: 16.77ton
GVWR: 31ton
Origin: Hengyang, Hunan
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 21°
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP8.350E61A
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1600rpm
Rated speed: 2100rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD180T
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.2m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: New 7.5T front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 310(8+5mm)
rear axle description: HL300(5.73) Stamped-Welded
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.73
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck?

Key specs of Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck: Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck suited for?

Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck differ from other variants in the same series?

Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck belongs to Hualing M5 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing M5 Standard Load Edition 350 hp 8X4(12 wheels) 5.6 m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
