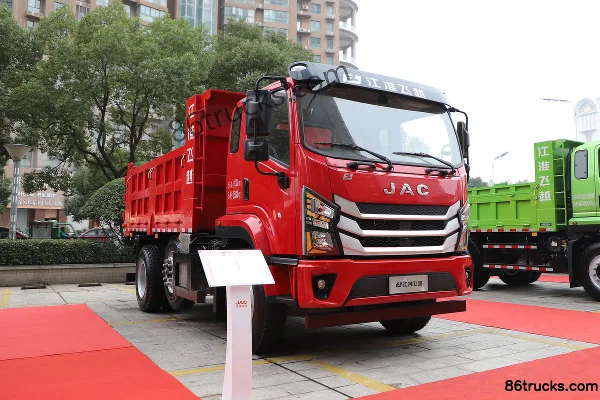

JAC Feiyue J3 270hp 6X2(8 wheels) 4.8m Dump Truck
EXW
From $31,403
Export quote
JAC Gallop JAC Feiyue J3 Dump Trucks
Main model photos
48 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Feiyue J3 270hp 6X2(8 wheels) 4.8m Dump Truck | 6x2 / 270hp / China VI | From $31,403 | |
| JAC Feiyue J3 270 hp 6X2(8 wheels) 4.5m dump truck | 6x2 / 270hp / China VI | From $31,403 | |
| JAC Feiyue J3 270 hp 6X2(8 wheels) 4.4m dump truck | 6x2 / 270hp / China VI | From $31,264 | |
| JAC Feiyue J3 270 hp 6X2(8 wheels) 4.2m dump truck | 6x2 / 270hp / China VI | From $31,264 | |
| JAC Feiyue J3 270 hp 6X2(8 wheels) 4m dump truck | 6x2 / 270hp / China VI | From $31,125 |
JAC Feiyue J3 270 hp 6X2(8 wheels) 4.5m dump truck
EXW
From $31,403
Export quote
JAC Feiyue J3 270 hp 6X2(8 wheels) 4.4m dump truck
EXW
From $31,264
Export quote
JAC Feiyue J3 270 hp 6X2(8 wheels) 4.2m dump truck
EXW
From $31,264
Export quote
JAC Feiyue J3 270 hp 6X2(8 wheels) 4m dump truck
EXW
From $31,125
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|

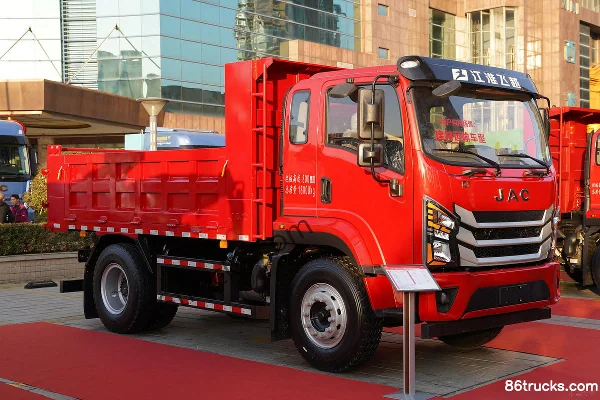

| JAC Feiyue J3 Standard Load Version 200 hp 4X2(6 wheels) 4.5m Dump Truck (China VI) | 4x2 / 200hp / China VI | ||
| JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI) | 4x2 / 180hp / China VI |
Series Specs
Basic Info
Model code (announced): HFC3251P3K2D24S / HFC3241P3K3D27S / HFC3181P3K3A34S / HFC3181P3K3A42S / HFC3241P3K2D29S / HFC3161P3K3A34S
Drive type: 6X2 / 4X2
Wheelbase: 2800+1250 / 2600+1250 / 2400+1250 / 1800+4500 / 1800+3900 / 1800+3200 / 1800+2900 / 1800+2700 / 4200 / 3600 / 3400 / 4750 / 3900 / 2700+1200 / 2900+1200 / 2550+1200mm
Engine Model: YuchaiYCS06270-61 / YuchaiYCS06245-61A / YuchaiYCS06245-61 / YuchaiYCS04200-68 / YuchaiYCS04180-68 / YuchaiYCDV4863-235 / YuchaiYCDV4263-200
Transmission Model: Fast Gear10JSX110A+QH50F / Fast Gear10JS90A-B+QD40E / Fast Gear8JS85E-C+QD40J / Fast Gear8JS85F-C+QD40L / Fast Gear10JSX110A / Fast Gear10JS90A-B / Fast Gear8JS85E-C / Fast Gear8JS85F-C
Rear Axle Ratio: 6.333 / 5.833 / 5.143
Cab length: 7.3 / 6.85 / 6.75 / 6.7 / 6.45 / 6.65 / 10.12 / 9.52 / 9.22 / 8.32 / 7.72 / 7.52 / 7.32 / 7.2 / 6.55 / 6.15 / 7.85 / 7.05 / 6.25 / 8.05 / 7 / 6.95 / 7.25 / 6.8m
Cab width: 2.55 / 2.5 / 2120m
Cab height: 3.15 / 2.88 / 2.78 / 2.95m
Front track width: 1910 / 1940/1940 / 1860/1860 / 1840 / 1790 / 1960 / 1860 / 1940mm
rear track: 1900/1860 / 1930/1860 / 1890 / 1830 / 1750 / 1860 / 1840/1860mm
Curb Weight: 10.15 / 9.3 / 9.7 / 9.65 / 8.8 / 8.65 / 5.8 / 7.875 / 8.075ton
Rated payload: 14.72 / 15.57 / 15.17 / 9.22 / 12.07 / 9.995 / 9.155 / 9.62 / 7.995ton
GVWR: 25 / 24.5 / 18 / 12.07 / 16.2ton
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 15°
departure angle: 11 / 18 / 35 / 37°
Remarks: Standard: steel air tank, rod-style mirrors, driver air-suspension seat; Optional: dual-stage air filter, diff-lock rear axle, tires, radiator guard, flat roof cab, electric tilt
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 6 / 4cylinder
Displacement: 6.234 / 4.16 / 4.73 / 4.156L
Emission standard: China VI
Max output power: 199 / 180 / 147 / 132 / 173kW
Max hp: 270 / 245 / 200 / 180 / 235Horsepower
Max torque: 950 / 720 / 650N·m
Max torque speed: 1200-1700 / 1200-1600 / 1200-1900rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4.8 / 4.5 / 4.4 / 4.2 / 4 / 3.8 / 7.4 / 6.8 / 6.5 / 5.2 / 5 / 4.6 / 4.1 / 4.7 / 4.3 / 3.9 / 5.4m
Cargo box width: 2.35 / 2.3 / 2.2 / 2.4m
Cargo box height: 1.1 / 1 / 0.8m
Cab parameters
Cab: J3 semi-high roof cab
seating capacity: 2 / 3Personnel
FAQ
What kind of truck is JAC Gallop JAC Feiyue J3 Dump Trucks?
JAC Gallop JAC Feiyue J3 is an export-oriented Dump Trucks lineup with about 86 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Gallop JAC Feiyue J3 Dump Trucks?
JAC Gallop JAC Feiyue J3 Dump Trucks export reference is about $21,528 – $39,583. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Gallop JAC Feiyue J3 Dump Trucks cover?
JAC Gallop JAC Feiyue J3 Dump Trucks mainly covers: Drive: 4x2 / 6x2; Horsepower: 180 hp / 200 hp / 270 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Gallop JAC Feiyue J3 Dump Trucks?
For JAC Gallop JAC Feiyue J3 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does JAC Gallop JAC Feiyue J3 Dump Trucks include?
JAC Gallop JAC Feiyue J3 Dump Trucks currently lists about 86 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Gallop JAC Feiyue J3 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
