JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.65ton
Wheelbase:: 3900mm
Tire Size:: 10.00R20 18PR
Rated payload: 9.155ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box length: 4.5m

Overview

The JAC Gallop JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI) is a Medium-duty truck featuring 9.155t payload, 18t GVW, 4.5m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04180-68 engine, 180 hp, China VI emissions and Fast Gear transmission.

China VI 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3181P3K3A34S
Drive type: 4X2
Wheelbase: 3900mm
engine: YuchaiYCS04180-68
transmission: Fast Gear8JS85F-C+QD40L
Rear Axle Ratio: 5.143
Cab length: 7m
Cab width: 2.55m
Cab height: 2.95m
Front track width: 1910mm
rear track: 1860mm
Curb Weight: 8.65ton
Rated payload: 9.155ton
GVWR: 18ton
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 15°
departure angle: 35°
Remarks: Standard: steel air tank, rod-style mirrors, driver air-suspension seat; Optional: dual-stage air filter, diff-lock rear axle, tires, radiator guard, flat roof cab, electric tilt
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04180-68
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.16L
Emission standard: China VI
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 650N·m
Max torque speed: 1200-1900rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS85F-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4.5m
Cargo box width: 2.4m
Cargo box height: 0.8m
Cab parameters
Cab: J3 semi-high roof cab
Cab width: 2120mm
seating capacity: 2Personnel
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 5T narrow
Front axle allowable load: 6500kg
Frame Dimensions: 245×75×(7+4)mm
rear axle description: 153 narrow axle
rear axle allowable load: 11500kg
Axle ratio: 5.143
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
Radio:

Photos

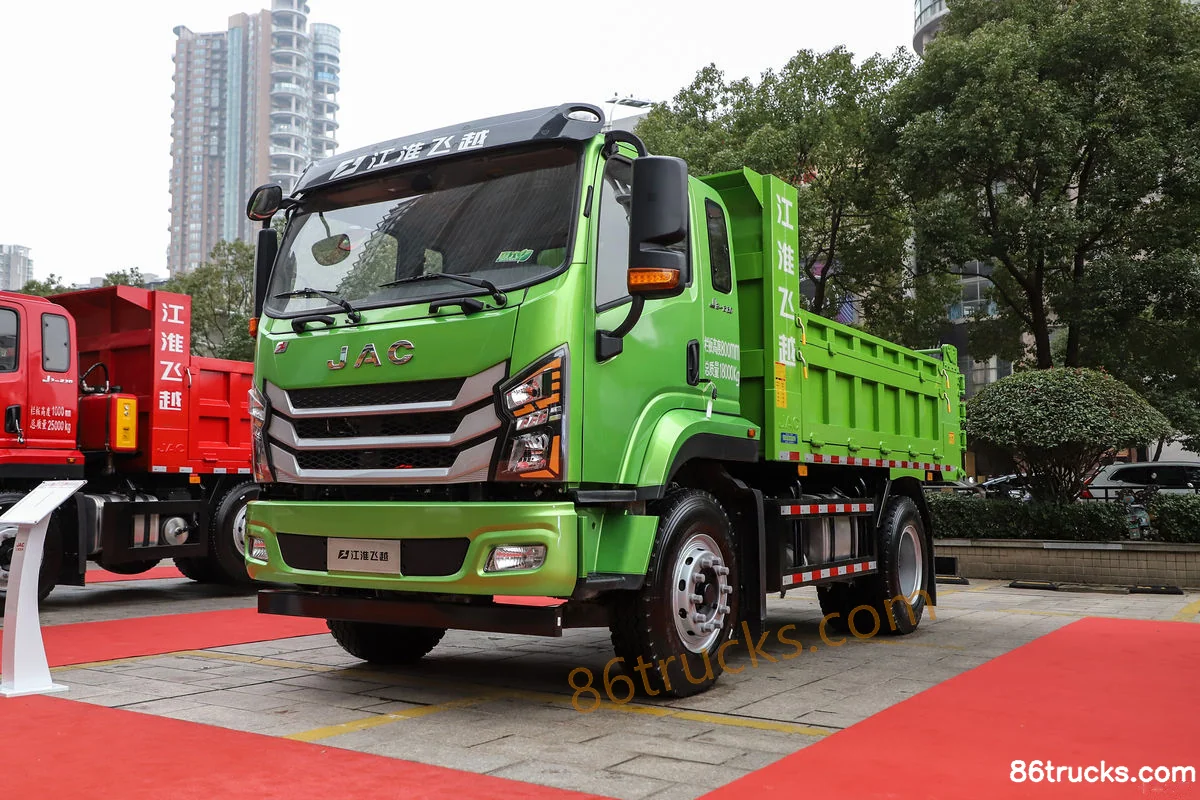

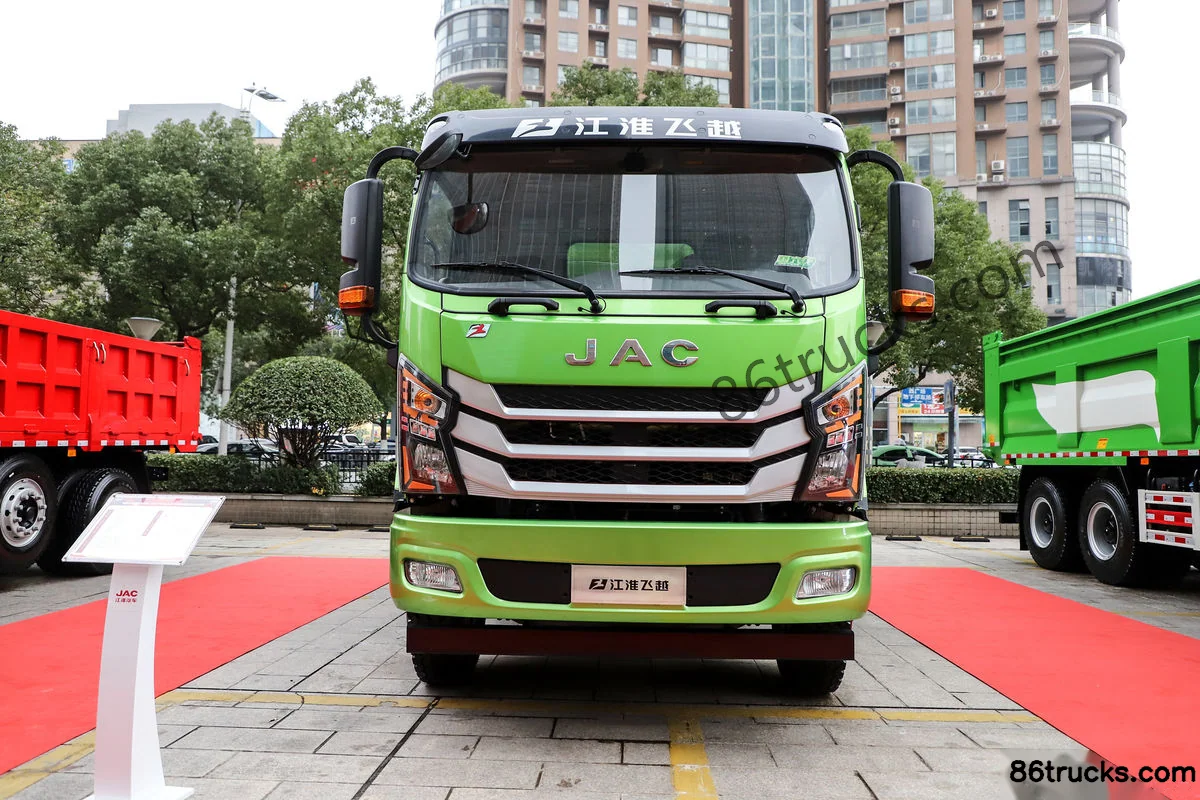

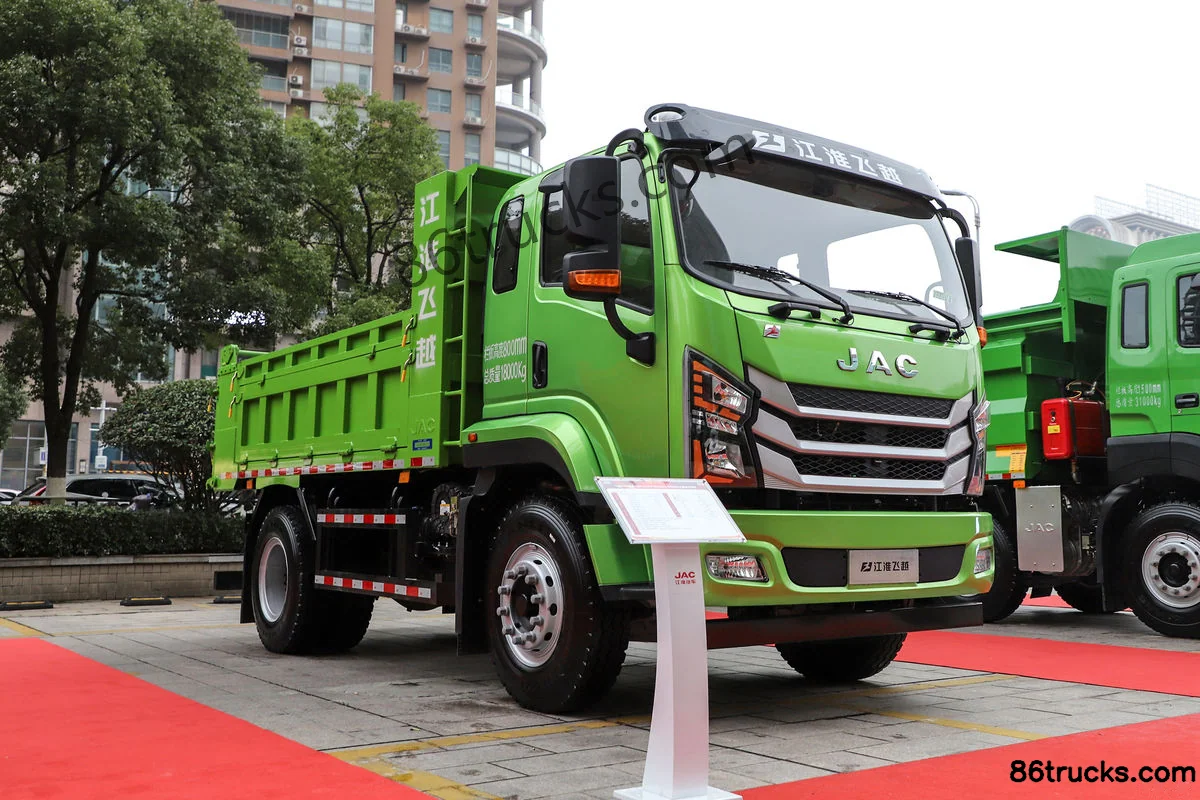

Exterior3

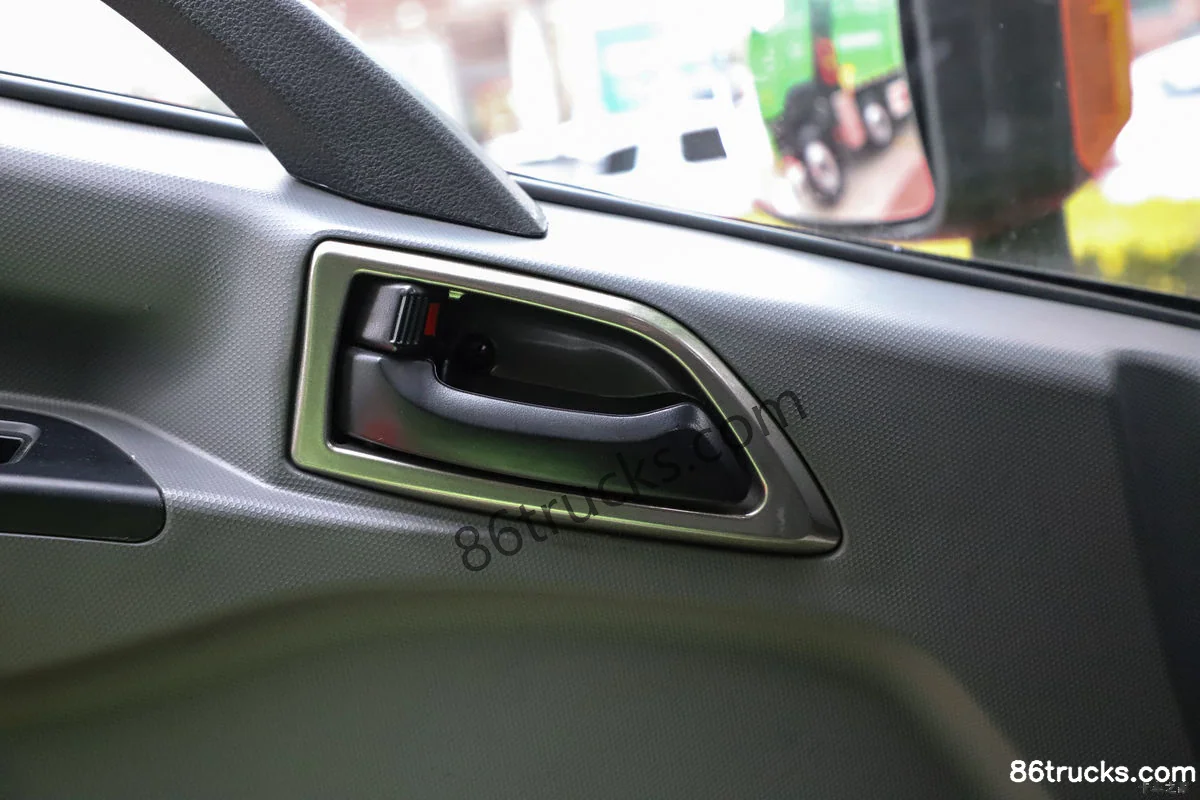

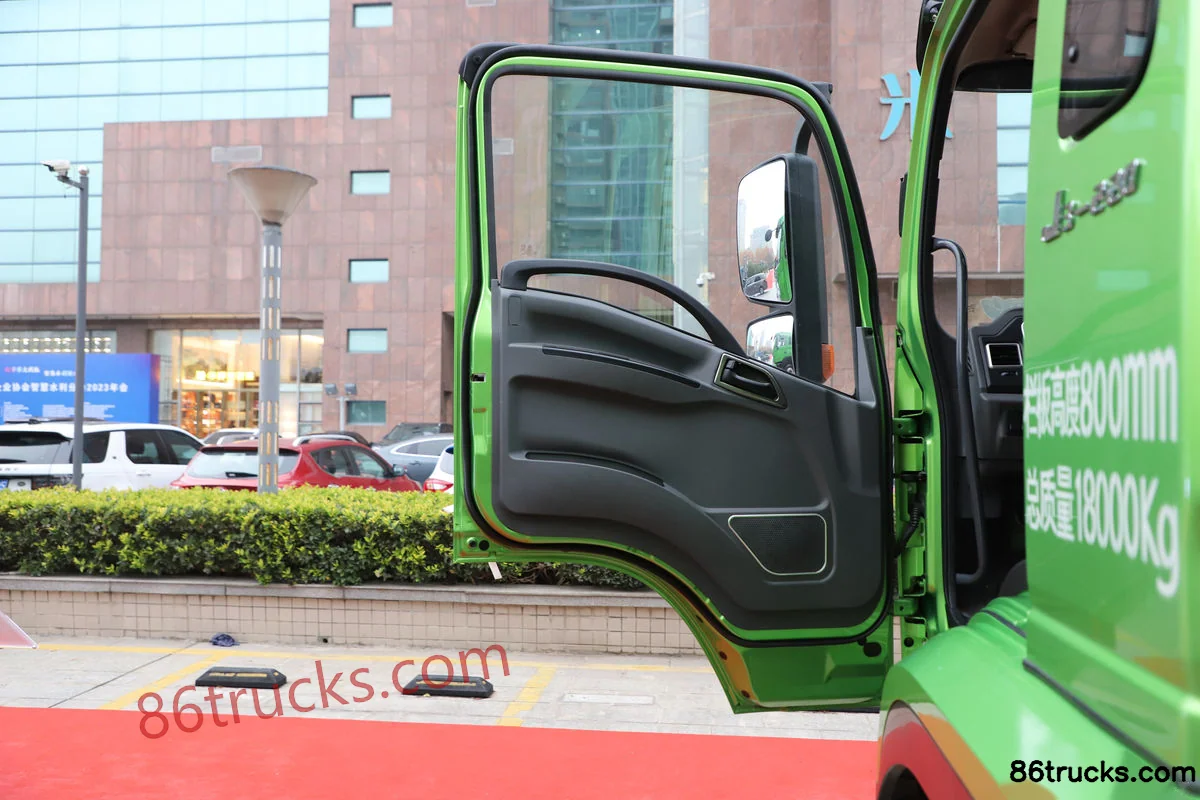

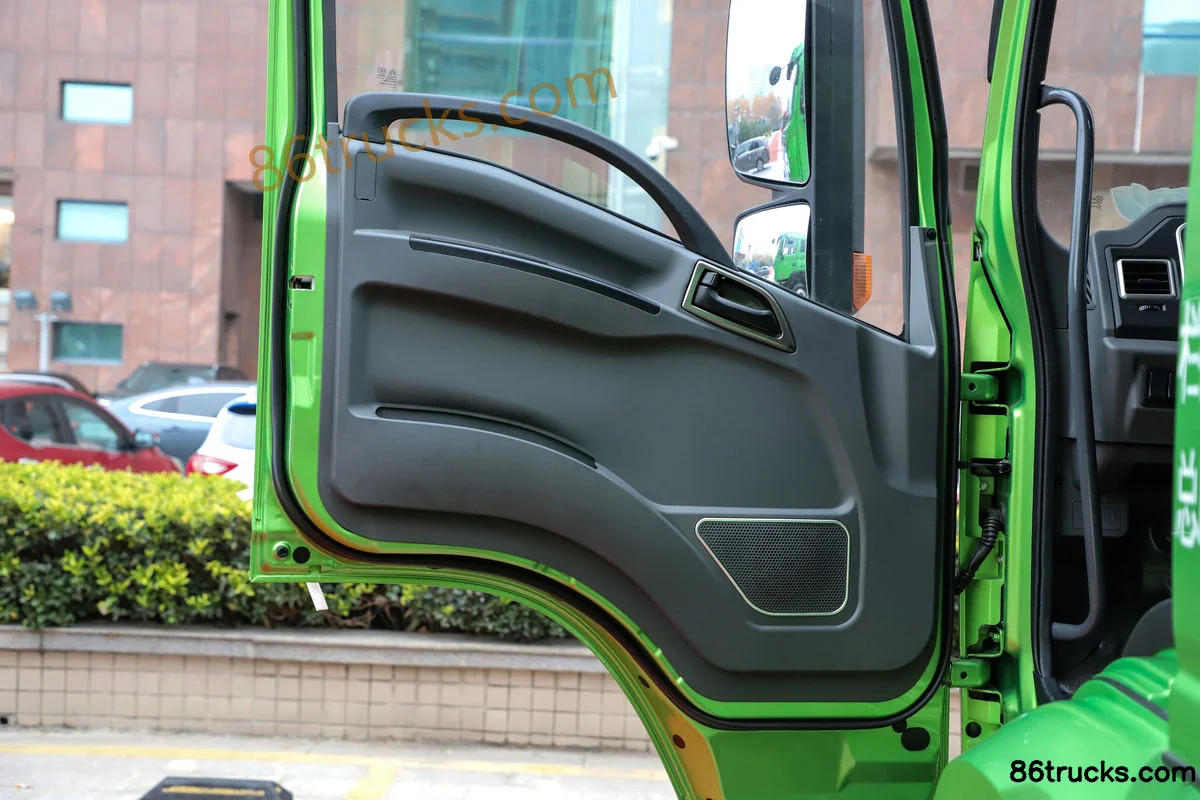

Cab3

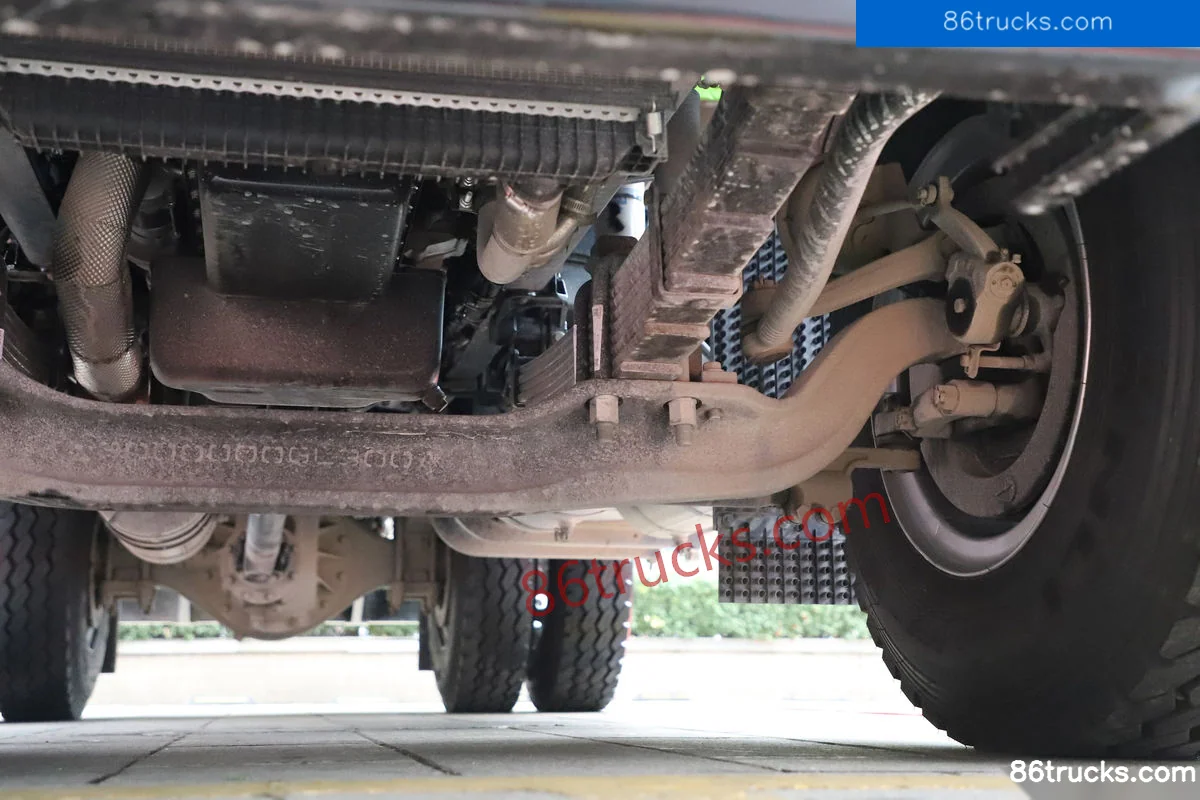

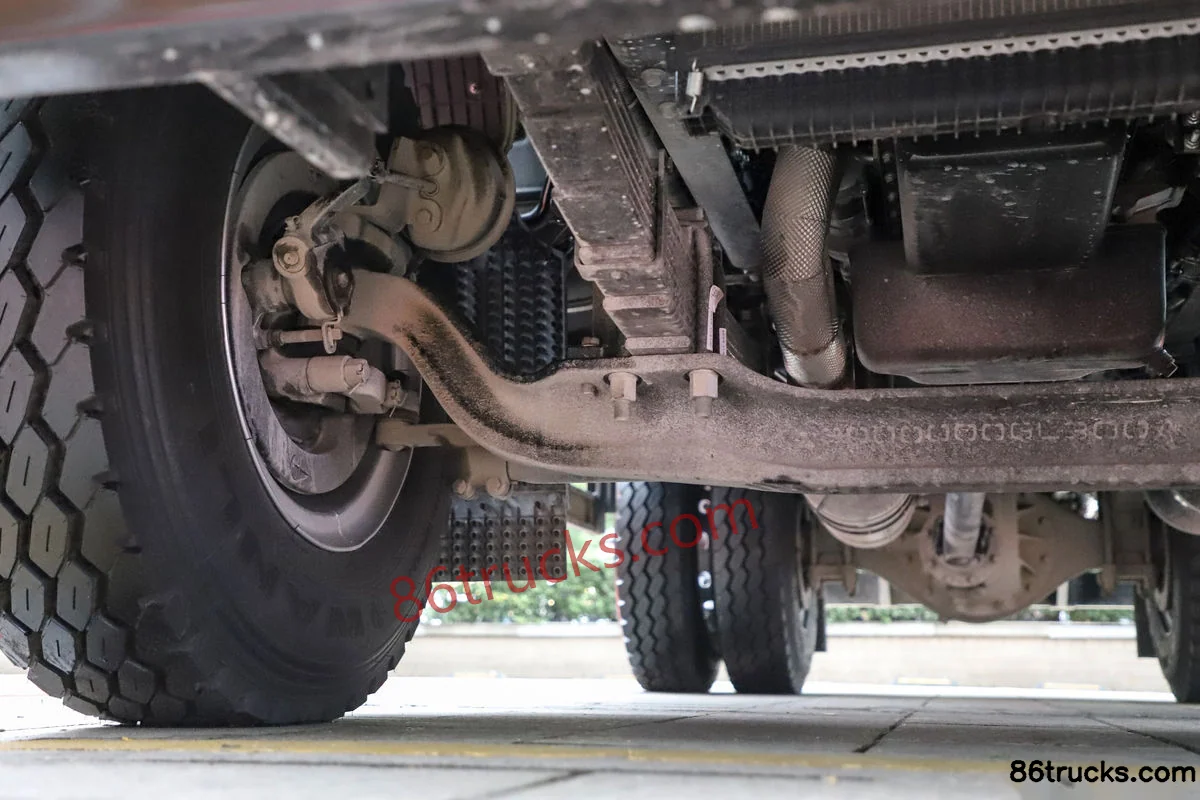

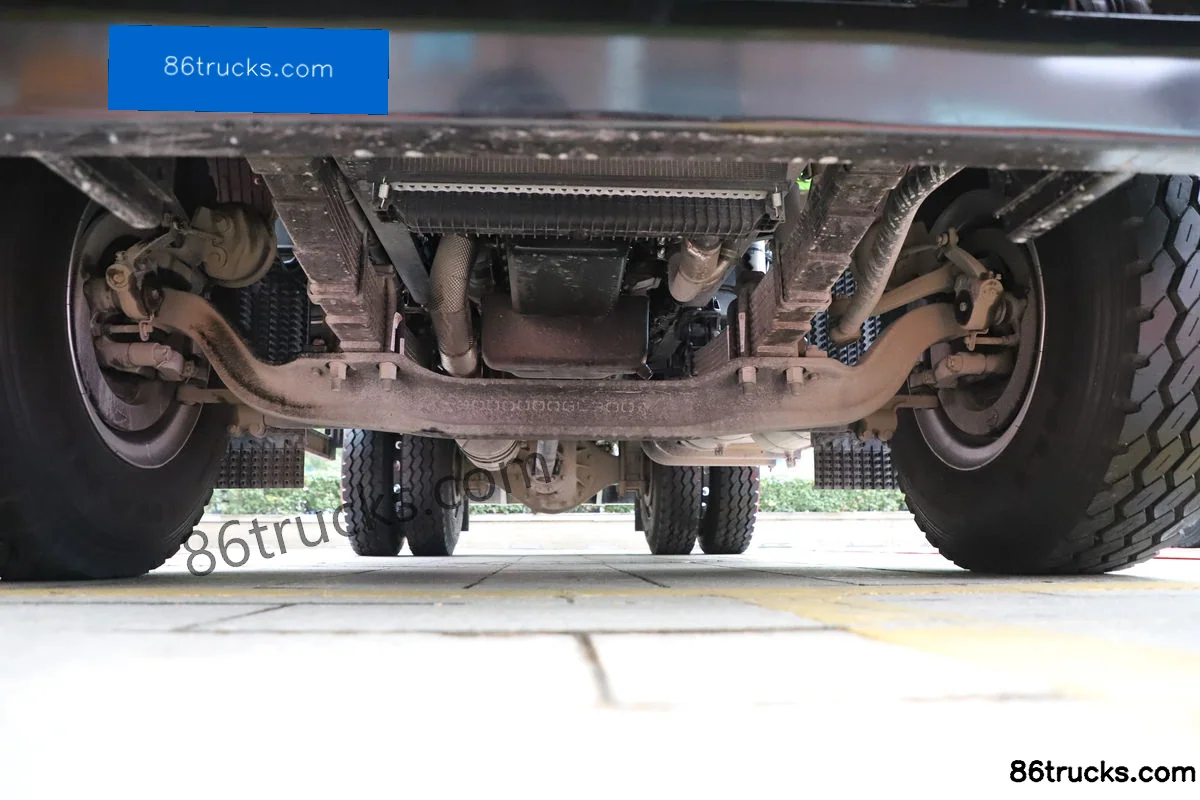

Chassis3

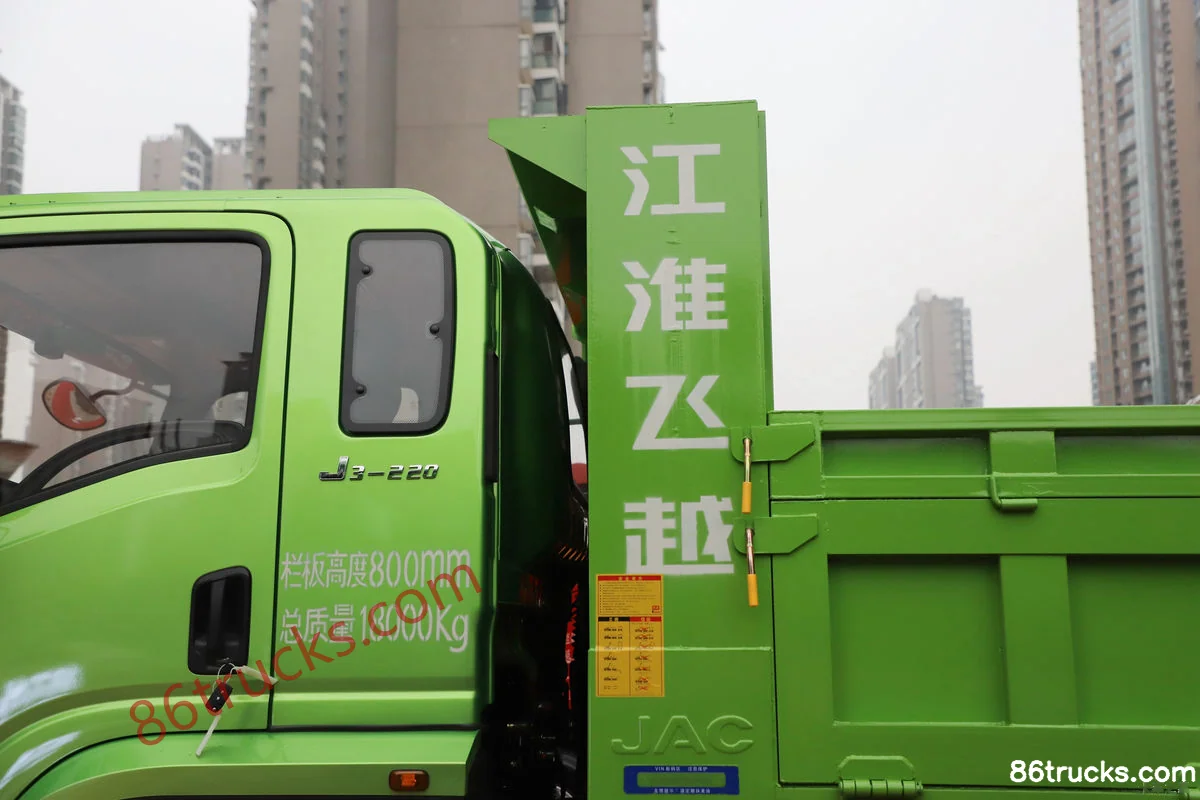

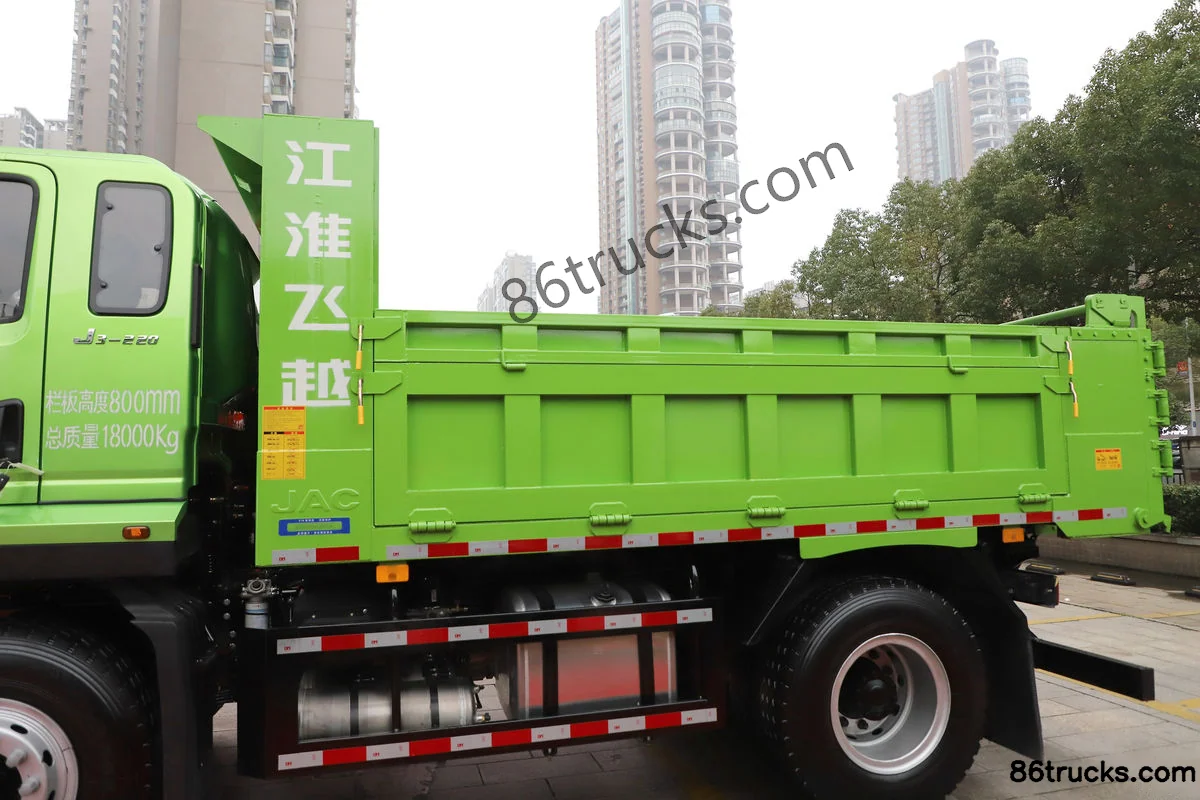

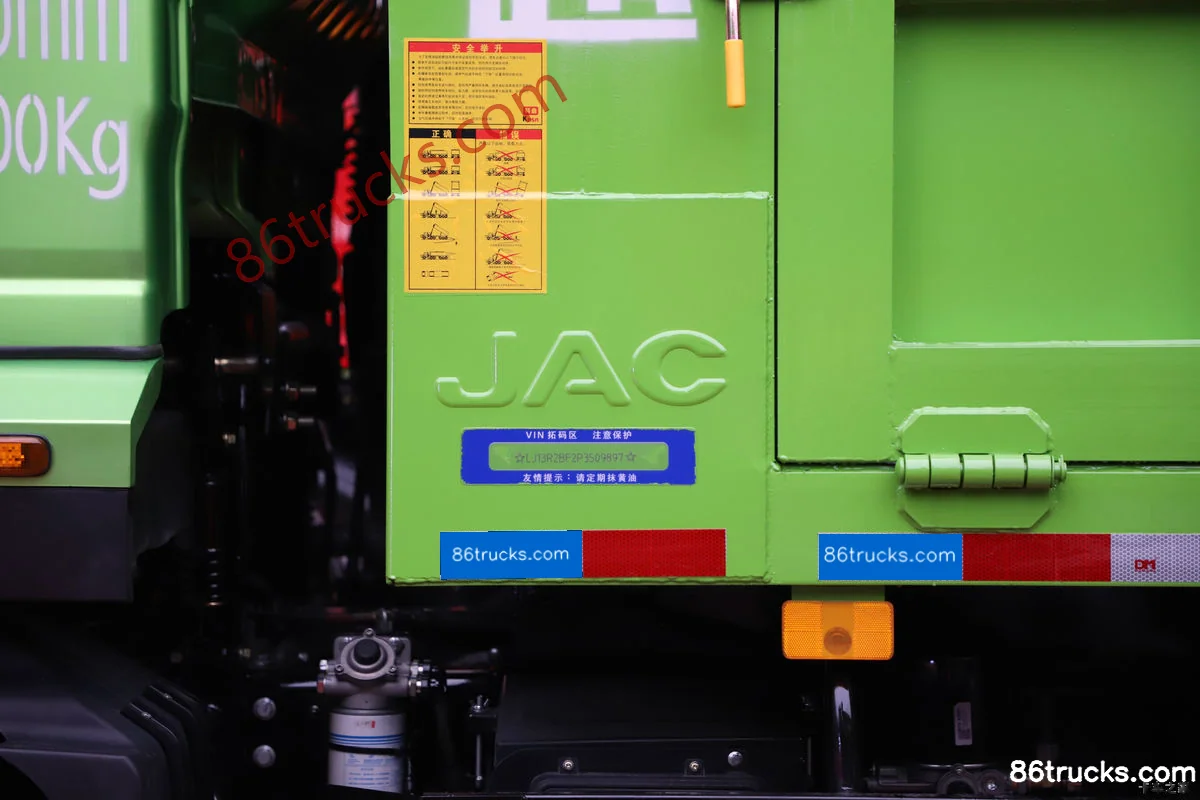

Body3

12 photos

FAQ

What emission standard does JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI)?

Key specs of JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI): Drive: 4x2; Horsepower: 180 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI) suited for?

JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI) differ from other variants in the same series?

JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI) belongs to JAC Feiyue J3 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Feiyue J3 Standard Load Version 180 hp 4X2(6 wheels) 4.5m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
