JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.3ton
Wheelbase:: 4200mm
Tire Size:: 9.00R20 16PR
Rated payload: 9.705ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI) is a Medium-duty truck featuring 9.705t payload, 16.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04160-68 engine, 160 hp, China VI emissions and Fast Gear transmission.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3166P31K1D1S
Drive type: 4X2
Wheelbase: 4200mm
engine: YuchaiYCS04160-68
transmission: Fast Gear8JS85E
Cab length: 7.45m
Cab width: 2.41m
Cab height: 2.62m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 6.3ton
Rated payload: 9.705ton
GVWR: 16.2ton
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 14.6°
Remarks: Standard: driving recorder, standard rims, MP3, telematics; optional: MP5.
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04160-68
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.16L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1200-1900rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS95E
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.2m
Cargo box width: 2.3m
Cargo box height: 0.6m
Cab parameters
Cab: Sleeper cab
Chassis Specs
Front axle description: 3.5T
Front axle allowable load: 5600kg
Frame Dimensions: 230×70×8mm
rear axle description: 10T
rear axle allowable load: 10600kg
Leaf spring count: 8/10+10
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Parking brake: Spring brake

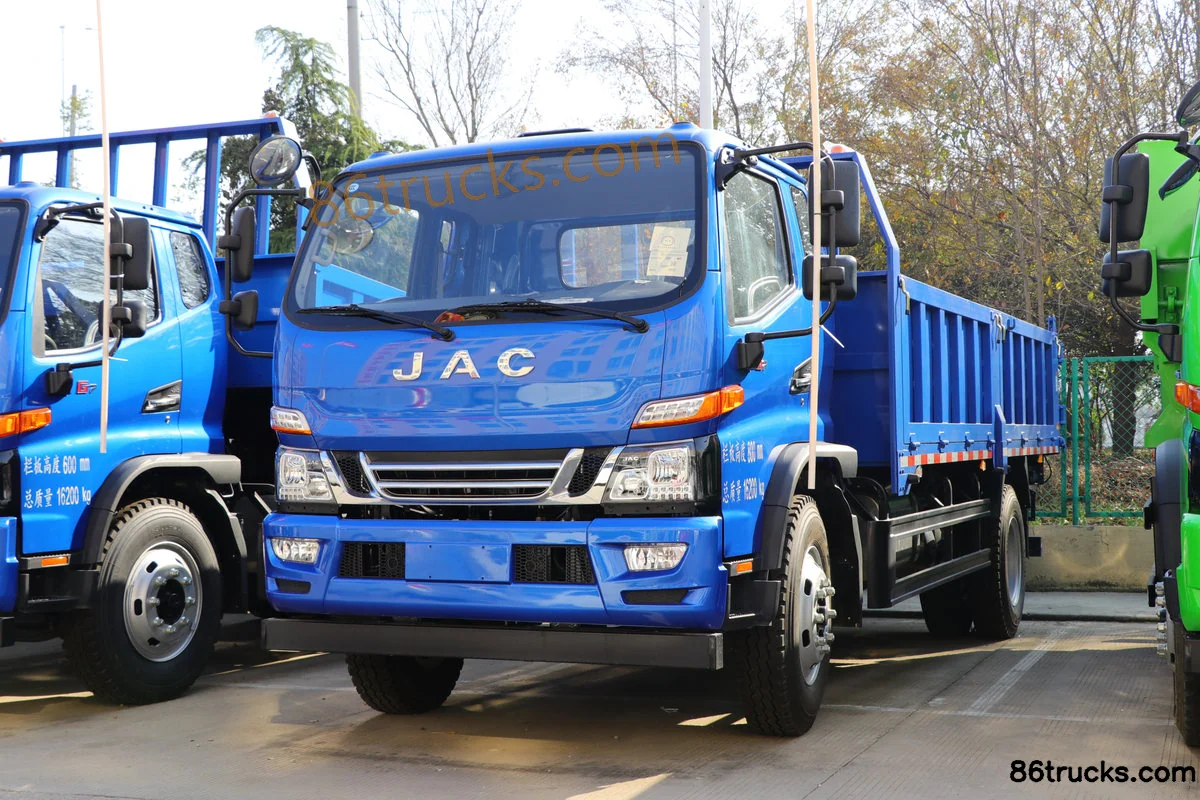

Photos

Exterior1

1 photos

FAQ

What emission standard does JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI)?

Key specs of JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI) suited for?

JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI) differ from other variants in the same series?

JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI) belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G7 160 hp 4X2(6 wheels) 5.2 m semi-row dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
