Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck

Export reference
From $33,750
MSRP ¥24.3M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 10.305ton
Wheelbase:: 1850+2600+1300mm
Tire Size:: 10.00R20 18PR
Rated payload: 20.565ton
Drive 8X2 (10 wheels)
Horsepower 270
Cargo box length: 6m

Overview

The Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck is a Heavy truck featuring 20.565t payload, 31t GVW, 6m cargo body and 8X2 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06270-60 engine, 270 hp, China VI emissions and Fast Gear transmission.

China VI 270 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3319GL6D22
Drive type: 8X2
Wheelbase: 1850+2600+1300mm
engine: YuchaiYCS06270-60
transmission: Fast Gear10JSD120TB
Rear Axle Ratio: 4.875
Cab length: 8.95m
Cab width: 2.55m
Cab height: 3.25m
Front track width: 1800/1800mm
rear track: 1900/1700mm
Curb Weight: 10.305ton
Rated payload: 20.565ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 14°
Remarks: With PTO
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06270-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JSD120TB
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Body Parameters
Lifting type: Front single-cylinder lift
Cargo box parameters
Cargo box length: 6m
Cargo box width: 2.4m
Cargo box height: 1.5m
Cab parameters
Cab suspension: Four-point air suspension
Cab width: 2360mm
seating capacity: 2Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle description: 5.5T standard axle*2
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280(8+4)mm
rear axle description: 5T floating axle/13T (459) standard
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.875
Leaf spring count: 9/9/7+-/10+8
clutch: Φ430
Tire
Tire Size: 10.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

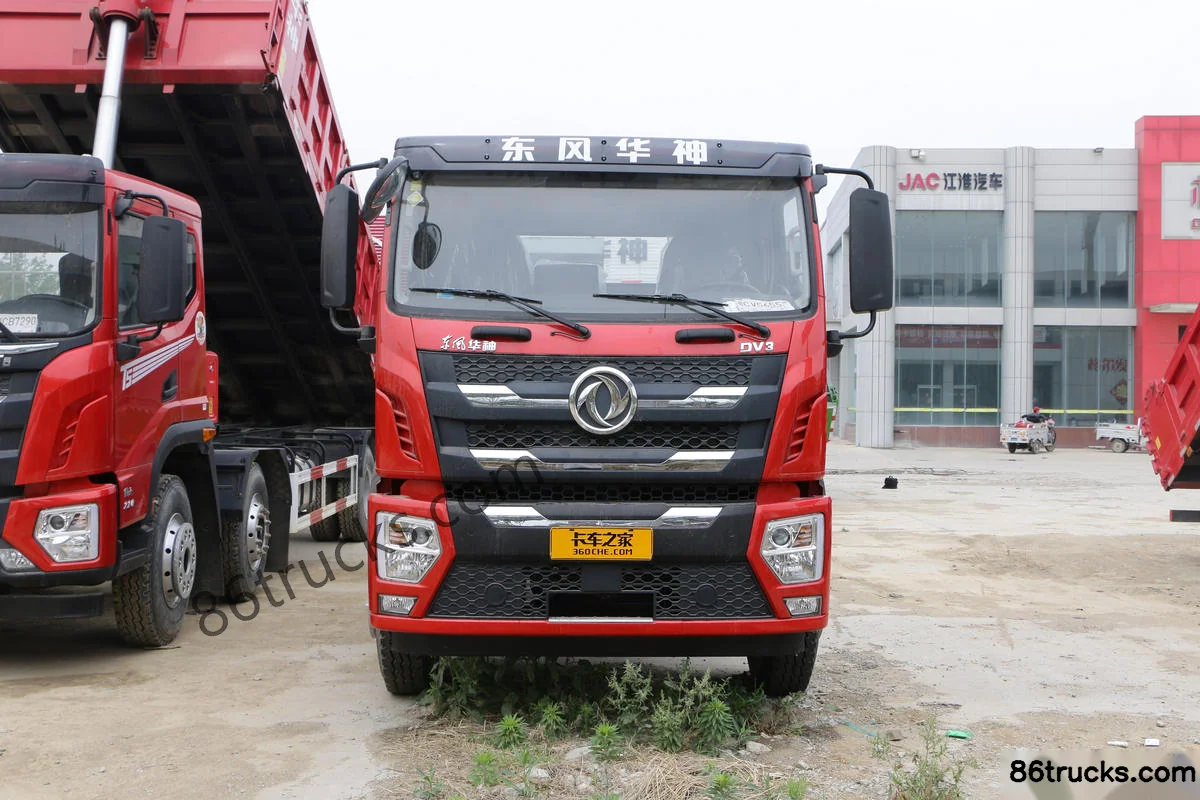

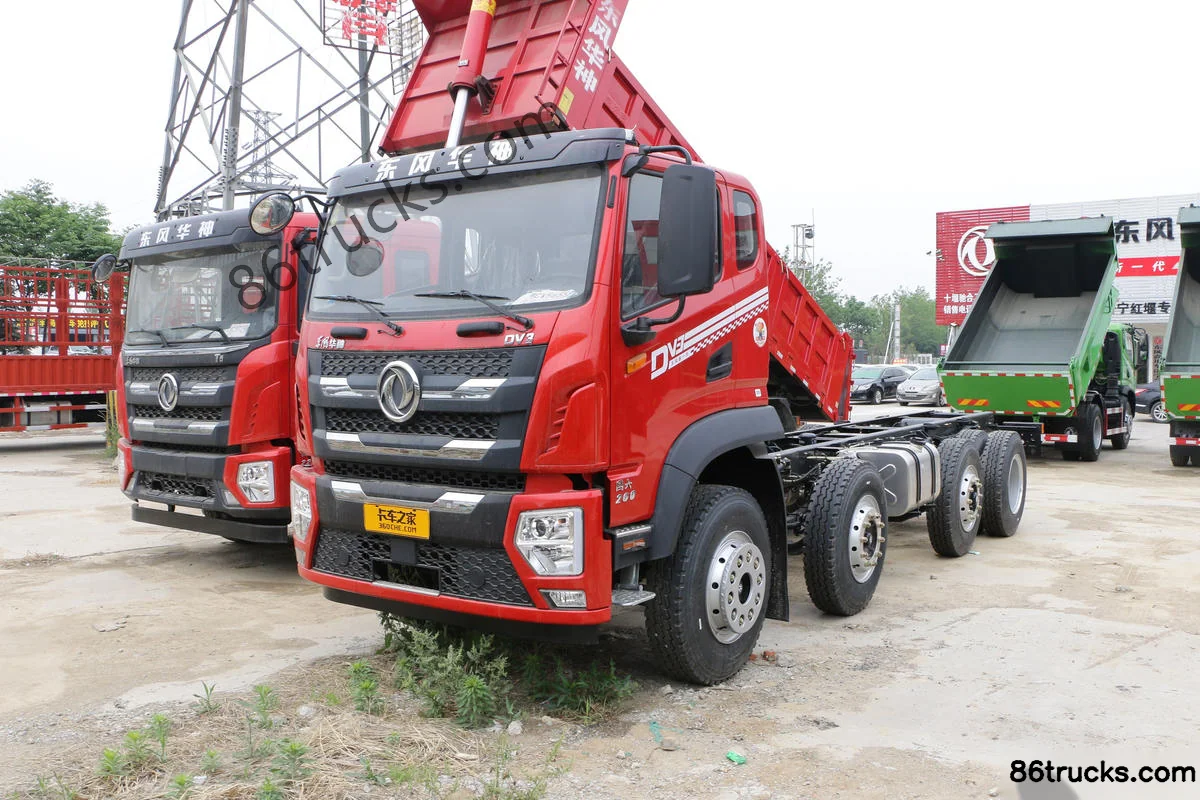

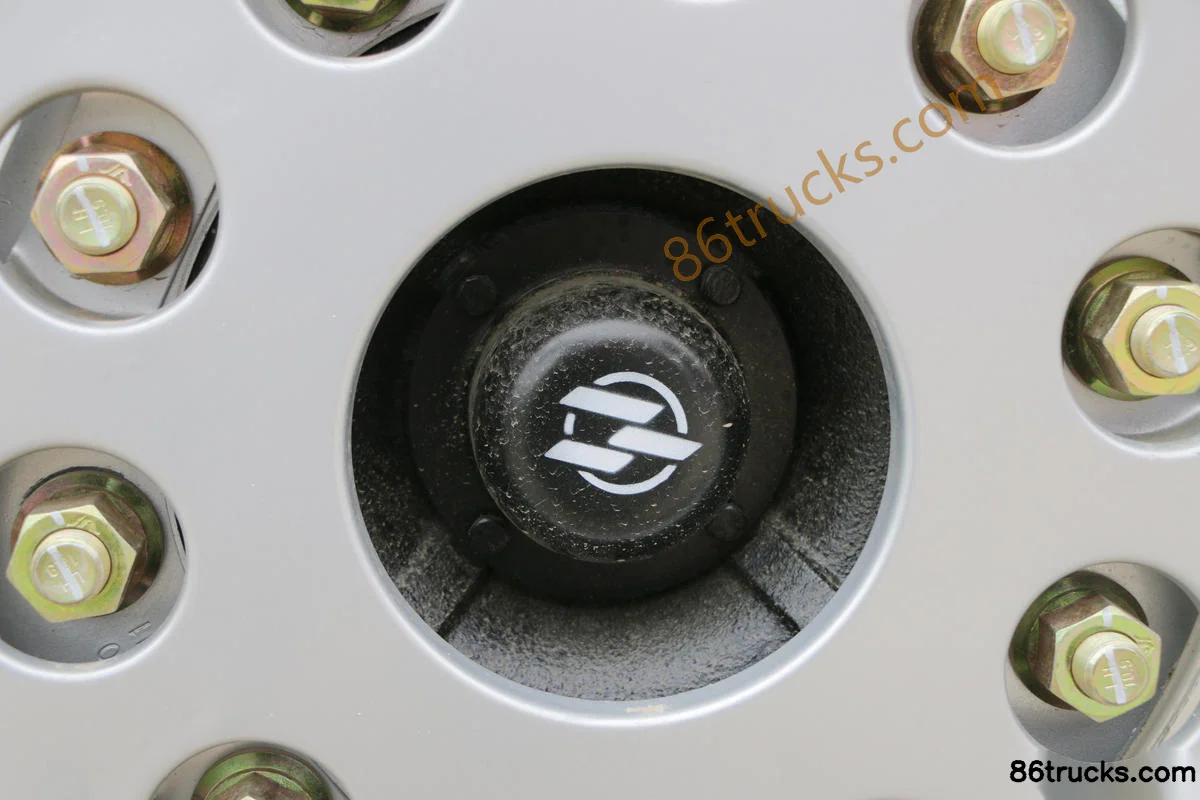

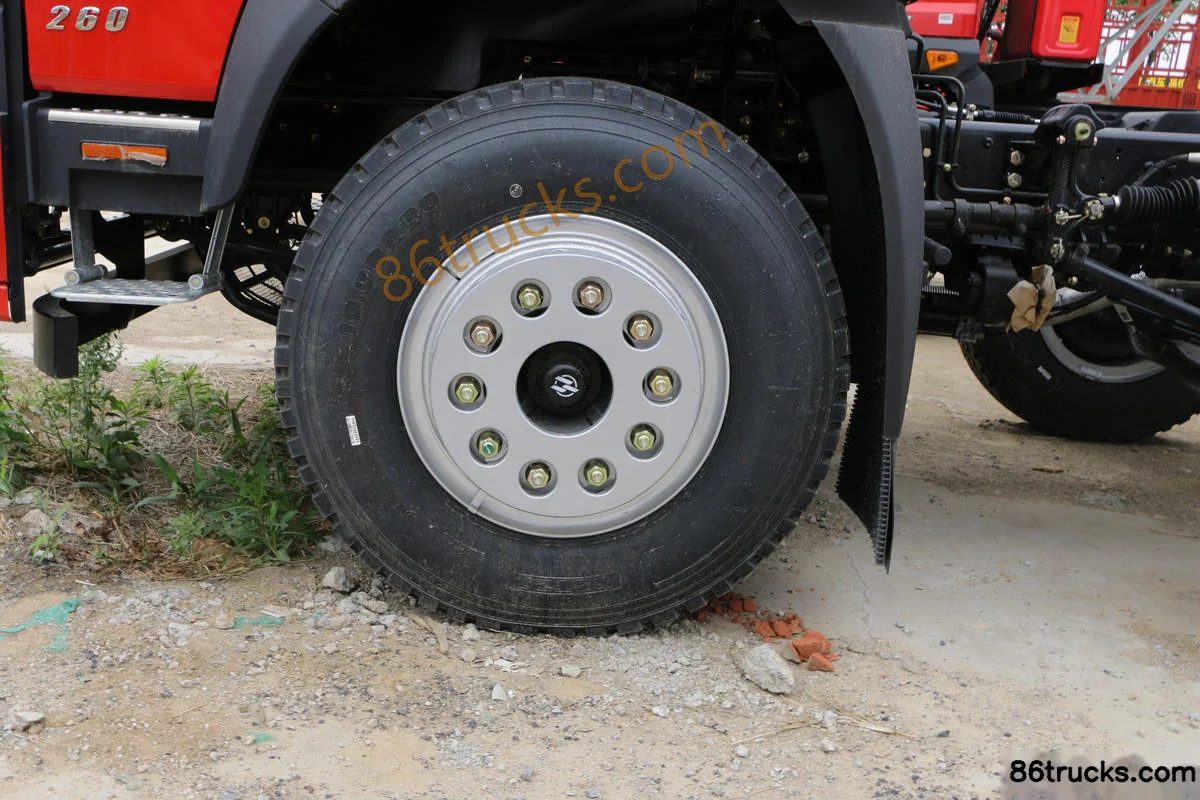

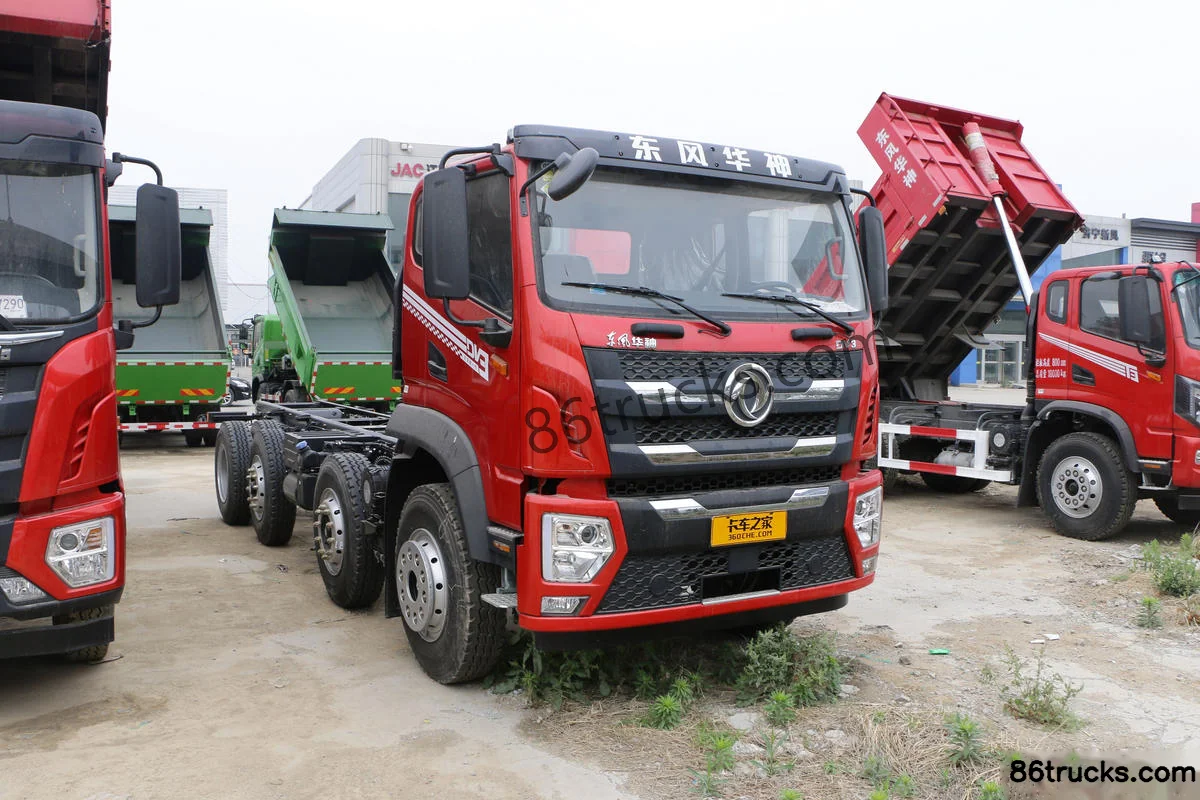

Photos

Exterior3

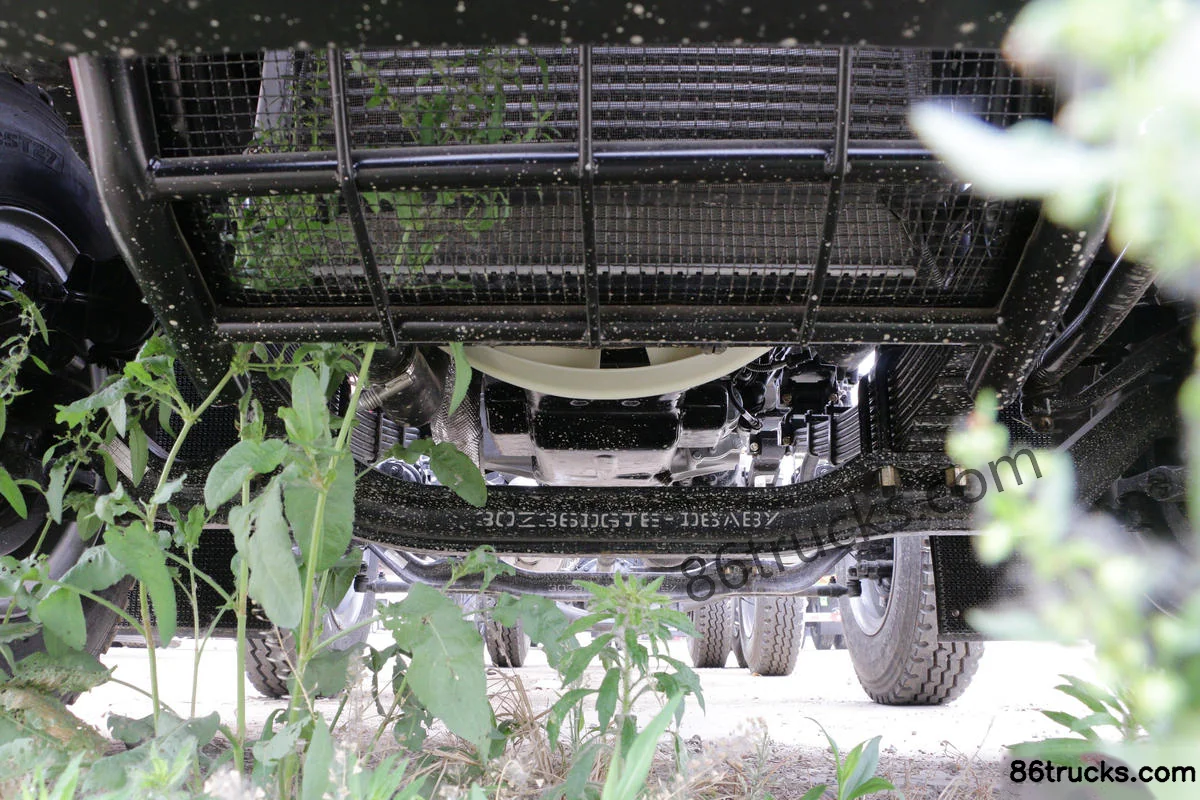

Chassis3

6 photos

FAQ

What is the export price of Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck, and what does it include?

Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck export reference is about From $33,750; MSRP is ¥24.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck?

Key specs of Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck: Drive: 8x2; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck suited for?

Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck differ from other variants in the same series?

Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck belongs to DongfengDV3 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng DV5 270hp 8X2(10 wheels) 6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
