JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck

Export reference
From $15,278
MSRP ¥11M CNY
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 3.36ton
Wheelbase:: 3600mm
Tire Size:: 8.25-16
Rated payload: 1.99ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box type: Dump type

Overview

The JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck is a Light Truck featuring 1.99t payload, 5.545t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRD1 engine, 129 hp, China IV emissions and WLY transmission.

China IV 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3060KR1Z
Drive type: 4X2
Wheelbase: 3600mm
engine: Yunnei PowerYN38CRD1
transmission: WLYWLY5-speed
Rear Axle Ratio: 5.833
Cab length: 6.76m
Cab width: 2.31m
Cab height: 2.425m
Front track width: 1560mm
rear track: 1650mm
Curb Weight: 3.36ton
Rated payload: 1.99ton
GVWR: 5.545ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRD1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China IV
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Transmission Parameters
Transmission Model: WLYWLY5-speed
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.6m
Cargo box width: 2.1m
Cargo box height: 0.6m
Chassis Specs
Axle ratio: 5.833
Leaf spring count: 9/11+8
Tire
Tire Size: 8.25-16
Number of tires: 6pcs

Photos

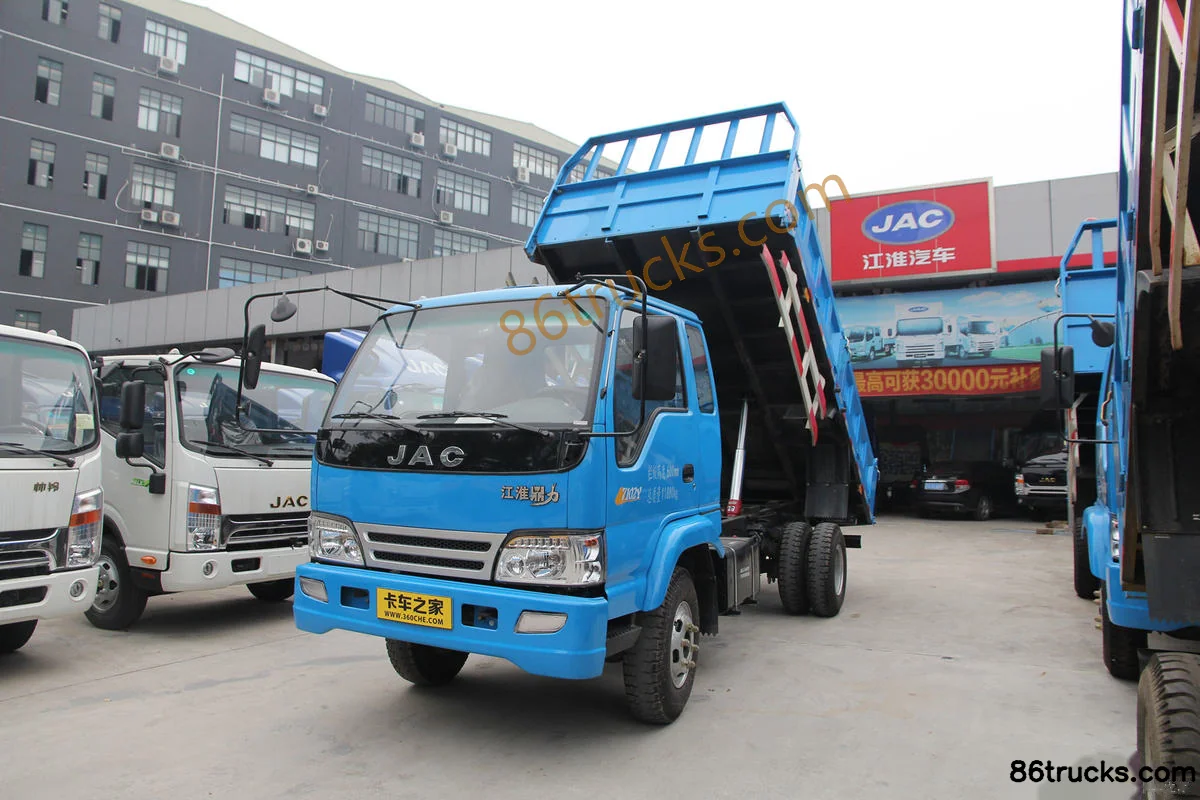

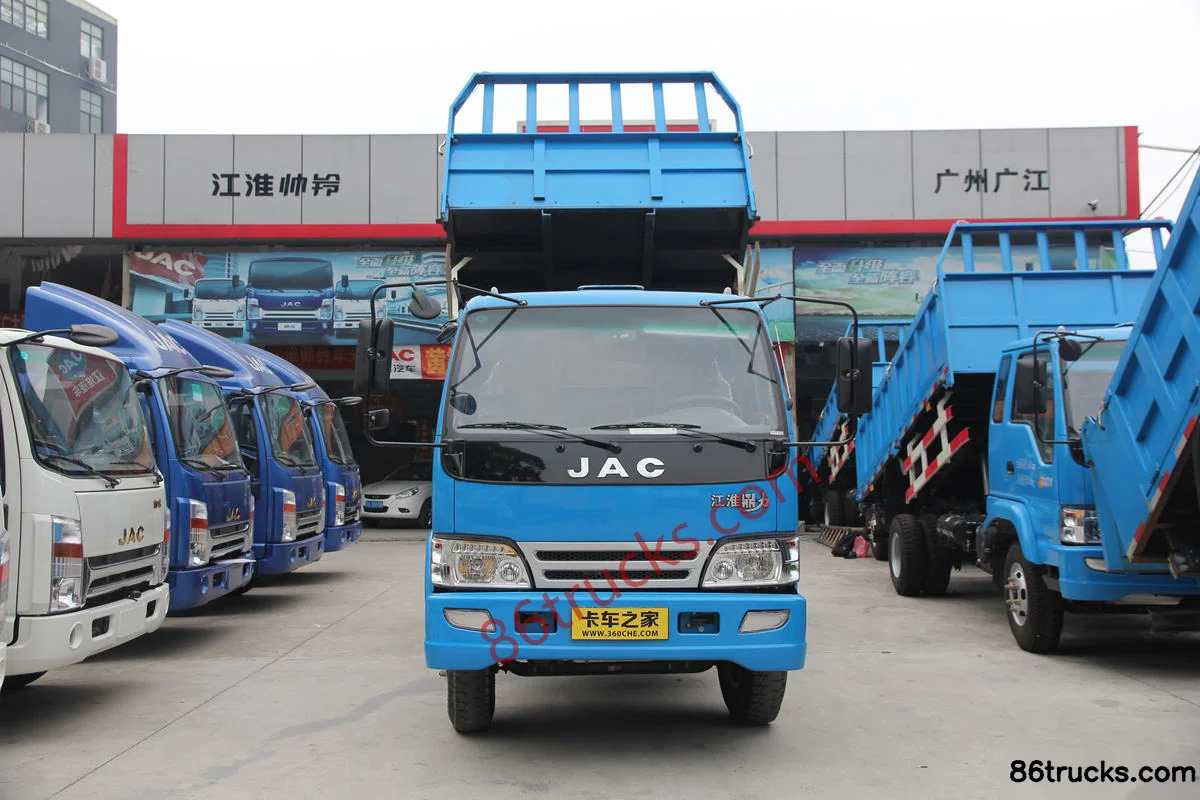

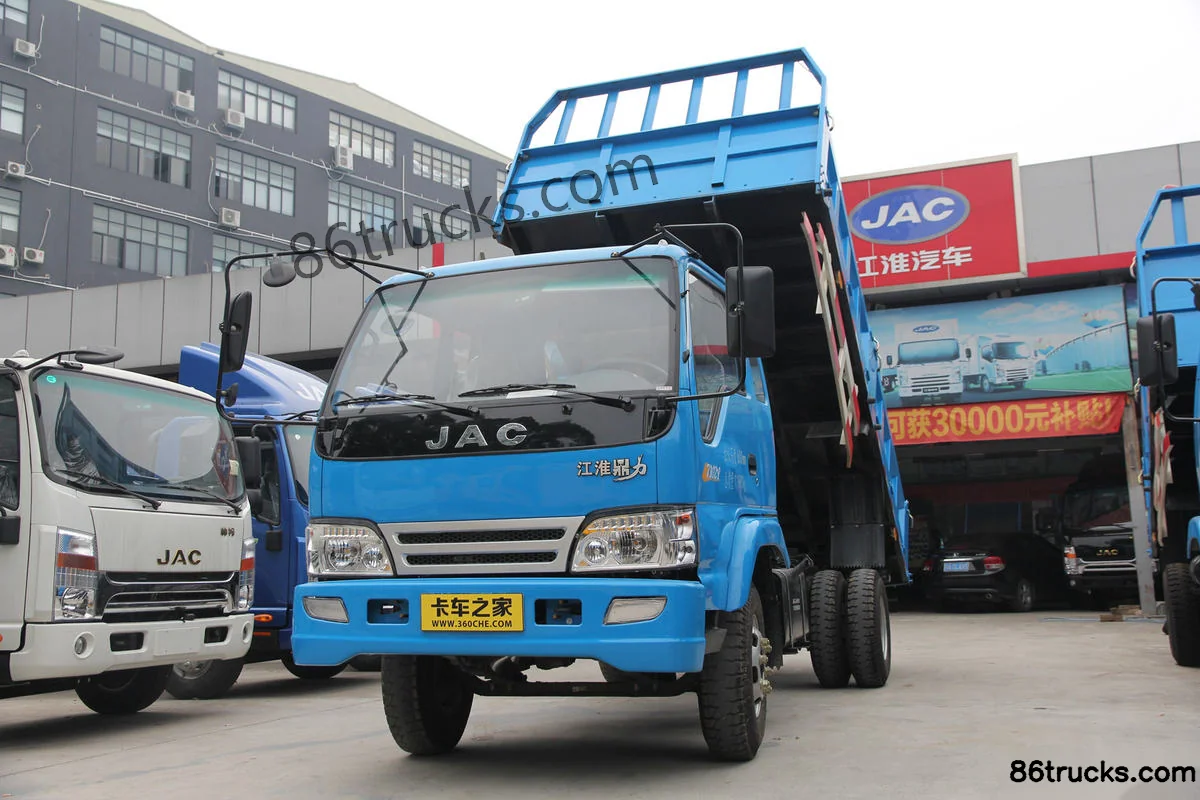

Exterior3

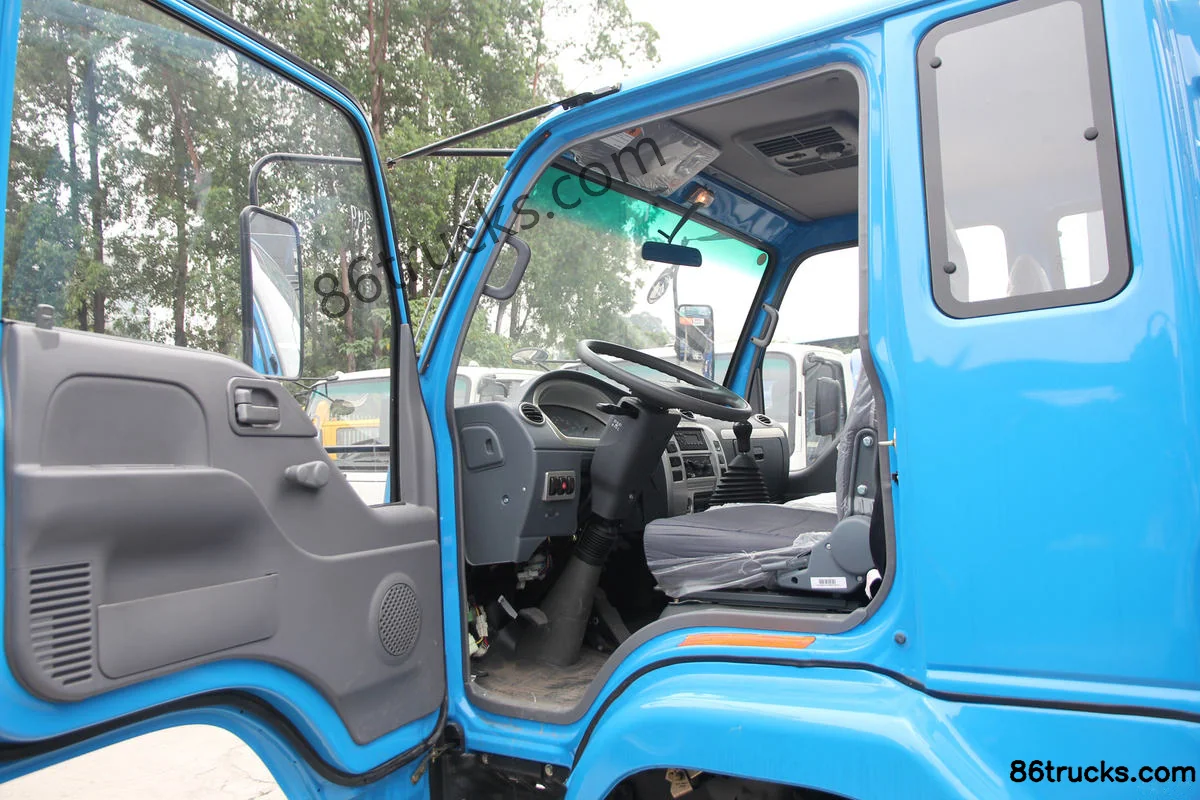

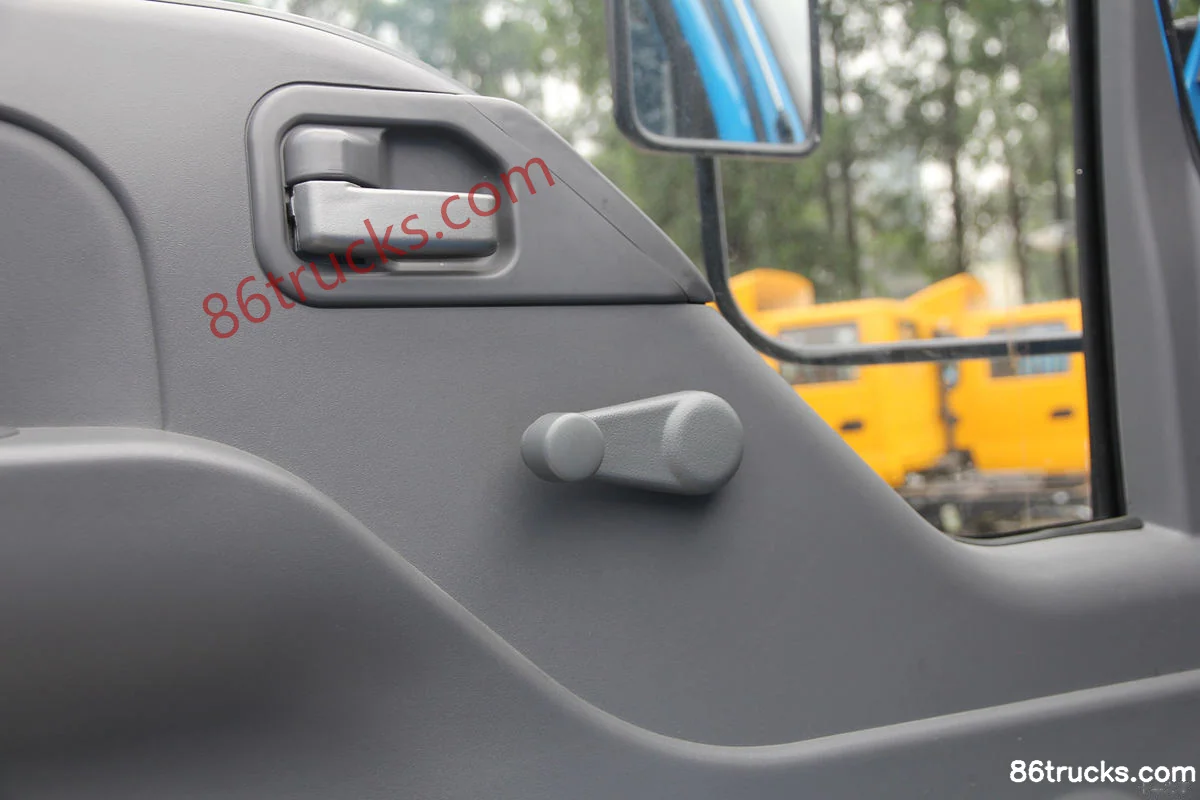

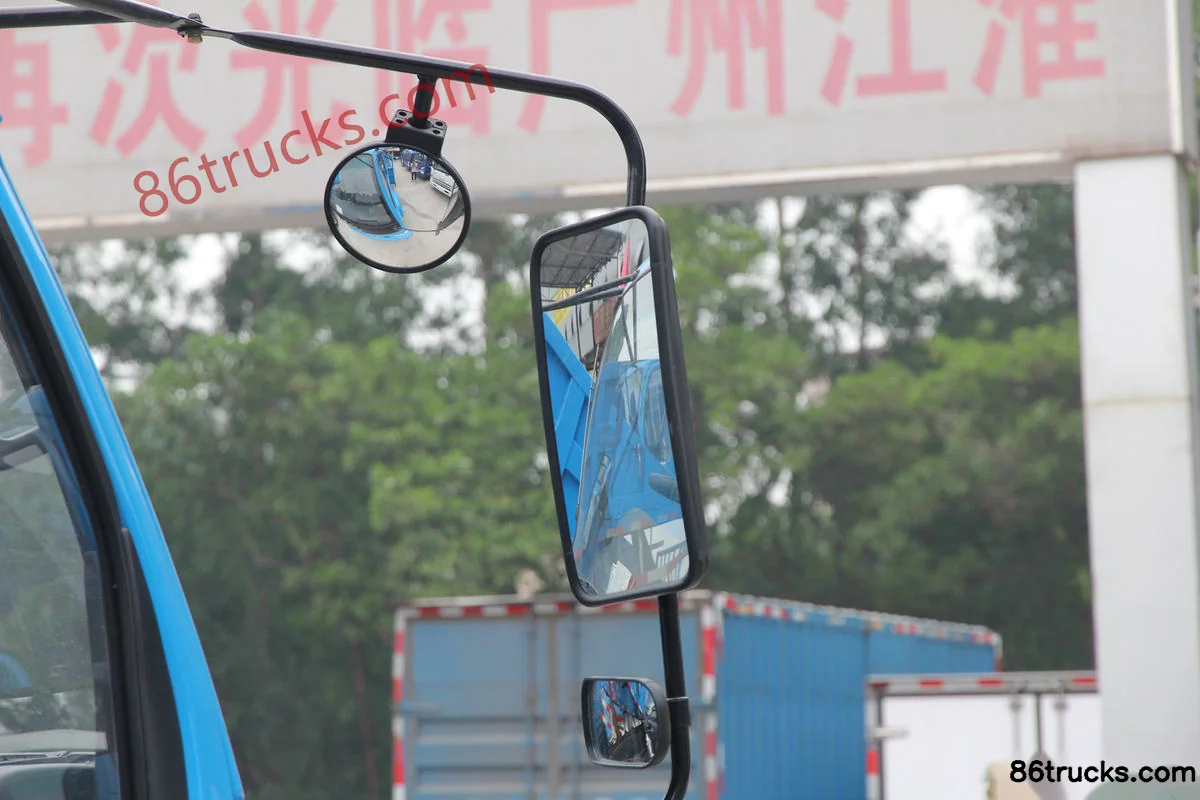

Cab3

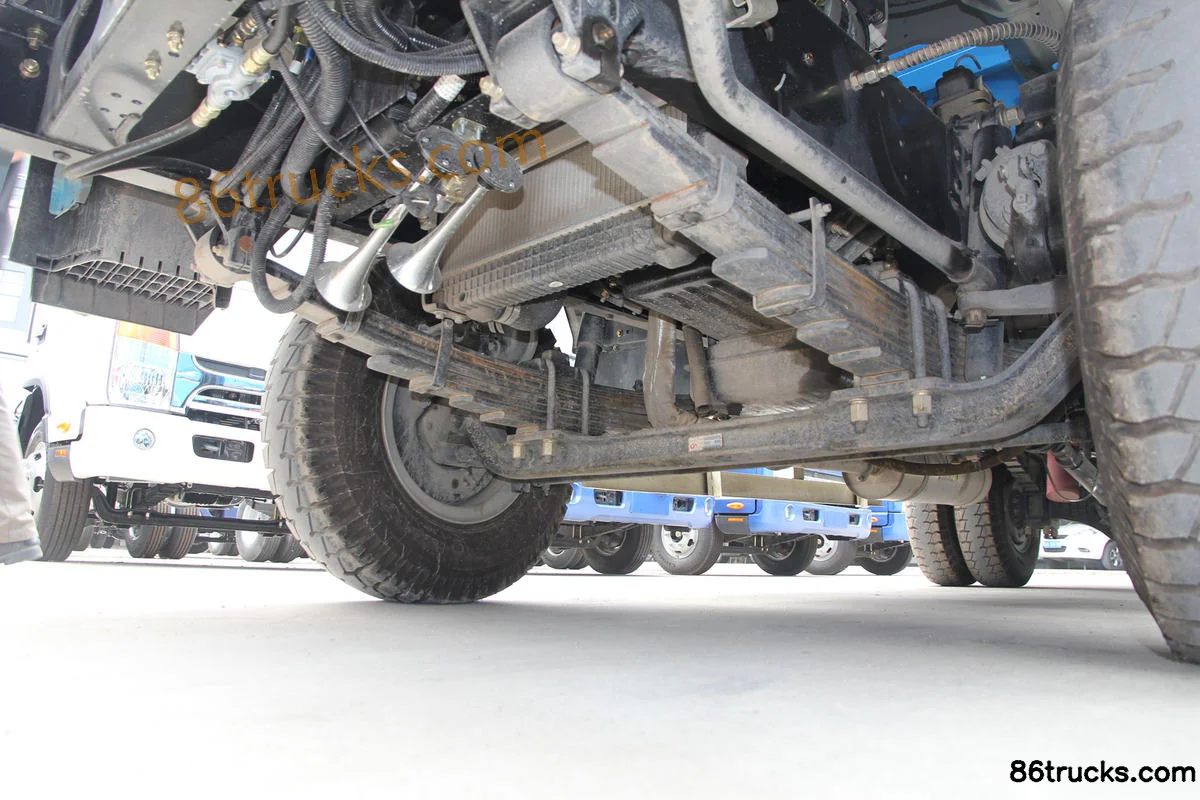

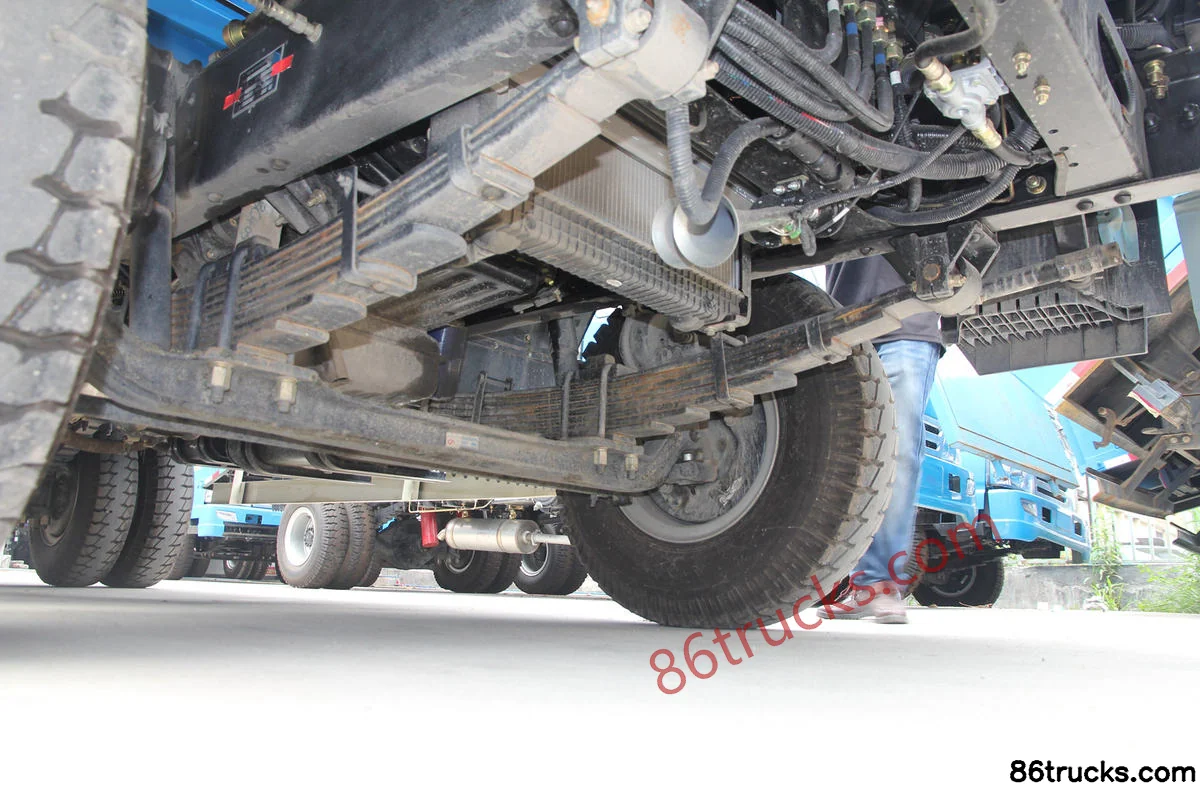

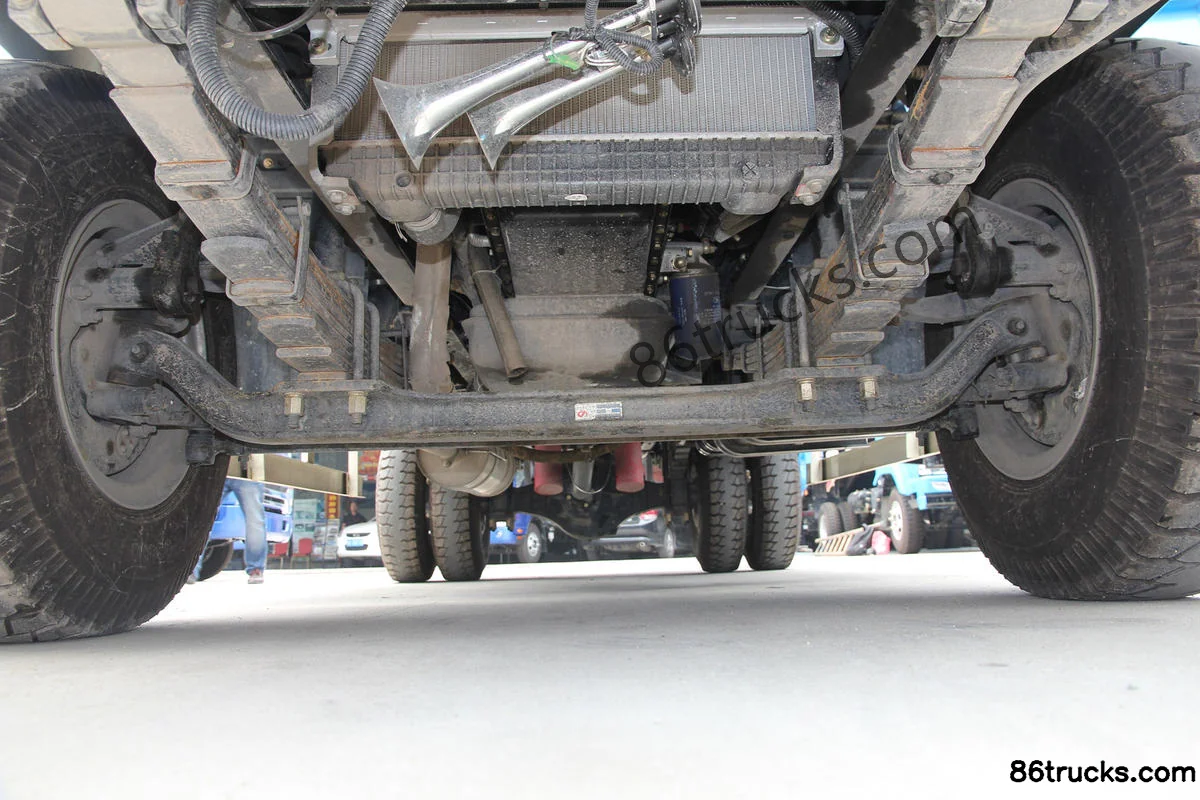

Chassis3

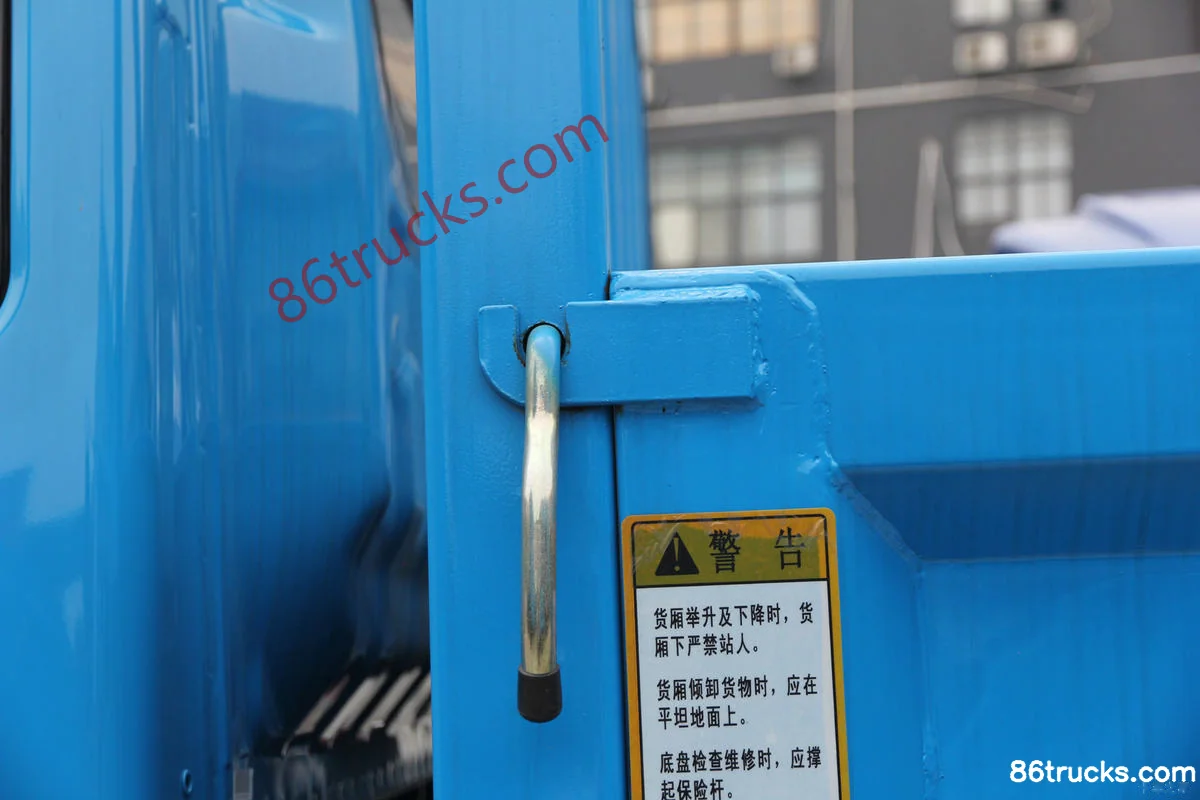

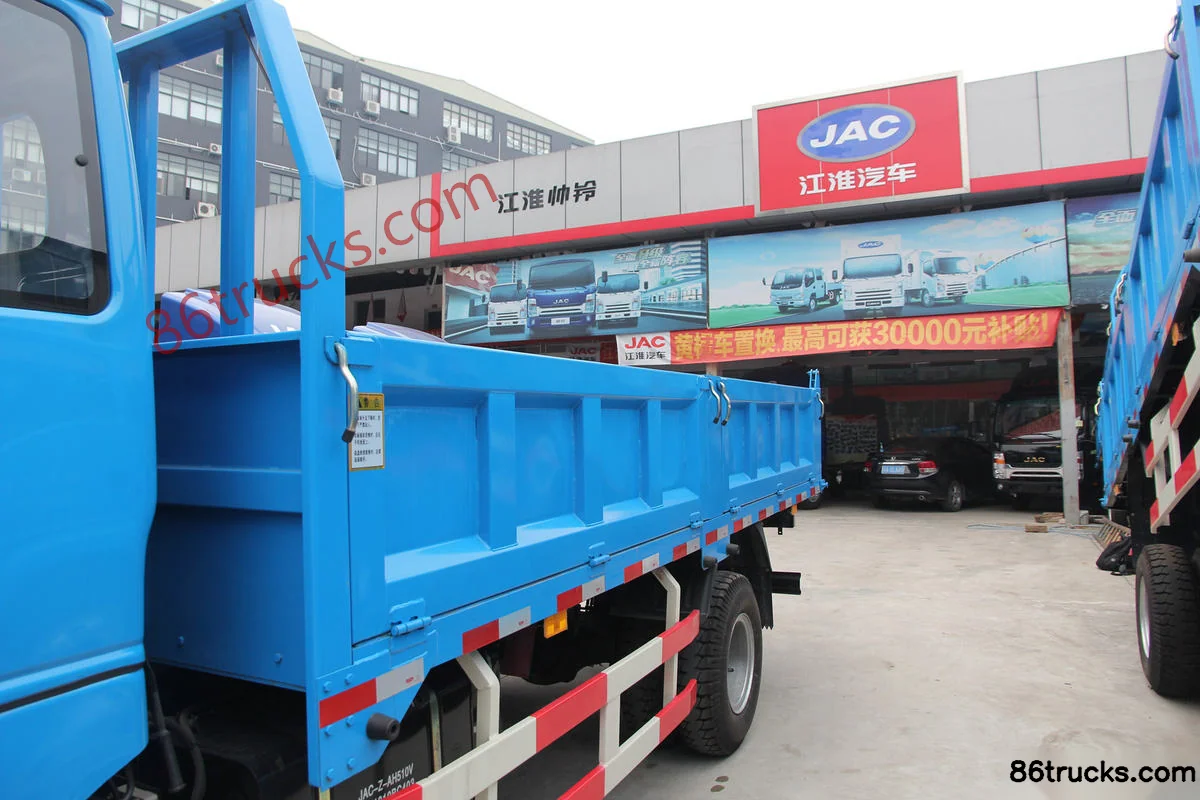

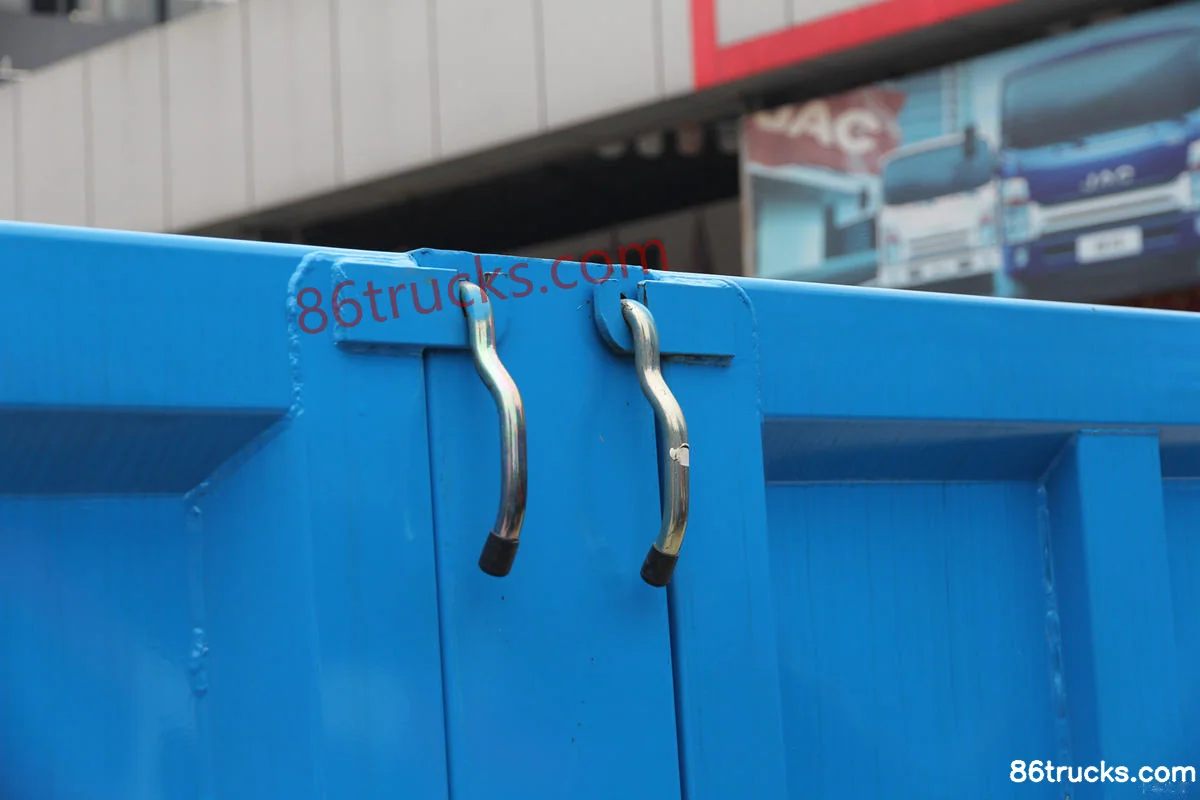

Body3

12 photos

FAQ

What is the export price of JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck, and what does it include?

JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck export reference is about From $15,278; MSRP is ¥11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck?

Key specs of JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck: Drive: 4x2; Horsepower: 129 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck suited for?

JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck differ from other variants in the same series?

JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck belongs to JAC Dingli light-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
