Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck

Export reference
From $39,861
MSRP ¥28.7M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.815ton
Wheelbase:: 1850+3200+1300mm
Tire Size:: 11.00R20
Rated payload: 15.99ton
Drive 8X4 (12 wheels)
Horsepower 270
Cargo box type: Rear-dump body

Overview

The Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck is a Heavy truck featuring 15.99t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6A270-40 engine, 270 hp, China IV emissions and Fast Gear transmission.

China IV 270 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3310A1S4
Drive type: 8X4
Wheelbase: 1850+3200+1300mm
engine: YuchaiYC6A270-40
transmission: Fast Gear10JSD120A
Rear Axle Ratio: 5.571
Cab length: 9.67m
Cab width: 2.5m
Cab height: 3.775m
Front track width: 2017/2017mm
rear track: 1860/1860mm
Curb Weight: 14.815ton
Rated payload: 15.99ton
GVWR: 31ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A270-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.255L
Emission standard: China IV
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1000N·m
Max torque speed: 1400-1600rpm
Rated speed: 2300rpm
Engine Type: BOSCH high-pressure common rail SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD120A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 1.235m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
rear axle description: 153 rear axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.571

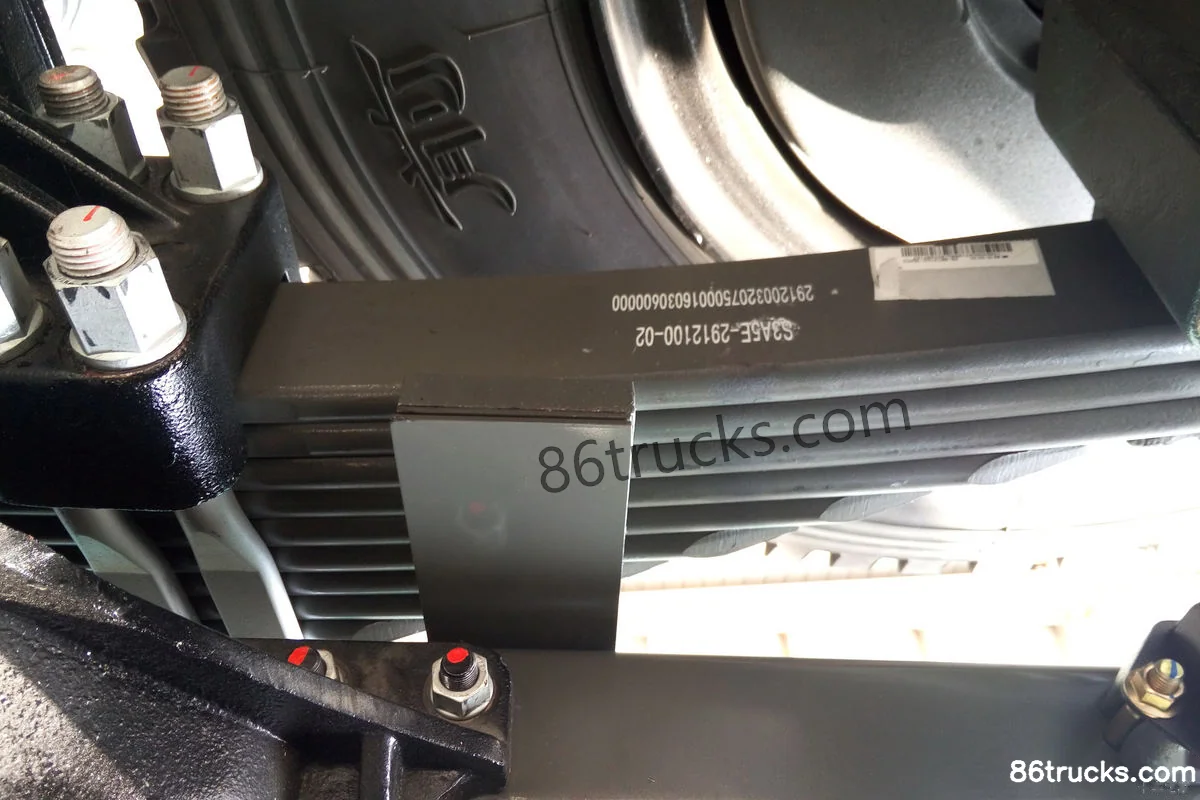

Leaf spring count: 9/9/10
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

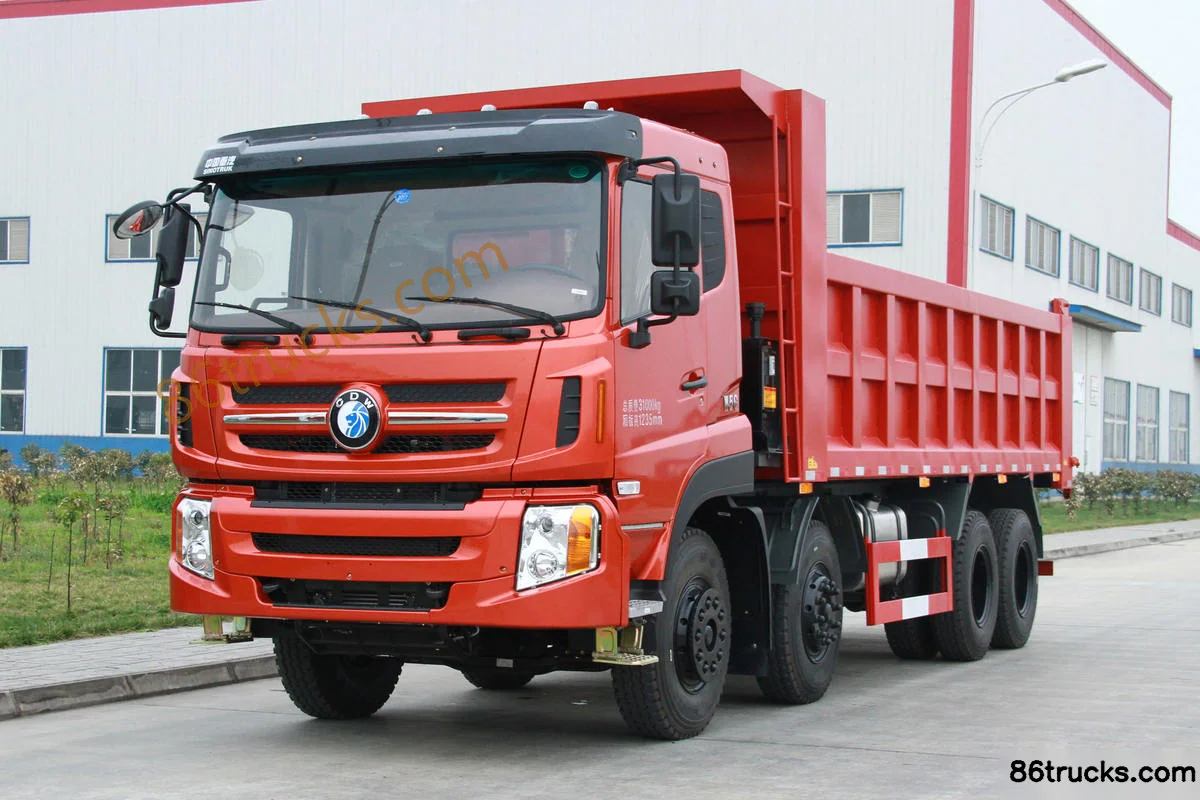

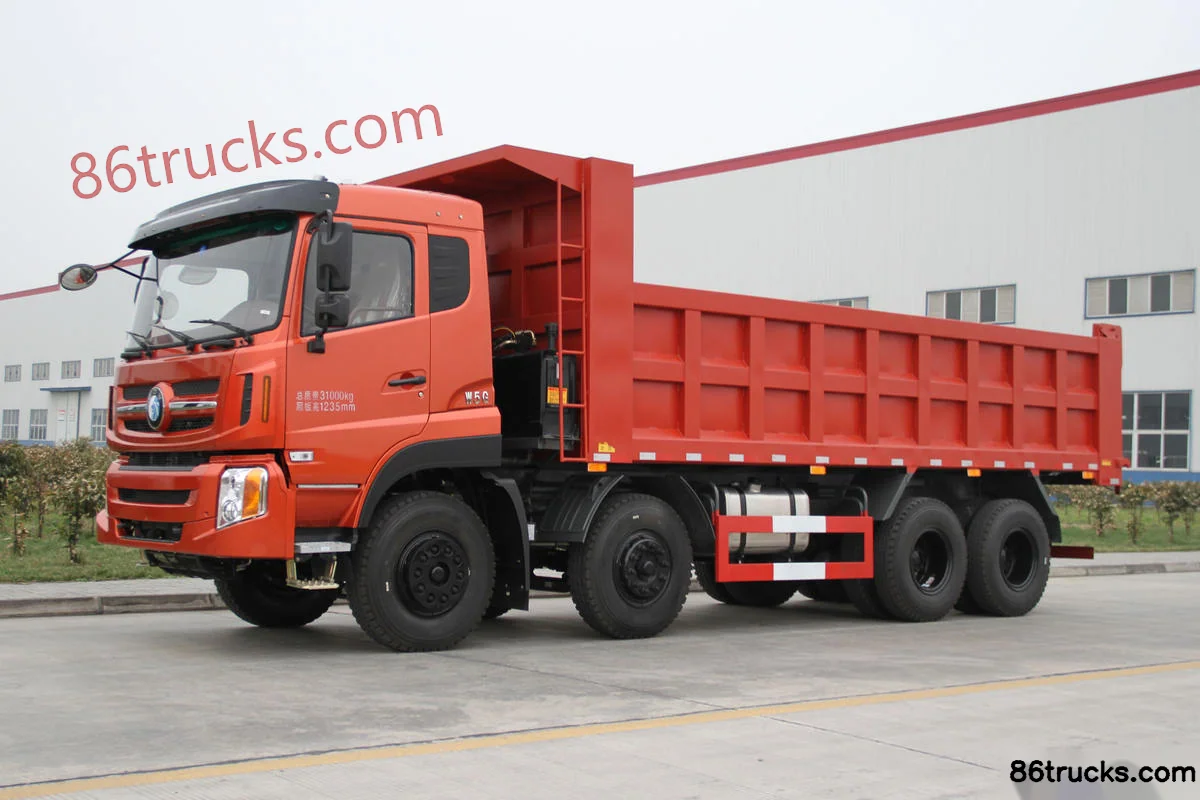

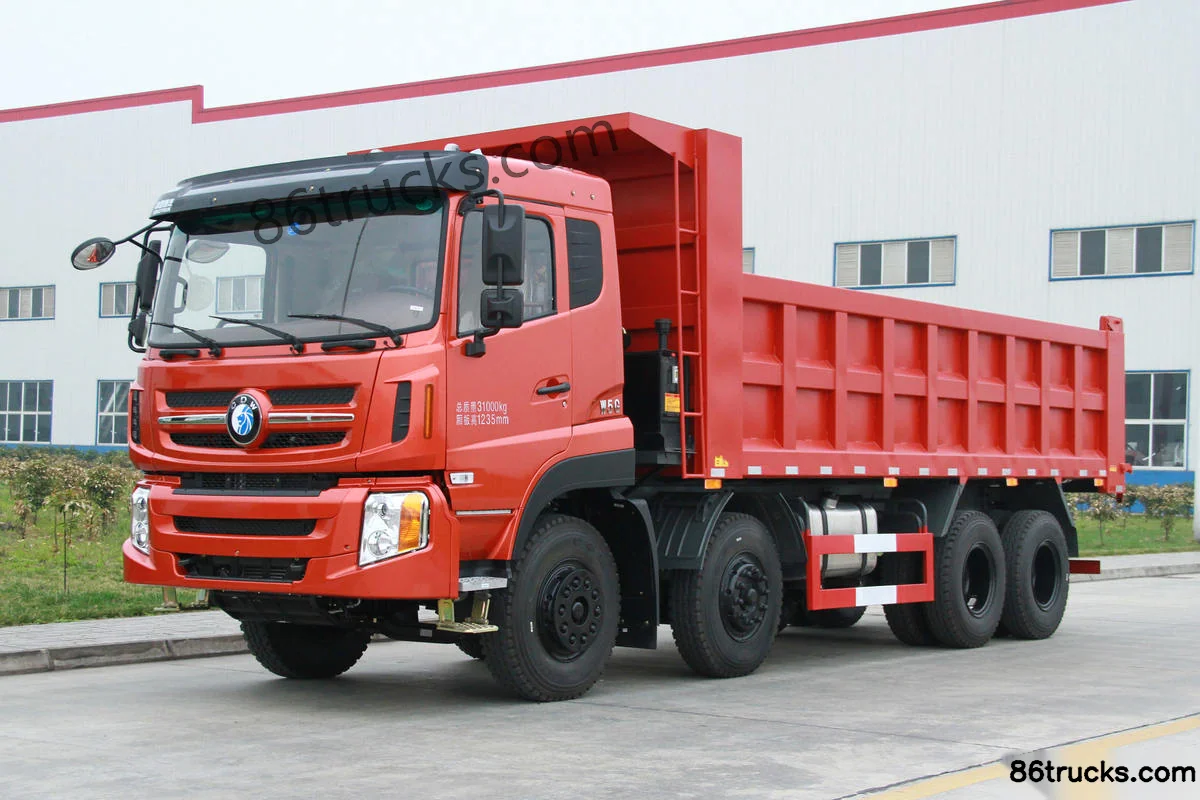

Exterior3

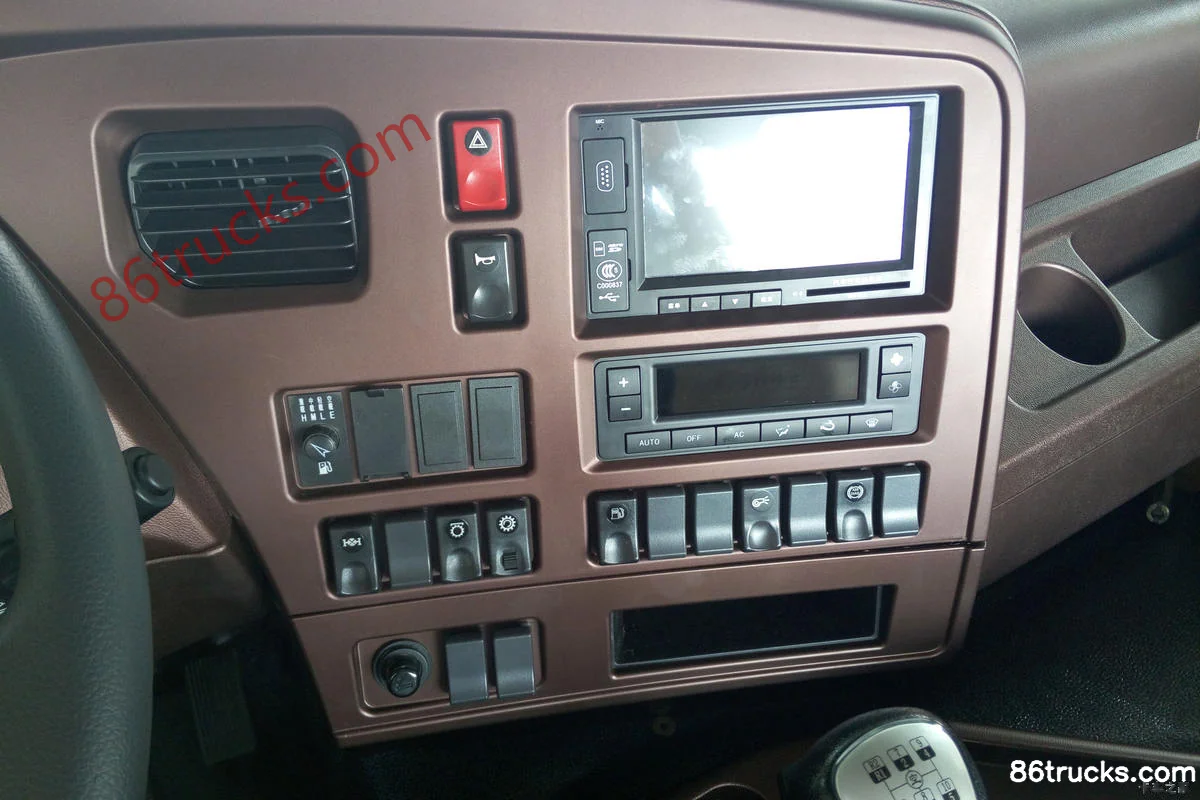

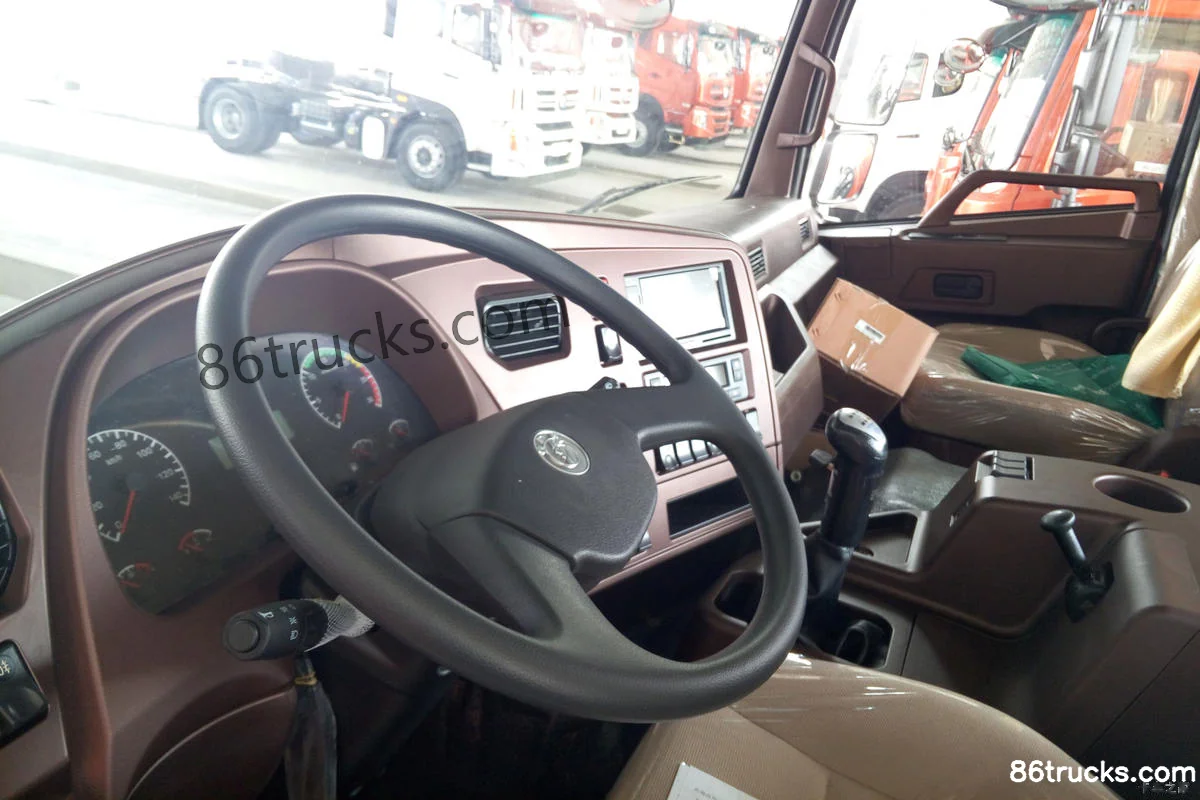

Cab2

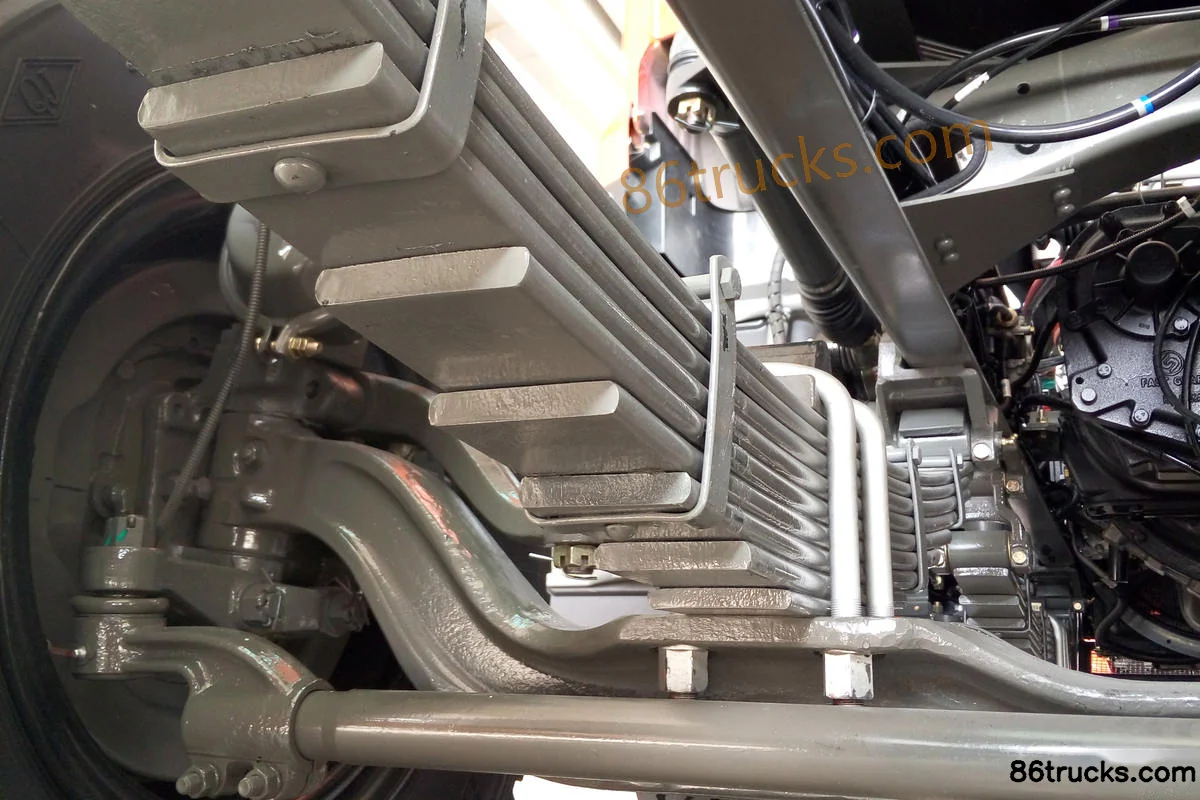

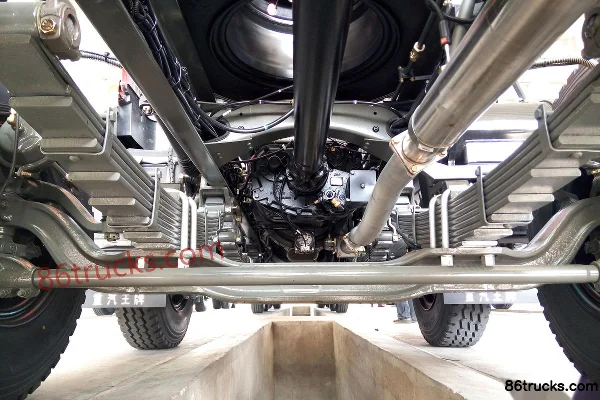

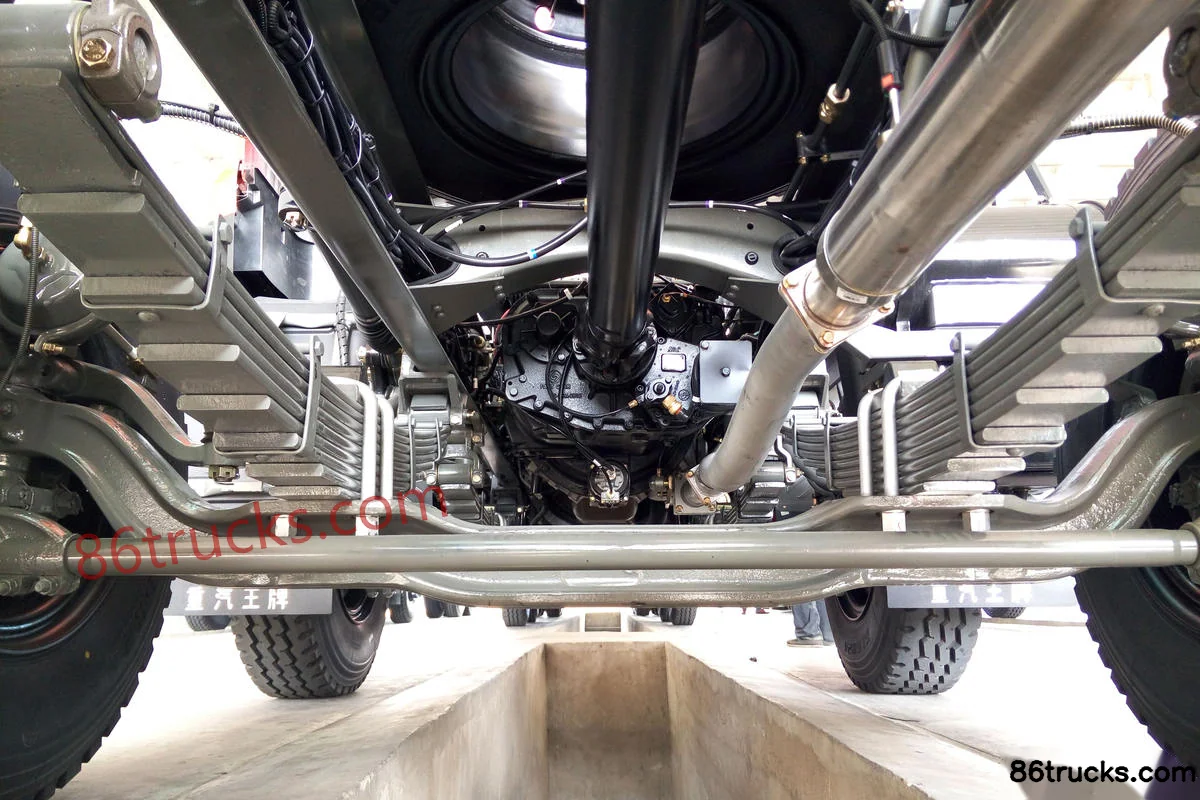

Chassis3

8 photos

FAQ

What is the export price of Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck, and what does it include?

Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck export reference is about From $39,861; MSRP is ¥28.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck?

Key specs of Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck: Drive: 8x4; Horsepower: 270 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck suited for?

Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck differ from other variants in the same series?

Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck belongs to Sinotruk Wangpai W5B near-heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
