SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.95ton
Wheelbase:: 1800+3575+1400mm
Tire Size:: 12.00R20
Rated payload: 15.92ton
Drive 8X4 (12 wheels)
Horsepower 290
Cargo box type: Dump type

Overview

The SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck is a Heavy truck featuring 15.92t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.290E32 engine, 290 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3315HR366
Drive type: 8X4
Wheelbase: 1800+3575+1400mm
engine: WeichaiWP10.290E32
transmission: Fast Gear10JSD120
Cab length: 10.21m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2011mm
rear track: 1860mm
Curb Weight: 14.95ton
Rated payload: 15.92ton
GVWR: 31ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 22°
departure angle: 11°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.290E32
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear10JSD120
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.4m
Cargo box width: 2.3m
Cargo box height: 1.1m

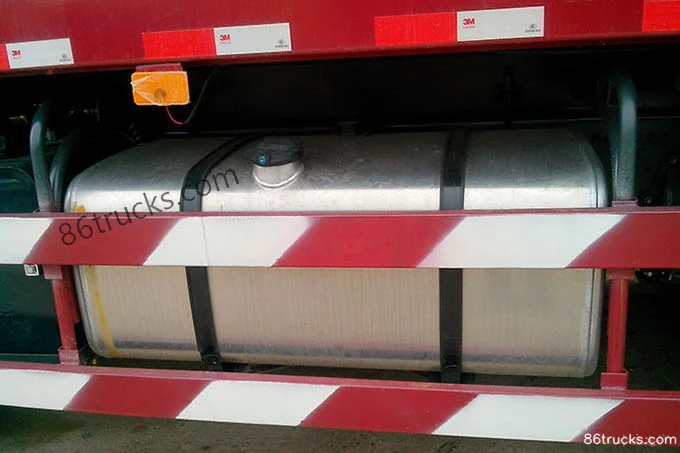

fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: Tandem axle
rear axle allowable load: 18000kg
Leaf spring count: 3/3/12
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

Photos

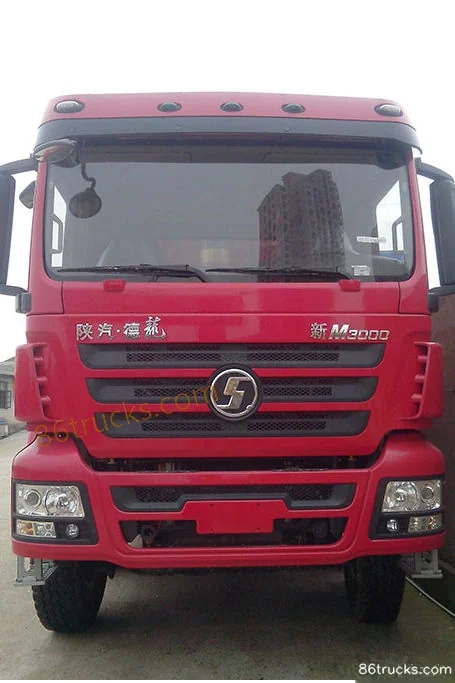

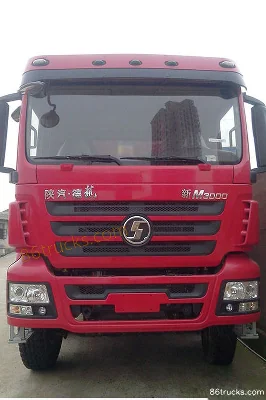

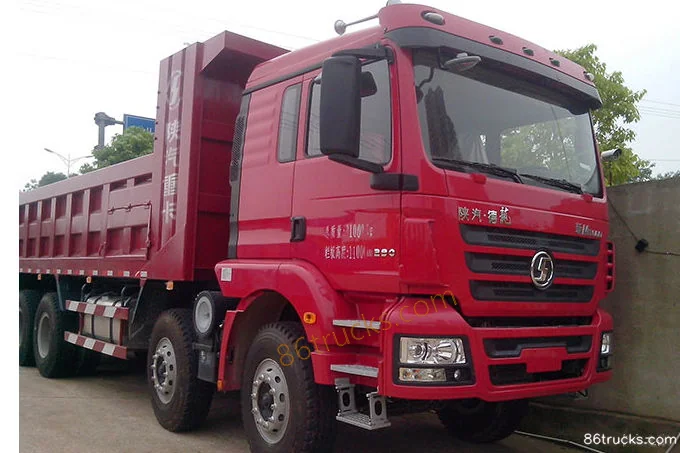

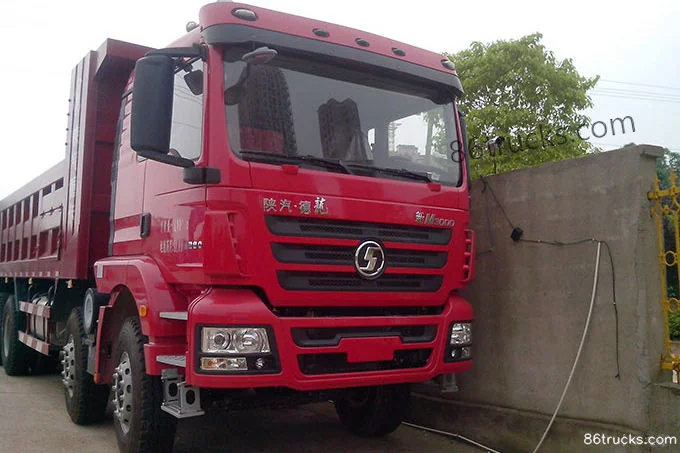

Exterior3

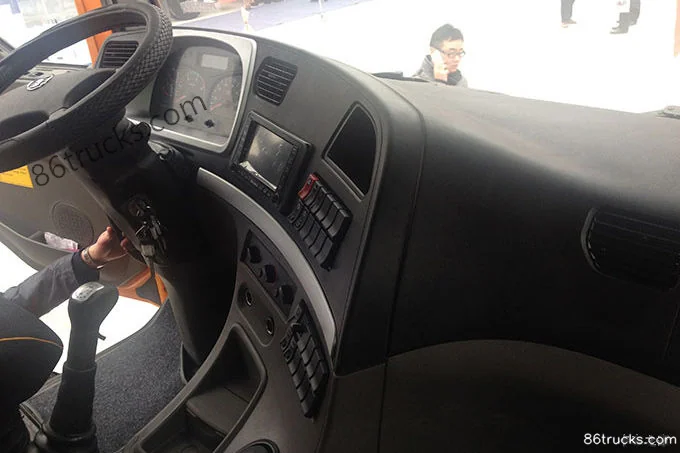

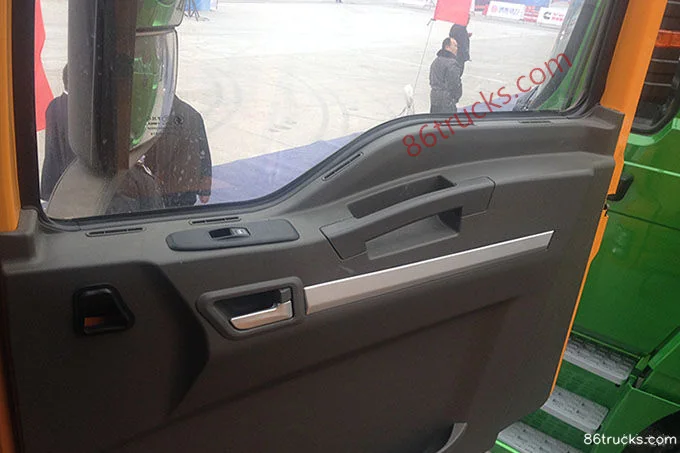

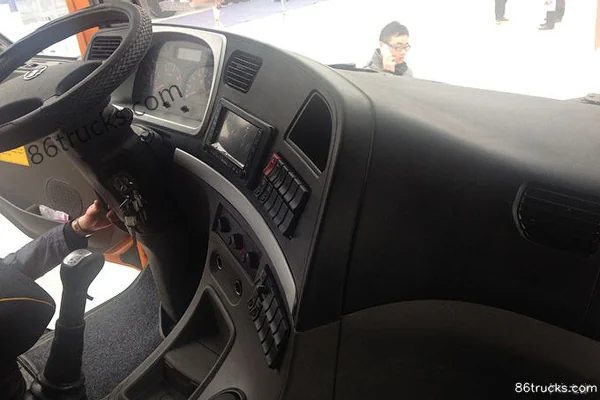

Cab2

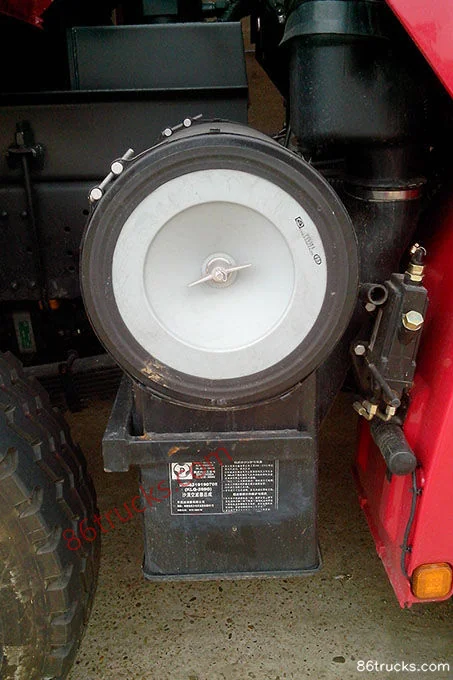

Chassis2

7 photos

FAQ

What emission standard does SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck?

Key specs of SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck: Drive: 8x4; Horsepower: 290 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck suited for?

SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck differ from other variants in the same series?

SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck belongs to SHACMAN Delong M3000 Light Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
