SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.255ton
Wheelbase:: 3775+1400mm
Tire Size:: 12.00R20
Rated payload: 12.615ton
Drive 6X4 (10 wheels)
Horsepower 310
Cargo box type: Rear-dump body

Overview

The SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck is a Heavy truck featuring 12.615t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.310E32 engine, 310 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 310 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3257HR384
Drive type: 6X4
Wheelbase: 3775+1400mm
engine: WeichaiWP10.310E32
transmission: Fast Gear10JSD140
Rear Axle Ratio: 5.73
Cab length: 8.475m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2011mm
rear track: 1860mm
Curb Weight: 12.255ton
Rated payload: 12.615ton
GVWR: 25ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 22°
departure angle: 12°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.310E32
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear10JSD140
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.14m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: 16t STR double reduction axle
rear axle allowable load: 16000kg
Axle ratio: 5.73
Leaf spring count: 4/10
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

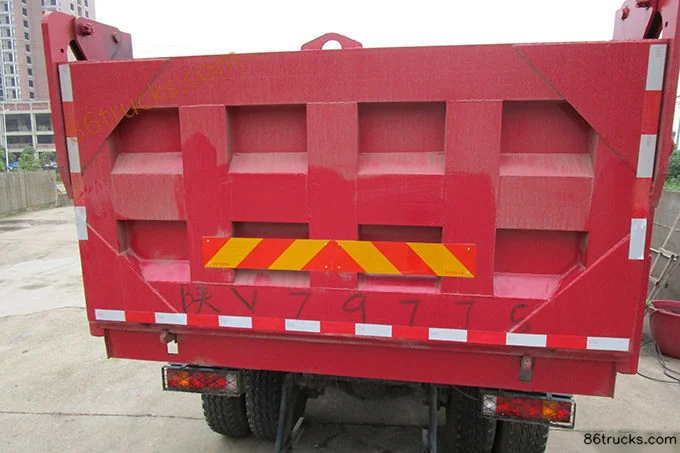

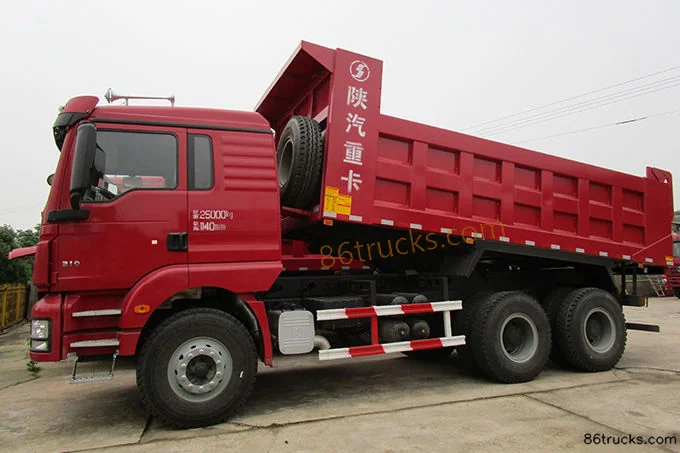

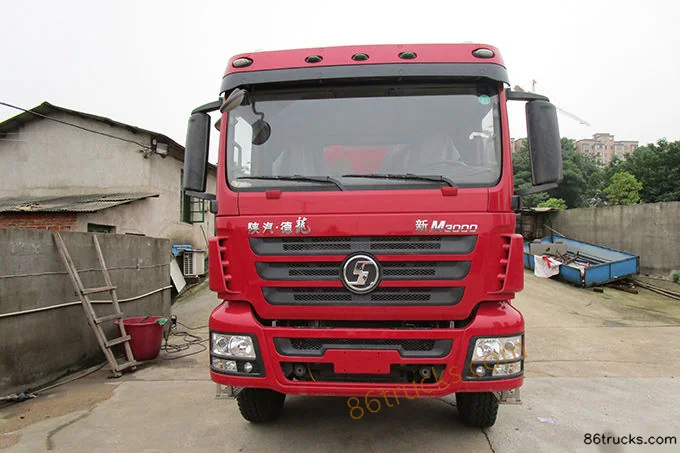

Exterior3

3 photos

FAQ

What emission standard does SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck?

Key specs of SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck: Drive: 6x4; Horsepower: 310 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck suited for?

SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck differ from other variants in the same series?

SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck belongs to SHACMAN Delong M3000 Light Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
