FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 12.08ton
Wheelbase:: 3775+1450mm
Tire Size:: 12.00R2018
Rated payload: 12.79ton
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Rear-dump body

Overview

The FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck is a Heavy truck featuring 12.79t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP12NG350E40 engine, 350 hp, China IV emissions and Fast Gear transmission.

China IV 350 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3256P2K2T1NA80
Drive type: 6X4
Wheelbase: 3775+1450mm
engine: WeichaiWP12NG350E40
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 5.921
Cab length: 8.193m
Cab width: 2.5m
Cab height: 3.28m
Front track width: 2026mm
rear track: 1840/1840mm
Curb Weight: 12.08ton
Rated payload: 12.79ton
GVWR: 25ton
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 32°
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12NG350E40
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 11.596L
Emission standard: China IV
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1400-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn, single-point injection + oxidation catalyst
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.4m
Cargo box width: 2.3m
Cargo box height: 1.19m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: 300 cast wheel reduction axle
rear axle allowable load: 18000kg
Axle ratio: 5.921
Leaf spring count: 10/13,10/-
Tire
Tire Size: 12.00R2018
Number of tires: 10pcs

Photos

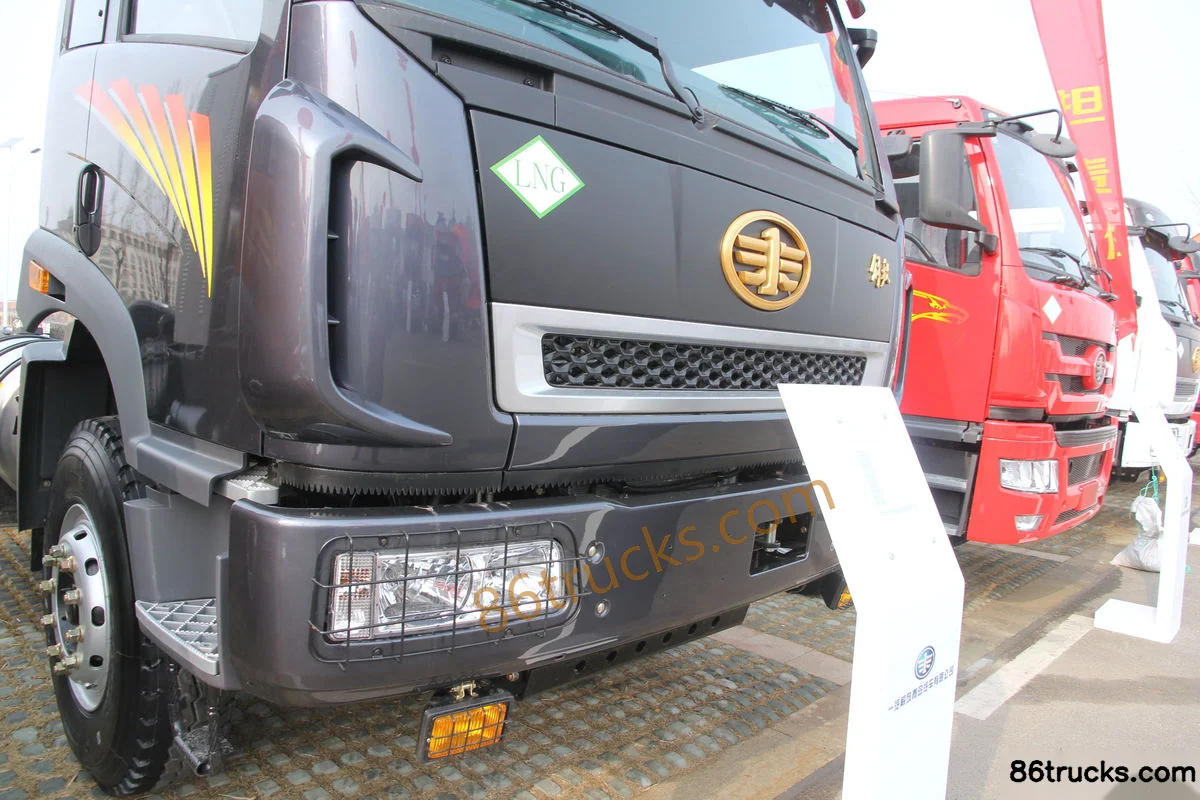

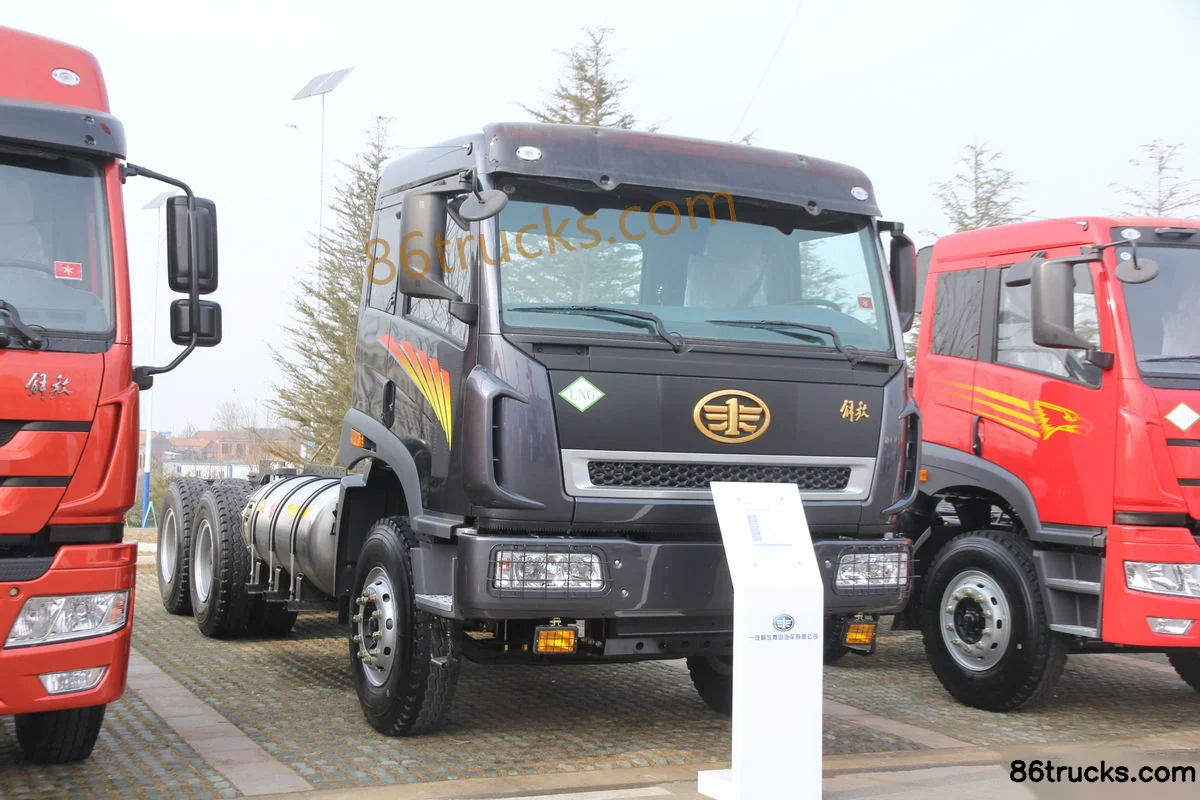

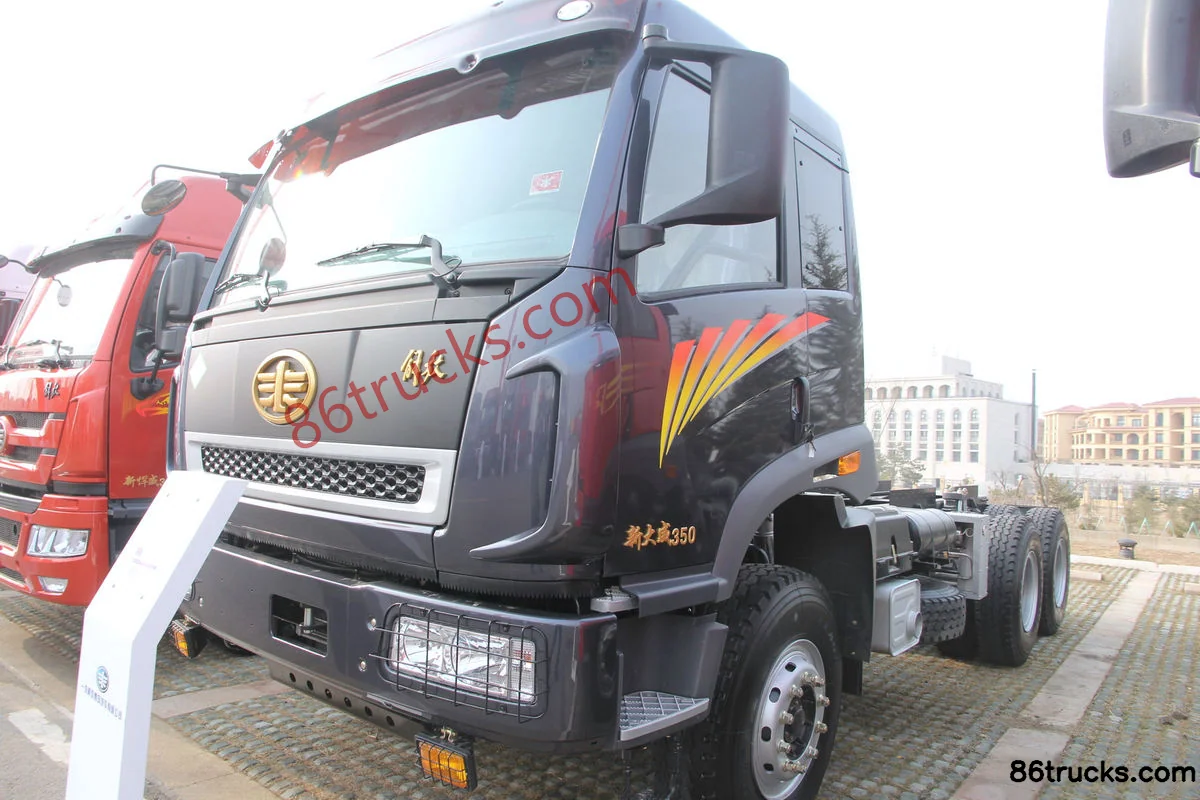

Exterior3

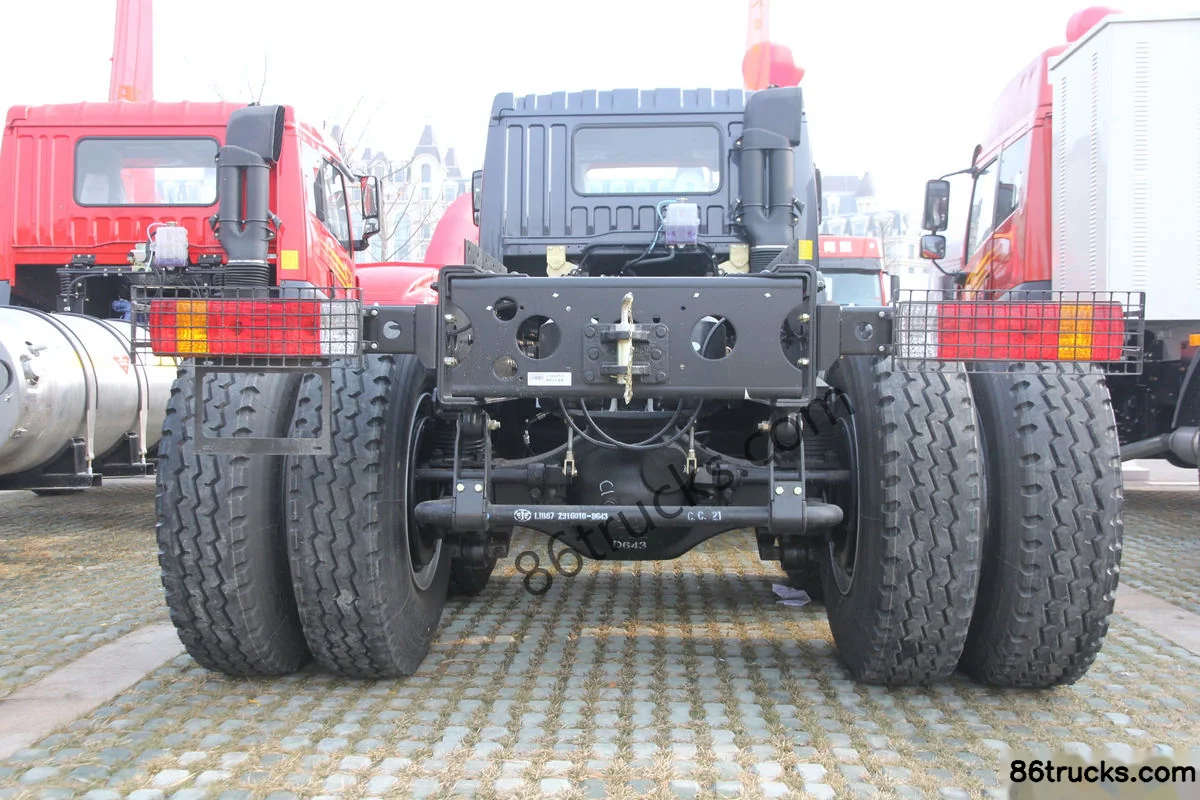

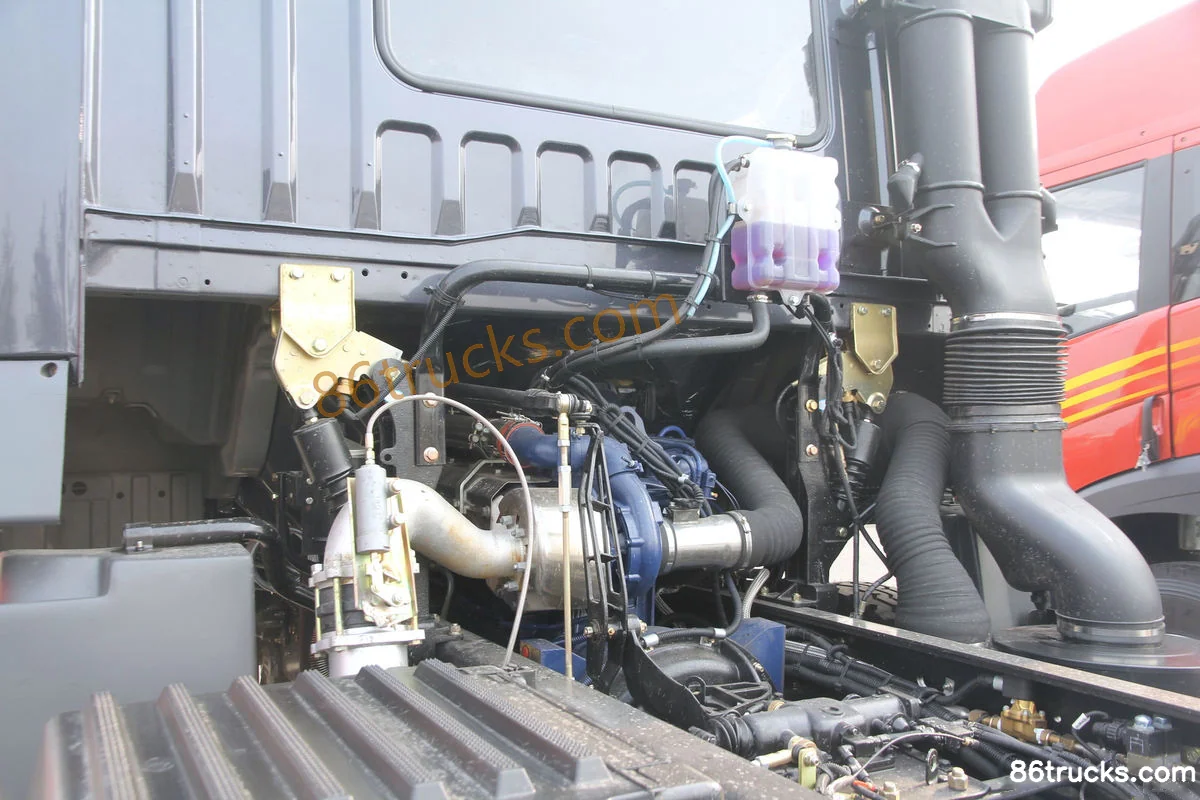

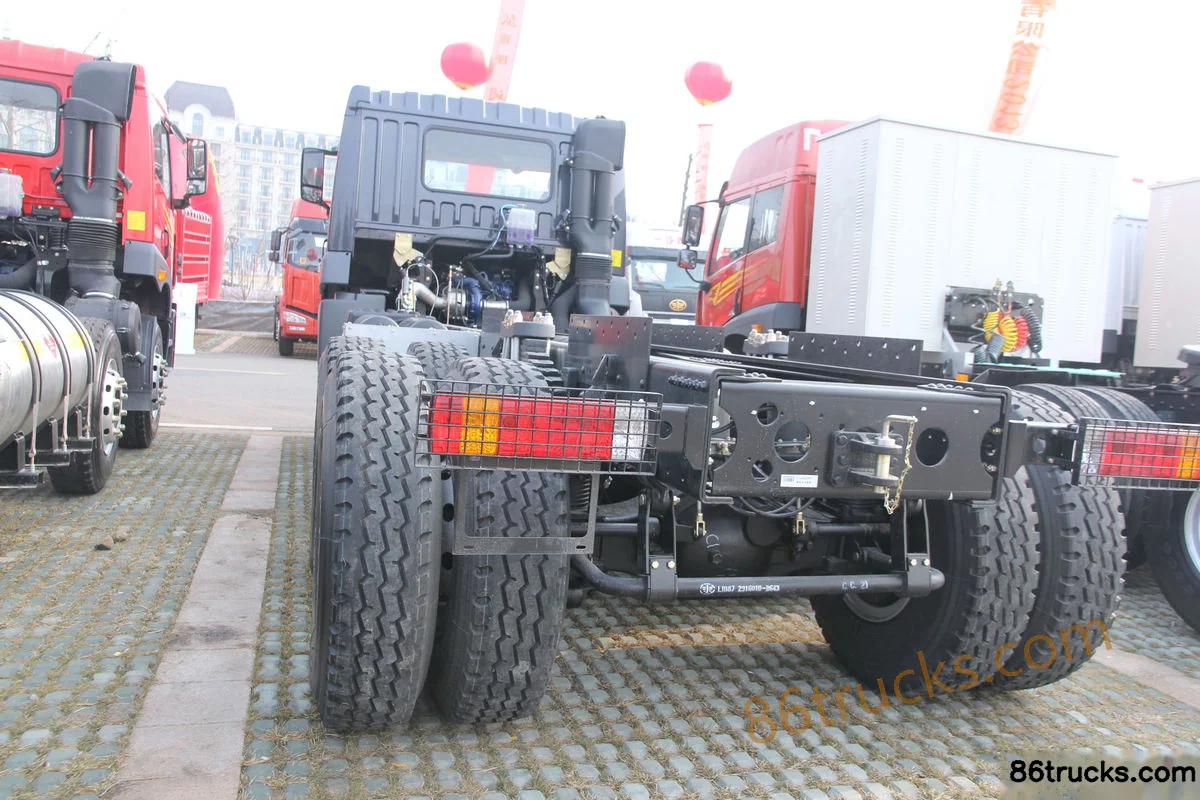

Chassis3

6 photos

FAQ

What emission standard does FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck?

Key specs of FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck: Drive: 6x4; Horsepower: 350 hp; Emission: China IV; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck suited for?

FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck differ from other variants in the same series?

FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck belongs to FAW Jiefang Qingdao New Dawei Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao New Dawei Heavy Truck 350 hp 6X4(10 wheels) 5.4 m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
