Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed)

Export reference
From $21,111
MSRP ¥15.2M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.675ton
Wheelbase:: 3800mm
Tire Size:: 10.00R20 16PR
Rated payload: 7.93ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box type: Rear-dump body

Overview

The Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed) is a Light Truck featuring 7.93t payload, 15.8t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA180-50 engine, 180 hp, China V emissions and Fast Gear transmission.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3160GZ5D
Drive type: 4X2
Wheelbase: 3800mm
engine: YuchaiYC6JA180-50
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.88
Cab length: 7.18m
Cab width: 2.55m
Cab height: 3.18m
Front track width: 1810mm
rear track: 1800mm
Curb Weight: 7.675ton
Rated payload: 7.93ton
GVWR: 15.8ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 28°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA180-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.5m
Cargo box width: 2.2m
Cargo box height: 0.8m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Cab parameters
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 5T
Front axle allowable load: 5600kg
Frame Dimensions: 280×80×(7+4)mm
rear axle description: 10T
rear axle allowable load: 10200kg
Axle ratio: 4.88
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

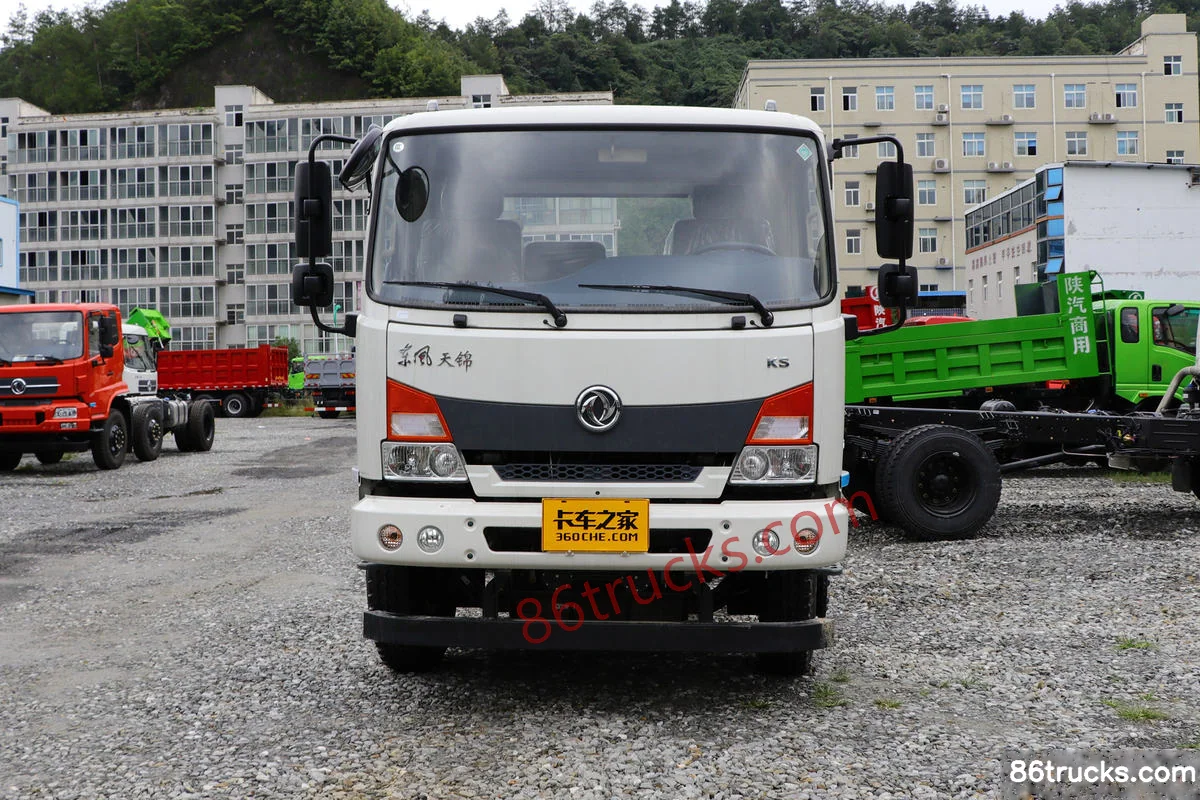

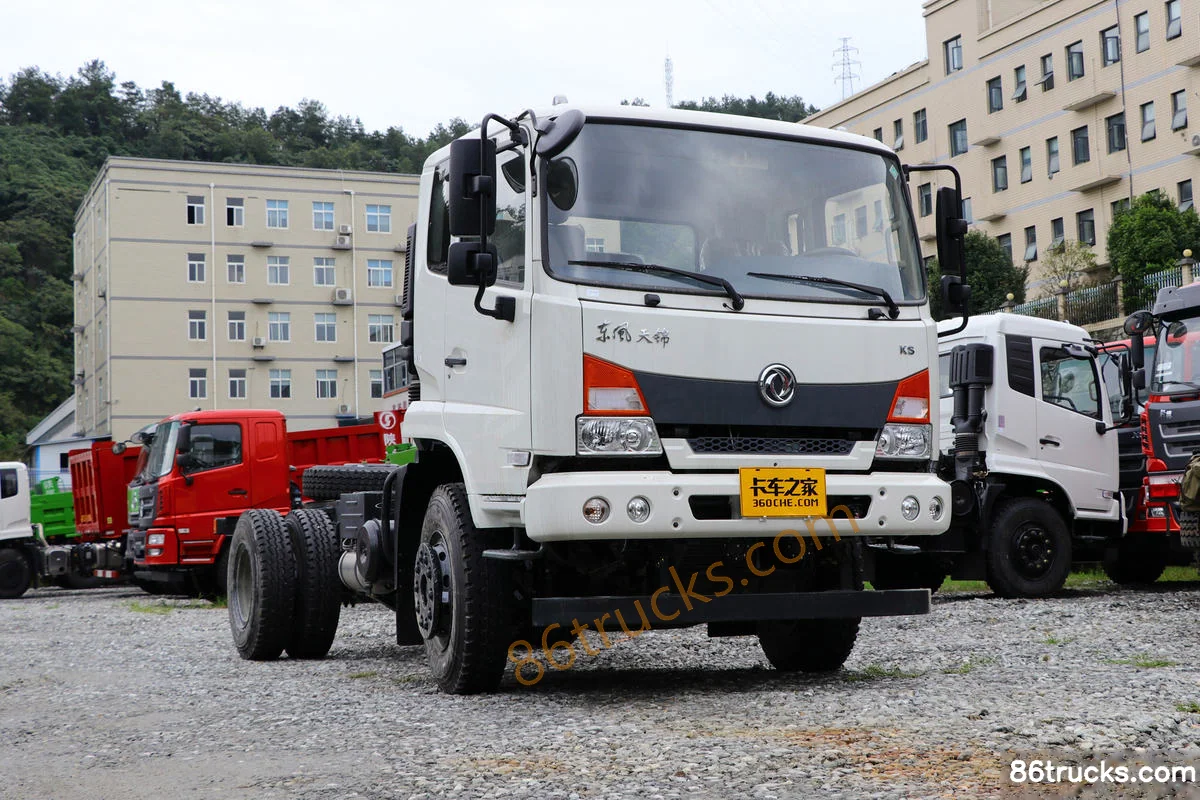

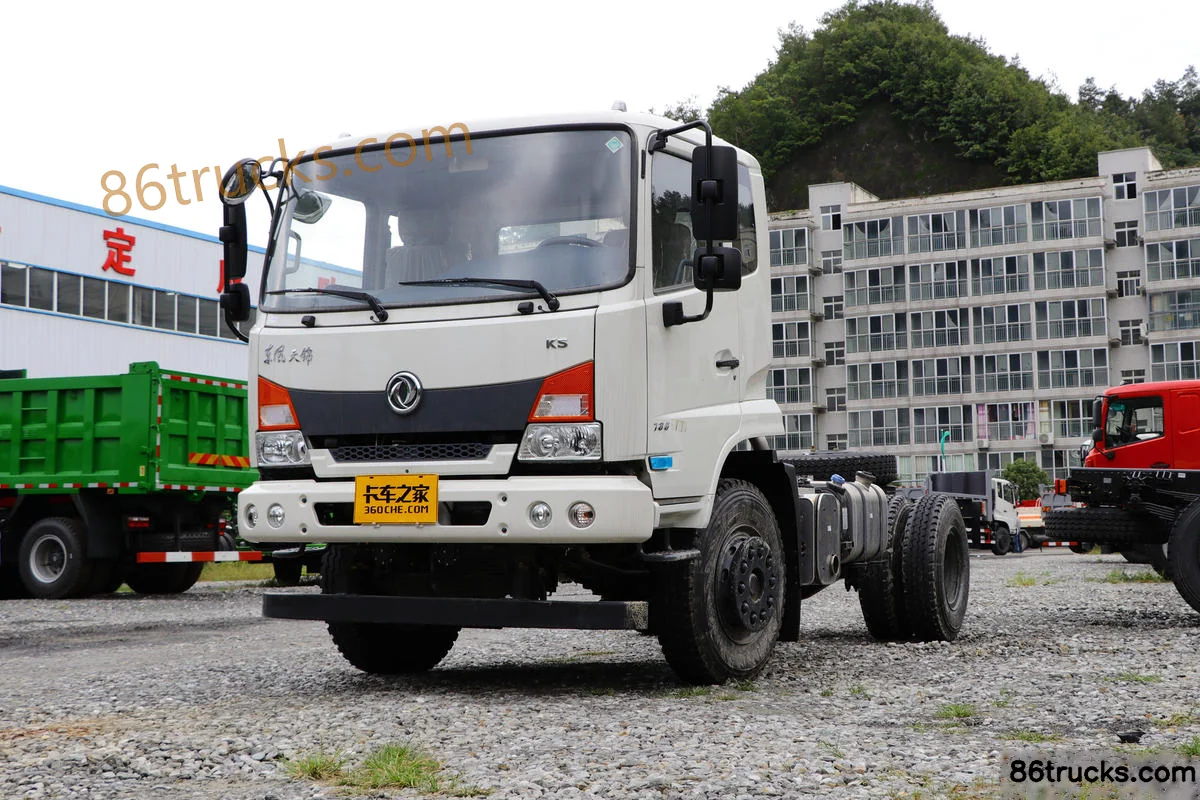

Exterior3

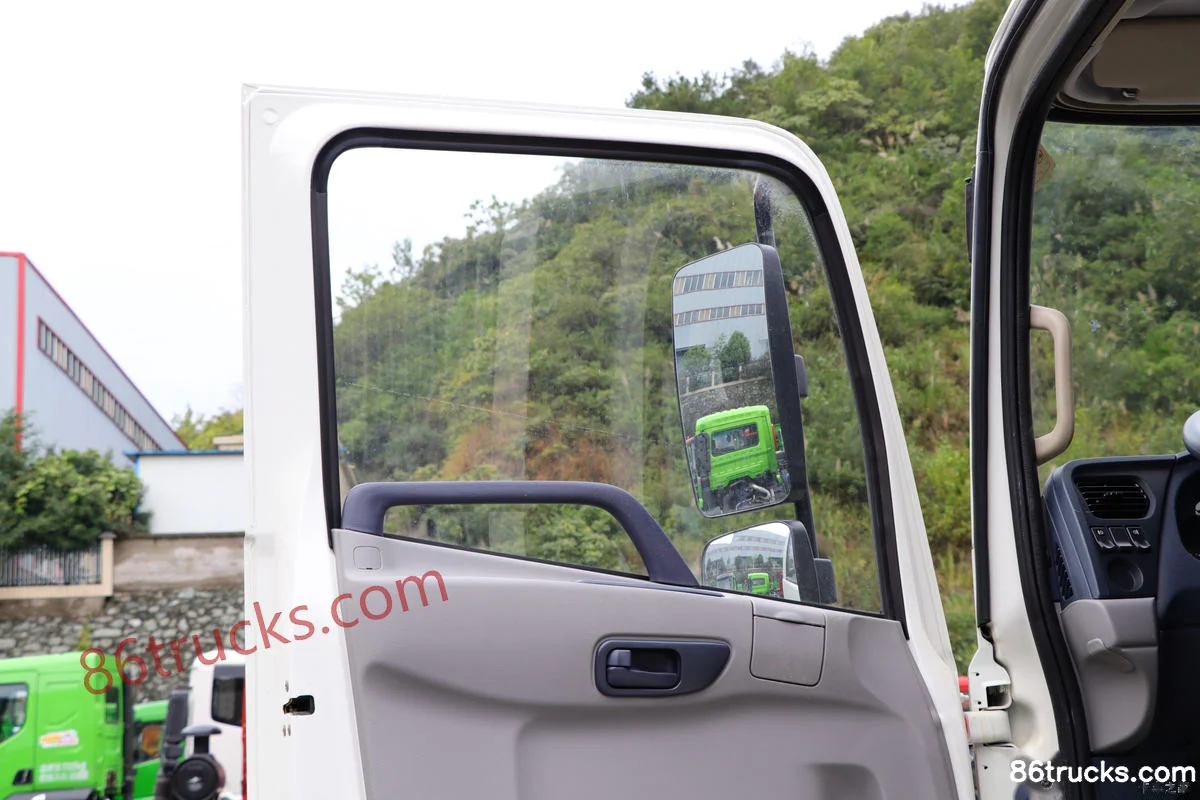

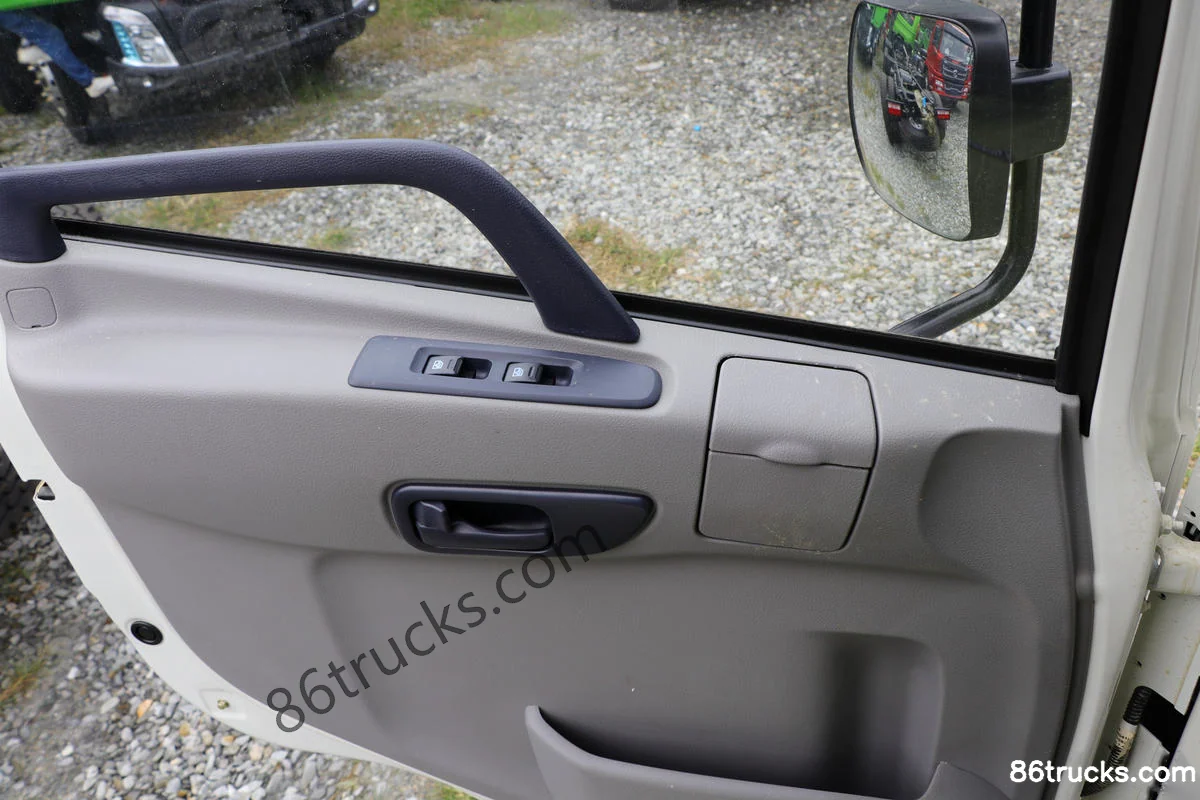

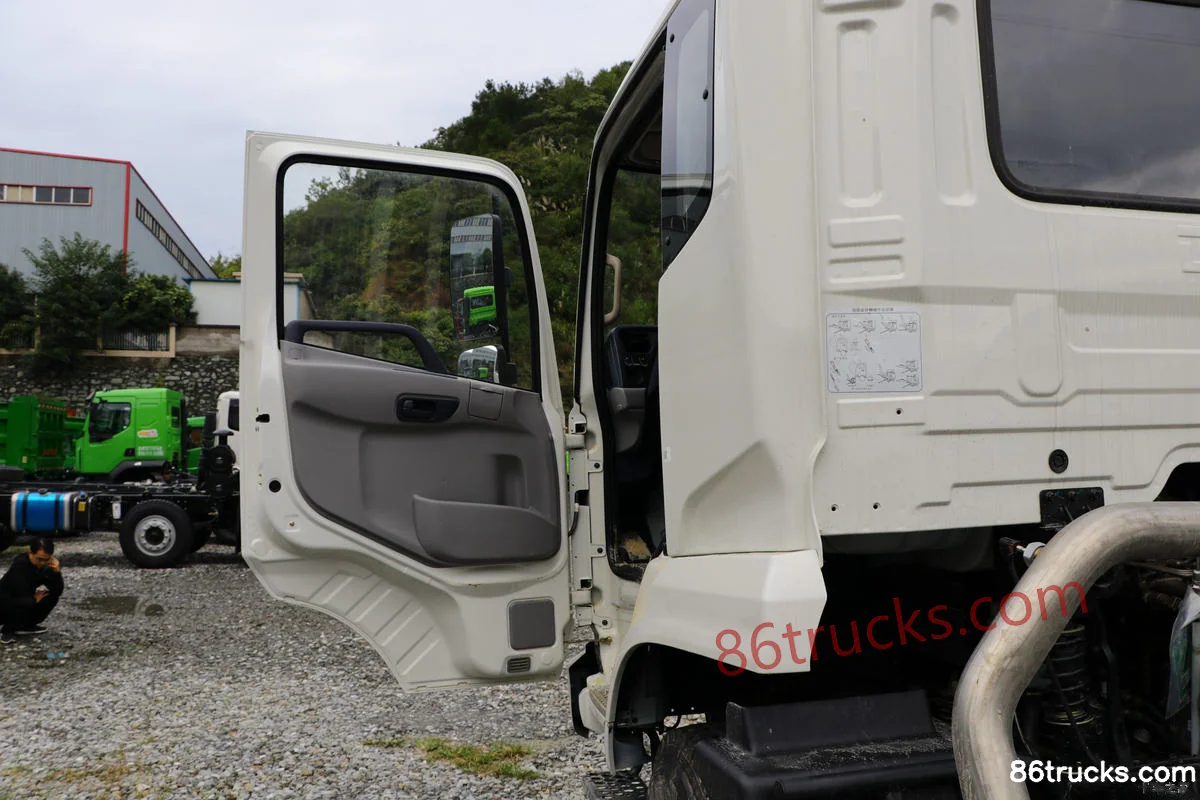

Cab3

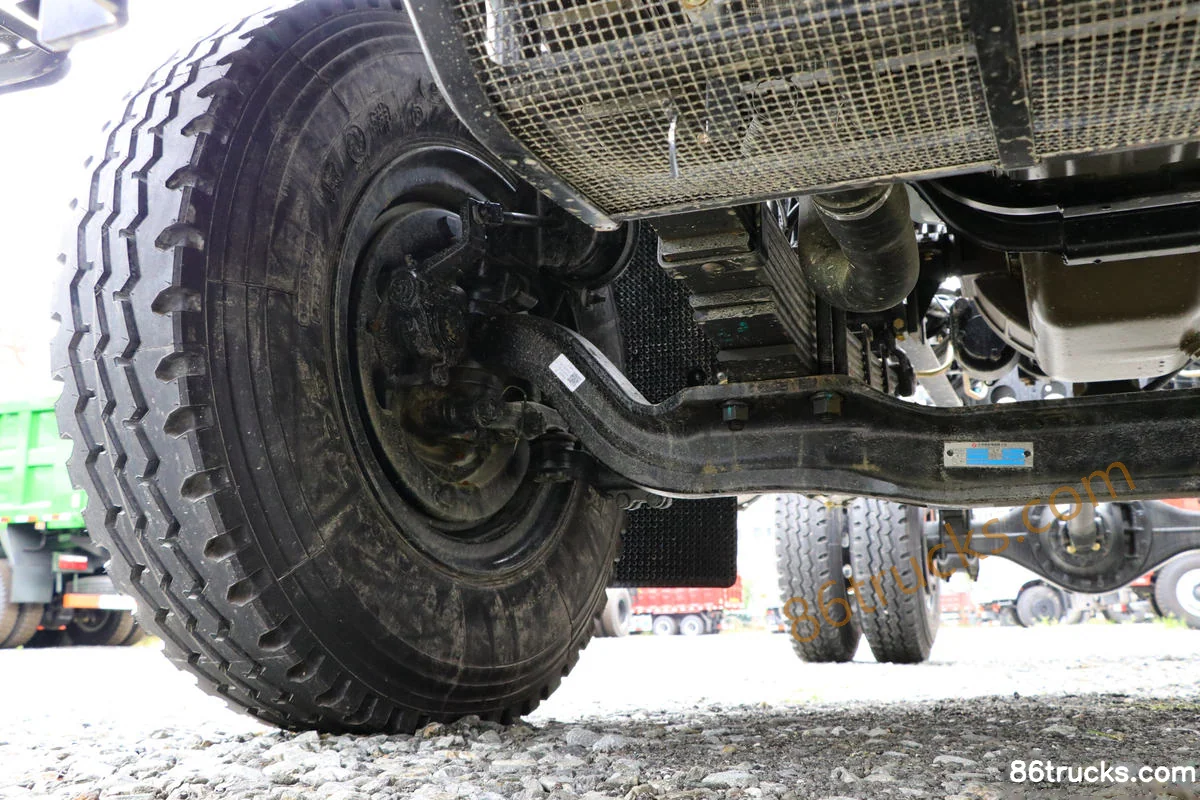

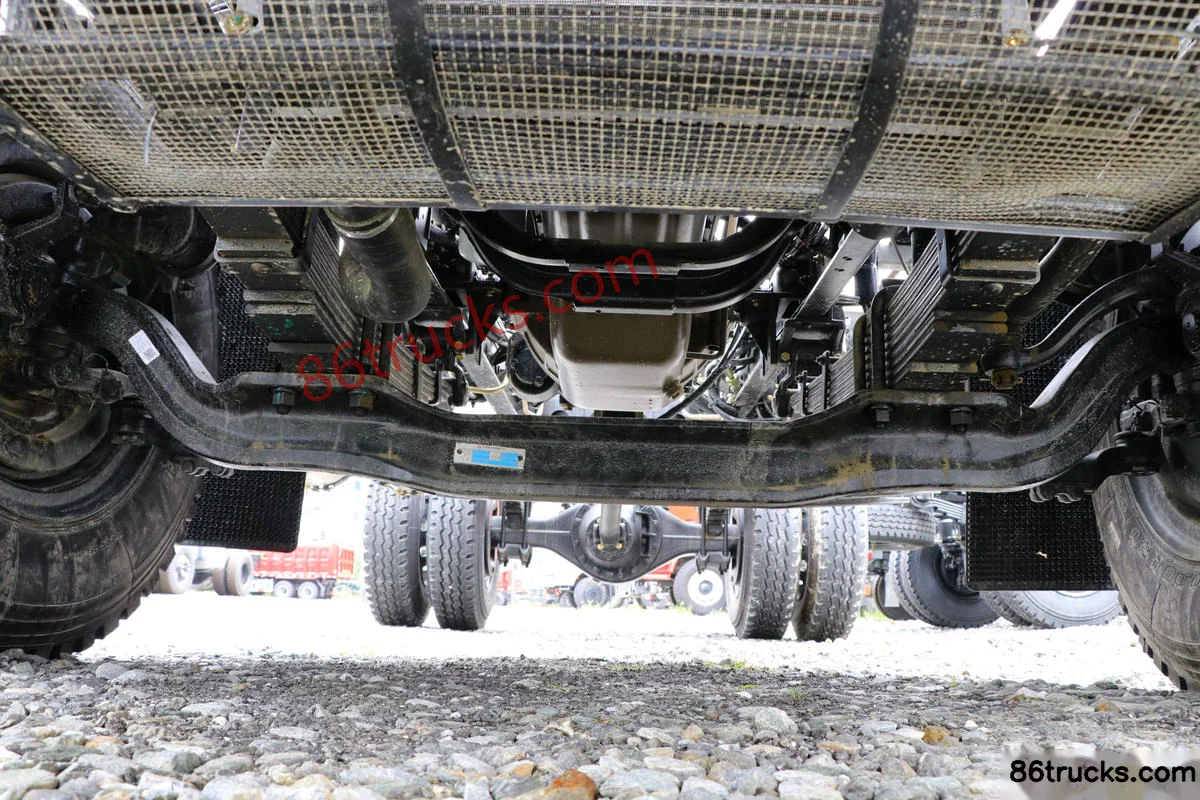

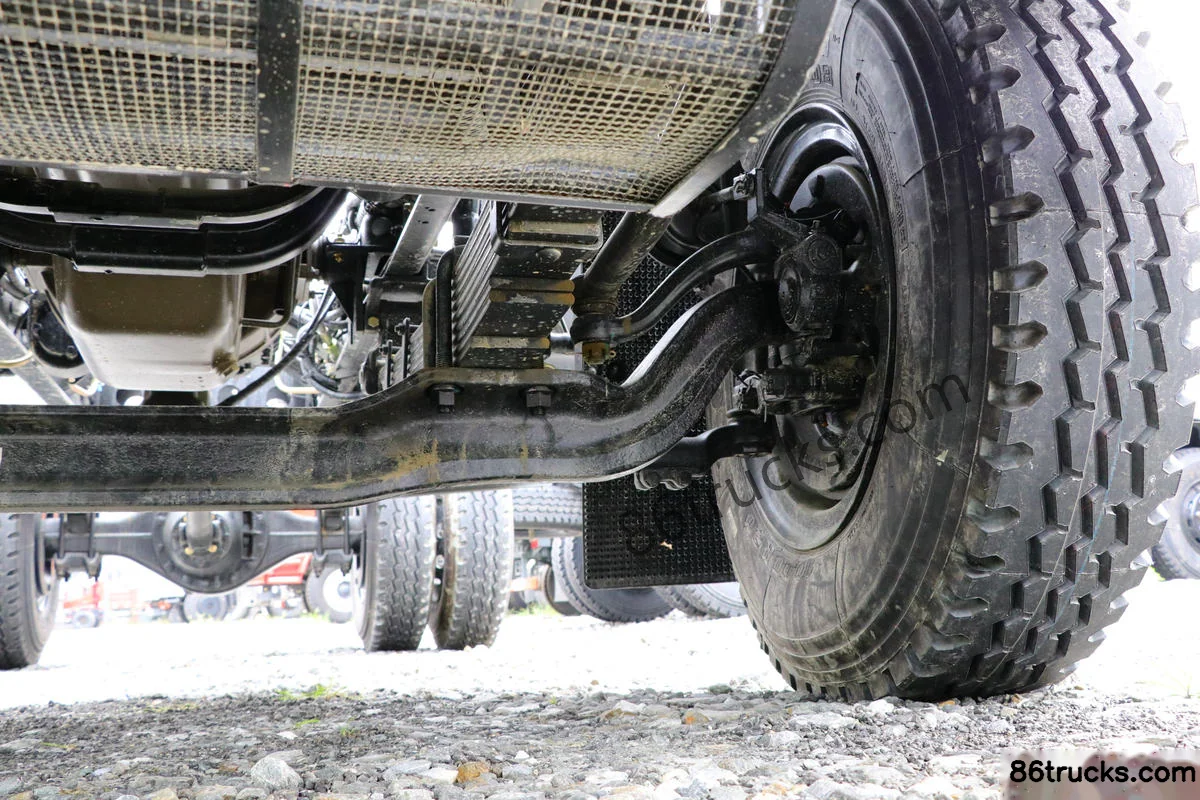

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed), and what does it include?

Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed) export reference is about From $21,111; MSRP is ¥15.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed)?

Key specs of Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed): Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed) suited for?

Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed) differ from other variants in the same series?

Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed) belongs to Dongfeng Tianjin KS light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
