Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 4100+1450mm
Tire Size:: 12.00R20 16PR,11.00R20 18PR,12R22.5 18PR
Rated payload: 12.37ton
Drive 6X4 (10 wheels)
Horsepower 550
Cargo box type: Rear-dump body

Overview

The Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck is a Heavy truck featuring 12.37t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP13.550E501 engine, 550 hp, China V emissions and Fast Gear transmission.

China V 550 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ND3250BD5J7Z08
Drive type: 6X4
Wheelbase: 4100+1450mm
engine: WeichaiWP13.550E501
transmission: Fast GearC12JSDQXL260T
Cab length: 9.185m
Cab width: 2.55m
Cab height: 3.484m
Front track width: 2004mm
rear track: 1874/1874mm
Curb Weight: 12.5ton
Rated payload: 12.37ton
GVWR: 25ton
Origin: Baotou, Inner Mongolia
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP13.550E501
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.54L
Emission standard: China V
Max output power: 405kW
Max hp: 550Horsepower
Max torque: 2550N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast GearC12JSDQXL260T
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab suspension: Four-point air suspension
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: 20T Beiben dual-reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20 16PR,11.00R20 18PR,12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:

Photos

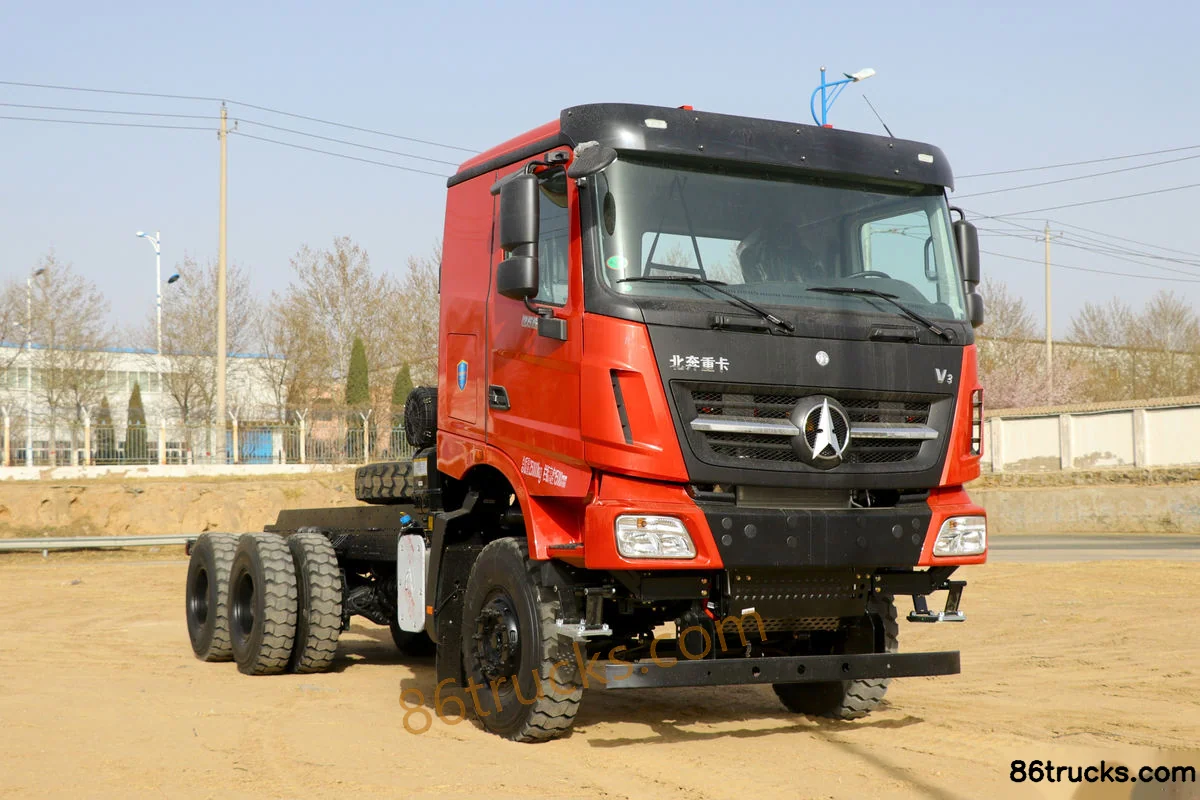

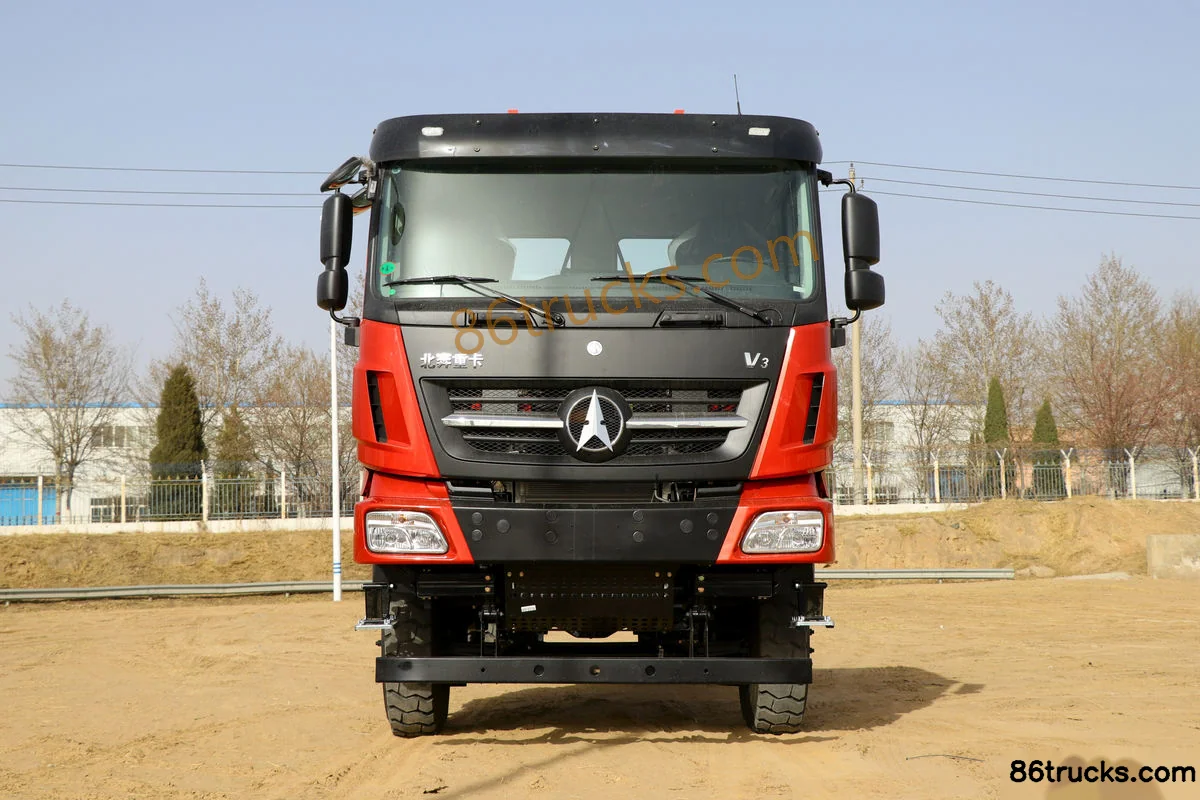

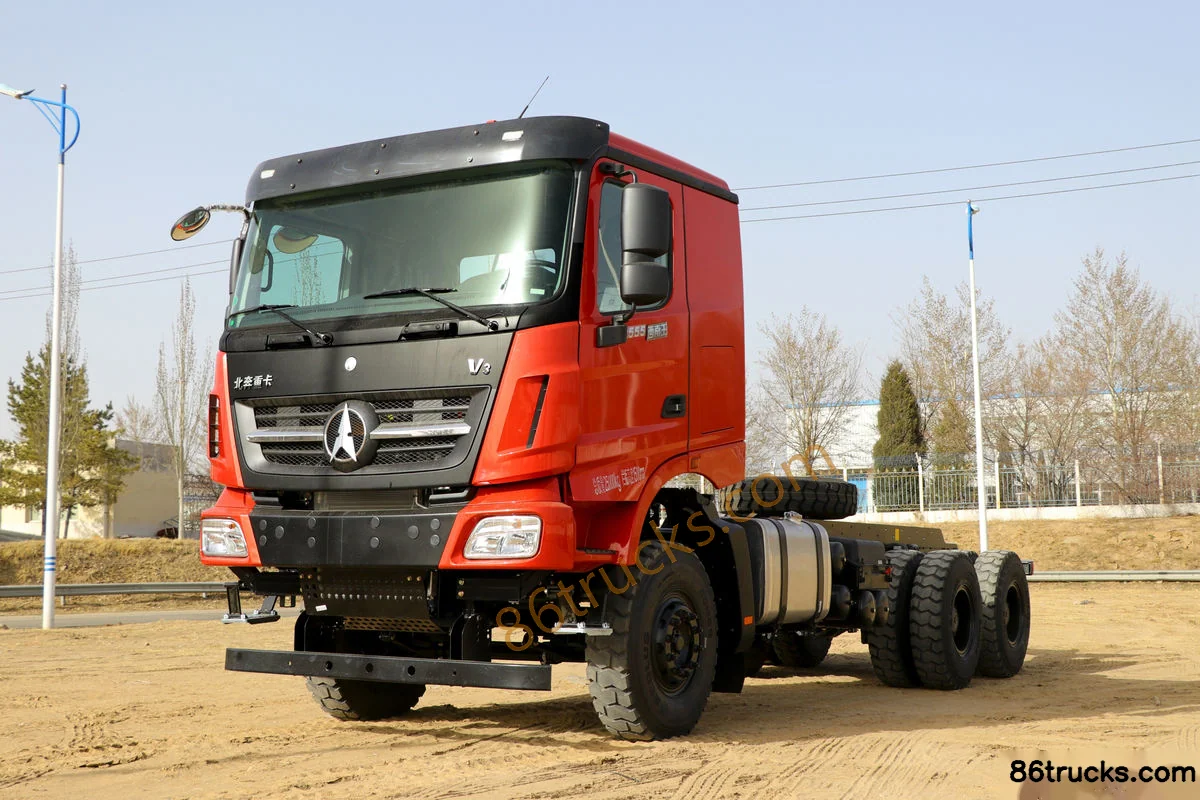

Exterior3

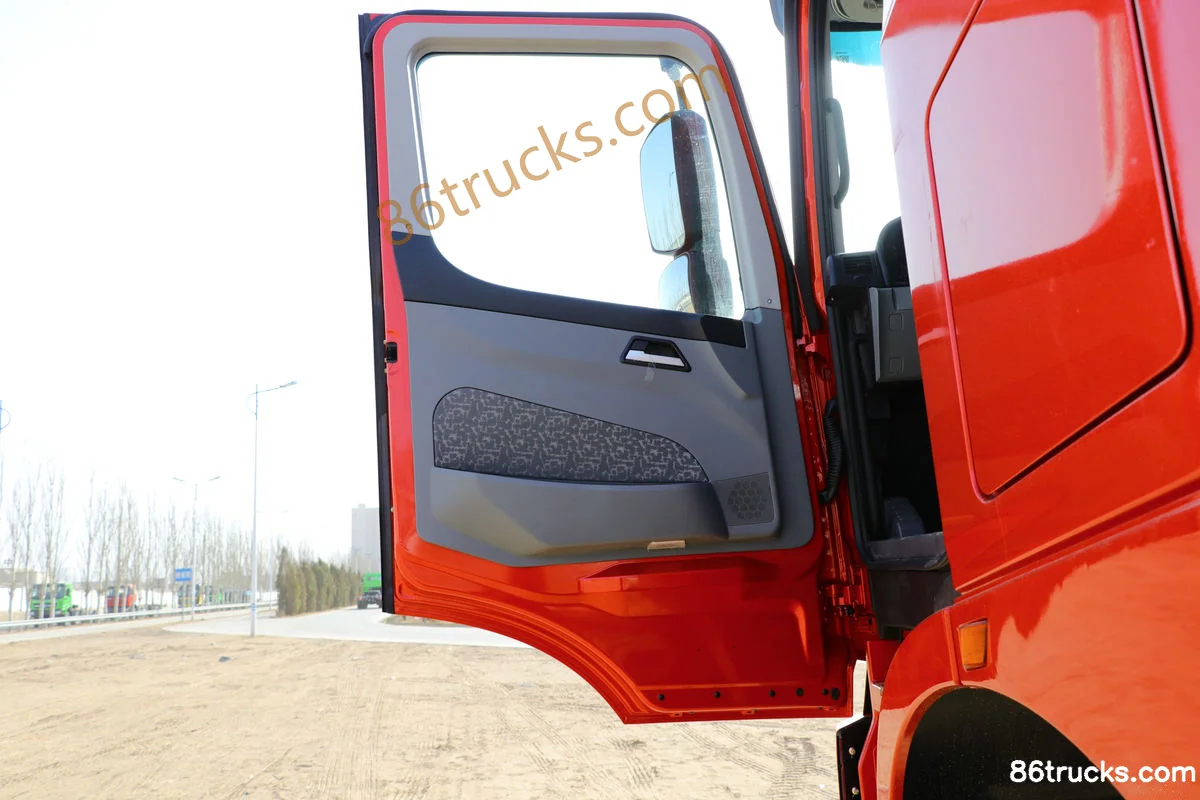

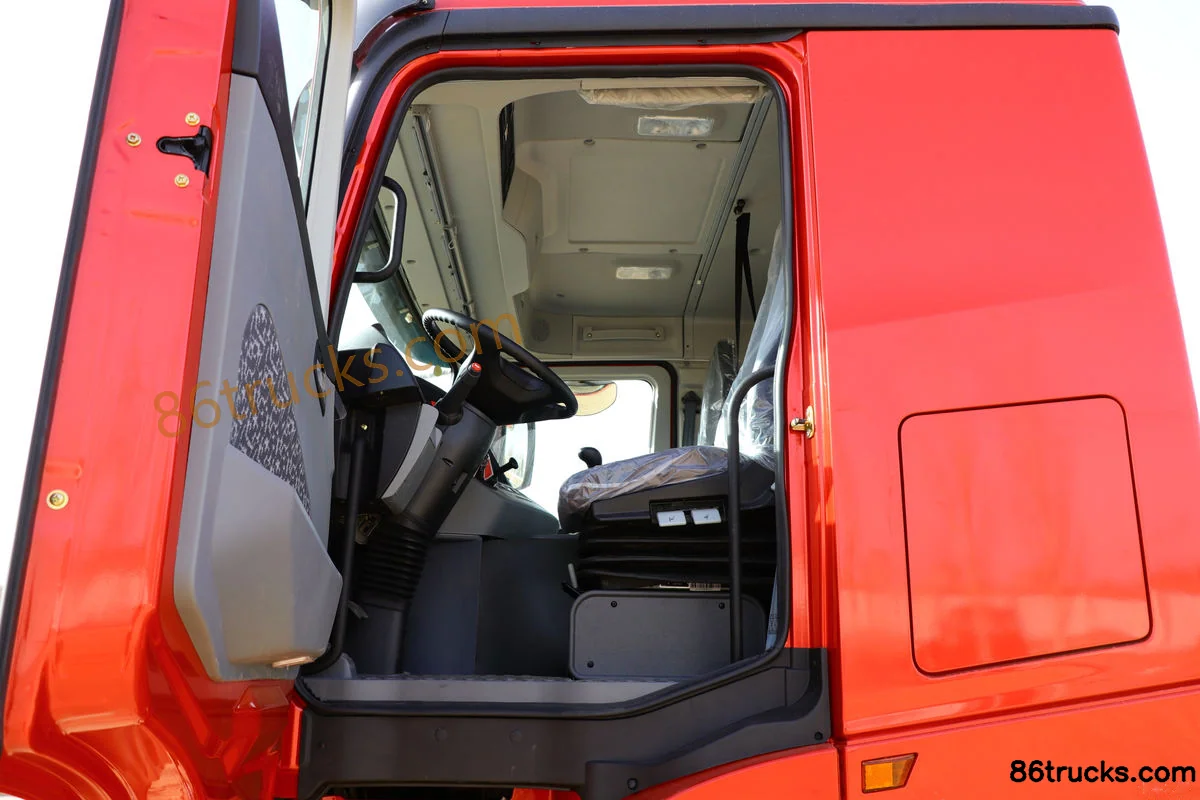

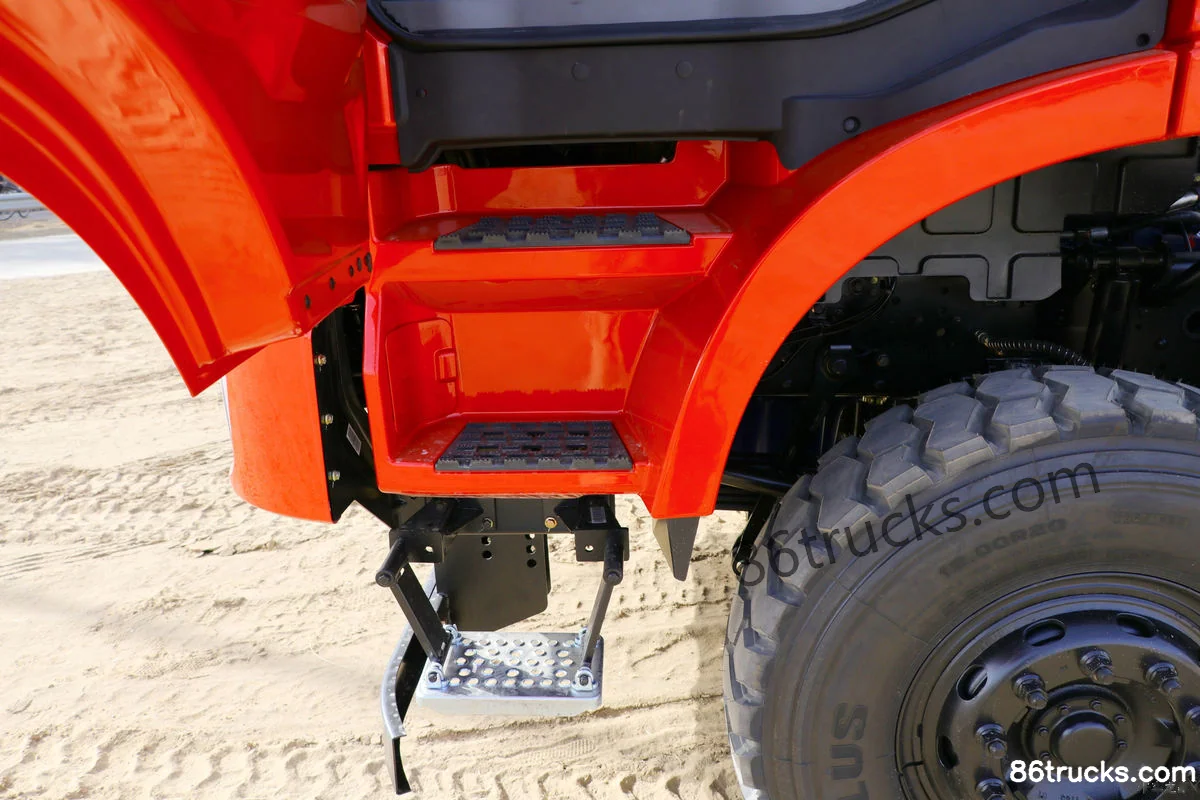

Cab3

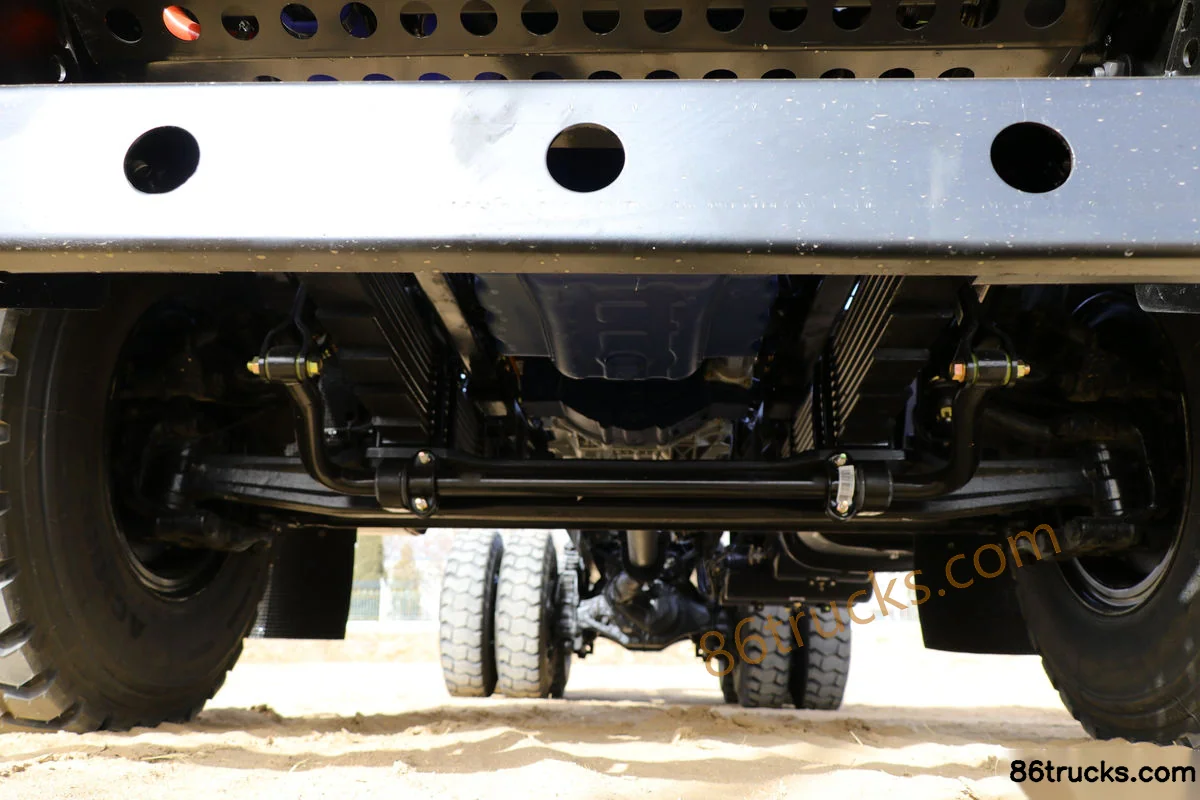

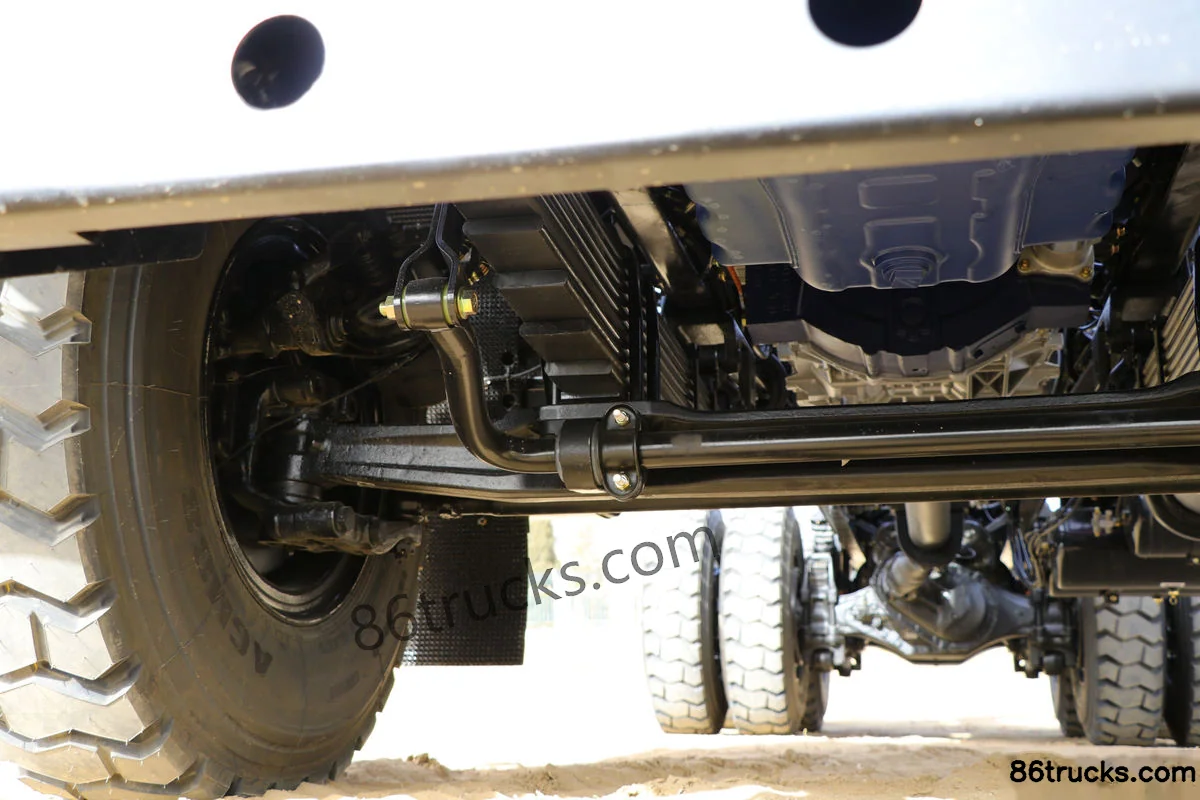

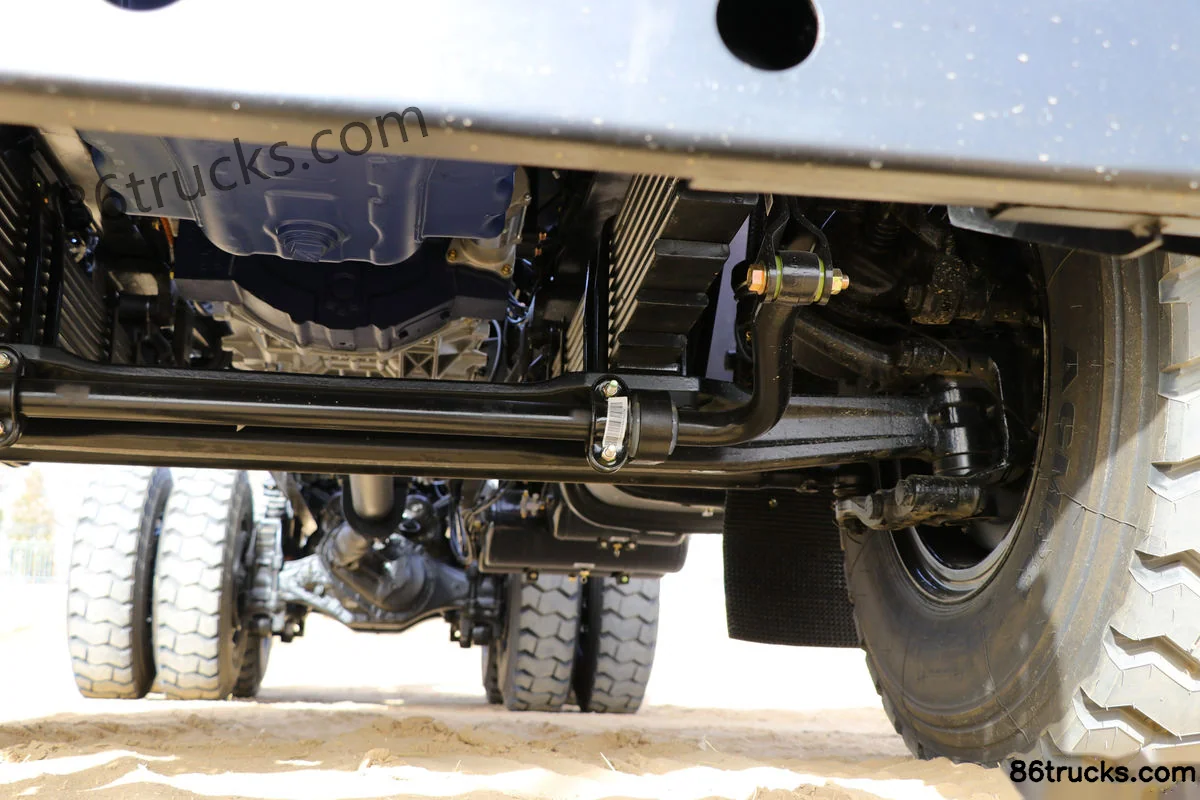

Chassis3

9 photos

FAQ

What emission standard does Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck?

Key specs of Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck: Drive: 6x4; Horsepower: 550 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck suited for?

Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck differ from other variants in the same series?

Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck belongs to Beiben V3 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
