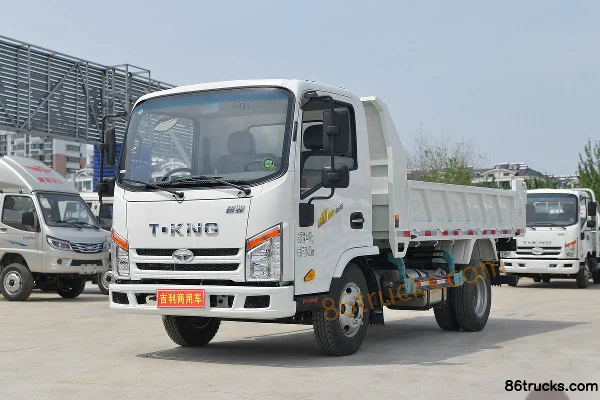

Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck

Export reference
From $15,000
MSRP ¥10.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2650mm
Tire Size:: 7.00R16LT 8PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 115
Cargo box type: Dump type

Overview

The Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ23-115E60 engine, 115 hp, China VI emissions and WLY transmission.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB3040KDC2L
Drive type: 4X2
Wheelbase: 2650mm
engine: QuanchaiQ23-115E60
transmission: WLYWLY7TS40
Rear Axle Ratio: 4.875
Cab length: 5.065m
Cab width: 1.97m
Cab height: 2.23m
Front track width: 1545mm
rear track: 1530mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Zichuan, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 25°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-115E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY7TS40
Transmission Brand: WLY
Forward gears: 7Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 90 dual lift
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.02m
Cargo box width: 1.82m
Cargo box height: 0.65m
Cab parameters
Cab: Single Row
Chassis Specs
Front axle description: Isuzu
Front axle allowable load: 1700kg
Frame Dimensions: 200mm
rear axle description: Isuzu air brake
rear axle allowable load: 2795kg
Axle ratio: 4.875
Leaf spring count: 3/5+5
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck, and what does it include?

Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck export reference is about From $15,000; MSRP is ¥10.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck?

Key specs of Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck: Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck suited for?

Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck differ from other variants in the same series?

Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck belongs to Ouling T1 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
