Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI)

Export reference
From $18,056
MSRP ¥13M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 4.495ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 14PR/7.00R16LT 14PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 143
Cargo box length: 3.15m

Overview

The Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI) is a Light Truck featuring 1.645t payload, 2.72t GVW, 3.15m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei Power490PLUS1 engine, 143 hp, China VI emissions and Fast Gear transmission.

China VI 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3044C281CFH
Drive type: 4X2
Wheelbase: 2800mm
engine: Yunnei Power490PLUS1
transmission: Fast Gear 8-speed
Cab length: 4.495m
Cab width: 1.9m
Cab height: 2.115m
Front track width: 1605mm
rear track: 1570mm
Curb Weight: 4.495ton
Rated payload: 1.645ton
GVWR: 2.72ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei Power490PLUS1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 400N·m
Max torque speed: 1300-2400rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.15m
Cargo box width: 1.8m
Cargo box height: 0.8m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1920kg
rear axle description: 69 rear axle
rear axle allowable load: 2575kg
Leaf spring count: 5/7+5
Tire
Tire Size: 7.00R16LT 14PR/7.00R16LT 14PR
Number of tires: 4pcs
Control configuration
ABS:

Photos

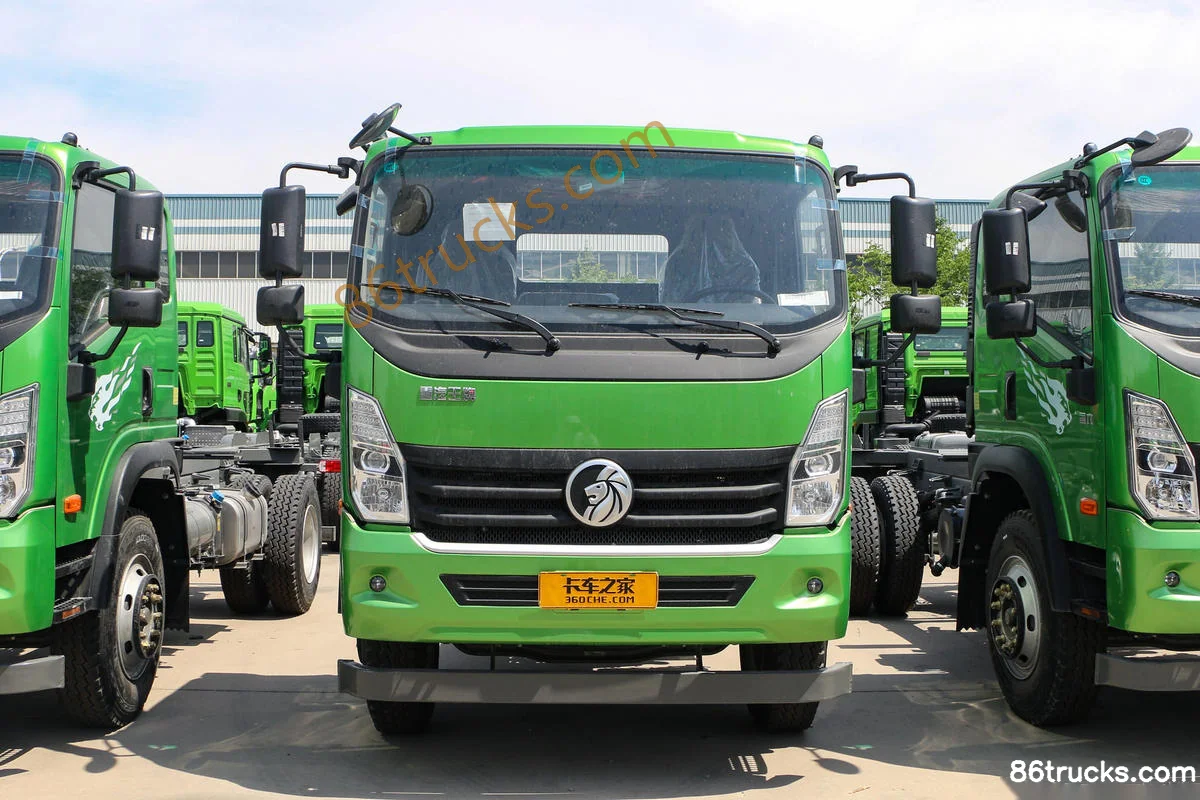

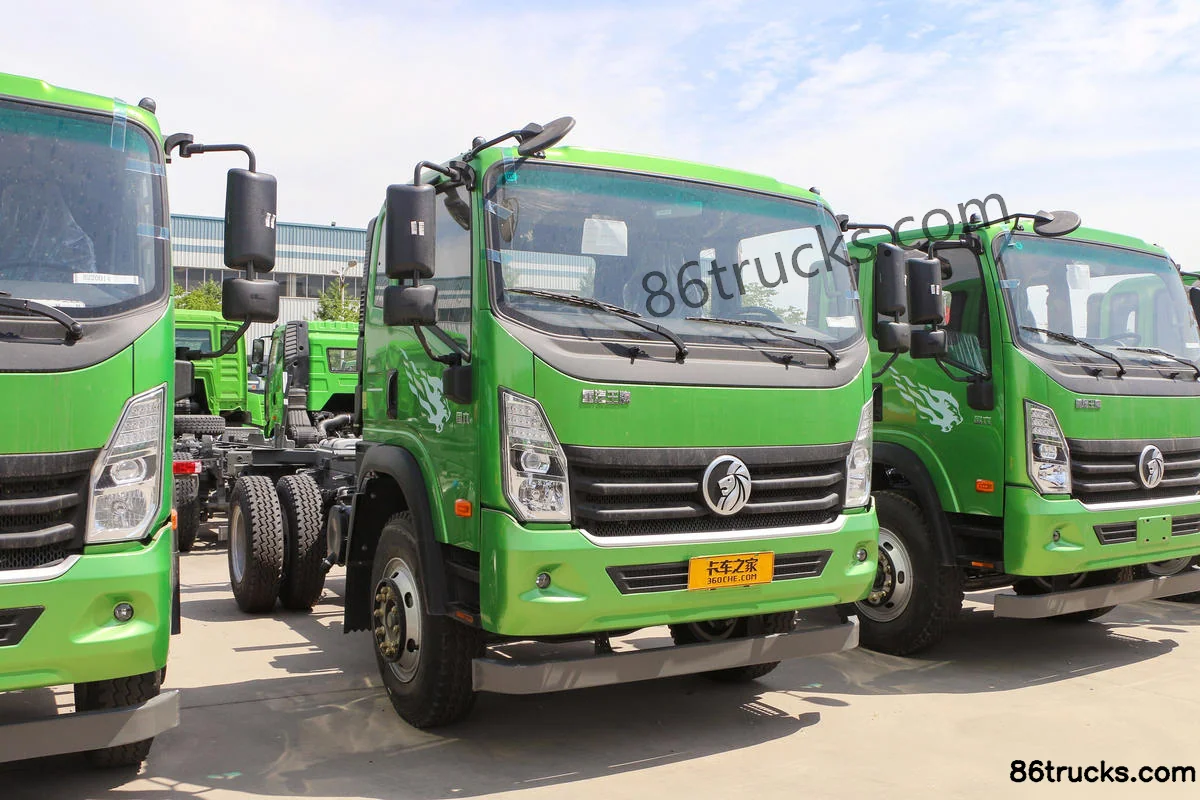

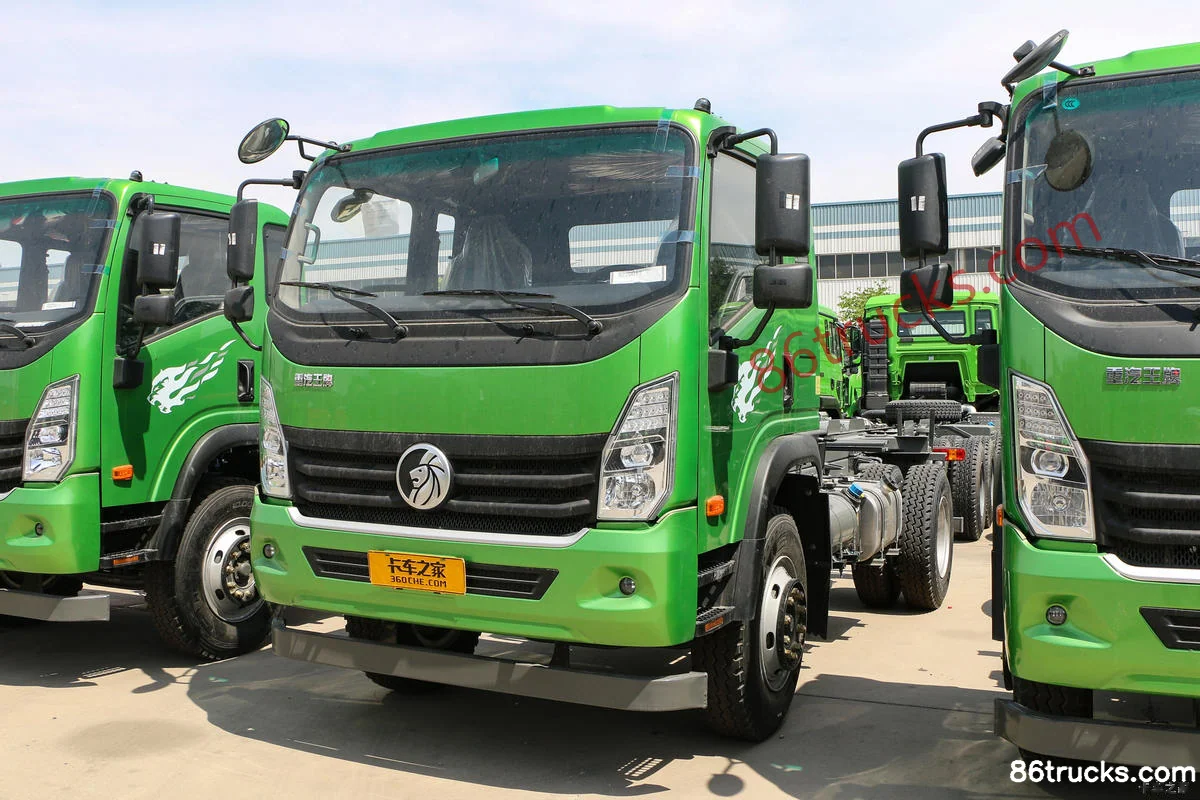

Exterior3

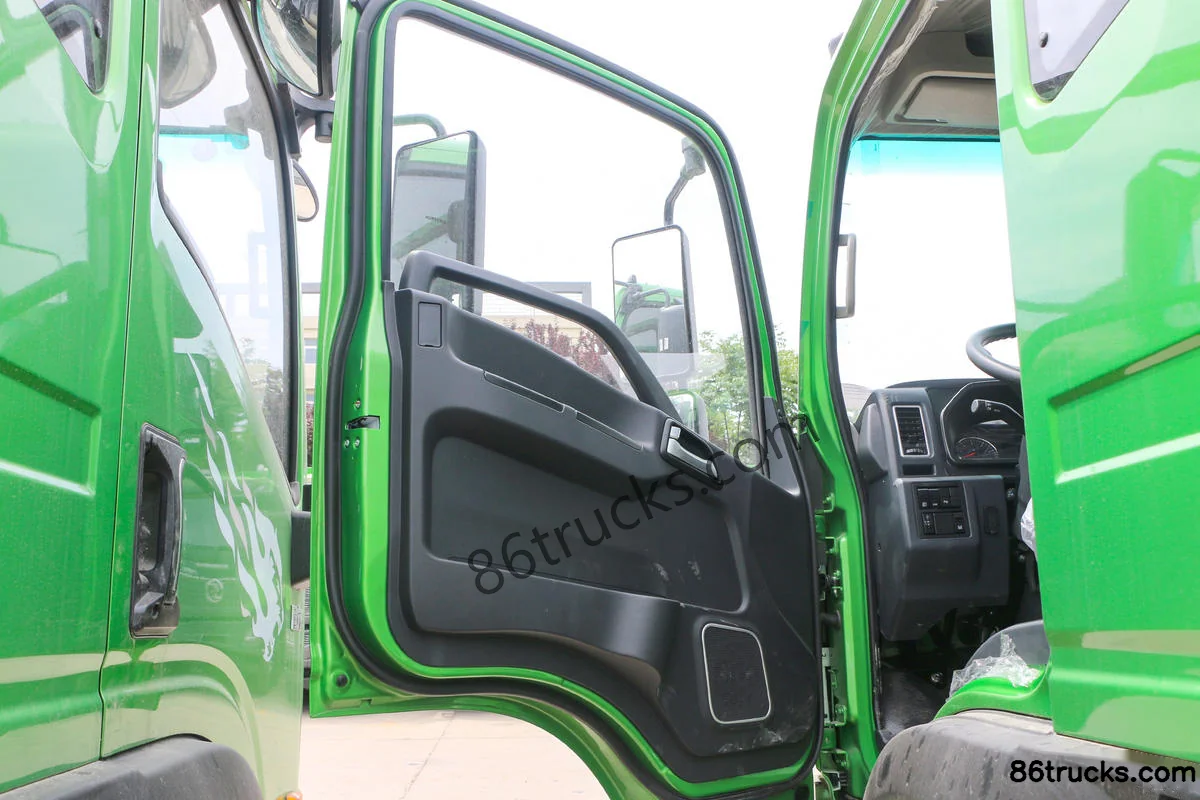

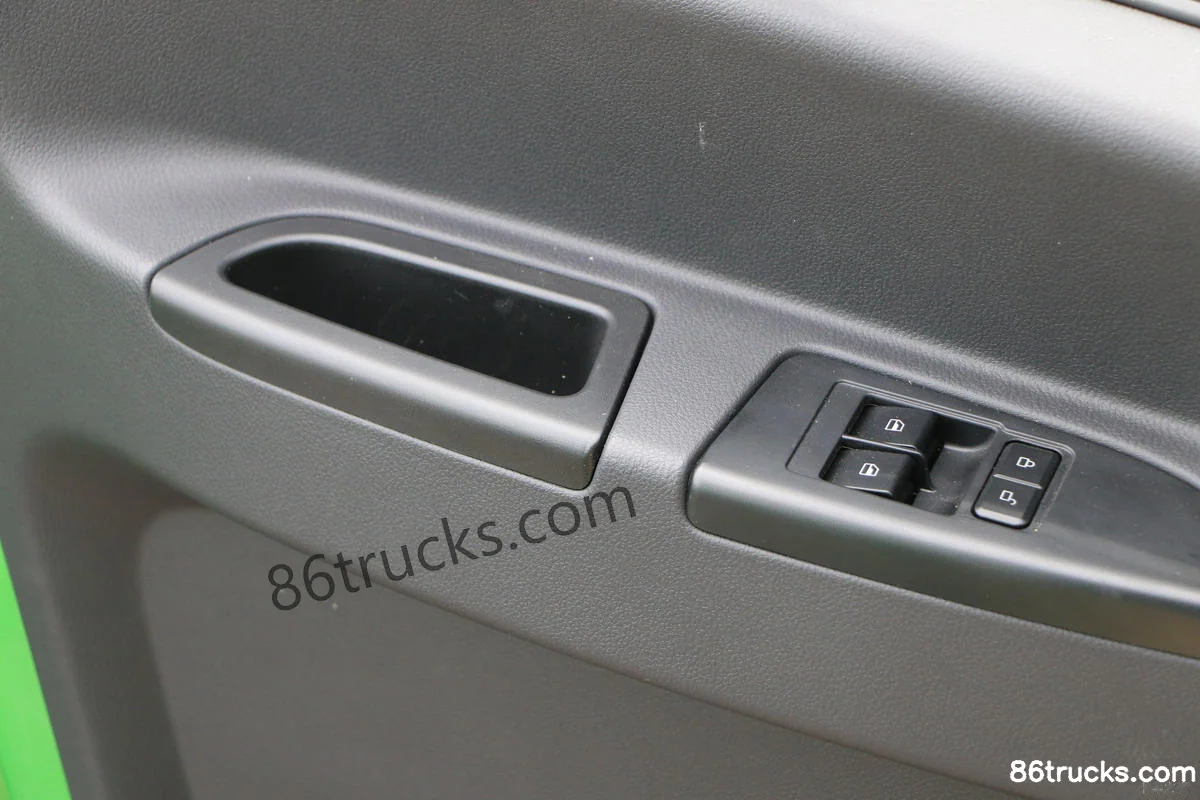

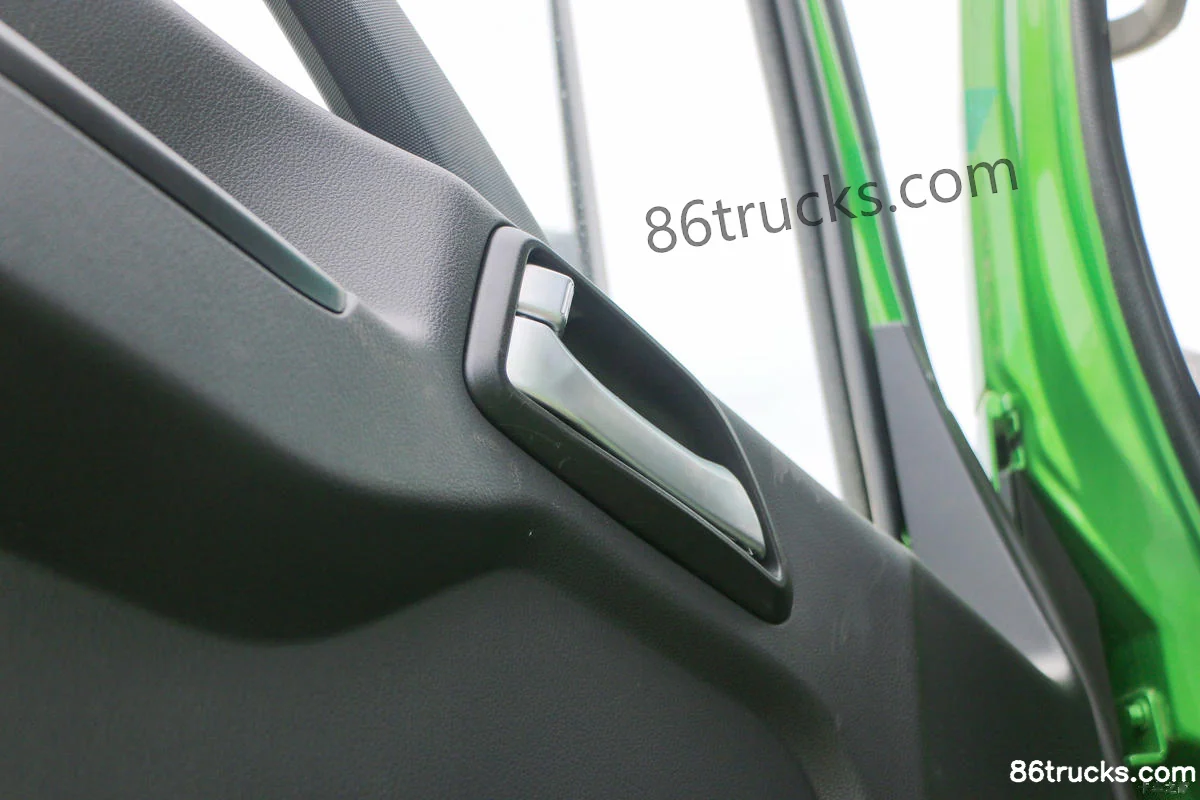

Cab3

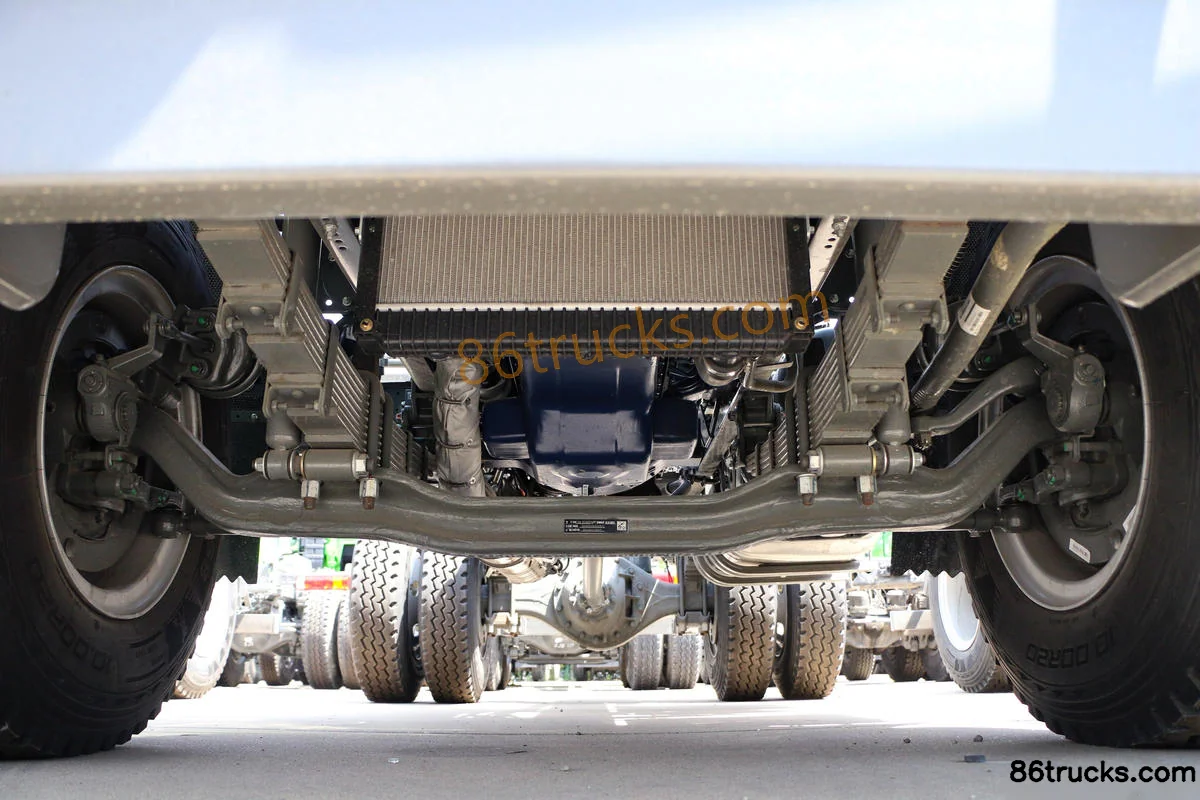

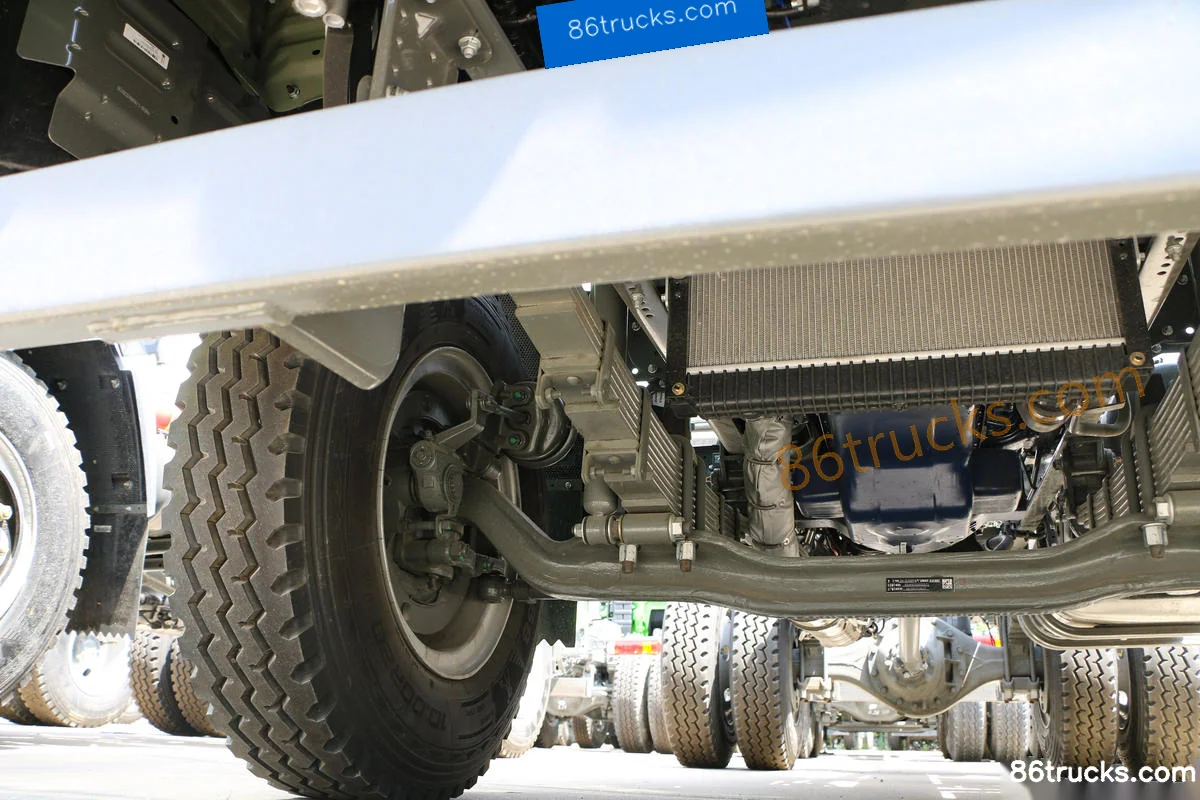

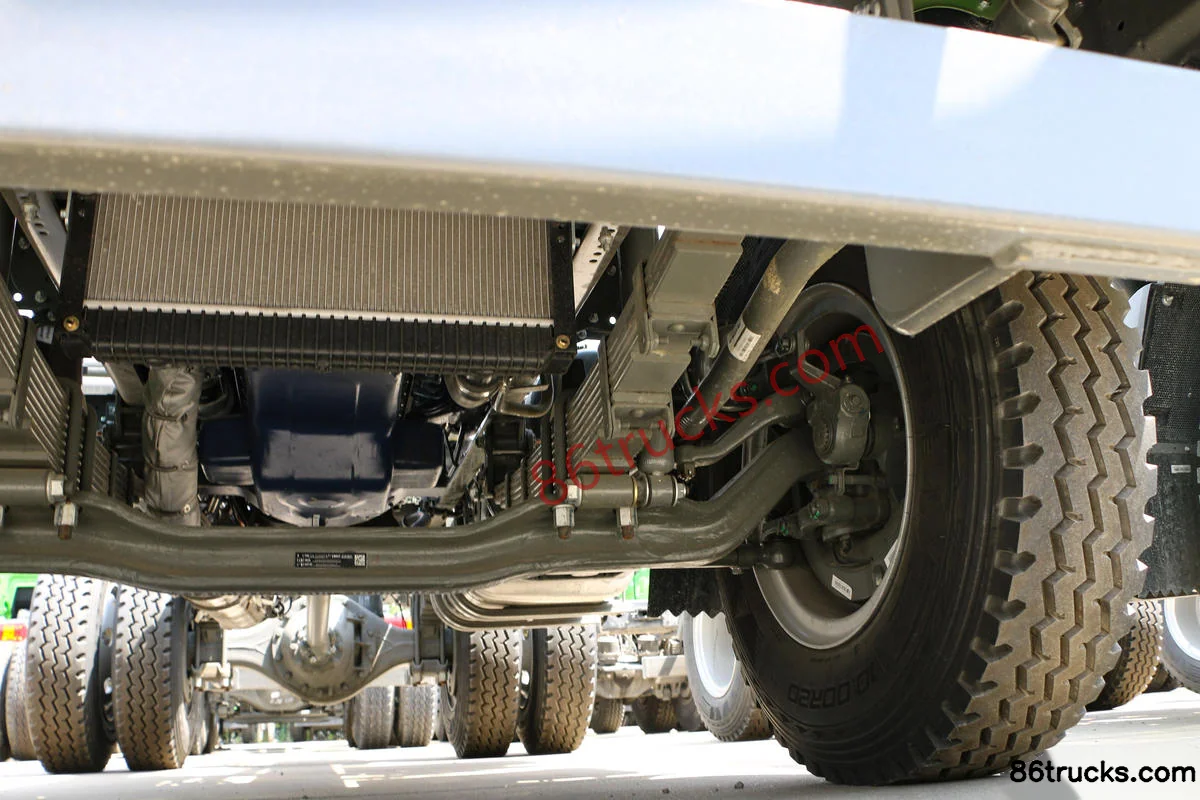

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI), and what does it include?

Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI) export reference is about From $18,056; MSRP is ¥13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI)?

Key specs of Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI): Drive: 4x2; Horsepower: 143 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI) suited for?

Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI) differ from other variants in the same series?

Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI) belongs to Sinotruk Wangpai 7 series light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
