Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck

Export reference
From $20,833
MSRP ¥15M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 4.65ton
Wheelbase:: 3300mm
Tire Size:: 245/70R19.5 16PR
Rated payload: 7.15ton
Drive 4X2 (6 wheels)
Horsepower 151
Cargo box type: Dump type

Overview

The Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck is a Medium-duty truck featuring 7.15t payload, 11.995t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN25PLUS10 engine, 151 hp, China VI emissions and WLY transmission.

China VI 151 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3124DGPBA-05
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerYN25PLUS10
transmission: WLY 8-speed
Rear Axle Ratio: 6.33
Cab length: 5.83m
Cab width: 2.31m
Cab height: 2.45m
Front track width: 1620mm
rear track: 1665mm
Curb Weight: 4.65ton
Rated payload: 7.15ton
GVWR: 11.995ton
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN25PLUS10
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 111kW
Max hp: 151Horsepower
Transmission Parameters
Transmission Model: WLY 8-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.5m
Cargo box width: 2.1m
Cargo box height: 0.6m
Cab parameters
Cab: Sleeper cab
Cab width: 1880mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 4155kg
rear axle allowable load: 7840kg
Axle ratio: 6.33
Leaf spring count: 8/12+9
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

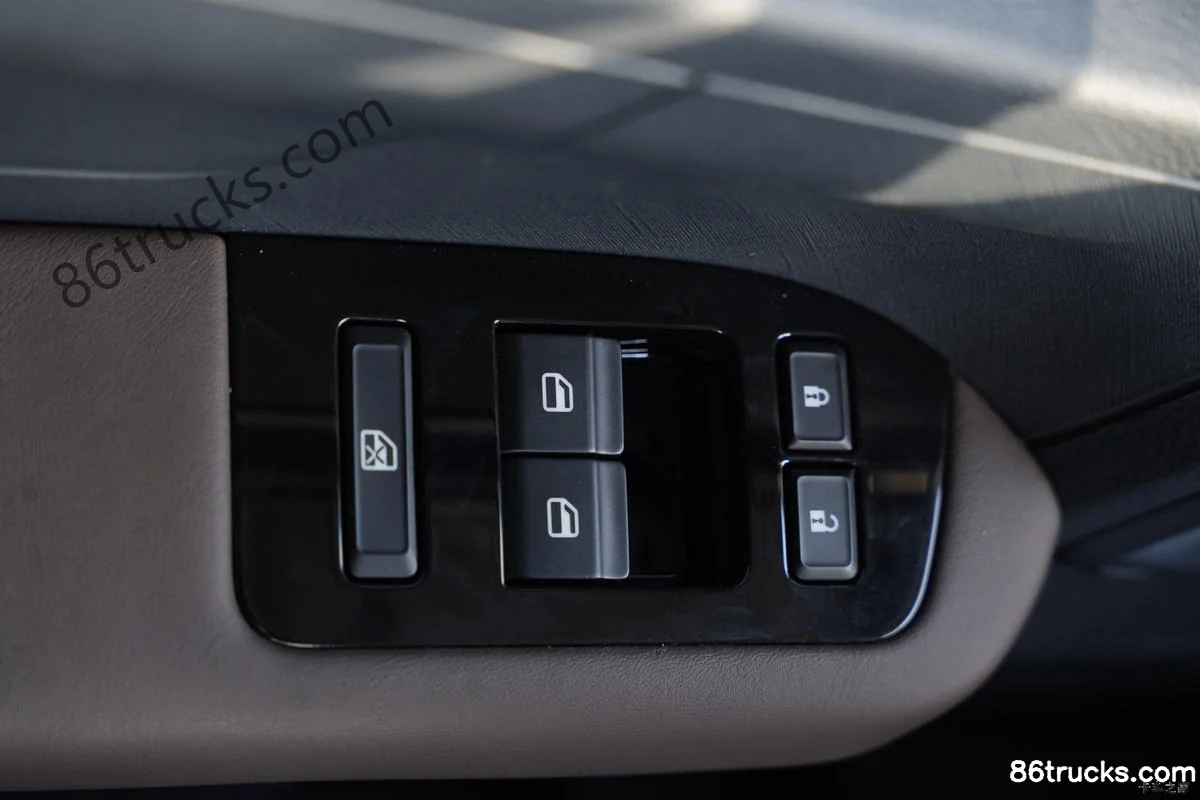

Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
smart configuration
Cruise control (CCS):

Photos

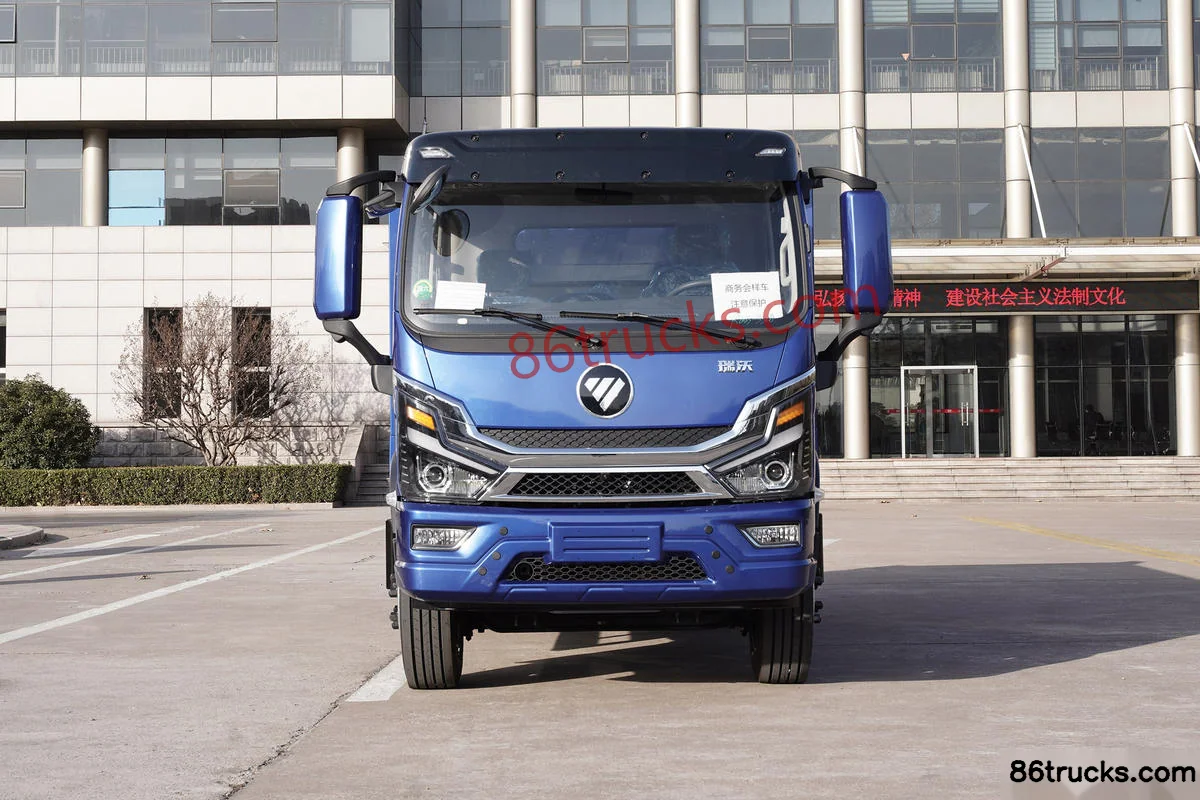

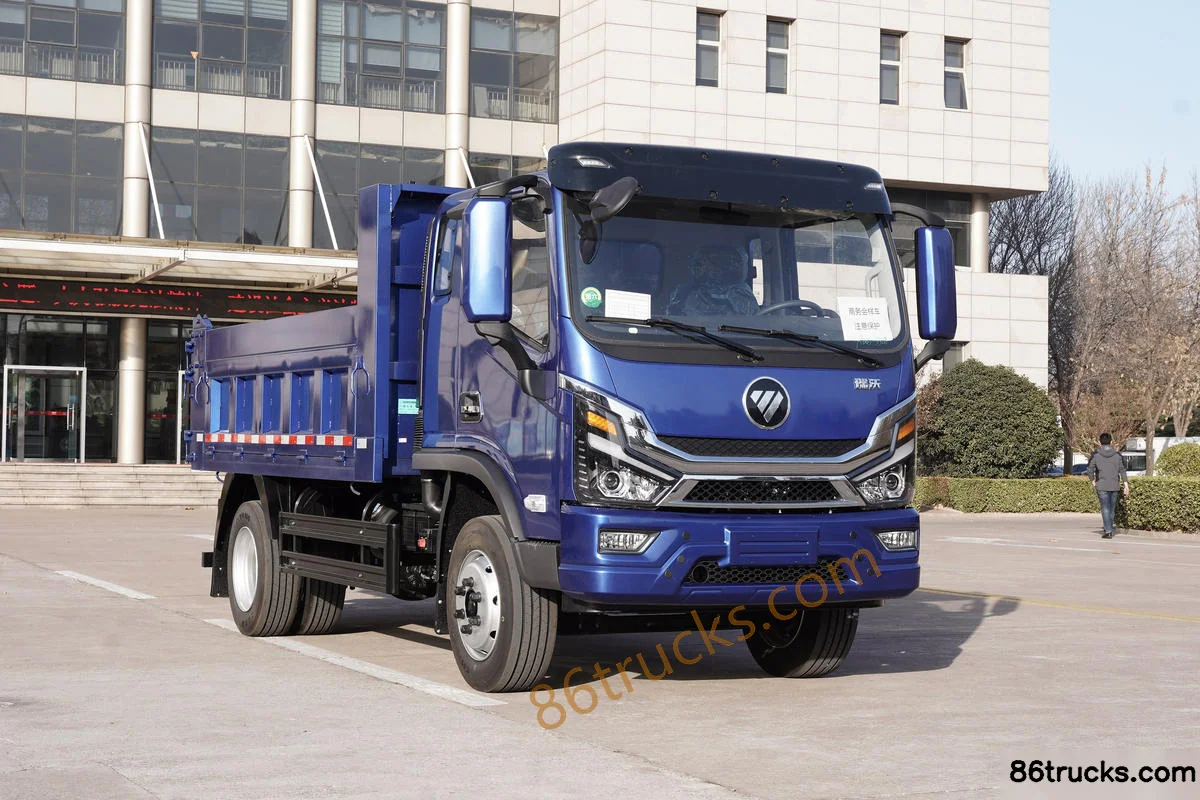

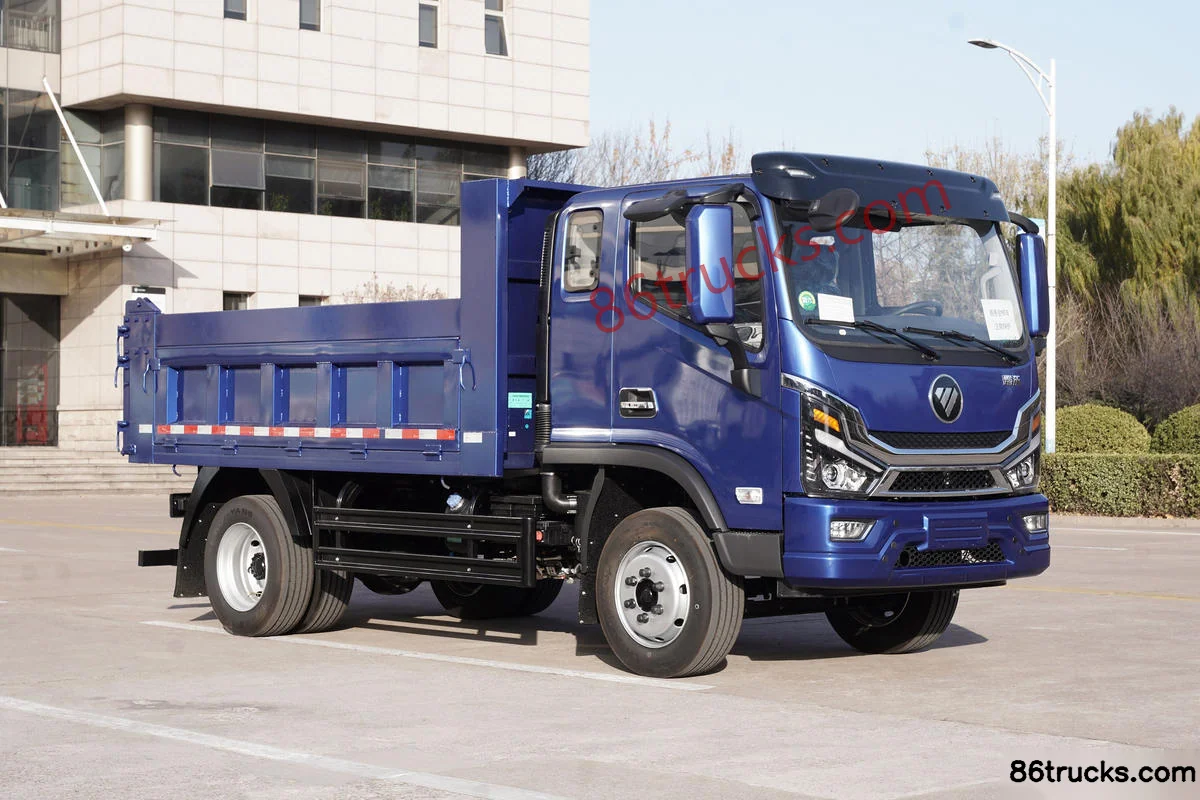

Exterior3

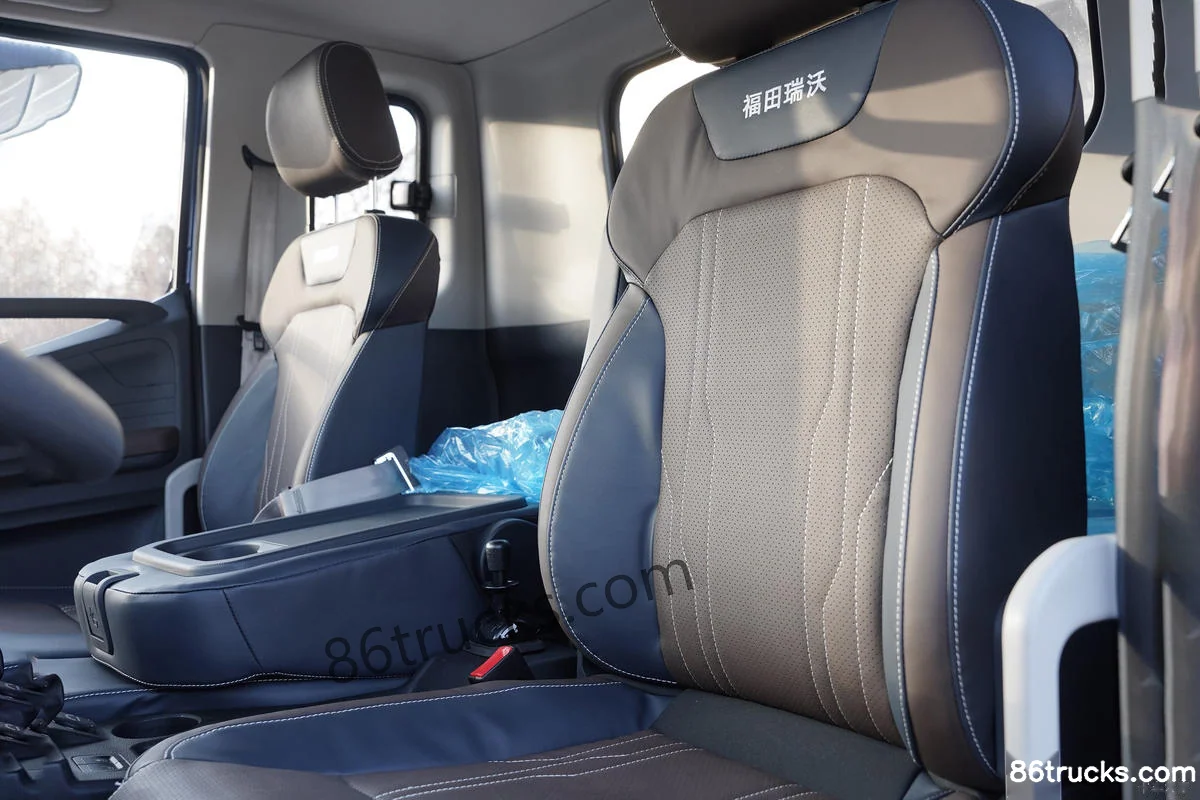

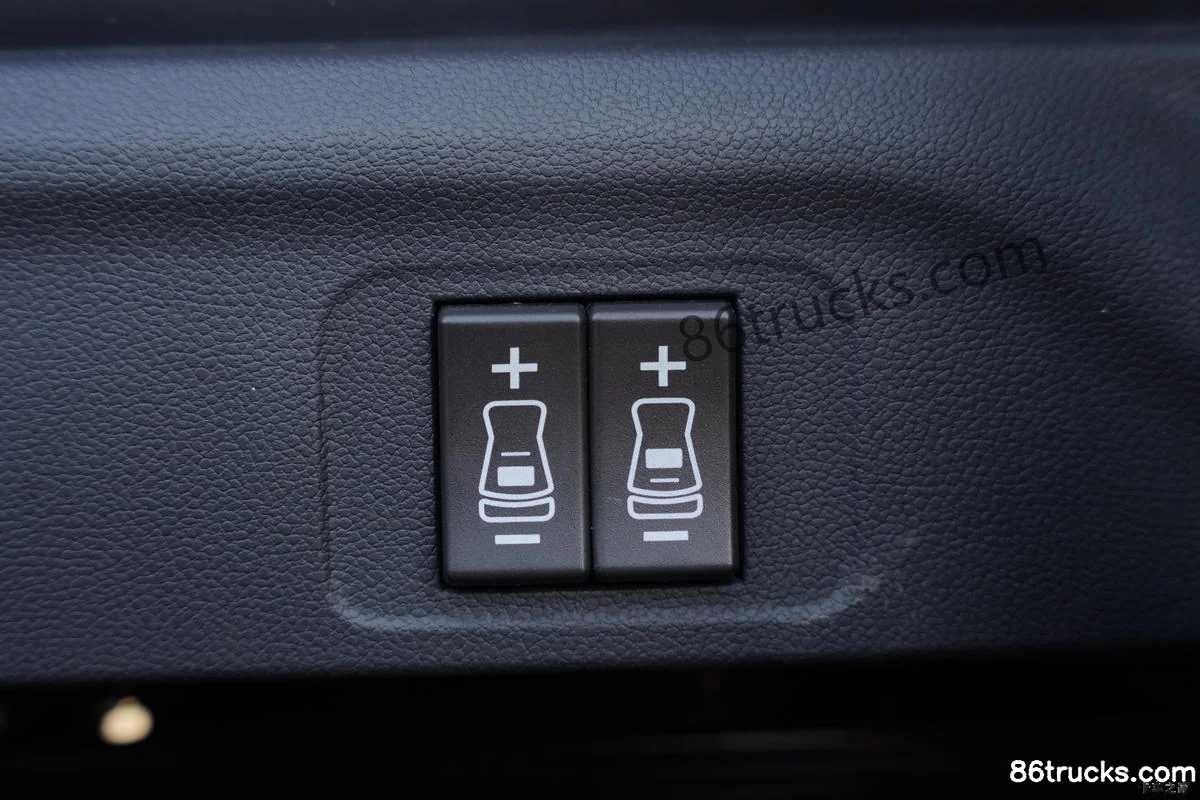

Cab3

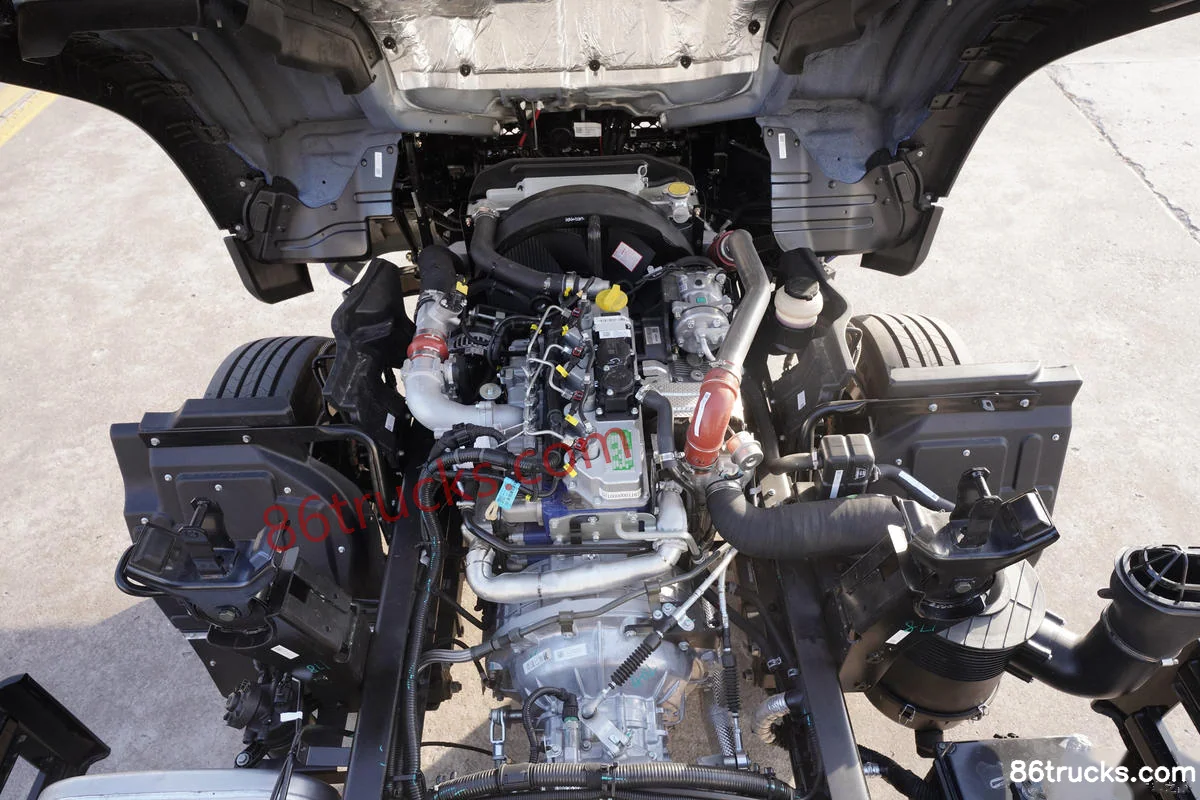

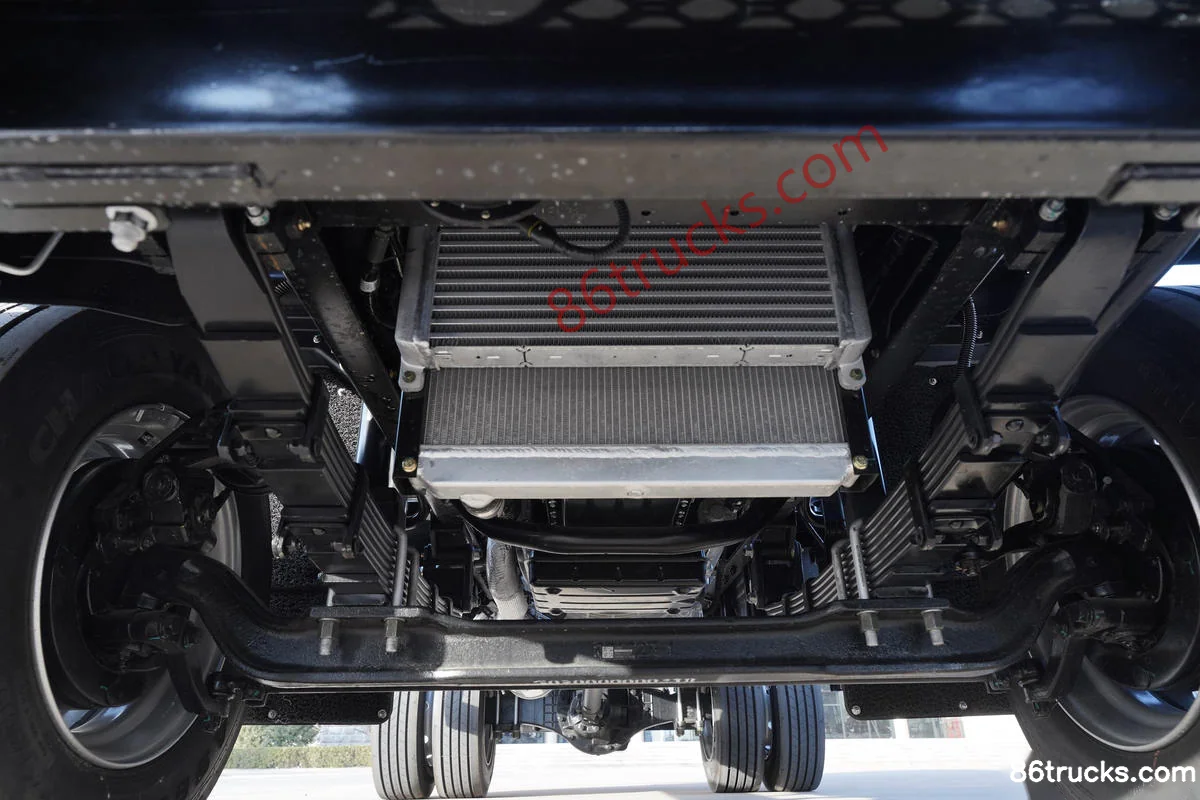

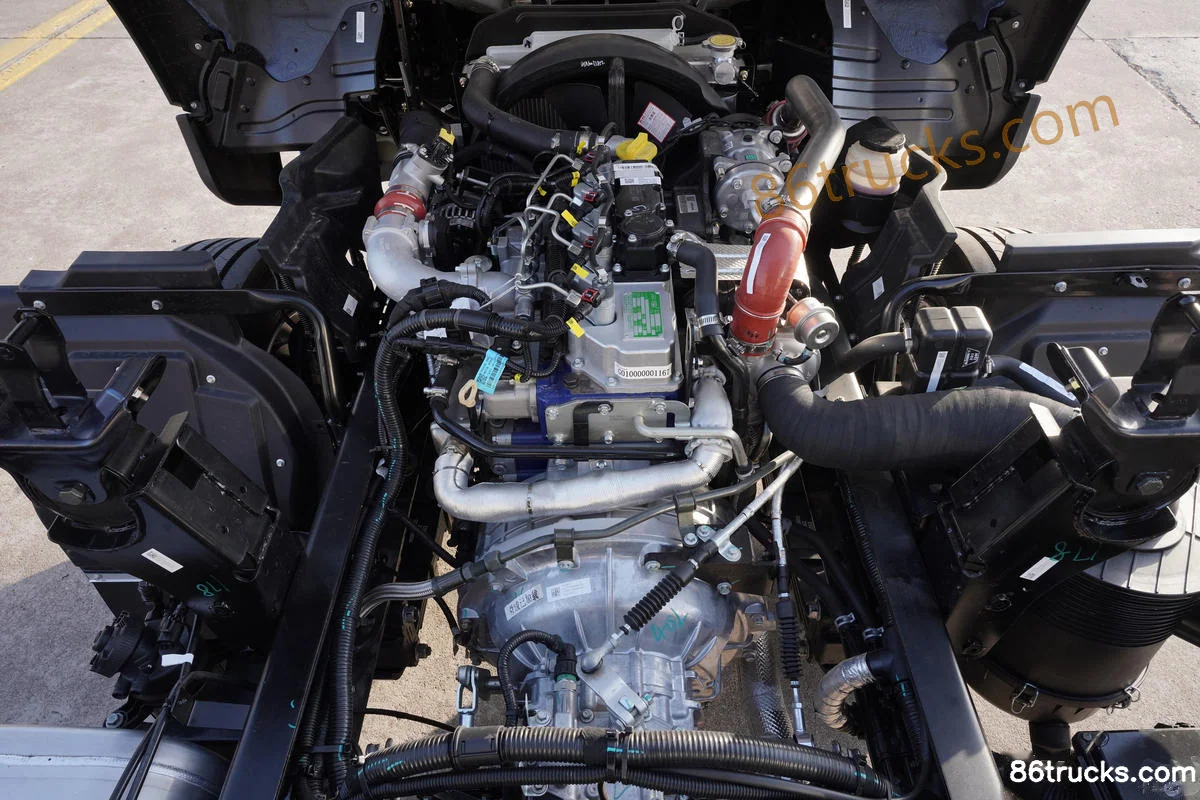

Chassis3

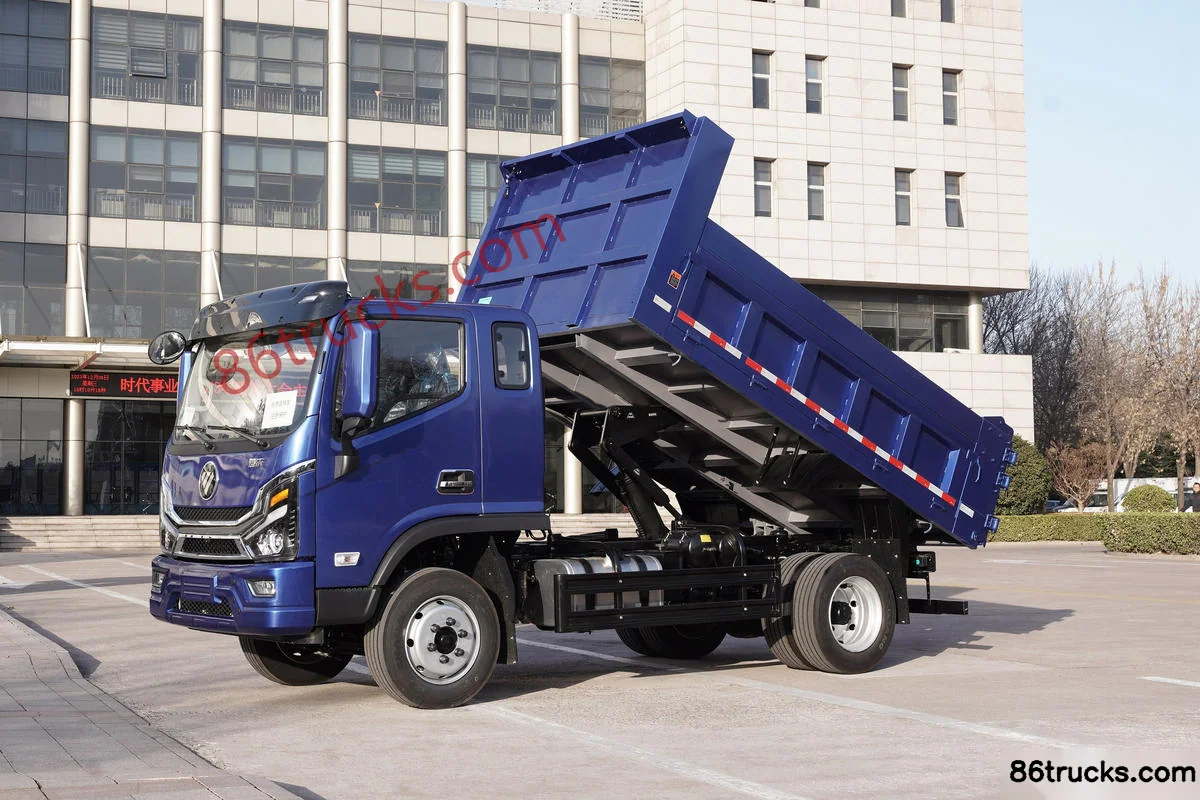

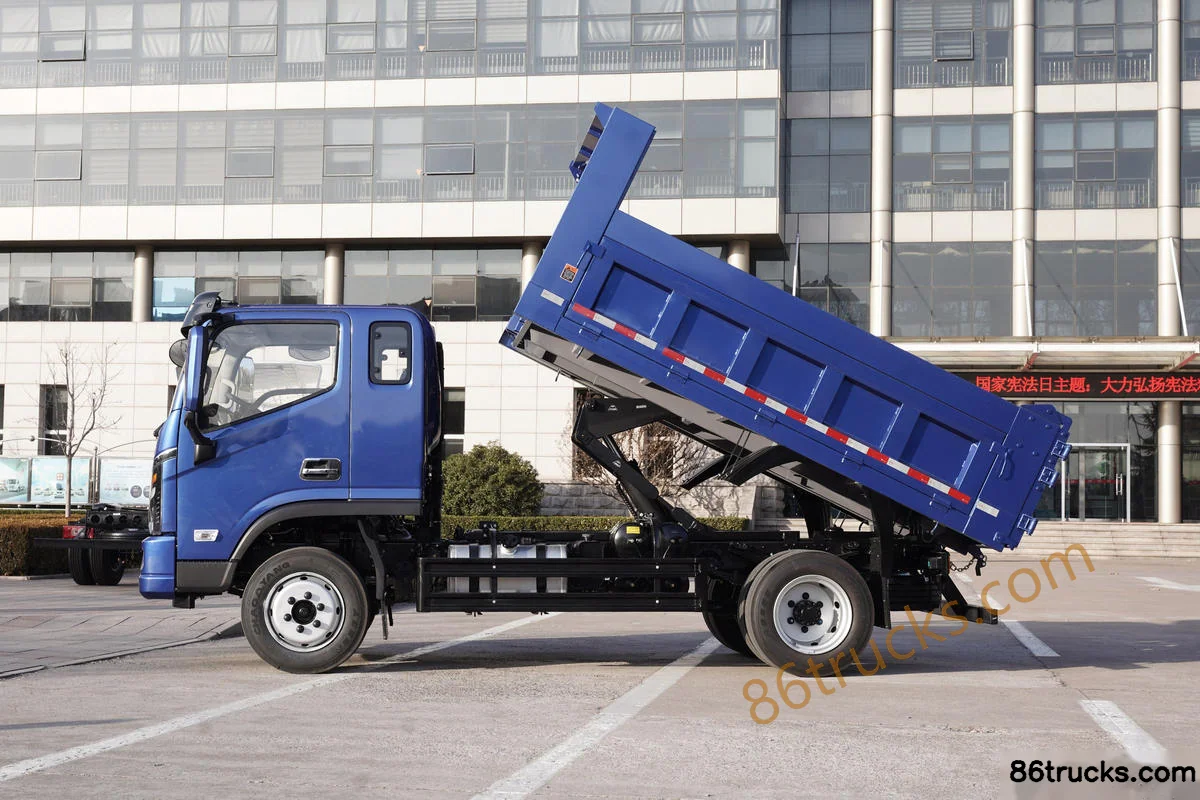

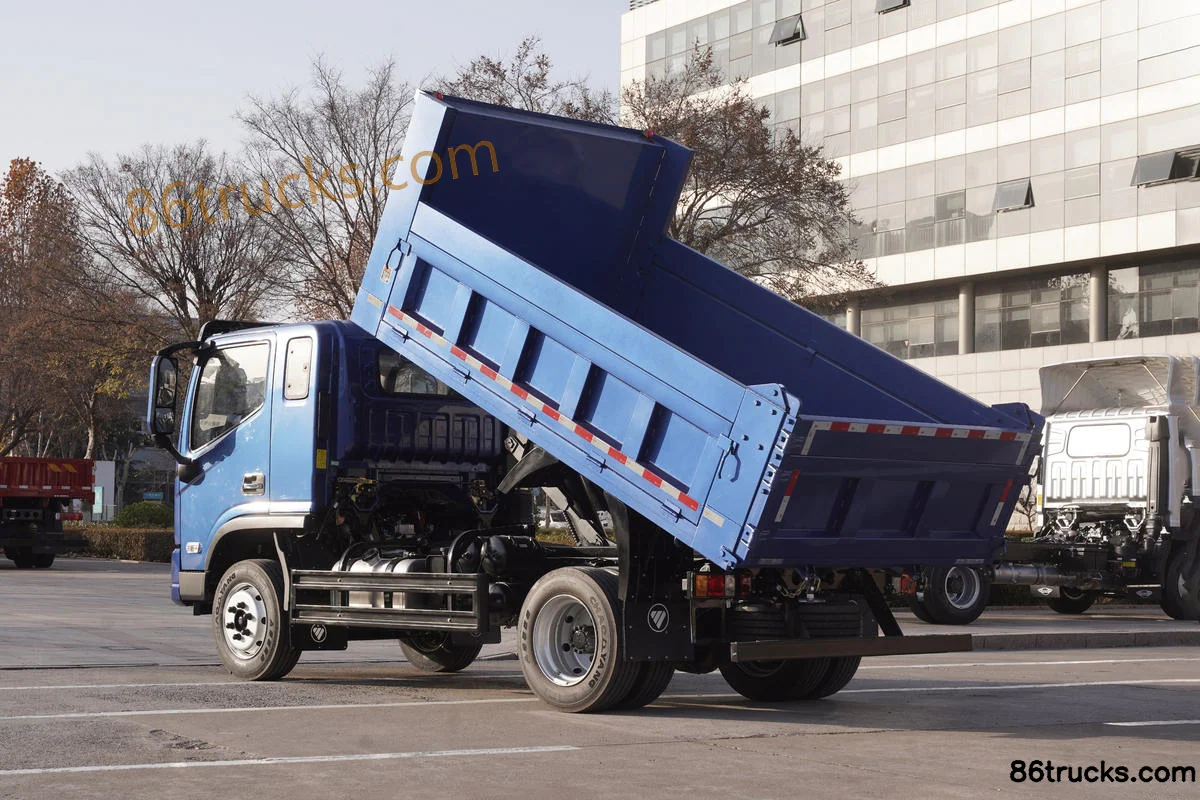

Body3

12 photos

FAQ

What is the export price of Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck, and what does it include?

Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck export reference is about From $20,833; MSRP is ¥15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck?

Key specs of Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck: Drive: 4x2; Horsepower: 151 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck suited for?

Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck differ from other variants in the same series?

Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck belongs to Foton Dajingang ES3 Pro light-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Dajingang ES3 Pro 151 hp 4X2(6 wheels) 3.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
