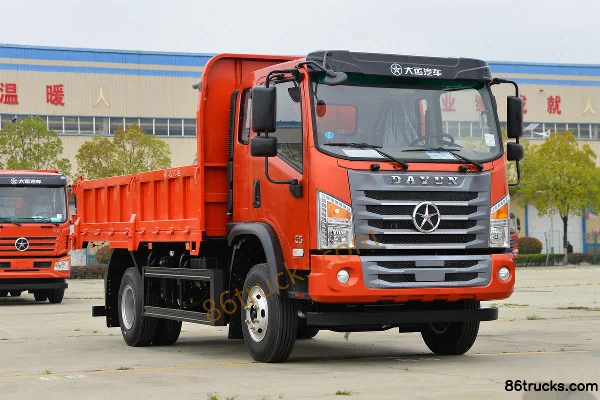

Dayun G5 Composite 160 hp 4X2(6 wheels) 4m dump truck
EXW
From $18,625
Export quote
DayunG5 Dump Trucks
Main model photos
89 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun G5 Composite 160 hp 4X2(6 wheels) 4m dump truck | 4x2 / 160hp / China VI | From $18,625 | |
| Dayun G5 165hp 4X2(6 wheels) 5.3m Dump Truck | 4x2 / 165hp / China VI | From $16,917 | |
| Dayun G5 165 hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 165hp / China VI | From $16,694 | |
| Dayun G5 160hp 4X2(6 wheels) 4m Dump Truck (China VI) | 4x2 / 160hp / China VI | From $18,625 | |
| Dayun G5 165hp 4X2(6 wheels) 4m Dump Truck (9t rear axle) | 4x2 / 165hp / China VI | From $17,639 |
Dayun G5 165hp 4X2(6 wheels) 5.3m Dump Truck
EXW
From $16,917
Export quote
Dayun G5 165 hp 4X2(6 wheels) 4.2m Dump Truck
EXW
From $16,694
Export quote
Dayun G5 160hp 4X2(6 wheels) 4m Dump Truck (China VI)
EXW
From $18,625
Export quote
Dayun G5 165hp 4X2(6 wheels) 4m Dump Truck (9t rear axle)
EXW
From $17,639
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun G5 Composite 165 hp 4X2(6 wheels) 4m Dump Truck (China VI)(10t rear axle) | 4x2 / 165hp / China VI | ||
| Dayun G5 Composite 165 hp 4X2(6 wheels) 4m Dump Truck (China VI) | 4x2 / 165hp / China VI | ||
| Dayun G5 Composite Type 165 hp 4X2(6 wheels) 3.8m dump truck (China VI)(10t rear axle) | 4x2 / 165hp / China VI | ||
| Dayun G5 165 hp 4X2(6 wheels) 3.8m dump truck (China VI) (6.5 ratio) | 4x2 / 165hp / China VI | ||
| Dayun G5 165 hp 4X2(6 wheels) 3.8m dump truck (China VI) | 4x2 / 165hp / China VI |
Dayun G5 Composite 165 hp 4X2(6 wheels) 4m Dump Truck (China VI)(10t rear axle)
EXW
Export quote
Dayun G5 Composite 165 hp 4X2(6 wheels) 4m Dump Truck (China VI)
EXW
Export quote
Dayun G5 Composite Type 165 hp 4X2(6 wheels) 3.8m dump truck (China VI)(10t rear axle)
EXW
Export quote
Dayun G5 165 hp 4X2(6 wheels) 3.8m dump truck (China VI) (6.5 ratio)
EXW
Export quote
Dayun G5 165 hp 4X2(6 wheels) 3.8m dump truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): DYQ3165D6AC / DYQ3111D6AB / DYQ3185D6AC / DYQ3125D6AB / DYQ3098D6AC / DYQ3186D6AB / DYQ3141D6AB / DYQ3185D6AB / DYQ3165D6AB
Drive type: 4X2
Wheelbase: 3400 / 4300 / 3300mm
Engine Model: YuchaiYCS04160-68 / YuchaiYCY30165-60 / Yunnei PowerD30TCIF3 / YuchaiYCY24140-60 / Yunnei PowerD25TCIF1 / Yunnei PowerD30TCIF1 / YuchaiYCY30150-60
Transmission Model: Fast Gear8JS85F-C / Fast Gear8JS75TE-C / Fast GearC8J45T / Fast Gear8JS85E-C / WLYWLY10H46
Rear Axle Ratio: 6.5 / 5.833 / 6.333
Cab length: 6.3 / 6.65 / 6.35 / 6.1 / 6.05 / 6.25 / 6.4 / 3.1m
Cab width: 2.45 / 2.31 / 2.4 / 2.35 / 2.5 / 2.25 / 1880m
Cab height: 2.85 / 2.75 / 2.7m
Front track width: 1780 / 1755 / 1767 / 1790 / 1625 / 1765 / 1785mm
rear track: 1635 / 1645 / 1705 / 1700 / 1580 / 1810mm
Curb Weight: 6.5 / 6.075 / 5.55 / 5.8 / 6.2 / 6.825 / 6.25 / 5.2 / 7.875 / 8.075ton
Rated payload: 9.57 / 5.52 / 12.005 / 9.87 / 4.93 / 5.505 / 4.155 / 3.705 / 12.07 / 5.205 / 11.67 / 7.73 / 5.455 / 9.805 / 4.995 / 9.995 / 7.995ton
GVWR: 16.2 / 11.2 / 18 / 11.95 / 9.1 / 14.06ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck / Medium-duty truck
Approach angle: 16 / 18 / 17°
departure angle: 18 / 17 / 19 / 20 / 16°
Remarks: Steel air reservoir. / Front lift / Double middle lift / Frameless single middle lift
Version: Composite type / Standard Load Type / Light-duty
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Yunnei Power
Number of cylinders: 4cylinder
Displacement: 4.16 / 2.97 / 3 / 2.36 / 2.5L
Emission standard: China VI
Max output power: 118 / 121 / 116 / 103 / 110 / 125kW
Max hp: 160 / 165 / 158 / 140 / 150 / 170Horsepower
Max torque: 550 / 500 / 400 / 450N·m
Max torque speed: 1200-1900 / 1400-2200 / 1100-2800 / 1400-2000 / 1400-2400 / 1200-2200rpm
Rated speed: 2300 / 2800 / 2950 / 3000rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: Fast Gear / WLY
shift method: Manual
Forward gears: 8 / 5Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4 / 5.3 / 4.2 / 3.9 / 3.75 / 4.15 / 3.8m
Cargo box width: 2.2 / 2.3 / 2.1 / 2.16 / 2.05m
Body Parameters
Lifting type: Front lift cylinder, mid dual lift cylinders / No subframe center single lift / Front lift cylinder / Front lift / Double middle lift / Frameless double middle lift / Front lift / Double middle lift / Frameless single middle lift / Frameless front lift / Front lift / Double middle lift / Frameless double middle lift / Frameless single middle lift / Frameless front lift / Mid-roof single top / Front lift / Double middle lift / Front lift / Double middle lift / Frameless single middle lift / Middle single lift without subframe, front lift
FAQ
What kind of truck is Dayun DayunG5 Dump Trucks?
Dayun DayunG5 is an export-oriented Dump Trucks lineup with about 102 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for DayunG5 Dump Trucks?
DayunG5 Dump Trucks export reference is about $15,333 – $21,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does DayunG5 Dump Trucks cover?
DayunG5 Dump Trucks mainly covers: Drive: 4x2; Horsepower: 160 hp / 165 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DayunG5 Dump Trucks?
For DayunG5 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does DayunG5 Dump Trucks include?
DayunG5 Dump Trucks currently lists about 102 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DayunG5 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
