Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed)

Export reference
From $15,542
MSRP ¥11.19M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 5.2ton
Wheelbase:: 3300mm
Tire Size:: 8.25R16LT 16PR
Rated payload: 3.705ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed) is a Medium-duty truck featuring 3.705t payload, 9.1t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCY24140-60 engine, 140 hp, China VI emissions and Fast Gear transmission.

China VI 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3098D6AC
Drive type: 4X2
Wheelbase: 3300mm
engine: YuchaiYCY24140-60
transmission: Fast GearC8J45T
Rear Axle Ratio: 5.833
Cab length: 6.05m
Cab width: 2.35m
Cab height: 2.7m
Front track width: 1625mm
rear track: 1580mm
Curb Weight: 5.2ton
Rated payload: 3.705ton
GVWR: 9.1ton
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCY24140-60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.36L
Emission standard: China VI
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 400N·m
Max torque speed: 1400-2000rpm
Rated speed: 2950rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast GearC8J45T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.75m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab: Day cab standard roof
seating capacity: 2Personnel
Chassis Specs
Front axle description: 2.3t standard axle
Front axle allowable load: 3300kg
Frame Dimensions: 800×323×(7+4)mm
rear axle description: 7t shortened axle
rear axle allowable load: 5800kg
Axle ratio: 5.833
Leaf spring count: 9/10+8
Tire
Tire Size: 8.25R16LT 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

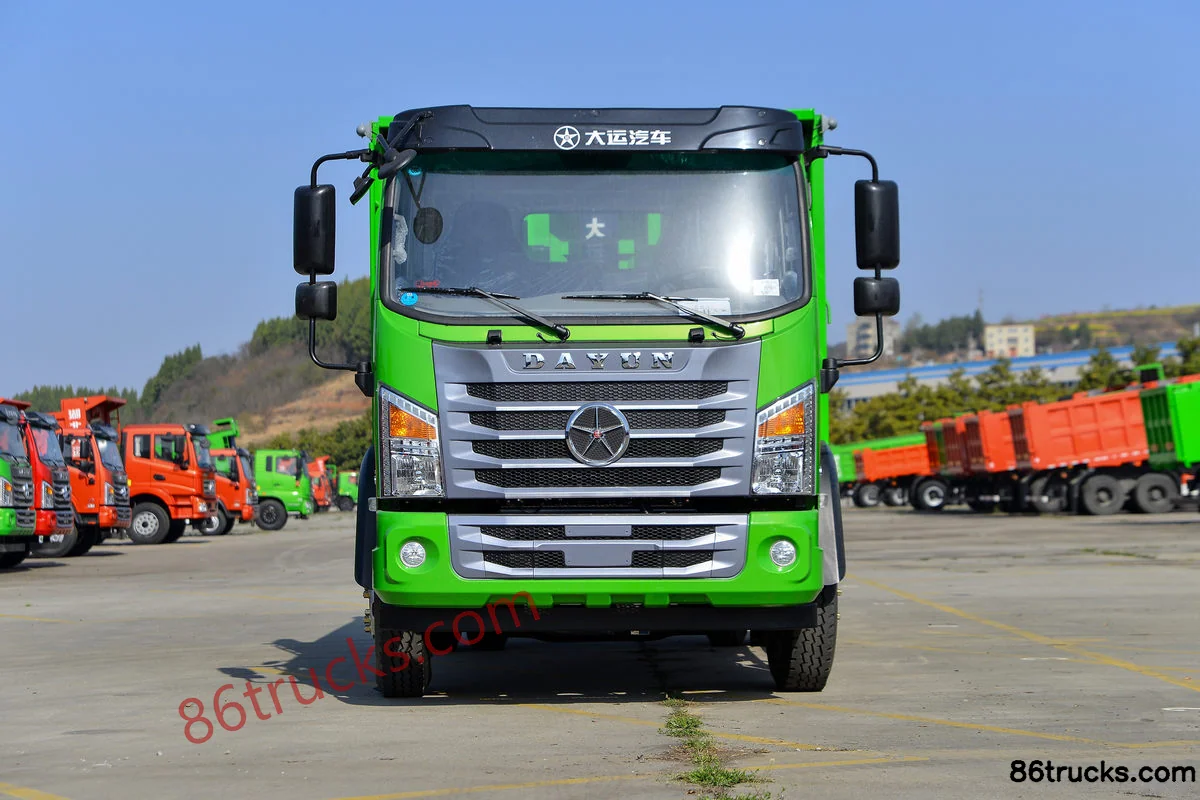

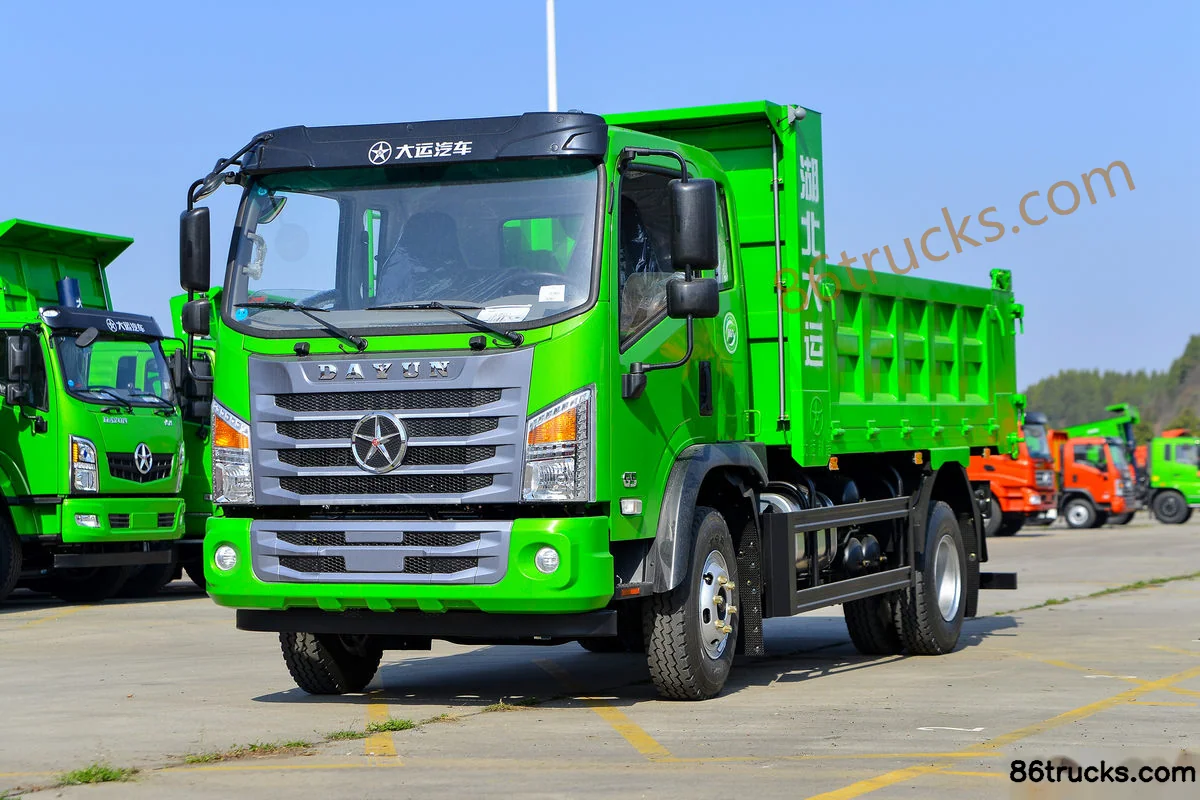

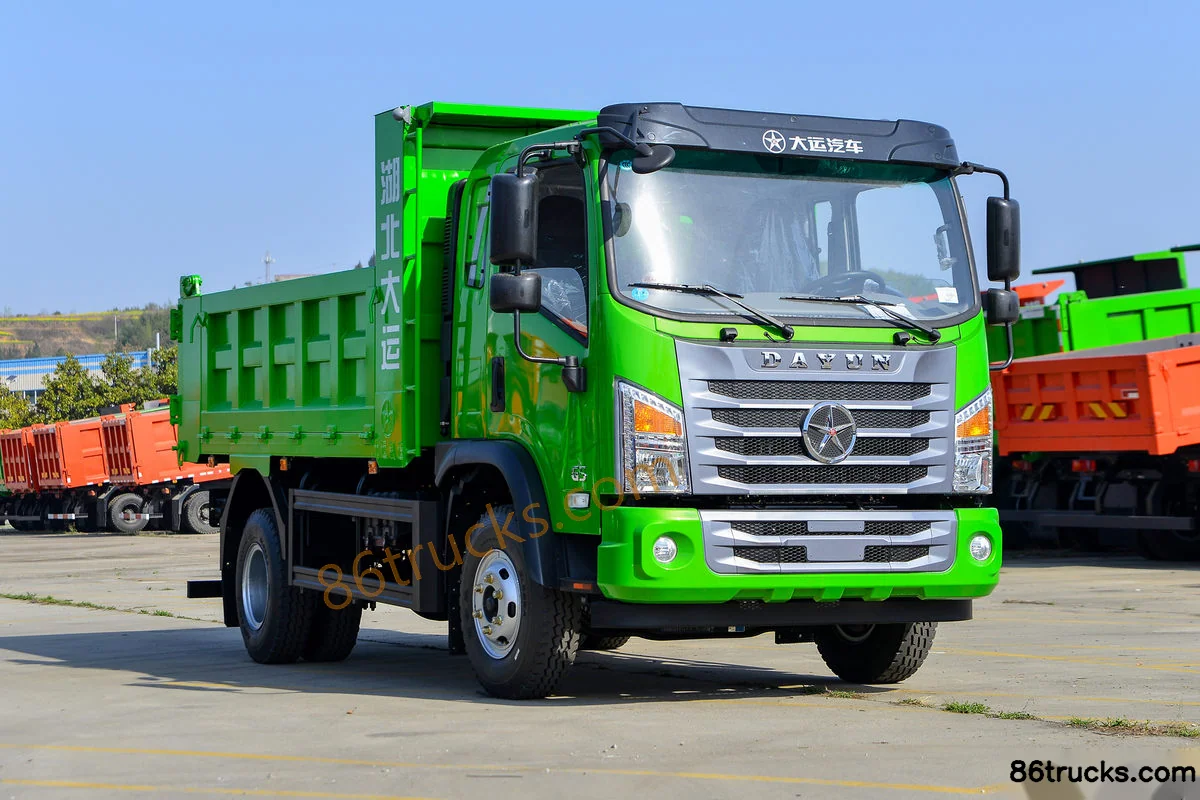

Exterior3

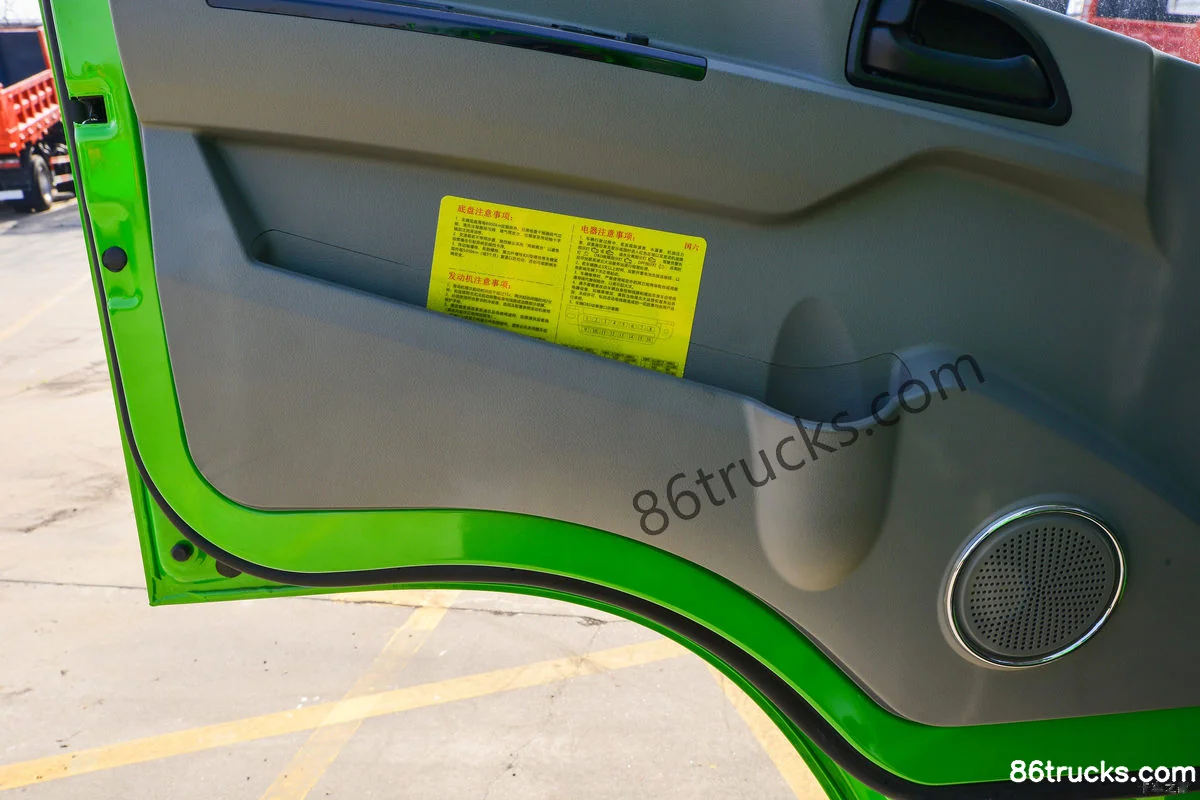

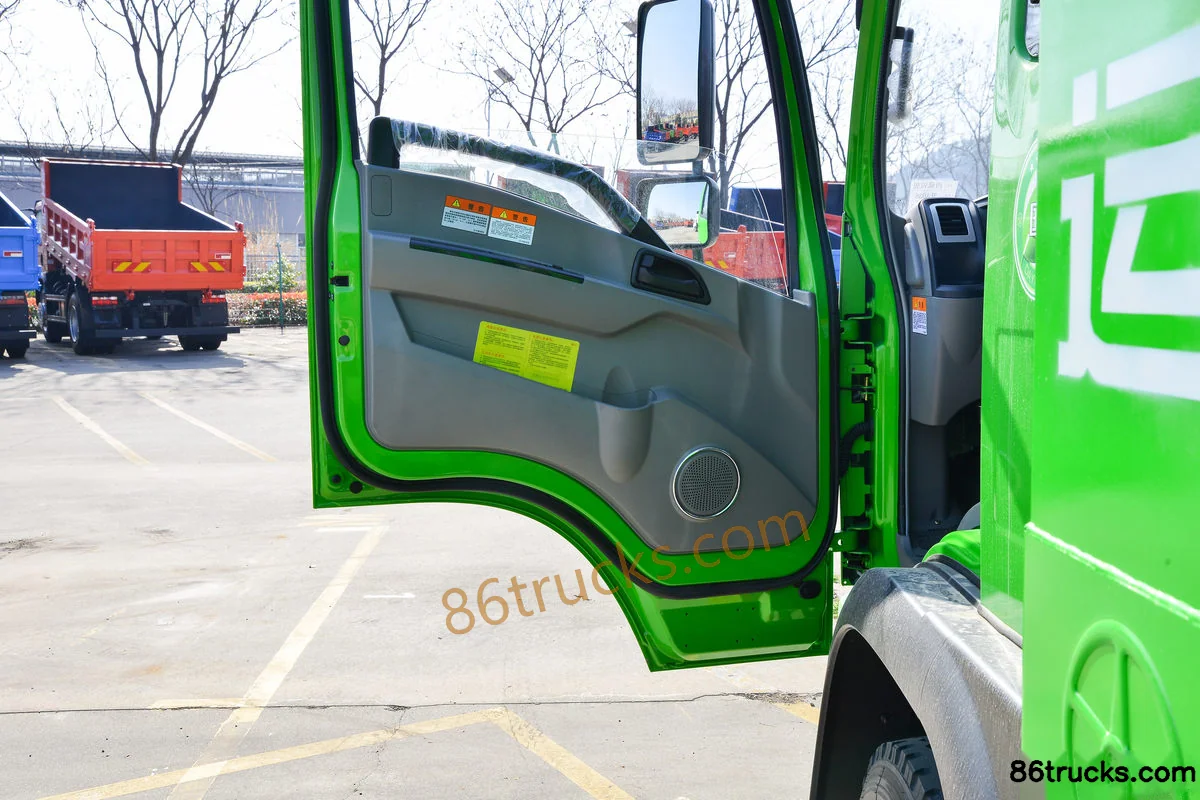

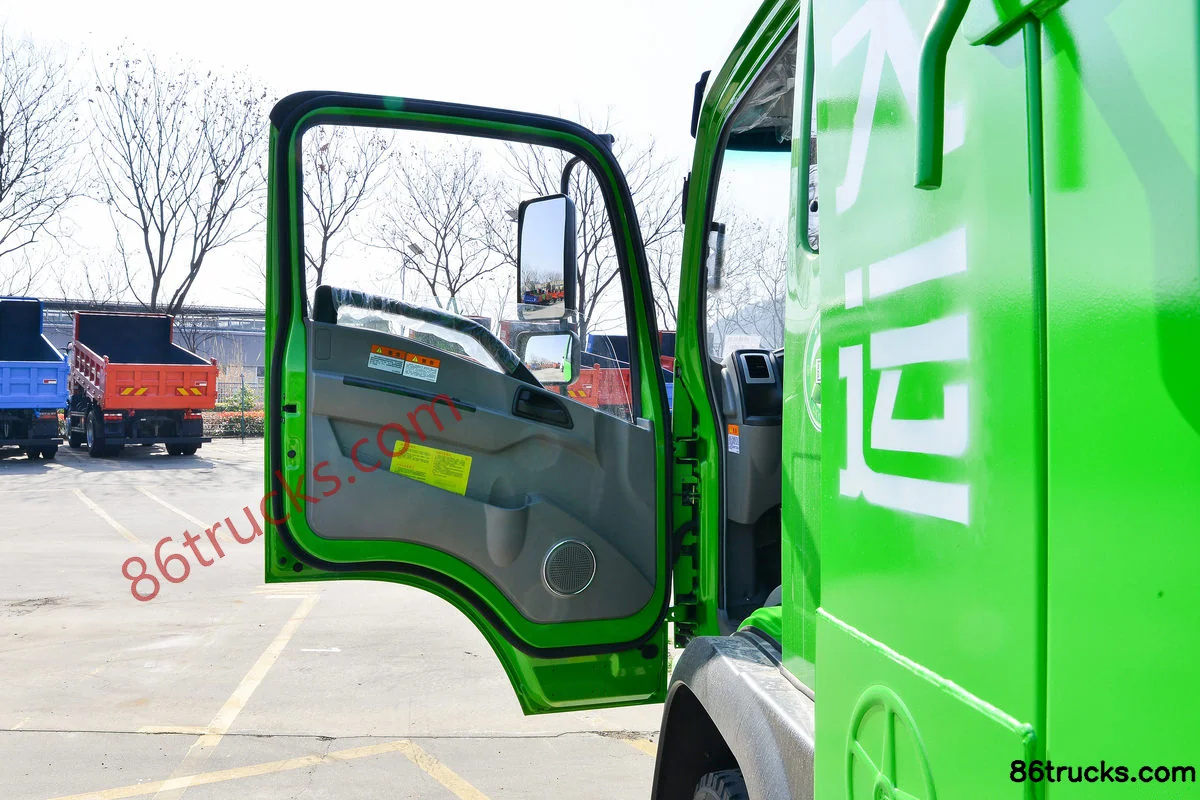

Cab3

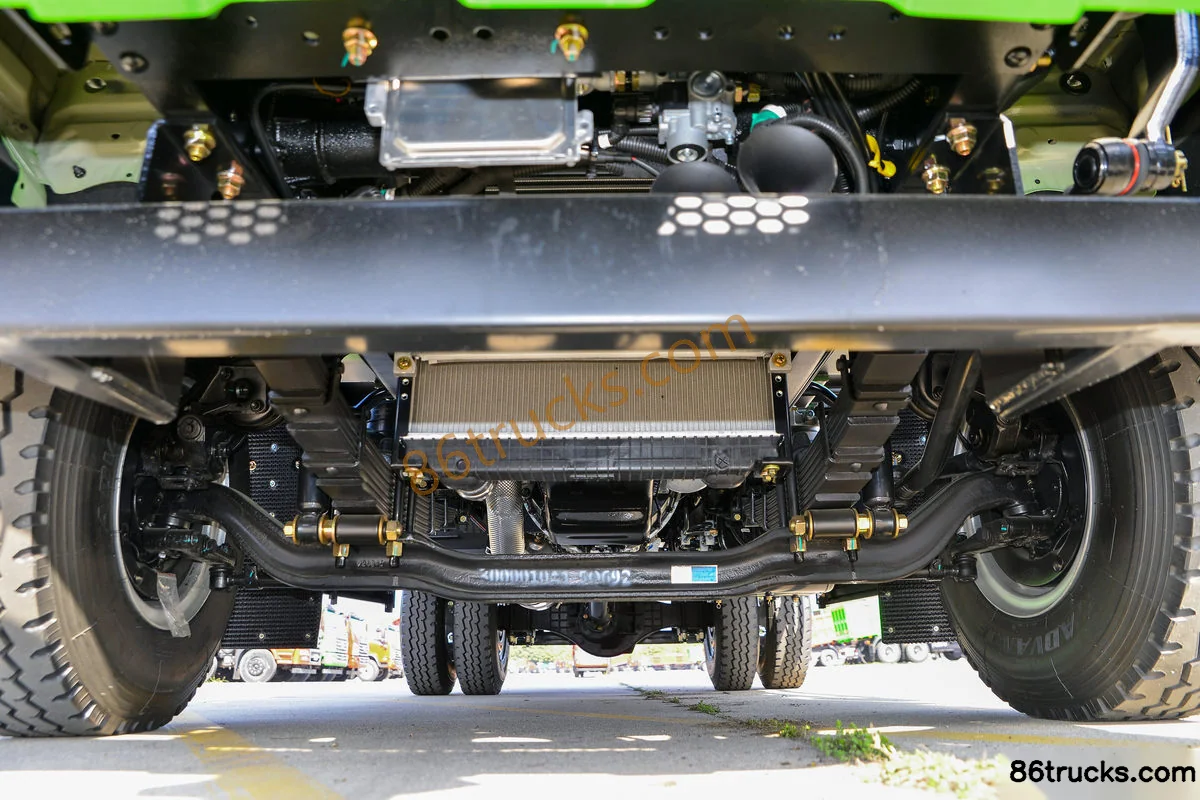

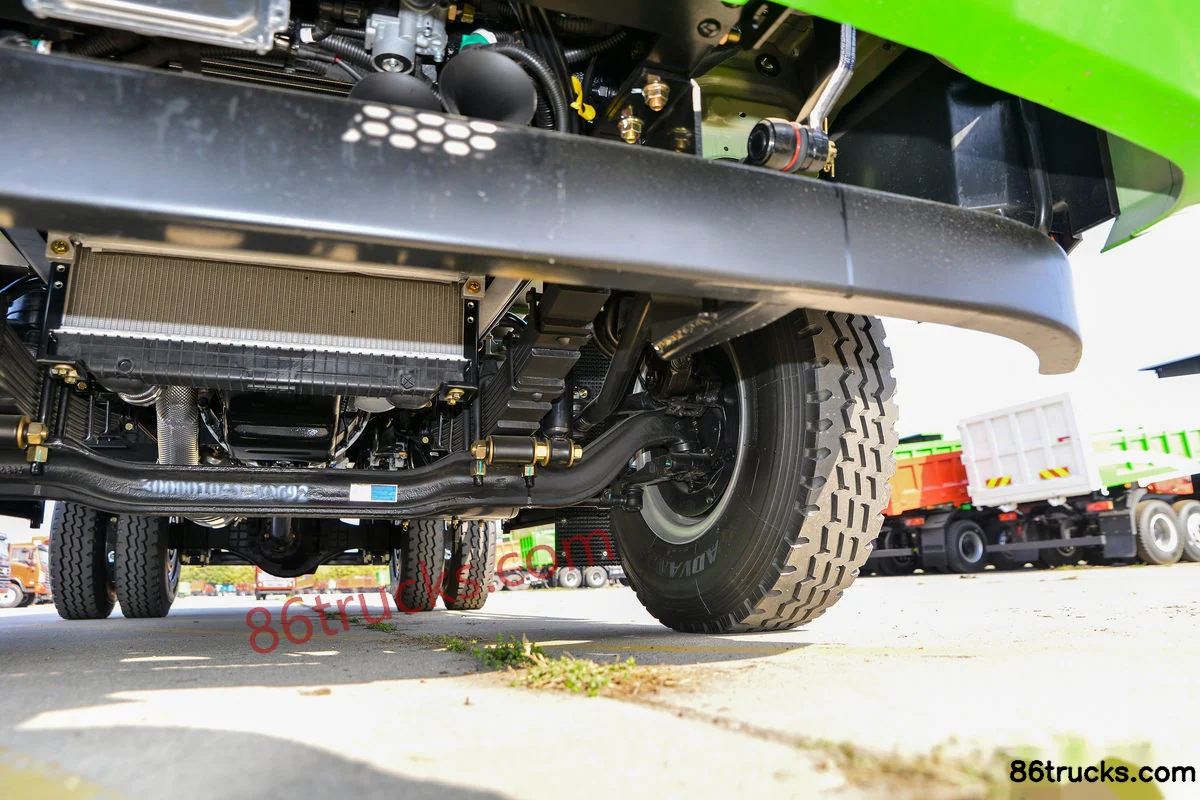

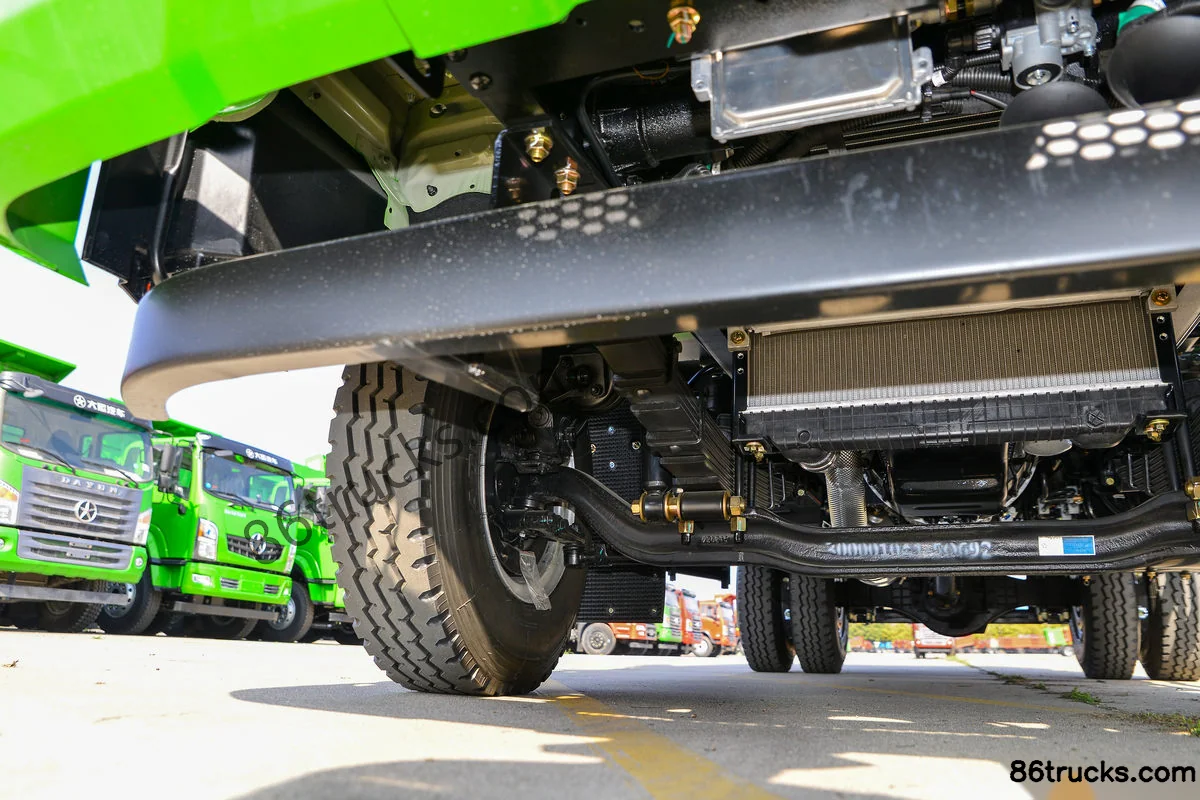

Chassis3

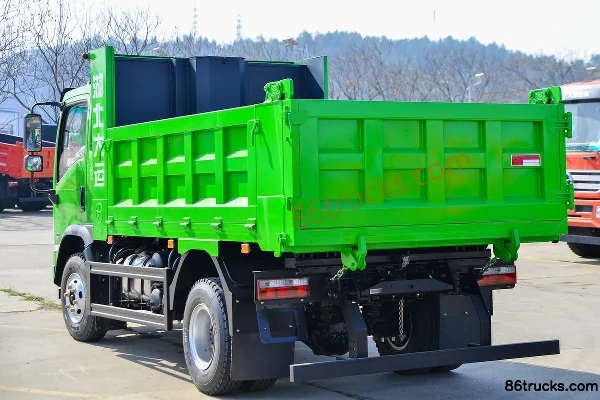

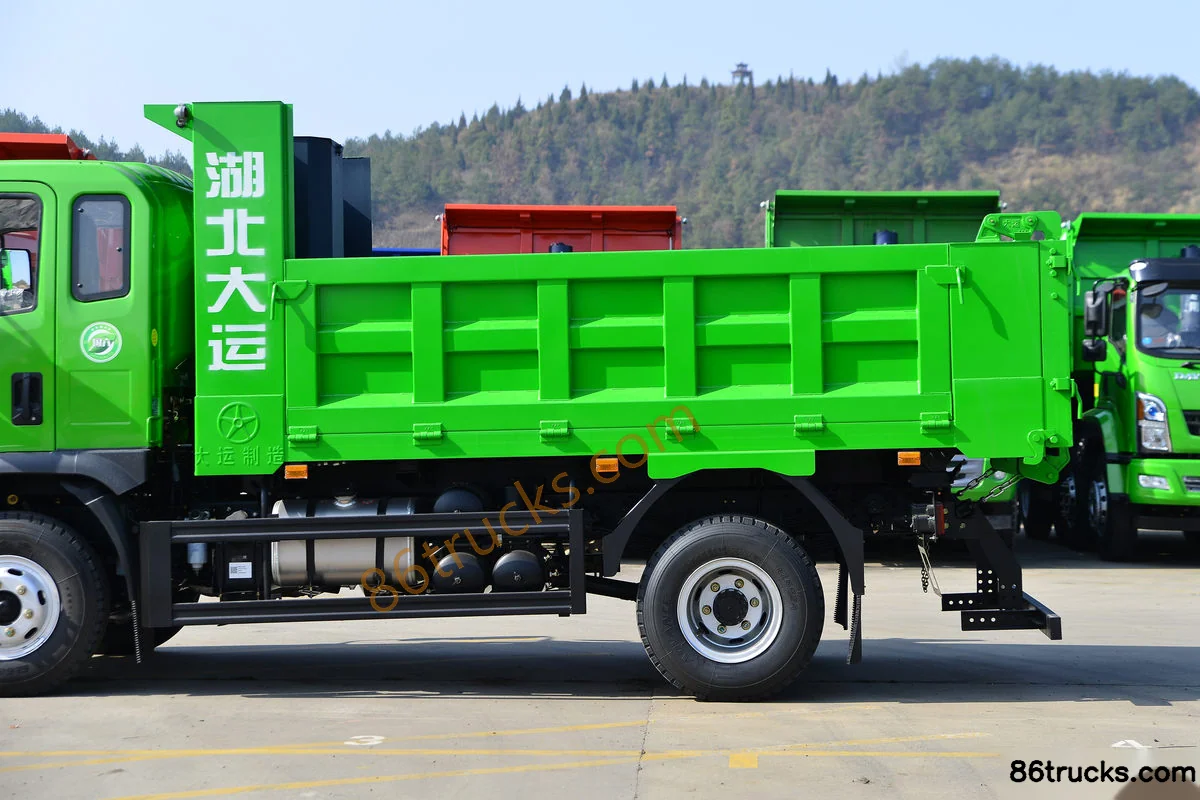

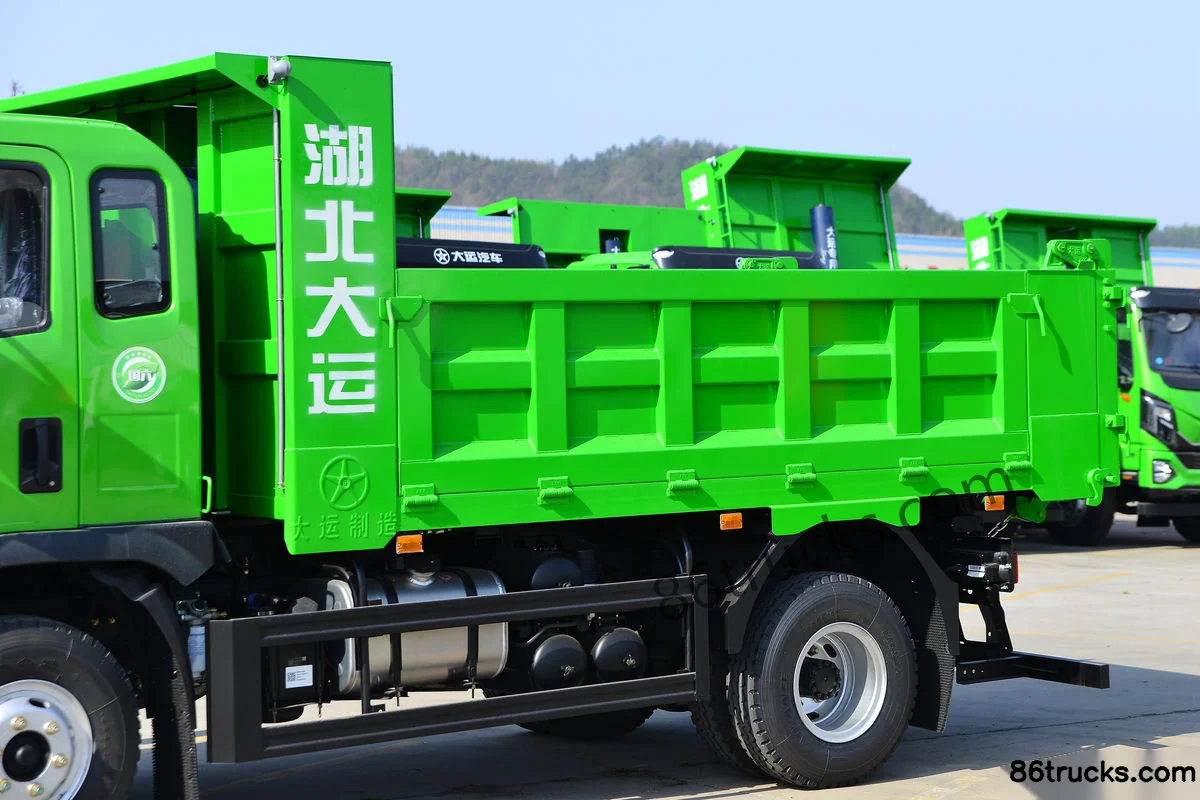

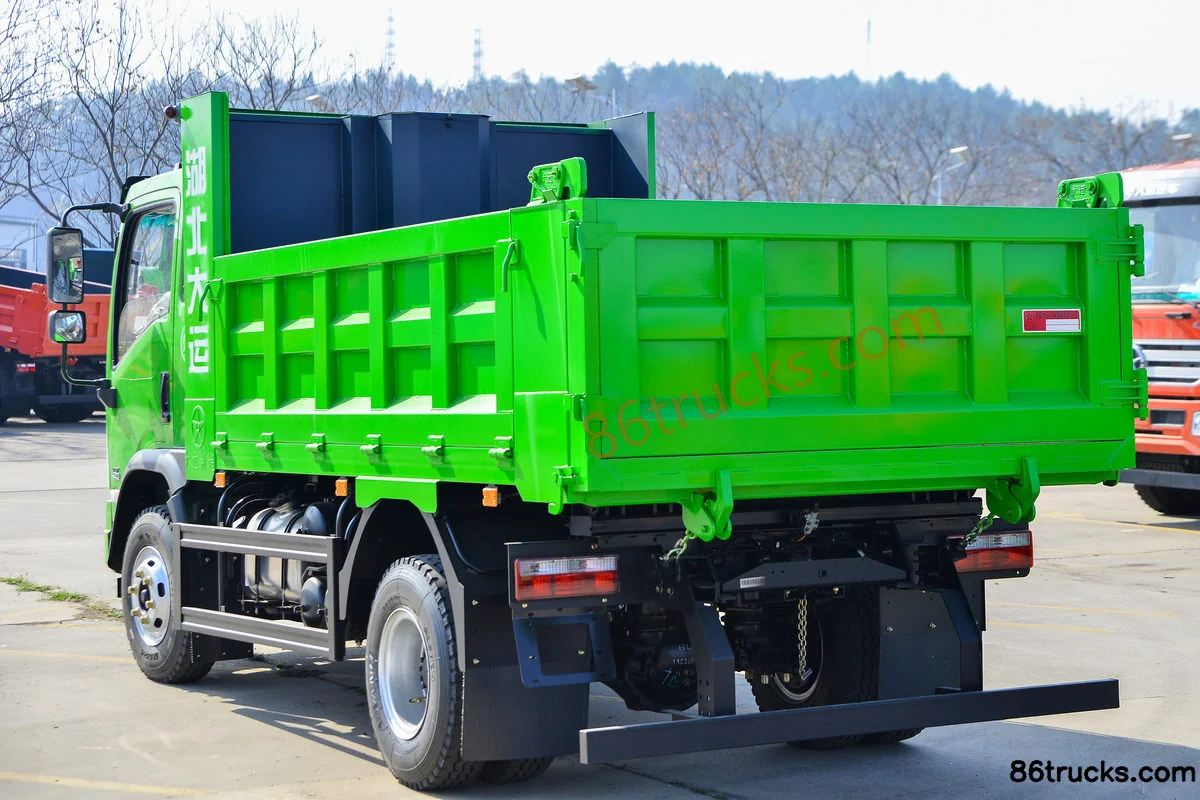

Body3

12 photos

FAQ

What is the export price of Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed), and what does it include?

Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed) export reference is about From $15,542; MSRP is ¥11.19M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed)?

Key specs of Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed): Drive: 4x2; Horsepower: 140 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed) suited for?

Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed) differ from other variants in the same series?

Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed) belongs to DayunG5 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun G5 140hp 4X2(6 wheels) 3.75m dump truck (Fast Gear 8-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
