Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 3.275ton
Wheelbase:: 3700mm
Tire Size:: 7.50-16LT(10PR), 8.25-16LT(10PR)
Rated payload: 1.98ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box type: Dump type

Overview

The Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck is a Light Truck featuring 1.98t payload, 5.45t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRD2 engine, 102 hp, China IV emissions and WLY transmission.

China IV 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LFJ3055F1
Drive type: 4X2
Wheelbase: 3700mm
engine: Yunnei PowerYN33CRD2
transmission: WLYWLY145HF
Rear Axle Ratio: 6.833
Cab length: 6.2m
Cab width: 2.3m
Cab height: 2.47m
Front track width: 1670mm
rear track: 1650mm
Curb Weight: 3.275ton
Rated payload: 1.98ton
GVWR: 5.45ton
Origin: Dali, Yunnan
tonnage class: Light Truck
Approach angle: 27°
departure angle: 30°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRD2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China IV
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 265N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Electronic high-pressure common rail diesel engine
Transmission Parameters
Transmission Model: WLYWLY145HF
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.6m
Cargo box width: 2.1m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 155L
Chassis Specs
rear axle allowable load: 3600kg
Axle ratio: 6.833
Leaf spring count: 9/11+8
Tire
Tire Size: 7.50-16LT(10PR), 8.25-16LT(10PR)
Number of tires: 6pcs

Photos

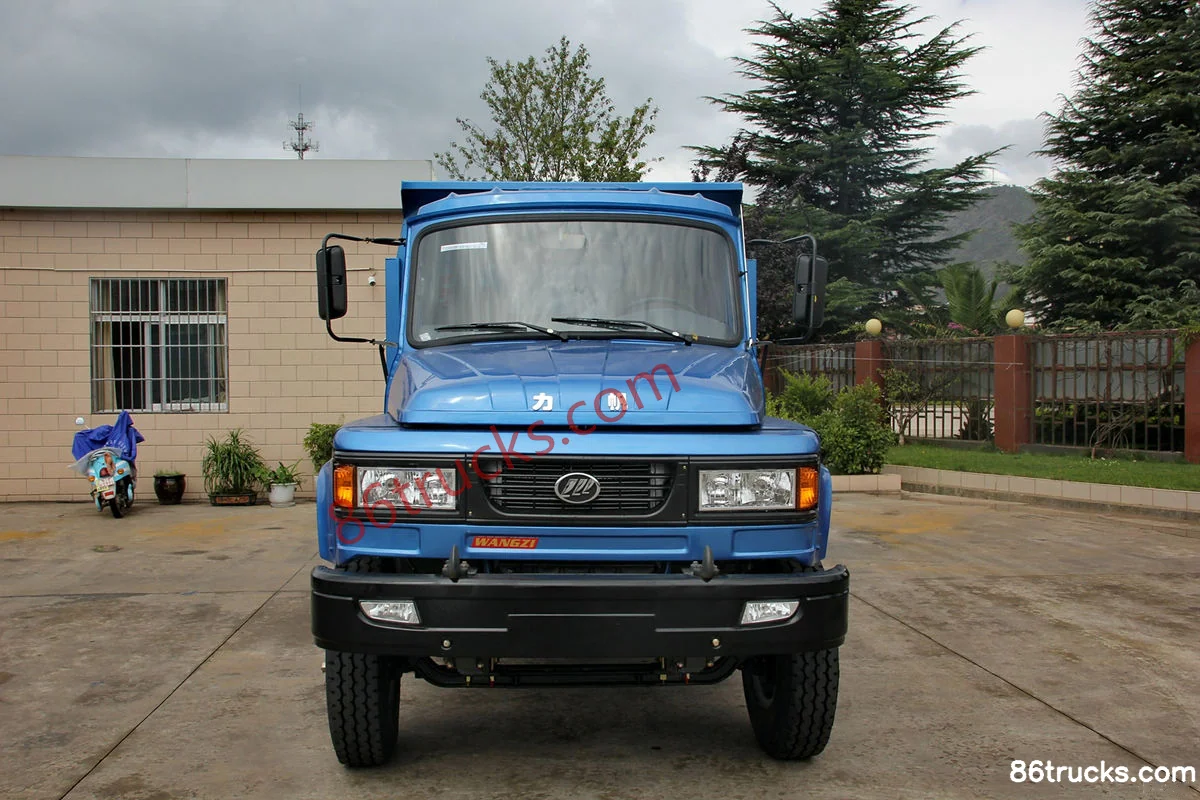

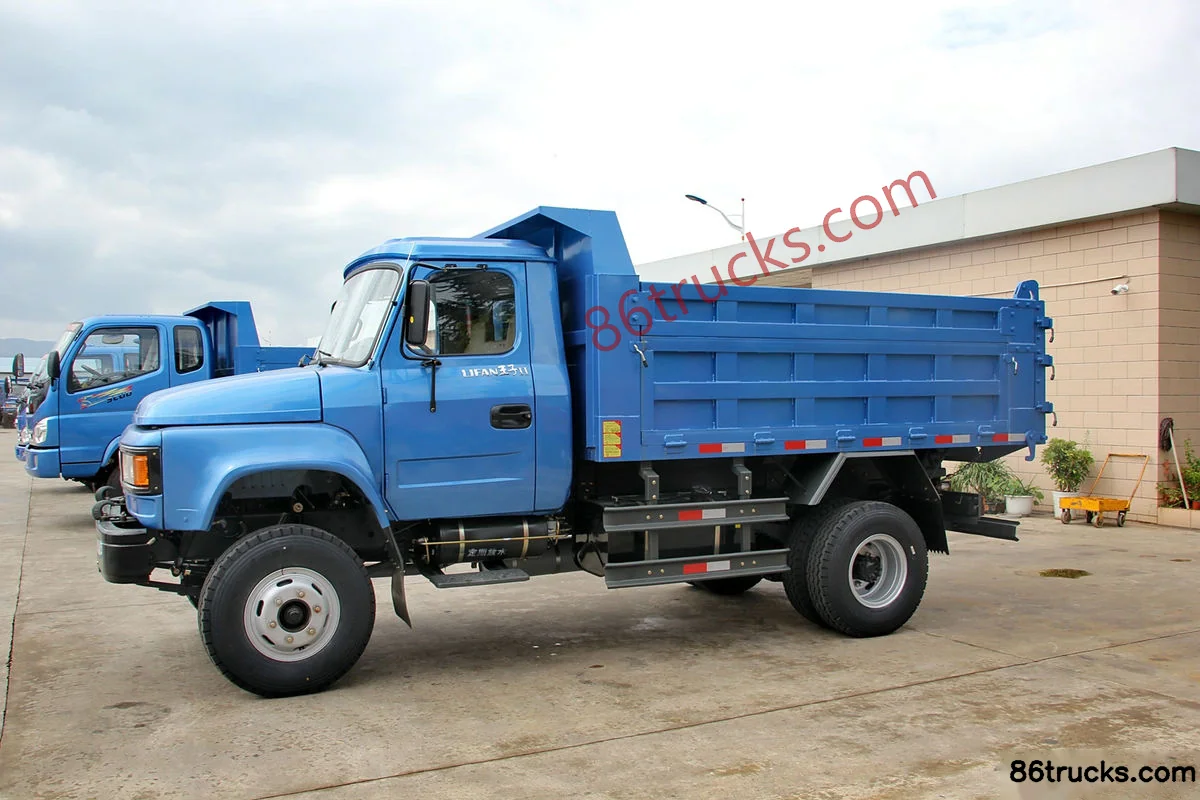

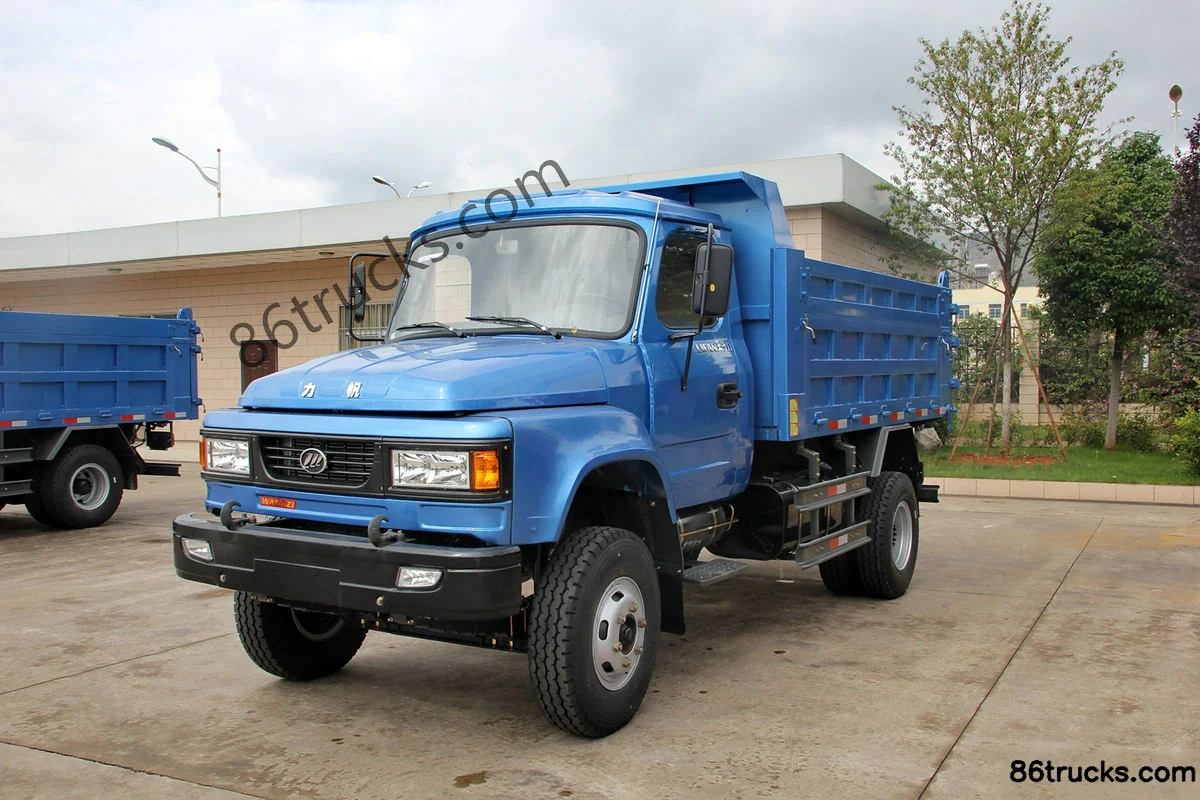

Exterior3

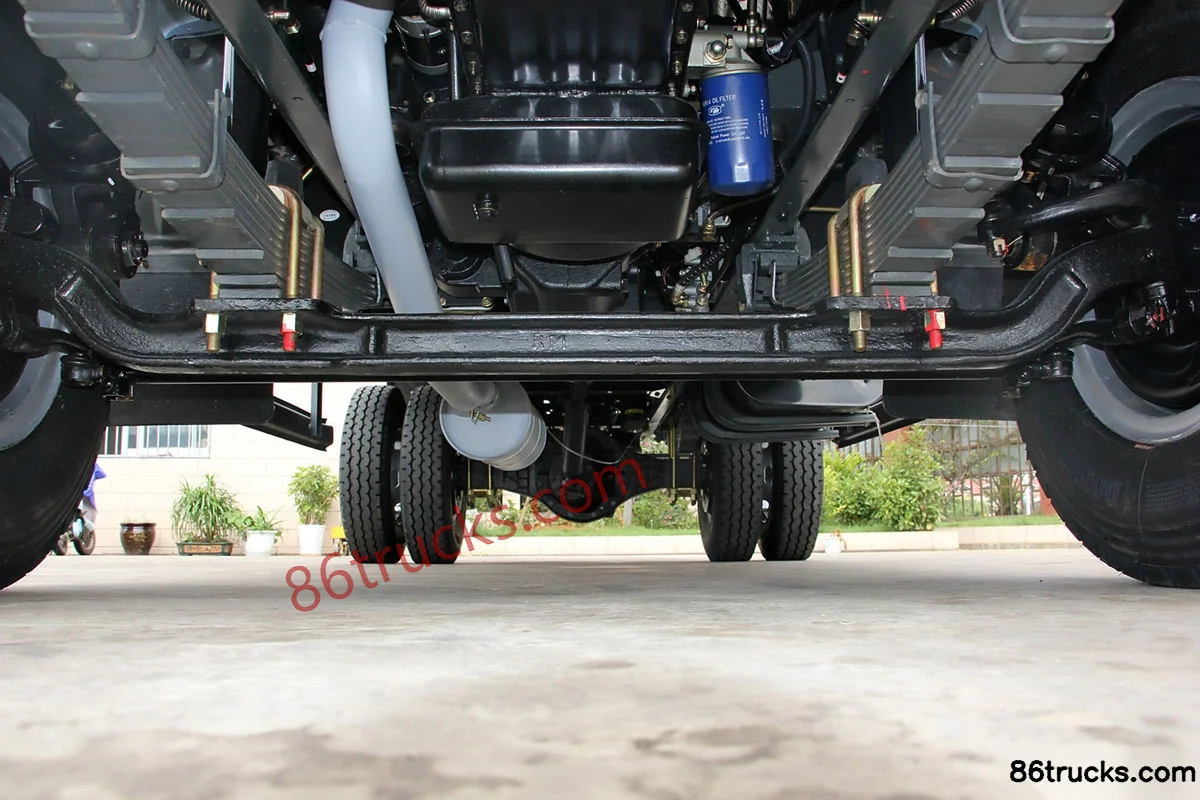

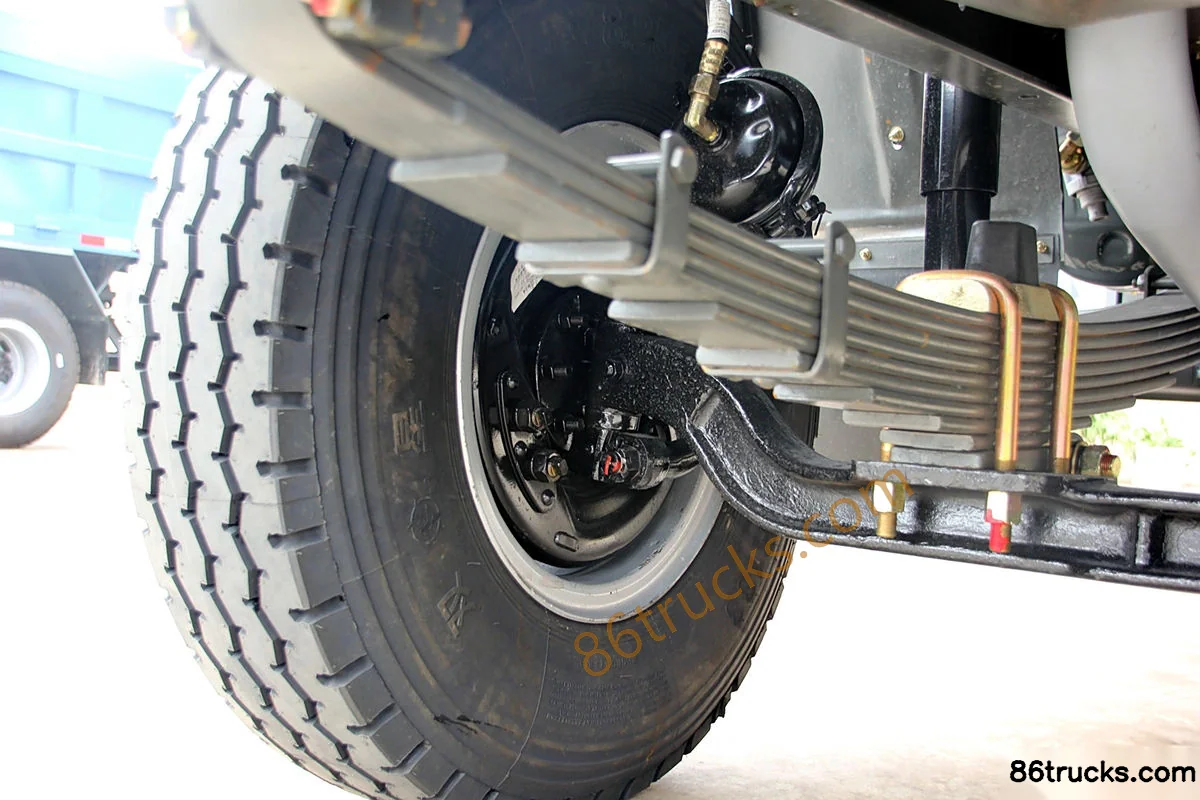

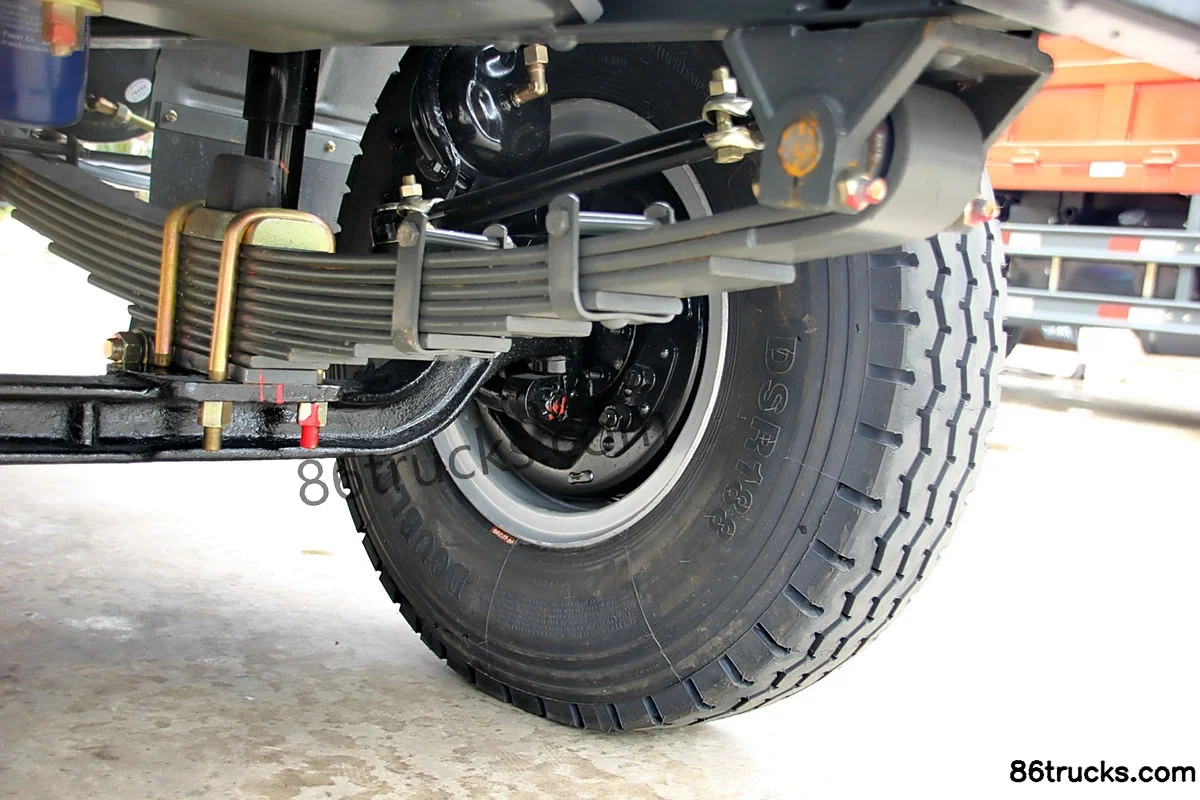

Chassis3

6 photos

FAQ

What emission standard does Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck?

Key specs of Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck: Drive: 4x2; Horsepower: 102 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck suited for?

Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck differ from other variants in the same series?

Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck belongs to Shijun D260 (formerly Prince) Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
