Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1)

Export reference
From $22,750
MSRP ¥16.38M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.71ton
Wheelbase:: 3800mm
Tire Size:: 10.00R20
Rated payload: 7.995ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1) is a Light Truck featuring 7.995t payload, 15.9t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3160GFV1
Drive type: 4X2
Wheelbase: 3800mm
engine: YuchaiYC4E160-56
transmission: Fast Gear10JS90A
Rear Axle Ratio: 6.83
Cab length: 6.85m
Cab width: 2.48m
Cab height: 3m
Front track width: 1870mm
rear track: 1755mm
Curb Weight: 7.71ton
Rated payload: 7.995ton
GVWR: 15.9ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 23°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: D193
Cab width: 2120mm
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 5t front axle
Front axle allowable load: 5600kg
rear axle description: 13t rear axle
rear axle allowable load: 10300kg
Axle ratio: 6.83
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

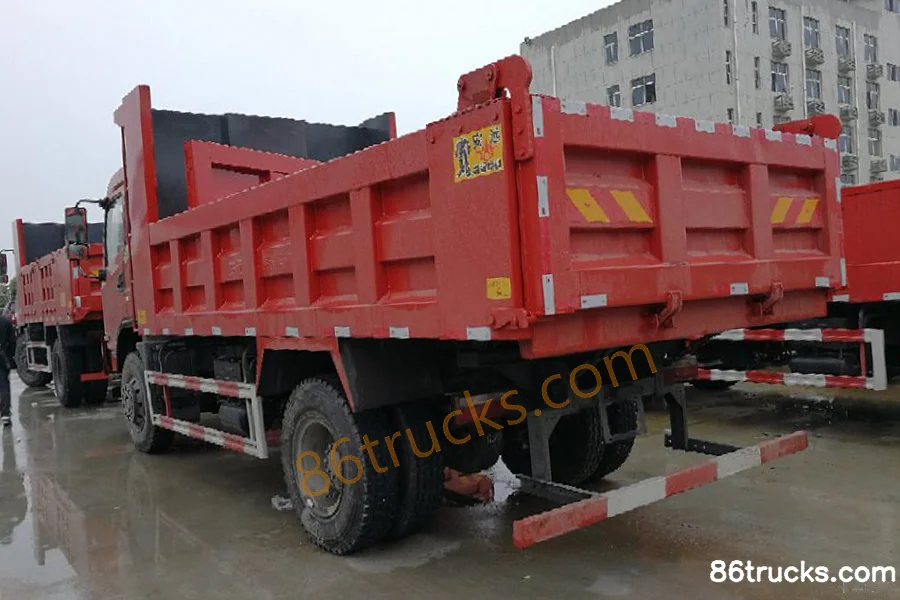

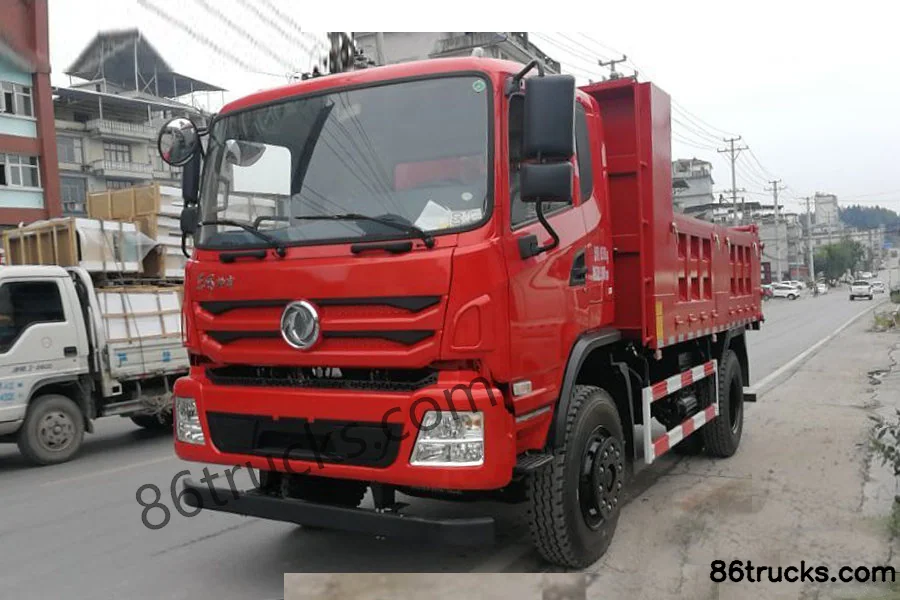

Photos

Exterior2

2 photos

FAQ

What is the export price of Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1), and what does it include?

Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1) export reference is about From $22,750; MSRP is ¥16.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1)?

Key specs of Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1) suited for?

Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1) differ from other variants in the same series?

Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1) belongs to Dongfeng Tesun Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
