Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.905ton
Wheelbase:: 3400mm
Tire Size:: 10.00R20 18PR
Model code (announced):: STQ3181L03Y3N6
Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck exterior
View more photos (9)
Rated payload: 9.9ton
Drive 4X2 (6 wheels)
Horsepower 240
Cargo box type: Dump type

Overview

The Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck is a Medium-duty truck featuring 9.9t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04240-66 engine, 240 hp, Fast Gear transmission and Diesel fuel.

240 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): STQ3181L03Y3N6
Drive type: 4X2
Wheelbase: 3400mm
engine: YuchaiYCS04240-66
transmission: Fast Gear10JS90-B
Rear Axle Ratio: 5.92
Cab length: 6.085m
Cab width: 2.36m
Cab height: 3.1m
Front track width: 1770mm
rear track: 1750mm
Curb Weight: 7.905ton
Rated payload: 9.9ton
GVWR: 18ton
Origin: 18
tonnage class: Medium-duty truck
Approach angle: 15°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS04240-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.295L
Max output power: 173kW
Max hp: 240Horsepower
Transmission Parameters
Transmission Model: Fast Gear10JS90-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
fuel tank
Fuel tank capacity: 160L
Chassis Specs
Front axle description: 151 front
Front axle allowable load: 6500kg
Frame Dimensions: 280（8+4）mm
rear axle description: Mercedes-Benz short axle
rear axle allowable load: 11500kg
Axle ratio: 5.92
Leaf spring count: 8/11+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Multimedia features
Center Console Color Screen:

Photos

Exterior3

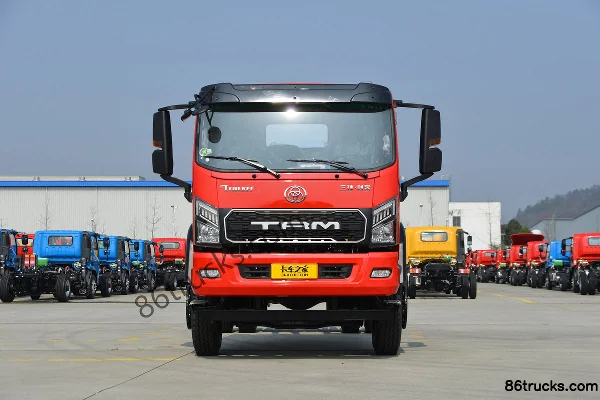

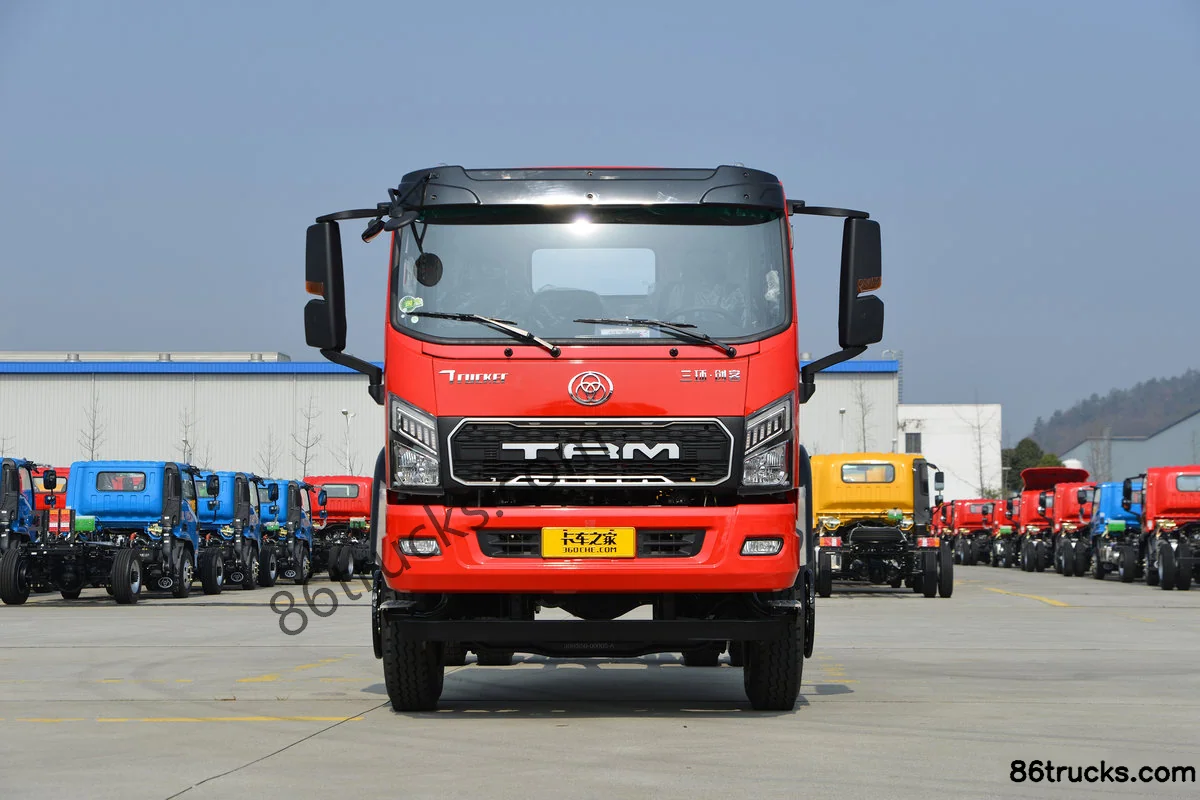

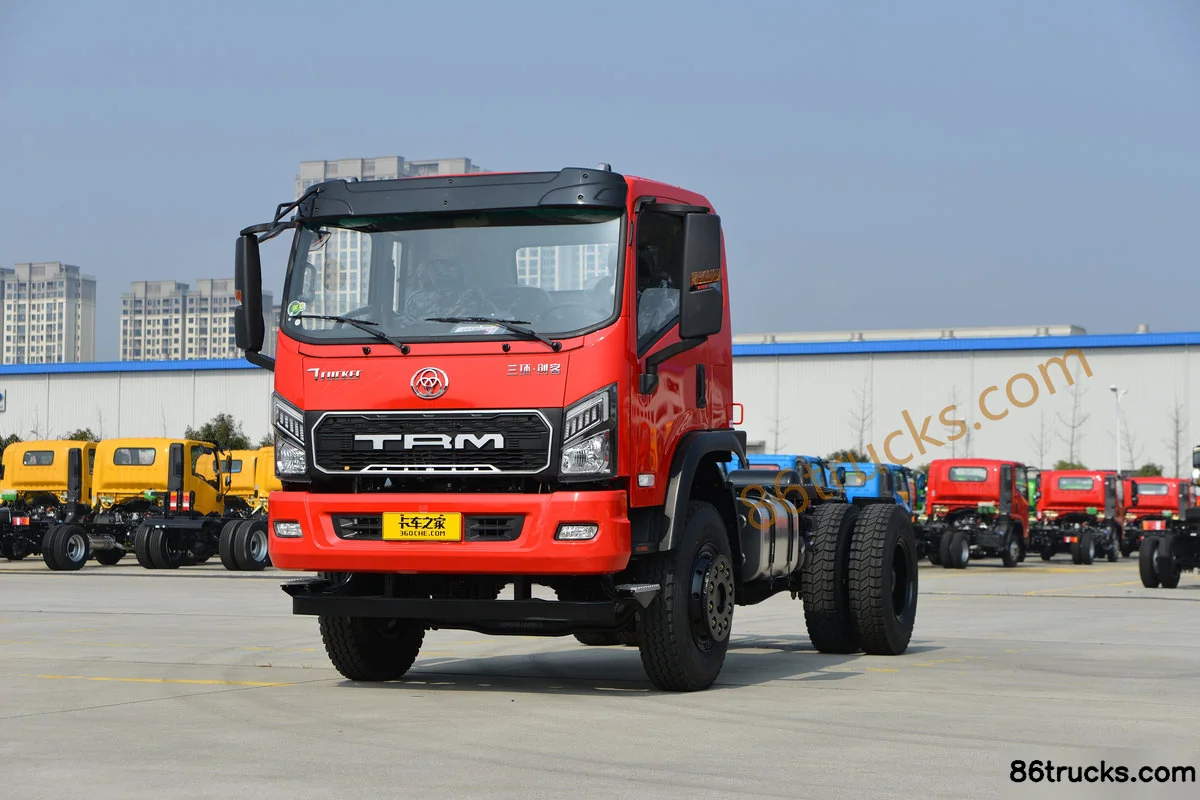

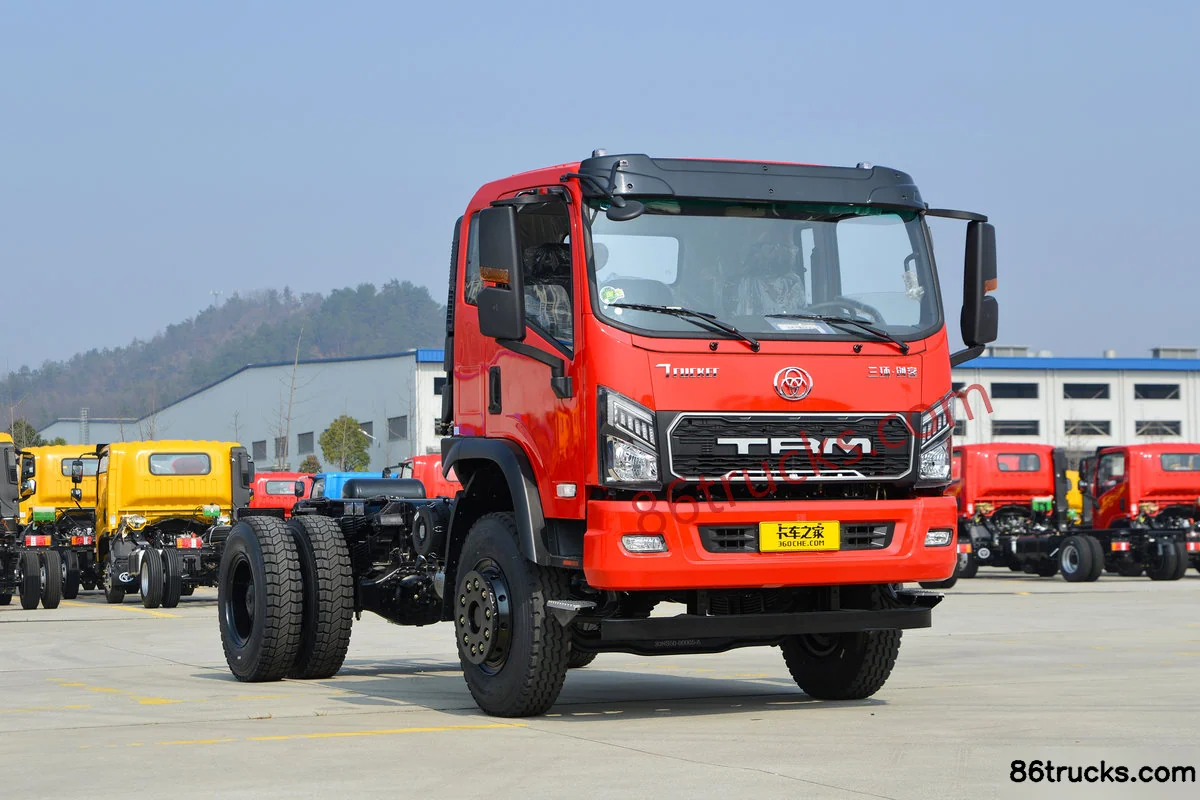

Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck Exterior (1) | 86Trucks Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck Exterior (2) | 86Trucks Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck Exterior (3) | 86Trucks

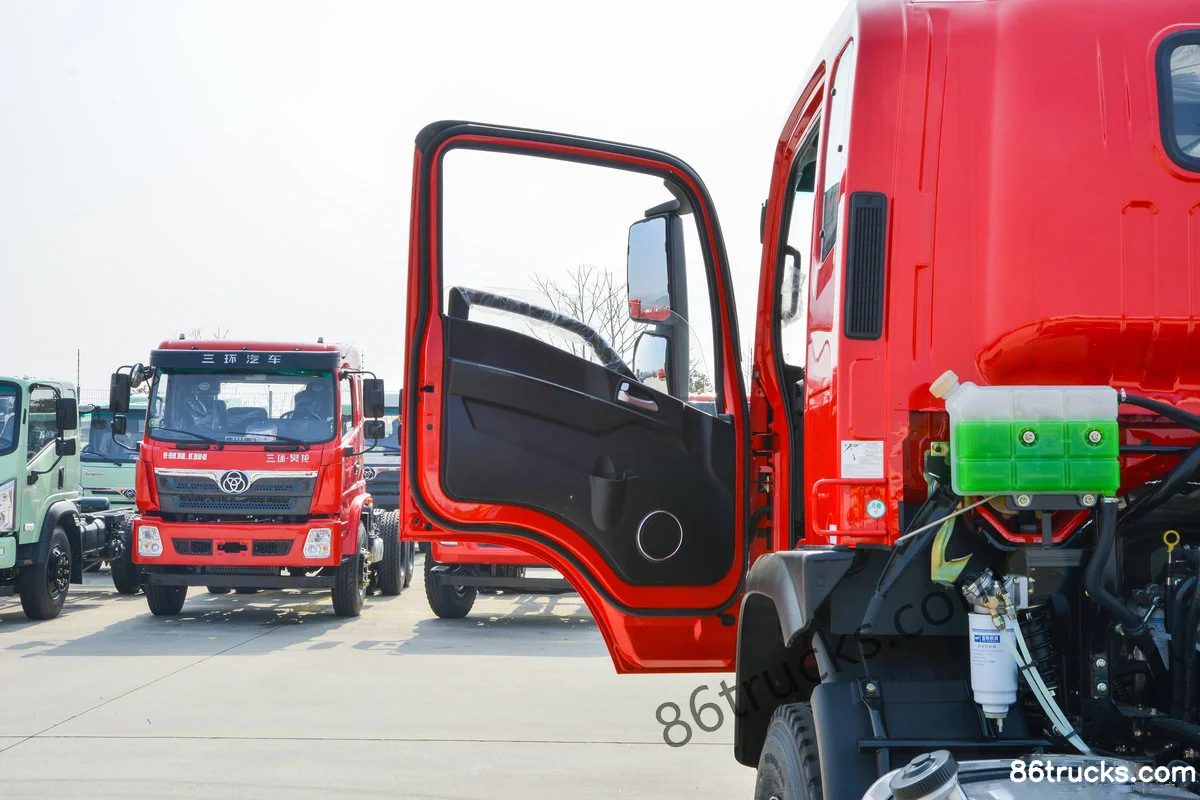

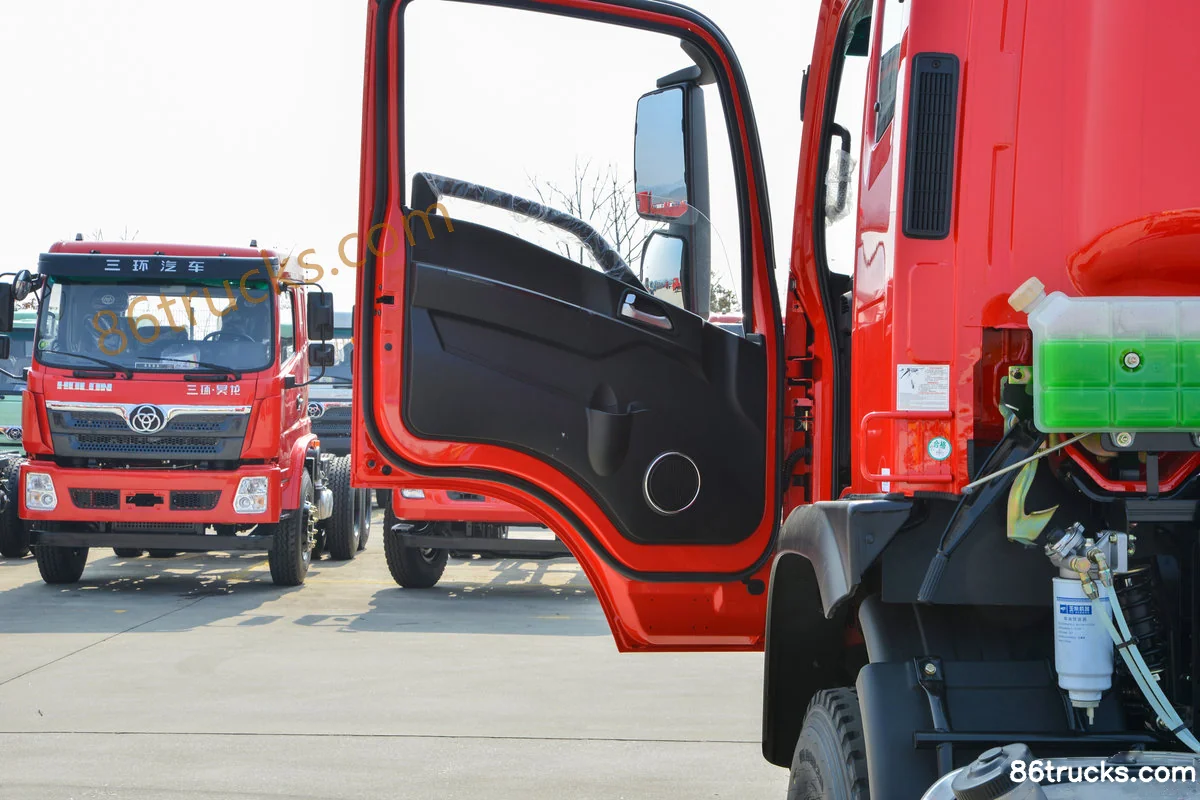

Cab3

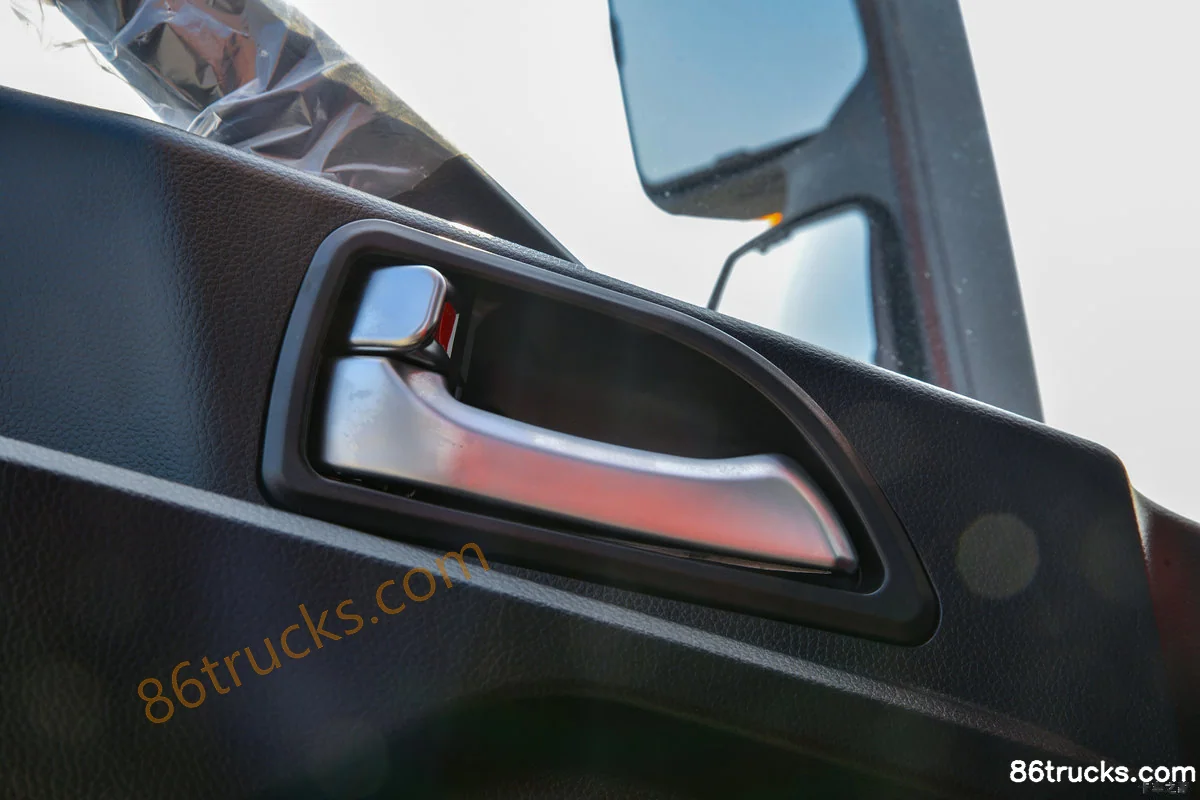

Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck Cab (1) | 86Trucks Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck Cab (2) | 86Trucks Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck Cab (3) | 86Trucks

Chassis3

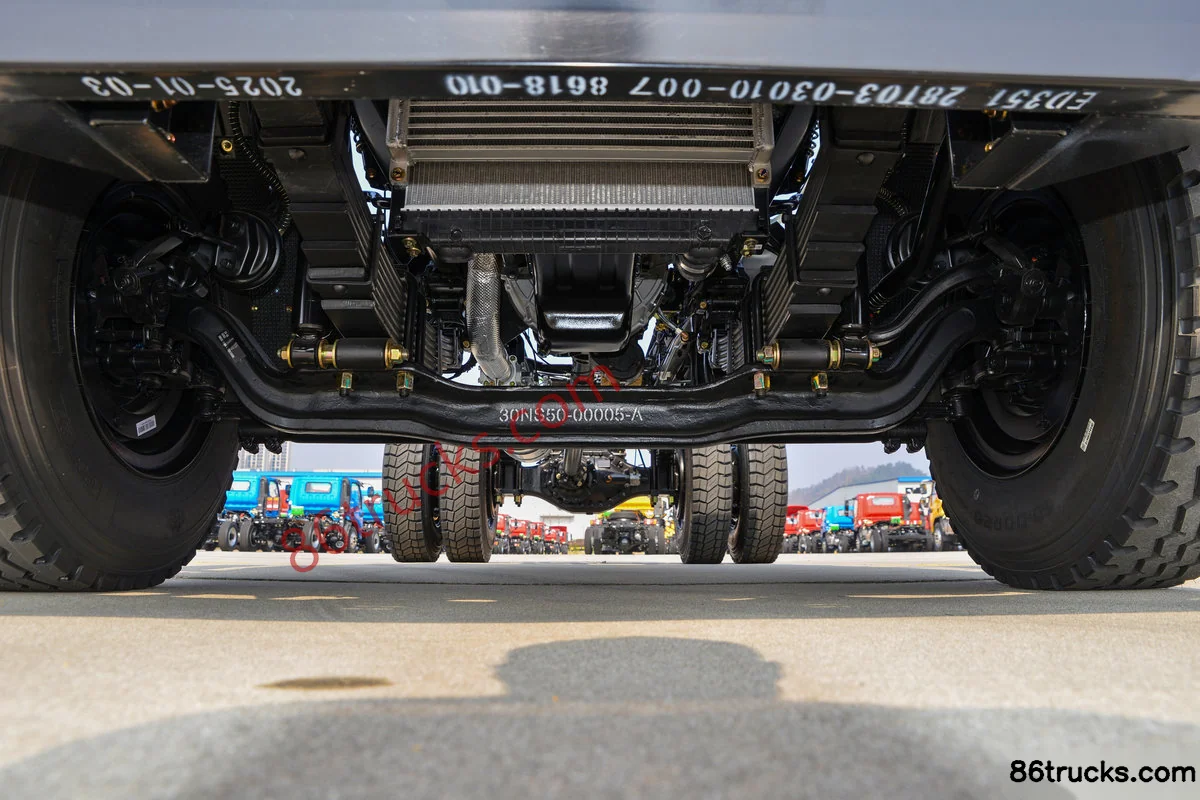

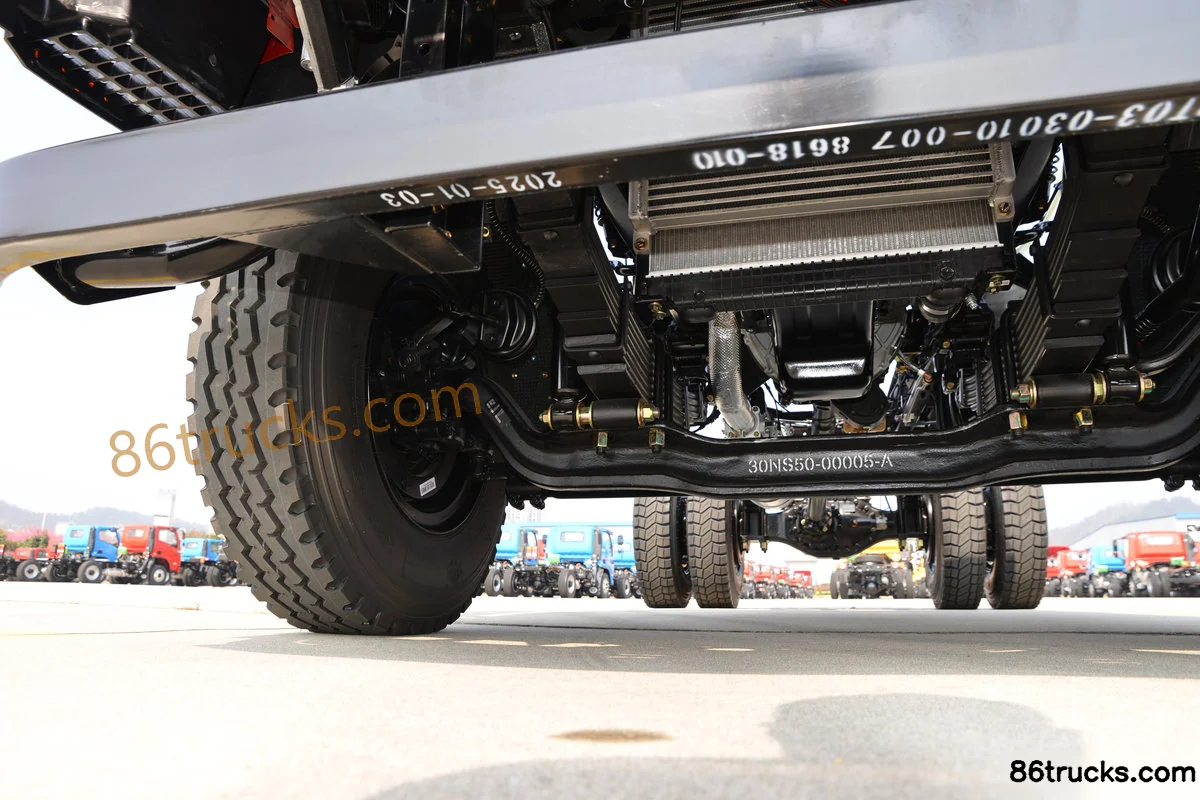

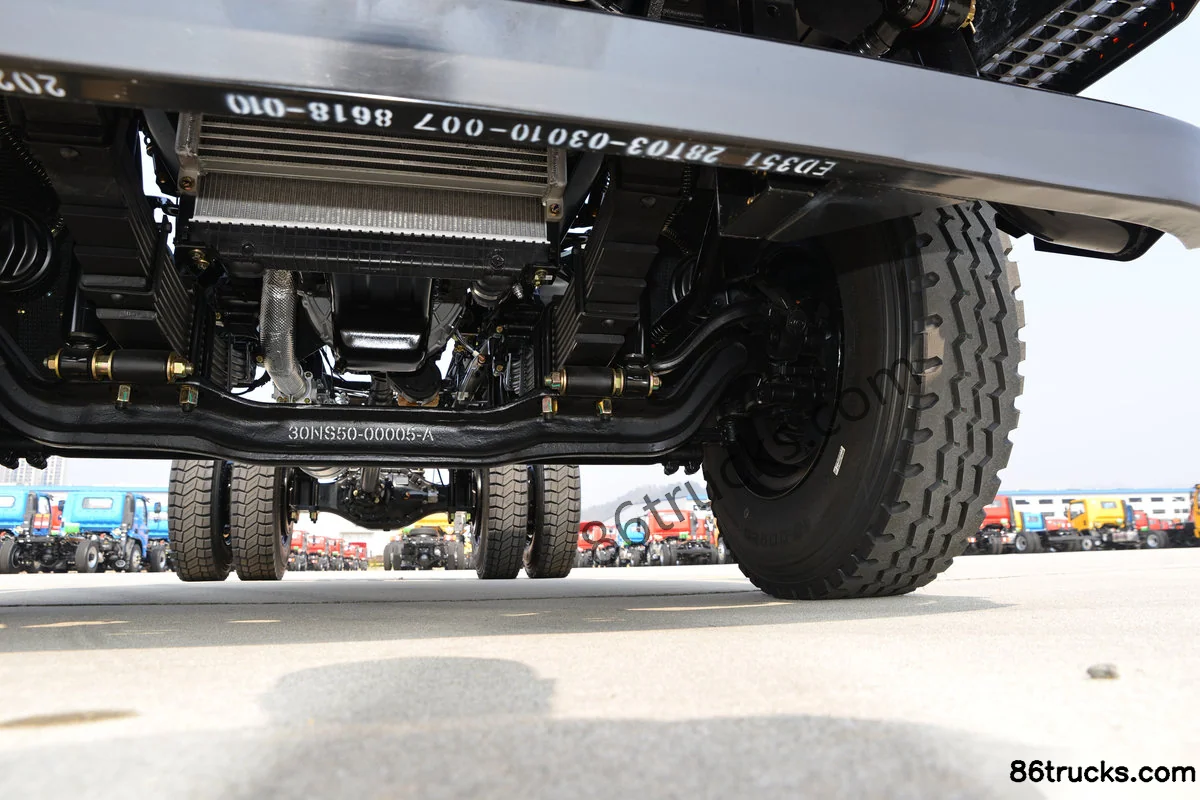

Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck Chassis (1) | 86Trucks Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck Chassis (2) | 86Trucks Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck?

Key specs of Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck: Drive: 4x2; Horsepower: 240 hp; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck suited for?

Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck differ from other variants in the same series?

Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck belongs to Sanhuan Shitong New Chuanke Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
