Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11ton
Wheelbase:: 3850+1350mm
Tire Size:: 11.00R20 18PR
Model code (announced):: STQ3251L07Y3S6
Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck exterior
View more photos (9)
Rated payload: 13.805ton
Drive 6X4 (10 wheels)
Horsepower 270
Cargo box type: Dump type

Overview

The Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck is a Heavy truck featuring 13.805t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06270-60 engine, 270 hp, Fast Gear transmission and Diesel fuel.

270 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): STQ3251L07Y3S6
Drive type: 6X4
Wheelbase: 3850+1350mm
engine: YuchaiYCS06270-60
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 6.333
Cab length: 8.05m
Cab width: 2.55m
Cab height: 3.25m
Front track width: 1880mm
rear track: 1750/1750mm
Curb Weight: 11ton
Rated payload: 13.805ton
GVWR: 25ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS06270-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.2m
Cargo box width: 2.3m
Cargo box height: 1.5m
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 6.333
Leaf spring count: 10/12,9/12,9/10,3/4
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

Exterior3

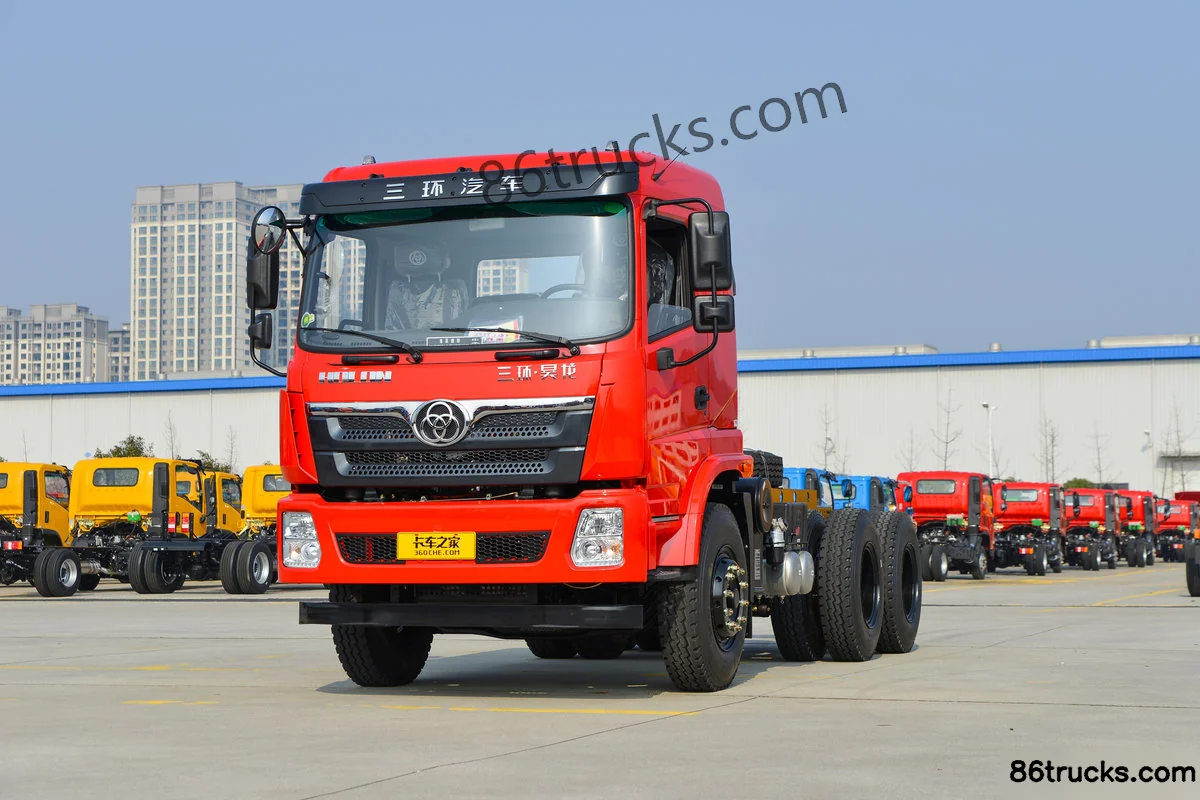

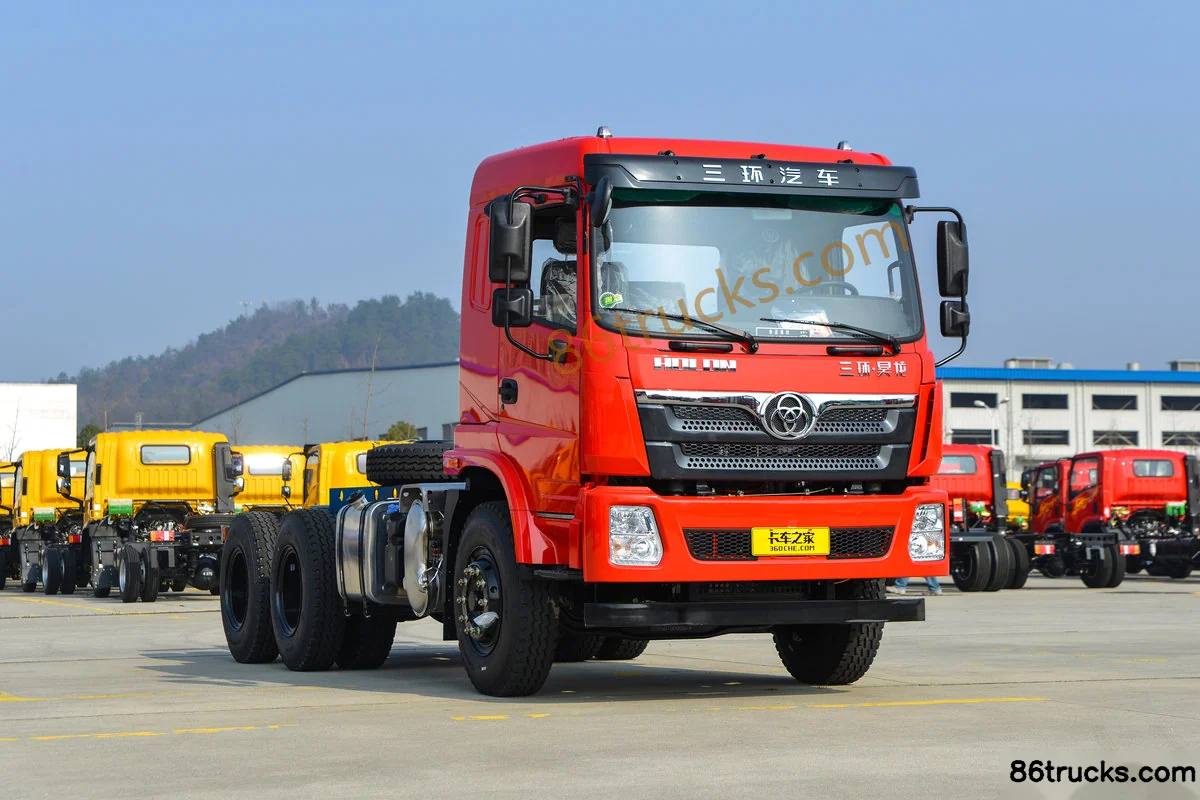

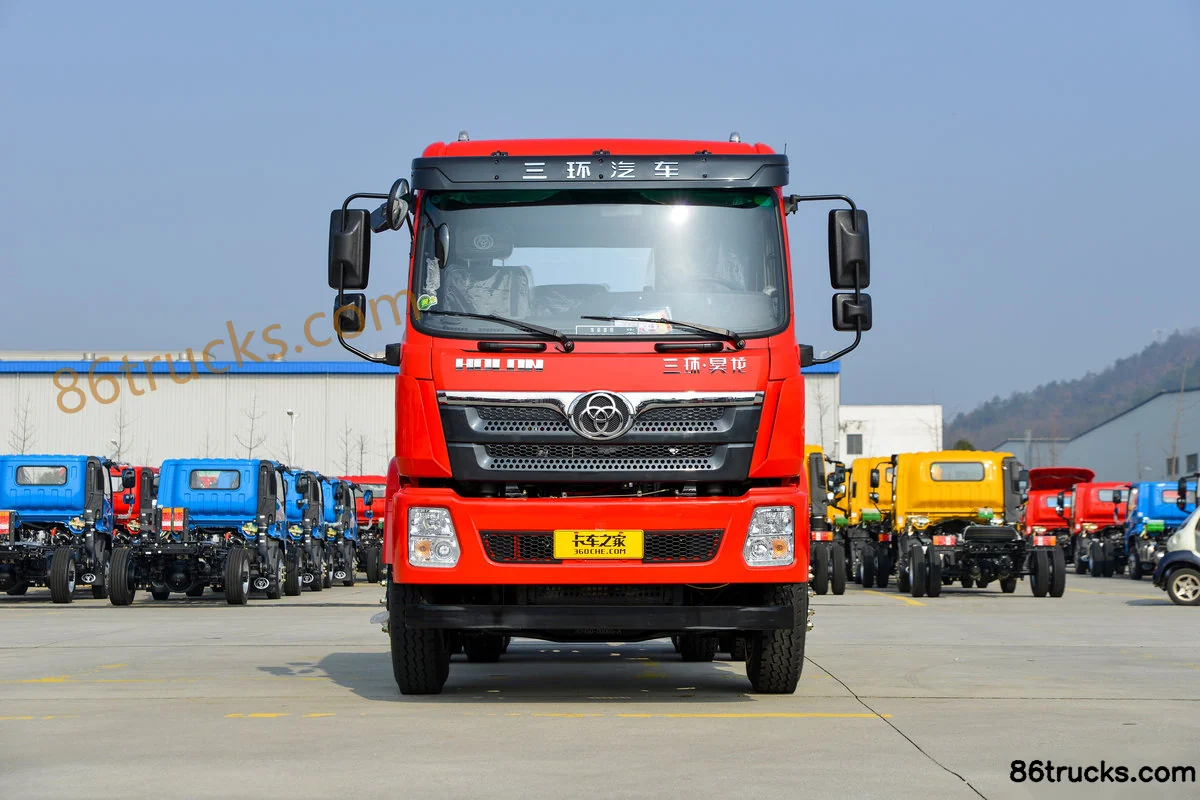

Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck Exterior (1) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck Exterior (2) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck Exterior (3) | 86Trucks

Cab3

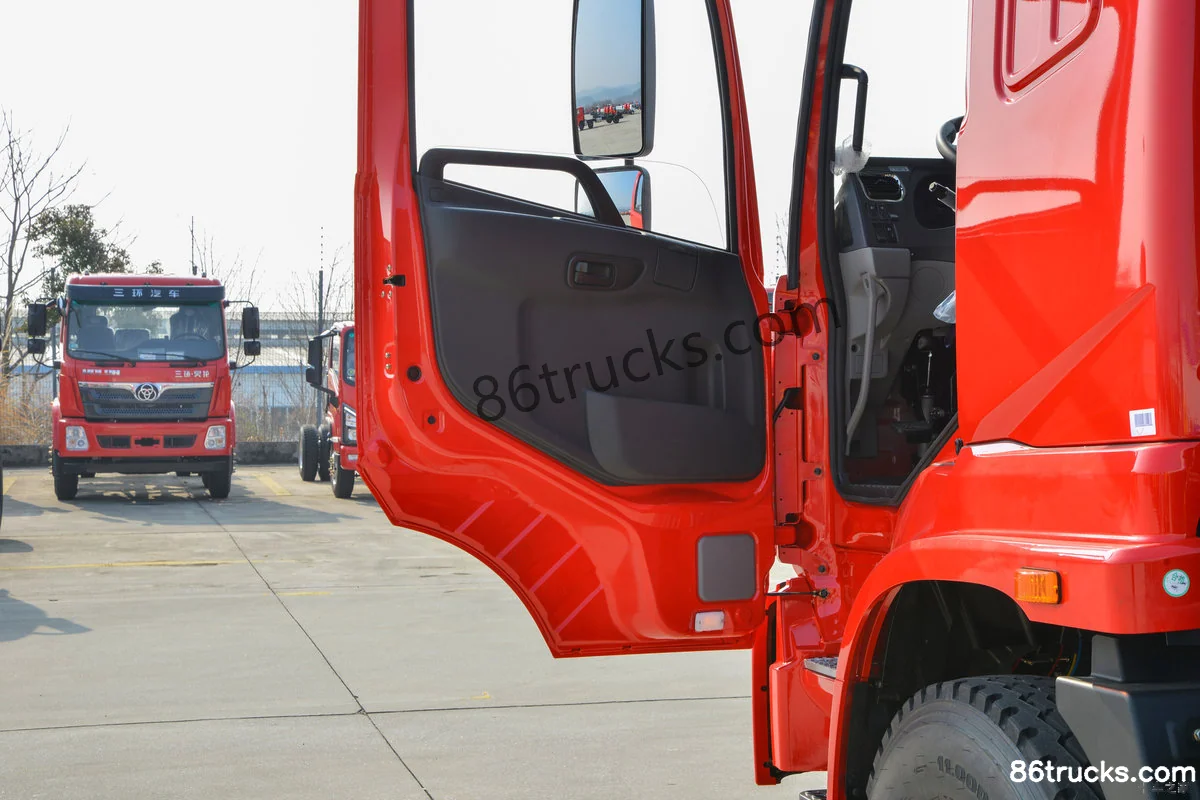

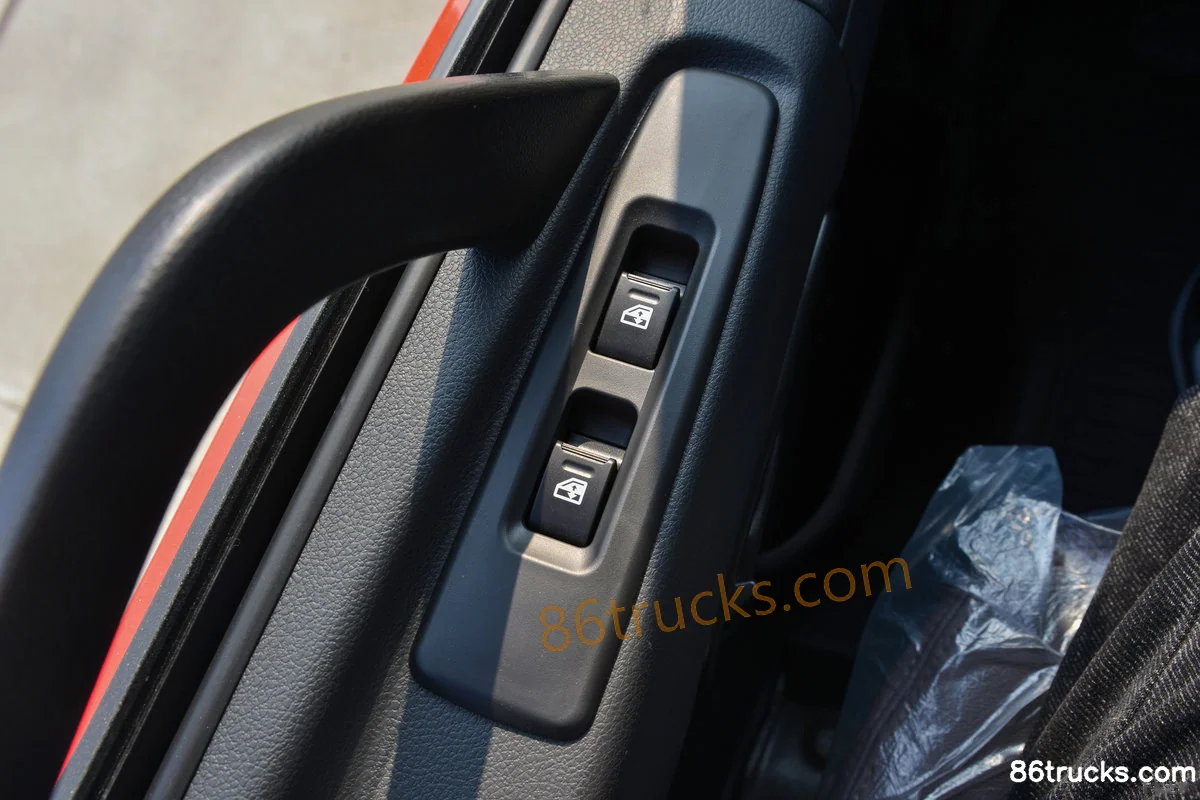

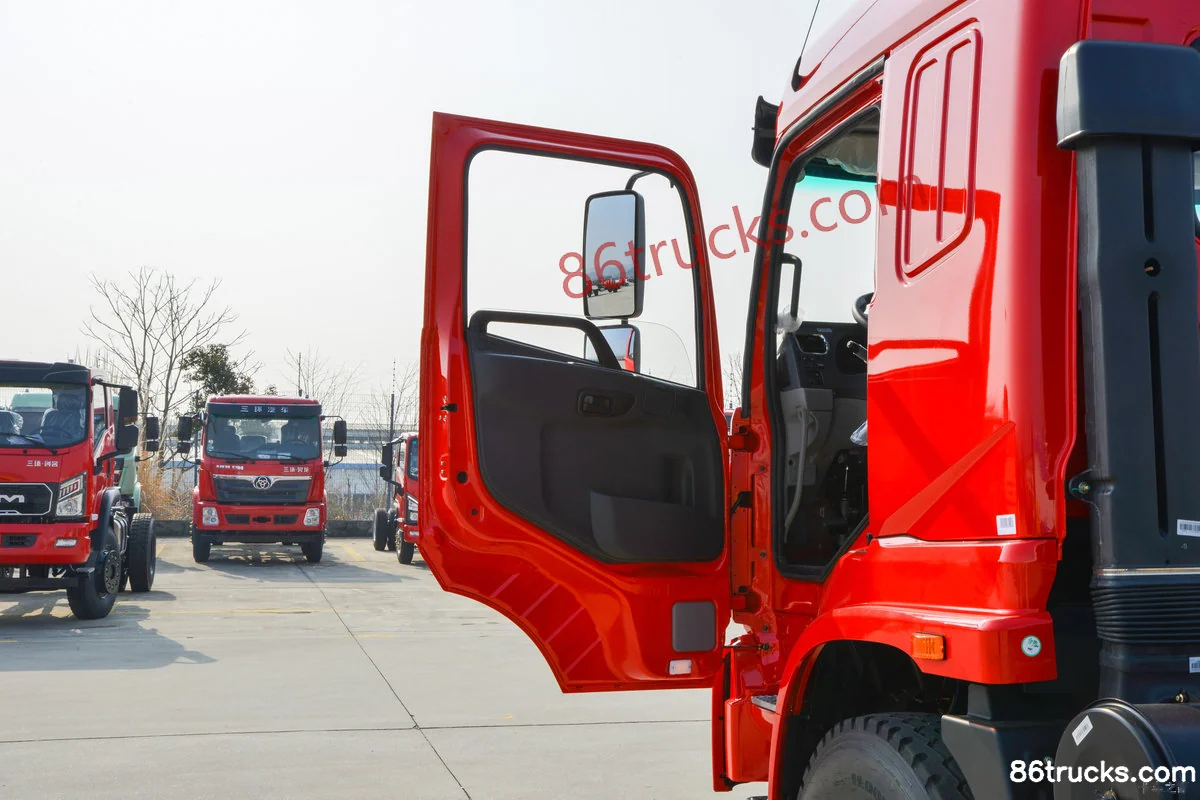

Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck Cab (1) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck Cab (2) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck Cab (3) | 86Trucks

Chassis3

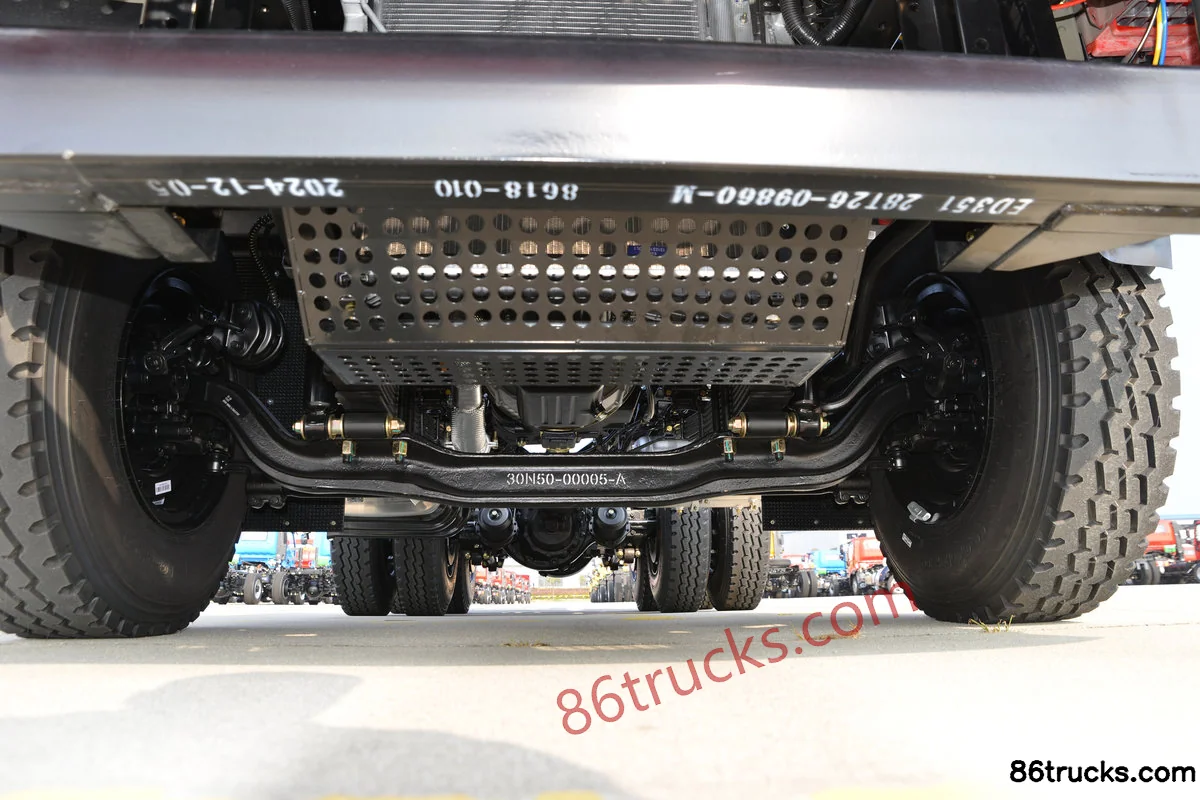

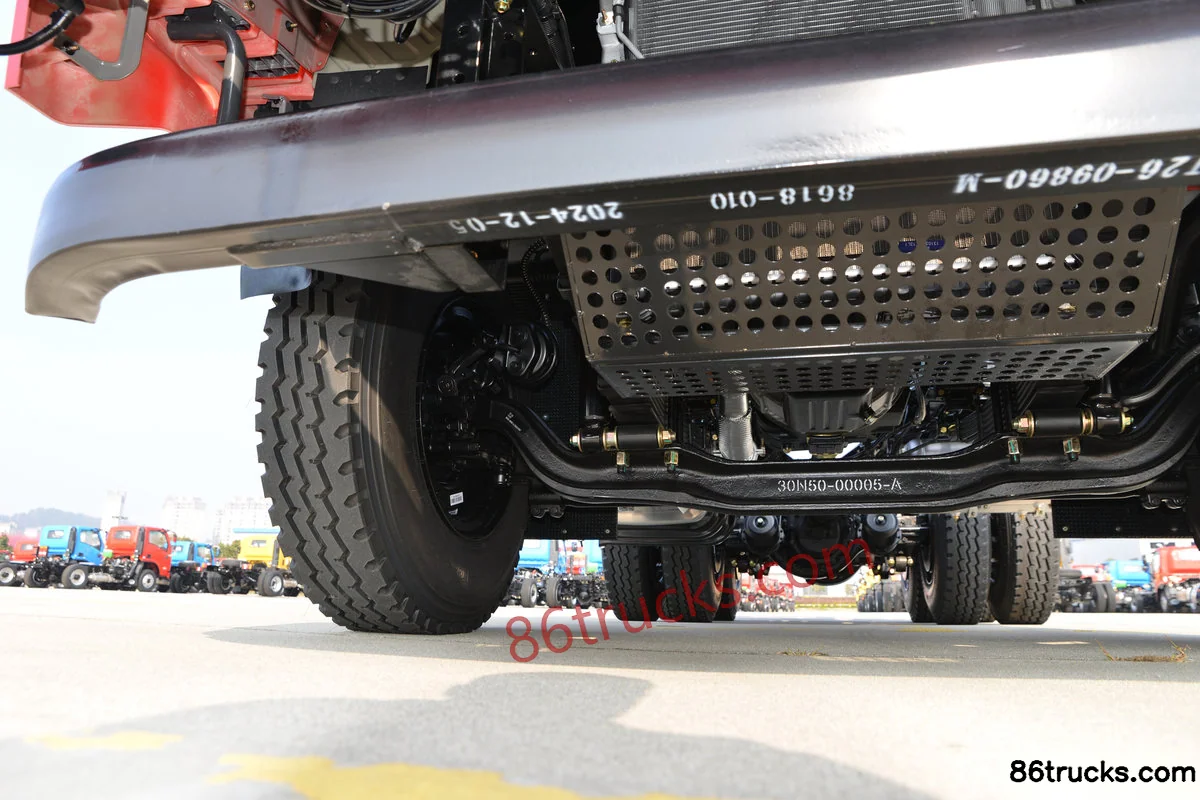

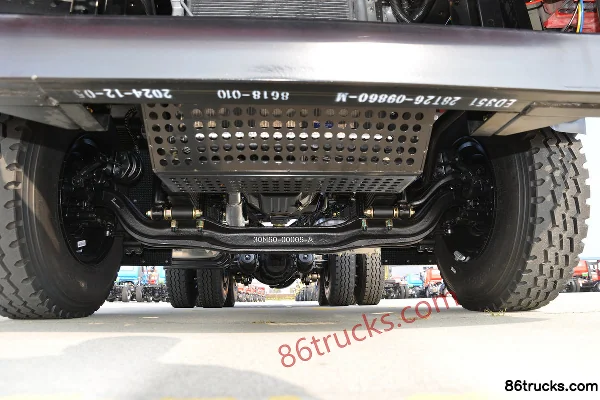

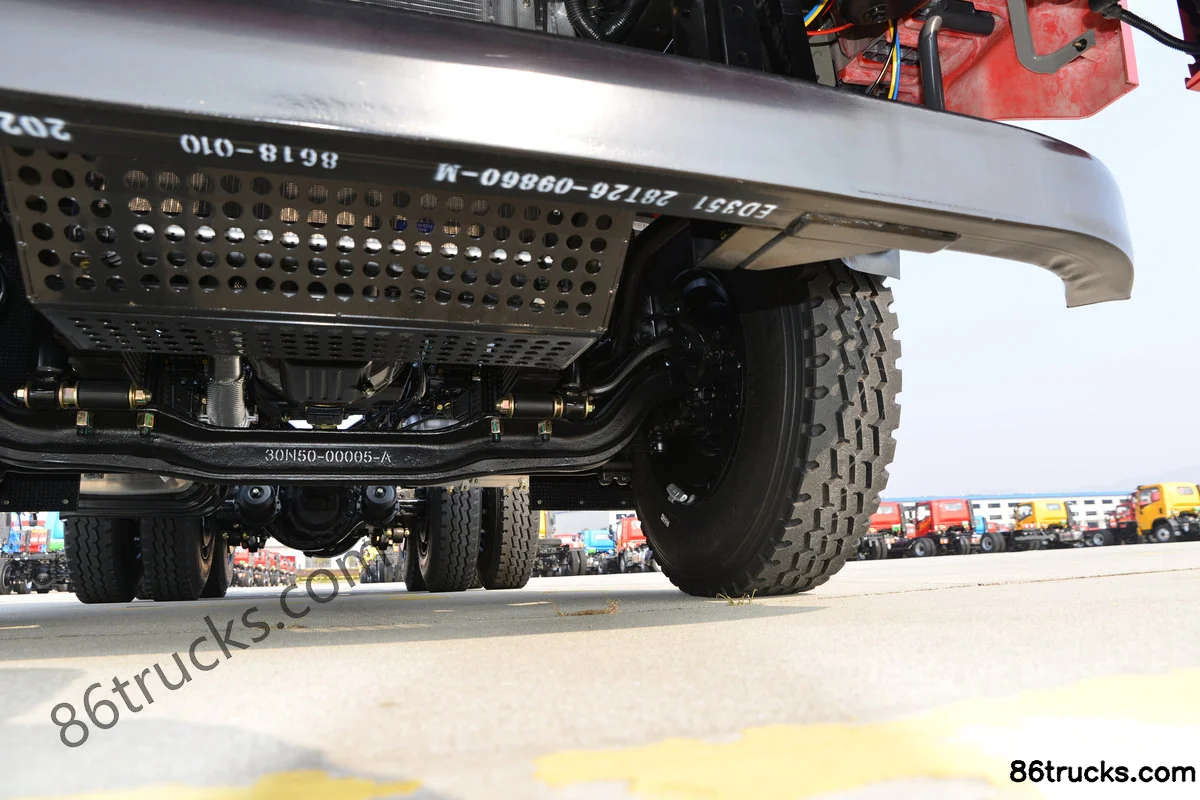

Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck Chassis (1) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck Chassis (2) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck?

Key specs of Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck: Drive: 6x4; Horsepower: 270 hp; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck suited for?

Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck differ from other variants in the same series?

Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck belongs to Sanhuan Shitong Haolong Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
